National Instruments FieldPoint cFP-20 Series Manuel utilisateur

FieldPoint

1cFP-20xx Quick Start Guide

National Instruments Corporation

cFP-20

Quick Start Guide

What You Need

to Get Set Up

• cFP-20

LabVIEW RT controller

• Mounting hardware (DIN rail,

panel-mount, or rack-mount

accessory)

• I/O module(s)

• cFP-BP-

backplane, connector

blocks, cables

• 11–30 VDC power supply

• Accessories: Ethernet cable,

number 2 Phillips screwdriver

• PC running Windows

• FieldPoint software 3.0.2 or later

• LabVIEW RT

Mount the Compact FieldPoint Backplane

You can mount the cFP-BP-

backplane on a 35 mm DIN rail, on a panel, or in a

standard 19 in. rack. Before using any of these mounting methods, record the serial

number from the back of the backplane.

Each set of mounting instructions in this document includes an instruction to connect

the protective earth (PE) ground terminal on the cFP-BP-

backplane to the system

safety ground. The backplane PE ground terminal has the following symbol stamped

beside it: . Connect the backplane PE ground terminal to the system safety ground

using 14 AWG (1.6 mm) wire with a ring lug. Use the 5/16 in. panhead screw shipped

with the backplane to secure the ring lug to the backplane PE ground terminal.

323334c.qxd 4/3/2003 4:19 PM Page 1

cFP-20xx Quick Start Guide ni.com

CAUTION Keep in mind these requirements for space and cabling clearance:

•Allow at least 51 mm (2 in.) all around the backplane for air circulation.

•Allow 38 mm (1.5 in.) below and 51 mm (2 in.) above the controller for

cabling clearance.

Cabling

Clearance

4 slots = 246 mm (9.68 in.)

8 slots = 441 mm (17.4 in.)

Cooling Outline

51 mm (2 in.)

Cooling Outline

51 mm (2 in.)

Min. 182 mm (7.18 in.)

106 mm (4.18 in.)

Cabling

Clearance

Cooling Outline

51 mm (2 in.)

All Around

4 slots = 246 mm (9.68 in.)

8 slots = 441 mm (17.4 in.)

127 mm

(5.00 in.)

Min. 165 mm

(6.50 in.)

323334c.qxd 4/3/2003 4:19 PM Page 2

3cFP-20xx Quick Start Guide

National Instruments Corporation

Mounting the Backplane on a Panel

A. Fasten the panel-mount plates to the back of the cFP-BP-

using a number 2 Phillips

screwdriver and the 8-32 ×5/16 in. countersink screws shipped with the kit.

CAUTION Do not use screws longer than 5/16 in. to fasten the panel-mount

plates to the backplane.

NATIONAL

INSTRUMENTS

102 mm

(4 in.)

457 mm (18 in.)

323334c.qxd 4/3/2003 4:19 PM Page 3

cFP-20xx Quick Start Guide ni.com

260 mm (10.25 in.)

102 mm

(4 in.)

104.78 mm

(4.1 in.)

63.50 mm

(2.5 in.)

22.23 mm

(0.9 in.)

33.15 mm

(1.3 in.)

129.54 mm

(5.1 in.)

311.40 mm

(12.3 in.)

387.60 mm

(15.3 in.)

407.80 mm

(16.1 in.)

127.00 mm

(5.0 in.)

440.94 mm

(17.4 in.)

323334c.qxd 4/3/2003 4:19 PM Page 4

5cFP-20xx Quick Start Guide

National Instruments Corporation

B. Bolt or screw the panel-mount accessory to a panel.

C. Connect the PE ground terminal on the cFP-BP-

to safety ground.

CAUTION Disconnect power before removing the backplane from the panel.

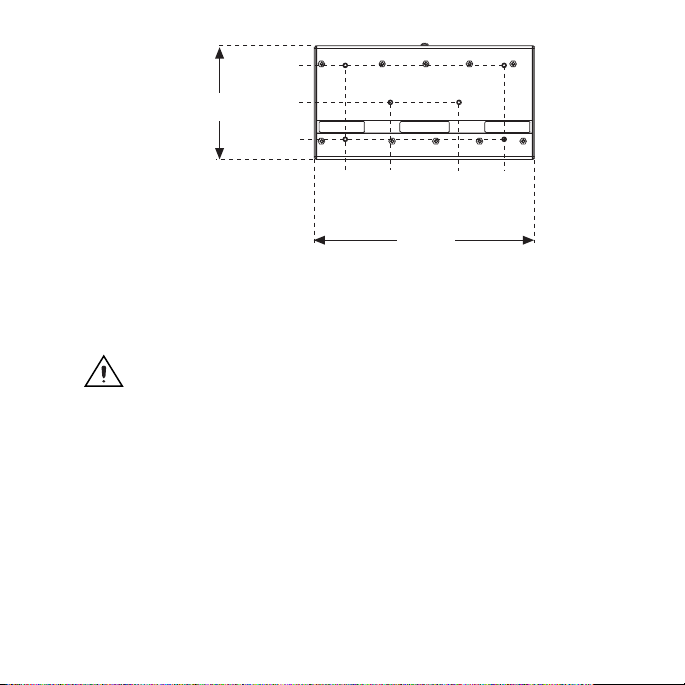

Mounting the Backplane on a DIN Rail

NI recommends DIN rail mounting for the cFP-BP-4 only. Use panel mounting or rack

mounting for the cFP-BP-8. The DIN rail mounting kit is NI part number 778614-01

A. Fasten the DIN rail clip to the cFP-BP-4 using a number 2 Phillips screwdriver and

the 8-32 ×5/16 in. countersink screws shipped with the clip.

104.74 mm

(4.1 in.)

63.46 mm

(2.5 in.)

127.00 mm

(5.0 in.)

22.19 mm

(0.9 in.)

34.04 mm

(1.3 in.)

84.84 mm

(3.3 in.)

161.04 mm

(6.3 in.)

211.84 mm

(8.3 in.)

245.87 mm

(9.6 in.)

323334c.qxd 4/3/2003 4:19 PM Page 5

cFP-20xx Quick Start Guide ni.com

B. Insert one edge of the DIN rail into the deeper opening of the DIN rail clip.

C. Press down firmly on the backplane to compress the spring until the clip locks in

place on the DIN rail.

D. Connect the PE ground terminal on the cFP-BP-4 to safety ground.

CAUTION Disconnect power before removing the backplane from the DIN rail.

CAUTION Do not use screws longer than 5/16 in. to fasten the DIN rail clip to

the backplane.

NATIONAL

INSTRUMENTS

323334c.qxd 4/3/2003 4:19 PM Page 6

7cFP-20xx Quick Start Guide

National Instruments Corporation

Mounting the Backplane in a Standard 19-in. Rack

A. Fasten the rack-mount bracket to the back of the cFP-BP-

using the captive

screws on the bracket.

NATIONAL

INSTRUMENTS

323334c.qxd 4/3/2003 4:19 PM Page 7

cFP-20xx Quick Start Guide ni.com

B. Bolt the rack-mount accessory to a standard 19-in. rack.

C. Connect the PE ground terminal on the cFP-BP-

to safety ground.

NATIONAL

INSTRUMENTS

CAUTION Disconnect power before removing the backplane from the bracket.

323334c.qxd 4/3/2003 4:19 PM Page 8

9cFP-20xx Quick Start Guide

National Instruments Corporation

Install the cFP-20

Controller on the Backplane

A. Make sure that no power is connected to the controller.

B. Make sure that the cFP-20

controller is right side up with the NI logo at the top,

and align the captive screws on the controller with the holes on the backplane.

C. Seat the card edge at the back of the controller in the card-edge connector on the

backplane.

D. Press the controller firmly to seat it on the backplane.

E. Using a number 2 Phillips screwdriver with a shank of at least 64 mm (2.5 in.) length,

tighten the captive screws to 1.1 N ⋅m (10 lb ⋅in.) of torque.

NATIONAL

INSTRUMENTS

323334c.qxd 4/3/2003 4:19 PM Page 9

cFP-20xx Quick Start Guide ni.com

Install I/O Modules on the Backplane

A. Align the captive screws on the I/O module with the holes on the backplane.

B. Press firmly to seat the I/O module on the backplane.

C. Using a number 2 Phillips screwdriver with a shank of at least 64 mm (2.5 in.) length,

tighten the captive screws to 1.1 N ⋅m (10 lb ⋅in.) of torque.

D. Repeat this procedure to install additional I/O modules on the backplane.

323334c.qxd 4/3/2003 4:19 PM Page 10
