National Instruments FieldPoint cFP-2120 Manuel utilisateur

QUICK START GUIDE

FieldPoint cFP-2120

Mount the Compact FieldPoint Backplane

You can mount the cFP-BP-

backplane on a 35 mm DIN rail, on a panel, or in a

standard 19 in. rack. Before using any of these mounting methods, record the

serial number from the back of the backplane.

Each set of mounting instructions in this document includes an instruction to

connect the protective earth (PE) ground terminal on the cFP-BP-

backplane to

the system safety ground. The backplane PE ground terminal has the following

symbol stamped beside it: . Connect the backplane PE ground terminal to the

system safety ground using 14 AWG (1.6 mm) wire with a ring lug. Use the

5/16 in. panhead screw shipped with the backplane to secure the ring lug to

the backplane PE ground terminal.

What You Need to Get Set Up

• cFP-2120 LabVIEW RT controller

• Mounting hardware (DIN rail, panel-

mount, or rack-mount accessory)

• I/O module(s)

• cFP-BP-

backplane, connector

blocks, cables

• 11–30 VDC power supply

• Accessories: Ethernet cable, number

2 Phillips screwdriver

• PC running Windows

• FieldPoint software 4.1.1 or later

• LabVIEW Real-Time Module

™

cFP-2120 Quick Start Guide 2 ni.com

Caution Keep in mind these requirements for space and cabling

clearance:

• Allow at least 51 mm (2 in.) all around the backplane for air

circulation.

• Allow 38 mm (1.5 in.) below and 51 mm (2 in.) above the controller

for cabling clearance.

Cabling

Clearance

4 slots = 246 mm (9.68 in.)

8 slots = 441 mm (17.4 in.)

Cooling Outline

51 mm (2 in.)

Cooling Outline

51 mm (2 in.)

Min. 182 mm (7.18 in.)

106 mm (4.18 in.)

Cabling

Clearance

Cooling Outline

51 mm (2 in.)

All Around

4 slots = 246 mm (9.68 in.)

8 slots = 441 mm (17.4 in.)

127 mm

(5.00 in.)

Min. 165 mm

(6.50 in.)

National Instruments Corporation 3 cFP-2120 Quick Start Guide

Caution If you are using UL Recognized I\O modules with the

Compact FieldPoint system, you must install the entire system in a

suitably rated, UL Listed NEMA or IP enclosure.

Caution NI recommends that you use one of the mounting systems

described in this document. If you decide to use a custom mounting

solution, make sure that the screws you use are short enough to fit in

the holes in the backplane. The screw holes are 5 mm (0.2 in.) deep.

cFP-2120 Quick Start Guide 4 ni.com

Mounting the Backplane on a Panel

A. Fasten the panel-mount plates to the back of the cFP-BP-

using a number

2 Phillips screwdriver and the 8-32 ×5/16 in. countersink screws shipped

with the kit.

Caution Do not use screws longer than 5/16 in. to fasten the panel-

mount plates to the backplane.

TIONAL

INSTRUMENTS

102 mm

(4 in.)

457 mm (18 in.)

National Instruments Corporation 5 cFP-2120 Quick Start Guide

260 mm (10.25 in.)

102 mm

(4 in.)

104.78 mm

(4.1 in.)

63.50 mm

(2.5 in.)

22.23 mm

(0.9 in.)

33.15 mm

(1.3 in.)

129.54 mm

(5.1 in.)

311.40 mm

(12.3 in.)

387.60 mm

(15.3 in.)

407.80 mm

(16.1 in.)

127.00 mm

(5.0 in.)

440.94 mm

(17.4 in.)

cFP-2120 Quick Start Guide 6 ni.com

B. Bolt or screw the panel-mount accessory to a panel.

C. Connect the PE ground terminal on the cFP-BP-

to safety ground.

Caution Disconnect power before removing the backplane from

the panel.

Mounting the Backplane on a DIN Rail

NI recommends DIN rail mounting for the cFP-BP-4 only. Use panel mounting

or rack mounting for the cFP-BP-8. The DIN rail mounting kit is NI part number

778614-01

A. Fasten the DIN rail clip to the cFP-BP-4 using a number 2 Phillips

screwdriver and the 8-32 ×5/16 in. countersink screws shipped with the

clip.

104.74 mm

(4.1 in.)

63.46 mm

(2.5 in.)

127.00 mm

(5.0 in.)

22.19 mm

(0.9 in.)

34.04 mm

(1.3 in.)

84.84 mm

(3.3 in.)

161.04 mm

(6.3 in.)

211.84 mm

(8.3 in.)

245.87 mm

(9.6 in.)

National Instruments Corporation 7 cFP-2120 Quick Start Guide

Caution Do not use screws longer than 5/16 in. to fasten the DIN rail

clip to the backplane.

B. Insert one edge of the DIN rail into the deeper opening of the DIN rail clip.

C. Press down firmly on the backplane to compress the spring until the clip

locks in place on the DIN rail.

D. Connect the PE ground terminal on the cFP-BP-4 to safety ground.

Caution Disconnect power before removing the backplane from the

DIN rail.

TIONAL

INSTRUMENTS

cFP-2120 Quick Start Guide 8 ni.com

Mounting the Backplane in a Standard 19-in. Rack

A. Fasten the rack-mount bracket to the back of the cFP-BP-

using the

captive screws on the bracket.

TIONAL

INSTRUMENTS

National Instruments Corporation 9 cFP-2120 Quick Start Guide

B. Bolt the rack-mount accessory to a standard 19-in. rack.

C. Connect the PE ground terminal on the cFP-BP-

to safety ground.

Caution Disconnect power before removing the backplane from the

DIN rail.

TIONAL

INSTRUMENTS

cFP-2120 Quick Start Guide 10 ni.com

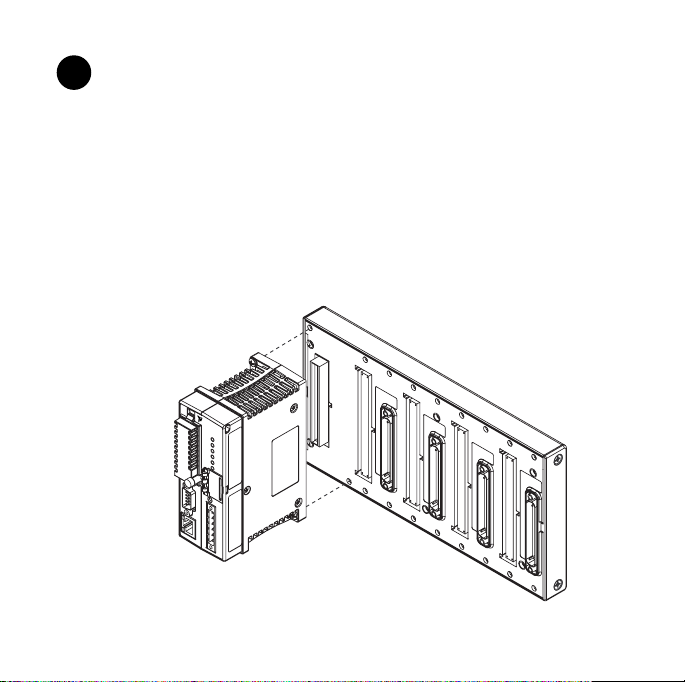

Install the cFP-2120 Controller on the Backplane

A. Make sure that no power is connected to the controller.

B. Make sure that the cFP-2120 controller is right side up with the NI logo at

the top, and align the captive screws on the controller with the holes on the

backplane.

C. Seat the card edge at the back of the controller in the card-edge connector

on the backplane.

D. Press the controller firmly to seat it on the backplane.

E. Using a number 2 Phillips screwdriver with a shank of at least 64 mm

(2.5 in.) length, tighten the captive screws to 1.1 N ⋅m (10 lb ⋅in.) of torque.

TIONAL

INSTRUMENTS
