OPERATING INSTRUCTIONS AND SPECIFICATIONS

CompactRIO NI cRIO-9012/9014

Intelligent Real-Time Embedded Controller for CompactRIO

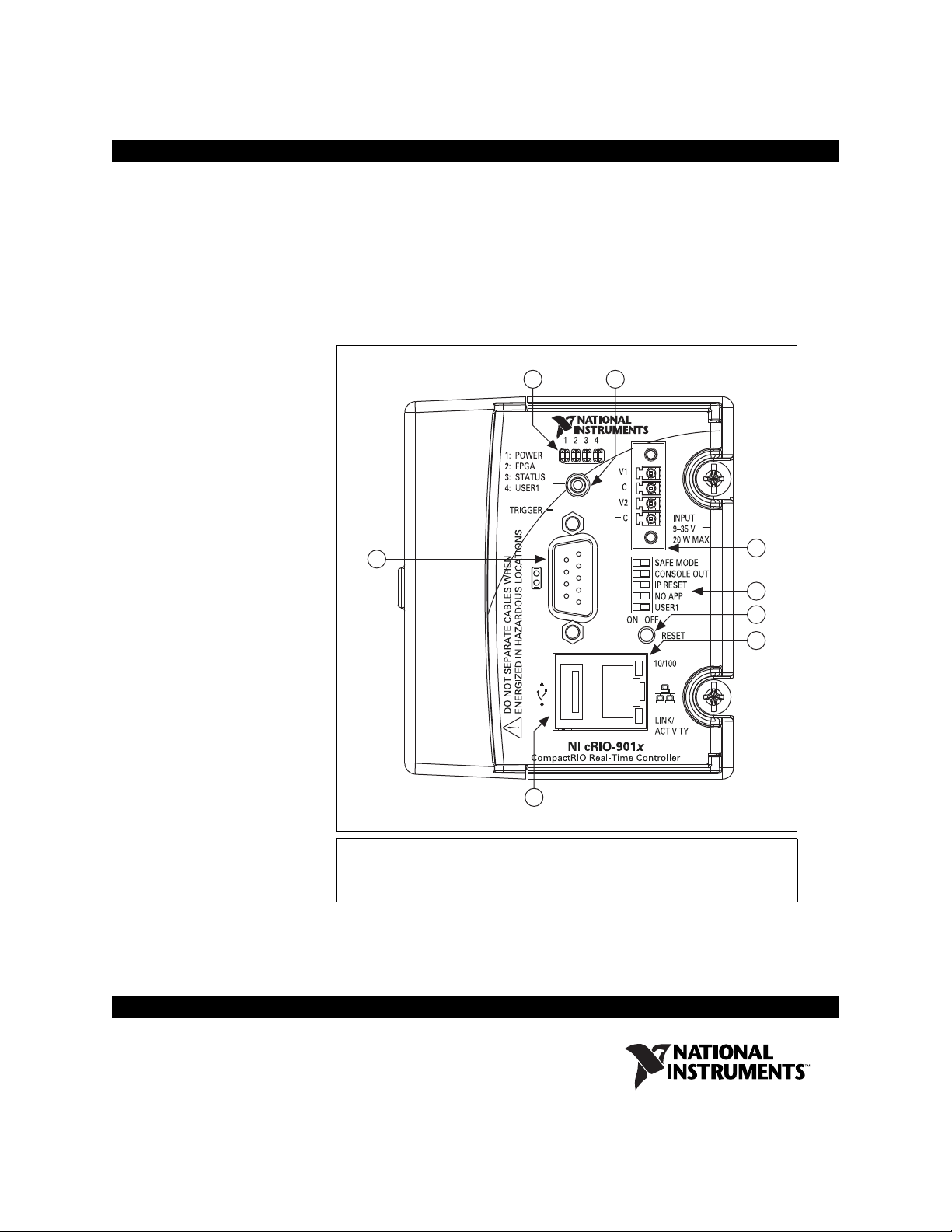

Figure 1. CompactRIO cRIO-9012/9014

1LEDs

2 SMB Connector

3 Power Connector

4 DIP Switches

5 Reset Button

6 RJ-45 Ethernet Port

7 USB Port

8 RS-232 Serial Port

™

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

cRIO-9012/9014 Operating Instructions and Specifications 2 ni.com

This document describes how to connect the NI cRIO-9012/9014 real-time

embedded controllers to networks and how to use the features of the

controllers. This document also contains specifications for the controllers.

Safety Guidelines

Operate the cRIO-9012/9014 only as described in these operating

instructions.

Safety Guidelines for Hazardous Locations

The cRIO-9012/9014 is suitable for use in Class I, Division 2, Groups A,

B, C, D, T4 hazardous locations; Class 1, Zone 2, AEx nA II T4 and Ex nA

II T4 hazardous locations; and nonhazardous locations only. Follow these

guidelines if you are installing the cRIO-9012/9014 in a potentially

explosive environment. Not following these guidelines may result in

serious injury or death.

Caution Do not disconnect the power supply wires and connectors from the controller

unless power has been switched off.

Caution Do not install or remove the controller unless power has been switched off.

Caution Substitution of components may impair suitability for Class I, Division 2.

Caution For Zone 2 applications, install the CompactRIO system in an enclosure rated to

at least IP 54 as defined by IEC 60529 and EN 60529.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

©National Instruments Corporation 3 cRIO-9012/9014 Operating Instructions and Specifications

Installing the Controller on the Chassis

Figure 2 shows the dimensions of the CompactRIO controller.

Figure 2. CompactRIO Controller, Front and Bottom View with Dimensions

1 M4 Thread

77.3 mm

(3.04 in.)

90.2 mm

(3.55 in.)

44.2 mm

(1.74 in.)

88.1 mm

(3.47 in.)

44.2 mm

(1.74 in.)

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

cRIO-9012/9014 Operating Instructions and Specifications 4 ni.com

Complete the following steps to install the controller on the chassis.

1. Make sure that no power is connected to the controller or the chassis.

2. Align the controller with the chassis as shown in Figure 3.

Figure 3. Installing the Controller on the Chassis (Eight-Slot Chassis Shown)

3. Slide the controller onto the controller slot on the chassis. Press firmly

to ensure the chassis connector and the controller connector are mated.

4. Using a number 2 Phillips screwdriver, tighten the two captive screws

on the front of the controller to 1.3 N · m (11.5 lb · in.) of torque.

1 Controller

2 Captive Screws

3 Controller Slot

4 Reconfigurable Embedded Chassis

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

©National Instruments Corporation 5 cRIO-9012/9014 Operating Instructions and Specifications

Connecting the Controller to a Network

Connect the controller to an Ethernet network using the RJ-45 Ethernet port

on the controller front panel. Use a standard Category 5 (CAT-5) or better

Ethernet cable to connect the controller to an Ethernet hub, or use an

Ethernet crossover cable to connect the controller directly to a computer.

Caution To prevent data loss and to maintain the integrity of your Ethernet installation,

do not use a cable longer than 100 m. If you are using 100 Mbps Ethernet, National

Instruments recommends using a CAT-5 or better shielded twisted-pair Ethernet cable.

If you need to build your own cable, refer to the Cabling section for more

information about Ethernet cable wiring connections.

The host computer communicates with the controller over a standard

Ethernet connection. If the host computer is on a network, you must

configure the controller on the same subnet as the host computer. If neither

the host computer nor the CompactRIO controller is connected to a

network, you can connect the two directly using a crossover cable.

If you want to use the controller on a subnet other than the one the host

computer is on, first connect the controller on the same subnet as the host

computer. Use DHCP to assign an IP address or reassign a static IP address

for the subnet where you want it to be and physically move it to the other

subnet. The first time you configure the controller, you must also install

software on it. Refer to the Measurement & Automation Explorer Help

for more information about configuring the controller in Measurement &

Automation Explorer (MAX). Contact your network administrator if you

need assistance configuring the host computer and controller on the same

subnet.

Wiring Power to the Controller

Caution You must install the controller on a CompactRIO chassis and tighten the captive

screws before you apply power to the controller. Installing the controller while power is

applied to it can cause damage to the chassis.

The controller requires an external power supply that meets the

specifications in the Power Requirements section. The controller filters and

regulates the supplied power and provides power for all of the I/O modules

in the chassis. You must connect a power supply to at least one pair of

V and C terminals. Optionally, you can connect a power supply to the

other pair of V and C terminals. The controller draws power from the

power supply with the higher voltage. The controller has one layer of

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

cRIO-9012/9014 Operating Instructions and Specifications 6 ni.com

reverse-voltage protection. Complete the following steps to connect power

supplies to the controller.

1. Connect the positive lead of the power supply to the V1 or V2 terminal

of the COMBICON power connector shipped with the controller, and

tighten the terminal screw. Figure 4 shows the terminal screws, which

secure the wires in the screw terminals, and the connector screws,

which secure the power connector on the controller.

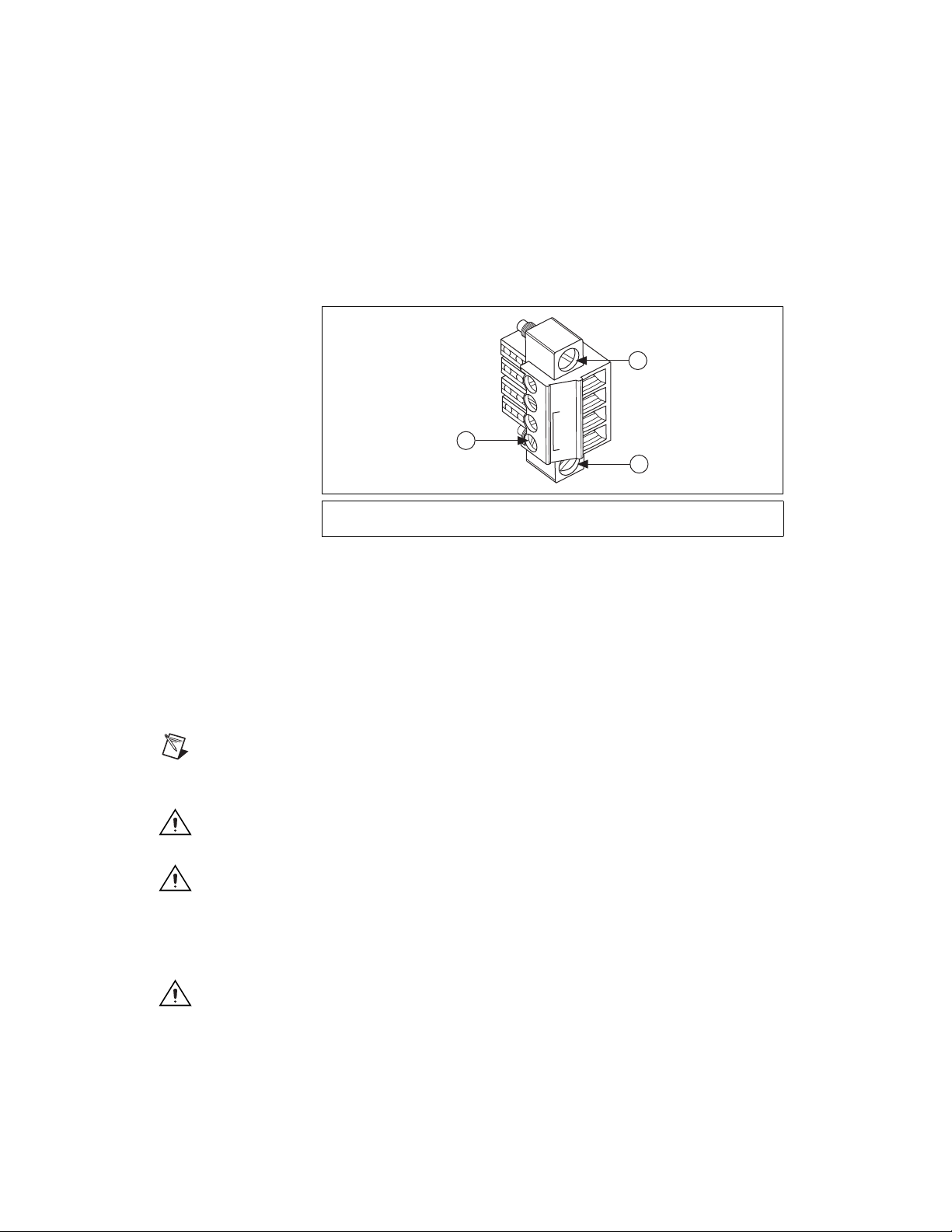

Figure 4. COMBICON Power Connector

2. Connect the negative lead of the power supply to one of the C terminals

of the power connector and tighten the terminal screw.

3. Optionally, you can connect the positive lead of another power supply

to the other V terminal and the negative lead to one of the C terminals.

You must install the ferrite across both pairs of wires.

4. Install the power connector on the front panel of the controller and

tighten the connector screws.

Note The controller draws power from either V1 or V2 depending on which terminal has

a higher voltage. It does not draw power from both terminals. The controller switches

between V1 and V2 without affecting operation.

Caution The C terminals are internally connected to each other. If you use two power

supplies, make sure that they share a common ground.

Caution The C terminals are internally connected to the controller chassis to prevent a

faulty ground connection from causing the chassis ground to float. If you reverse the input

voltage, the positive input voltage is connected directly to the chassis. The controller

has built-in reversed-voltage protection, but reversed voltage can damage connected

peripherals if the chassis ground is not reliably connected to earth ground.

Caution Do not tighten or loosen the terminal screws on the power connector while the

power connector is plugged into the controller or while the power supply is on.

1 Terminal Screws

2 Connector Screws

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

©National Instruments Corporation 7 cRIO-9012/9014 Operating Instructions and Specifications

Powering On the Controller

Plug in each power supply to the CompactRIO system. The controller runs

a power-on self test (POST). During the POST, the Power and Status LEDs

turn on. The Status LED turns off, indicating that the POST is complete. If

the LEDs do not behave in this way when the controller powers on, refer to

the Understanding LED Indications section.

You can configure the controller to launch an embedded stand-alone

application each time you boot the controller. Refer to the LabVIEW Help

for more information.

Connecting Serial Devices to the Controller

The controller has an RS-232 serial port to which you can connect devices

such as displays or input devices. Use the Serial VIs to read from and write

to the serial port. For more information about the Serial VIs, refer to the

LabVIEW Help.

Figure 5. Controller Serial Port

Table 1. DB-9 Pin Descriptions

Pin Signal

1DCD

2RXD

3TXD

4DTR

5GND

6DSR

7RTS

8CTS

9RI

Pin 1

Pin 5

Pin 6

Pin 9

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

cRIO-9012/9014 Operating Instructions and Specifications 8 ni.com

Using the Internal Real-Time Clock

The system clock of the cRIO-9012/9014 is synchronized with the internal

high-precision real-time clock at startup. This synchronization provides

timestamp data to the controller. You can also use the internal real-time

clock to correct drift of the system clock. Refer to the Specifications section

for the accuracy specifications of the real-time clock.

Using the SMB Connector for Digital I/O

You can use the SMB connector of the cRIO-9012/9014 to connect digital

devices to the controller. For example, if you connect the pulse-per-second

output of a GPS device to the SMB connector of the cRIO-9012/9014, you

can use the GPS device to correct for drift of the system clock.

For software that supports GPS drift-correction and other digital I/O

through the SMB connector, go to ni.com/info and enter the Info Code

criosmb.

Connecting USB Mass-Storage Devices to the Controller

The cRIO-9012/9014 supports common USB mass-storage devices such as

USB Flash drives and USB-to-IDE adapters formatted with FAT16 and

FAT32 file systems. You can connect USB mass-storage devices to the

cRIO-9012/9014 while the controller is operating. USB devices are

mapped to the U: drive in LabVIEW. The cRIO-9012/9014 does not

support other types of USB devices. Refer to the LabVIEW Help for more

information.

Configuring DIP Switches

Figure 6. Controller DIP Switches

All of the DIP switches are in the OFF position when the controller is

shipped from National Instruments.

SAFE MODE

CONSOLE OUT

IP RESET

NO APP

USER1

ON OFF

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

©National Instruments Corporation 9 cRIO-9012/9014 Operating Instructions and Specifications

SAFE MODE Switch

The position of the SAFE MODE switch determines whether the embedded

LabVIEW Real-Time engine launches when the controller boots. If the

switch is in the OFF position, the LabVIEW Real-Time engine launches.

Keep this switch in the OFF position during normal operation. If the switch

is in the ON position when the controller boots, the controller launches only

the essential services required for updating its configuration and installing

software. The LabVIEW Real-Time engine does not launch.

If the software on the controller is corrupted, you must put the controller

into safe mode and reformat the controller drive. You can put the controller

into safe mode by powering it up either with the SAFE MODE switch in

the ON position or with no software installed on the drive. Refer to the

Measurement & Automation Explorer Help for more information about

installing software on a controller and reformatting the drive on the

controller.

CONSOLE OUT Switch

With a serial-port terminal program, you can use the CONSOLE OUT

switch to read the IP address and firmware version of the controller. Use a

null-modem cable to connect the serial port on the controller to a computer.

Push the switch to the ON position. Make sure that the serial-port terminal

program is configured to the following settings:

• 9,600 bits per second

• Eight data bits

• No parity

• One stop bit

• No flow control

The serial-port terminal program displays the IP address and firmware

version of the controller, and alerts you when you connect an unsupported

USB device to the controller. Keep this switch in the OFF position during

normal operation.

IP RESET Switch

Push the IP RESET switch to the ON position and reboot the controller to

reset the IP address of the controller to 0.0.0.0. If the controller is on your

local subnet and the IP RESET switch is in the ON position, the controller

appears in MAX with IP address 0.0.0.0. You can configure a new

IP address for the controller in MAX. Refer to the Resetting the Network

Configuration of the Controller section for more information about

resetting the IP address. You also can push this switch to the ON position

to unlock a controller that was previously locked in MAX.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels National Instruments Contrôleurs

National Instruments

National Instruments PXIe-8820 Manuel utilisateur

National Instruments

National Instruments 3100 Manuel utilisateur

National Instruments

National Instruments NI PXI-8104 Manuel utilisateur

National Instruments

National Instruments PXI-8195 Manuel utilisateur

National Instruments

National Instruments PXI/CompactPCI Embedded Computer NI PXI-8108 Manuel utilisateur

National Instruments

National Instruments PXI Express Series Manuel utilisateur

National Instruments

National Instruments PCI-7342 Manuel utilisateur

National Instruments

National Instruments CompactRIO cRIO-9035 Manuel utilisateur

National Instruments

National Instruments PXIe-8861 Manuel utilisateur

National Instruments

National Instruments FW-7344 Instructions d'utilisation

National Instruments

National Instruments Two-Slot Embedded Controller NI PXI-8183 Manuel utilisateur

National Instruments

National Instruments cRIO-9063 Manuel utilisateur

National Instruments

National Instruments NI cRIO-9036 Manuel utilisateur

National Instruments

National Instruments GPIB GPIB-ENET/100 Manuel utilisateur

National Instruments

National Instruments cRIO-9023 Manuel utilisateur

National Instruments

National Instruments RMC-8356 Manuel utilisateur

National Instruments

National Instruments CompactRIO cRIO-9025 Manuel utilisateur

National Instruments

National Instruments CompactRIO cRIO-9002 Manuel utilisateur

National Instruments

National Instruments PXI Series Manuel utilisateur

National Instruments

National Instruments GPIB-232CT-A IBCL EPROM Manuel utilisateur

National Instruments

National Instruments cDAQ-9138 Manuel utilisateur

National Instruments

National Instruments PXI-665 Series Manuel utilisateur

National Instruments

National Instruments 9862 Manuel utilisateur

National Instruments

National Instruments PXIe-8840 Quad-Core Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
