HD60 USB 2.0 Pro Capture
NS110
User Manual
2
Contents
1. Hardware Installation............................................................ Error! Bookmark not defined.
1.1 Package Contents.................................................................................................3
1.2 System Requirements.......................................................................................... 3
1.3 Hardware Configuration...................................................................................... 4
1.4 Hardware Installation Diagram............................................................................5
2. Software Installation........................................................................................... 6
2.1 Screen Recorder 4 Installation.............................................................................6
2.2 PowerDirector 15 Installation..............................................................................9
3. FAQ..................................................................................................................... 12
3.1 How to check if the driver has been installed successfully or not ?...................12
3
1. Hardware Installation
1.1 Package Contents
Unpack your package and make sure that all items are intact. The following items should be included in
your package:
HD60 USB 2.0 Pro Capture
Quick Start Guide Download Helper
Software Serial Number
HDMI Cable
Micro USB Cable
1.2 System Requirements
Intel®Core™i5-3330 or above (recommend i7)
NVIDIA®GeForce®GTX 650 / AMD Radeon™R7 250X or above
4GB RAM
One available USB2.0 port
Independent Graphics card
Sound Card (AC97 compatible sound card)
1GB Free HD Space
CD-ROM Drive (For software installation)
Microsoft Windows 8 / 8.1 and Windows 10 operation system
Mac OS X 10.10 or later
4
1.3 Hardware Configuration
LED
Status
Color
LED Action
Standby ready
(UVC Mode/SD Card Mode)
Green
Light up constantly
No input source detected
Red
Light up constantly
Card Reader Mode ready
Blue
Light up constantly
UVC Mode is recording by AP
Green
Blink
Recording into SD Card
Green
Blink
Error
Red
Blink
Button and Switch
Item
Function Description
Top Button
Record in SD Card Mode / Go to Card Reader when pressing 3 sec in PC Mode
Side Button
Snapshot in SD Card Mode.
Mode Switch
Switch SD Card Mode / PC Mode
Micro SD Slot
Save snapshot pic and record video .
Micro SD Slot
Micro USB Slot
power input
Top button
Record
Mode switch
Side Button
Snapshot
HDMI input
5
1.4 Hardware Installation Diagram
-Standard video recording application on PC - (Needs an extra HDMI Splitter.)
-SD Card video recording application - (Needs an extra HDMI Splitter.)
6
2. Software Installation
2.1 Screen Recorder 4 Installation
Step 1 : Enter Narvitech.com
Go to the upper right corner click [Support]>[Download]. On the “Download”page, go
to [NS110]>[Software]>[CyberLink Screen Recorder 4], then click download.
Step 2 : After downloading, unzip the uncompressed file folder. Find and click on
[Setup.exe].
7
Step 3 : Select Language and Location.
Step 4 : Click Accept
Step 5 : Installation in progress.
8
Step 6 : Restart after installation and enter serial number.
Step 7 : Enter serial number and start to use [Screen Recorder 4].
9
2.2 PowerDirector 15 Installation
Step 1 : Enter Narvitech.com. Go to upper right corner [Support]>[Download]. Go to
[NS110]>[Software]>[CyberLink PowerDirector 15] on “Download”page, then
click download.
Step 2 : After downloading, unzip the compressed file folder. Find and click on [Setup.exe].
10

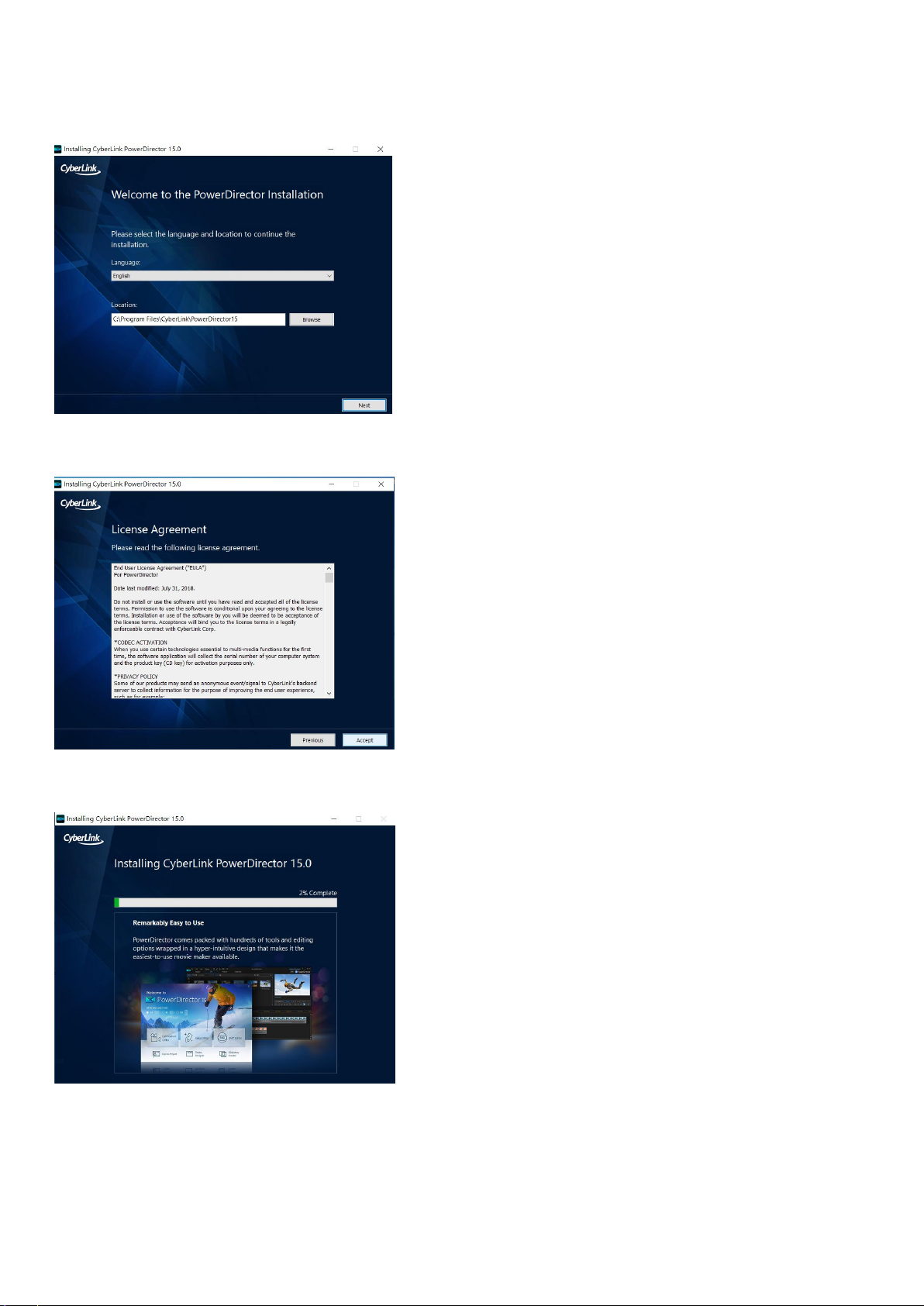

Step 3 : Select Language and Location.
Step 4 : Click Accept
Step 5 : Installation in progress.
