Napoleon B19NL-2 Manuel utilisateur

FRENCH PG. 9

W415-2781 / 10.09.19

ADD MANUAL TITLE

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030

Phone 1 (866) 820-8686 • www.napoleon.com • [email protected]

CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:

CSA 2.22 AND ANSI Z21.50 FOR VENTED DECORATIVE GAS APPLIANCES

INSTALLER:

Leave this manual with the appliance

CONSUMER:

Retain this manual for future reference

ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)

NATURAL GAS MODELS:

PROPANE GAS MODELS:

Product Name / Code

(MUST use title from Price Book)

ADD ____ ILLUSTRATED

ADD PRODUCT IMAGE

CSA /

INTERTEK

LOGO

SAFETY INFORMATION

- Do not store or use gasoline or other

ﬂammable vapors and liquids in the vicinity of

this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Immediately call your gas supplier from a

neighbour’s phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas supplier, call

the ﬁre department.

- Installation and service must be

performed by a qualiﬁed installer, service

agency, or the supplier.

This appliance may be installed in an aftermarket,

permanently located, manufactured home (USA

only) or mobile home, where not prohibited by

local codes.

This appliance is only for use with the type of gas

indicated on the rating plate. This appliance is

not convertible for use with other gases, unless

a certiﬁed kit is used.

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly

could result in serious injury, death, or

property damage.

WARNING

ENGLISH

$10.00

FOR INDOOR USE ONLY

IF INSTALLATION + OPERATION, ADD SERIAL

NUMBER LABEL HERE

IF SEPARATE MANUALS, ADD “PLACE

BARCODE LABEL ON THE OWNER’S MANUAL”

B19NL-2

B19PL-2

INSTALLATION AND

OPERATION MANUAL

Log Set Burner Assembly

For use with GD19-2 models

This burner and log assembly is approved for use with the GD19N/P-2 gas appliances only. It is not approved for

use as a stand alone appliance or in conjunction with any other appliance.

1.0 general information

2.0 installation

2.1 burner installation

1.0 general information 2

2.0 installation 2

2.1 burner installation 2

2.2 log placement 3

2.3 charcoal embers 4

2.4 glowing embers 4

3.0 adjustment 5

3.1 ﬂame characteristics 5

3.2 venturi adjustment 5

4.0 replacement parts 6

4.1 overview 7

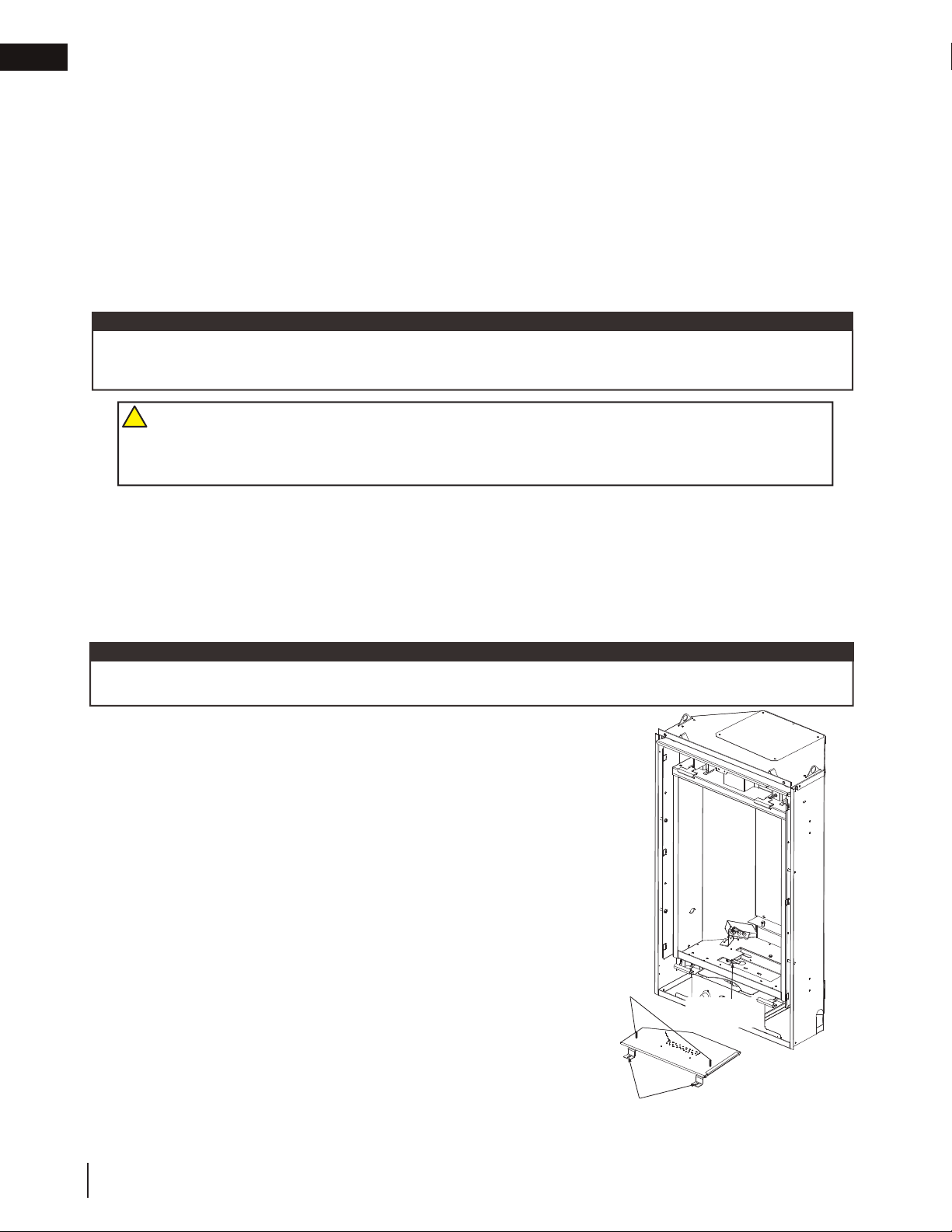

BURNER

ASSEMBLY

SCREW

LOCATIONS

ORIFICE

LOCATION

LOCATING

PINS

A. Install the burner assembly, ensuring that the venturi tube ﬁts

over the oriﬁce.

B. Secure using screws (supplied).

Before installing the burner, adjust the air shutter for the desired fuel and install the fuel conversion kit if re-

quired (see “venturi adjustment” section).

note:

WARNING:

This product can expose you to chemicals including lead and lead compounds,

which are known to the State of California to cause cancer, and chemicals including carbon

monoxide, which are known to the State of California to cause birth defects or other reproduc-

tive harm. For more information, go to www.P65Warnings.ca.gov.

W415-2781 / 10.09.19

table of contents

The information throughout this manual is believed to be correct at the time of printing. Wolf Steel Ltd. reserves

the right to change or modify any information within this manual at any time without notice. Changes, other

than editorial, are denoted by a vertical line in the margin.

note:

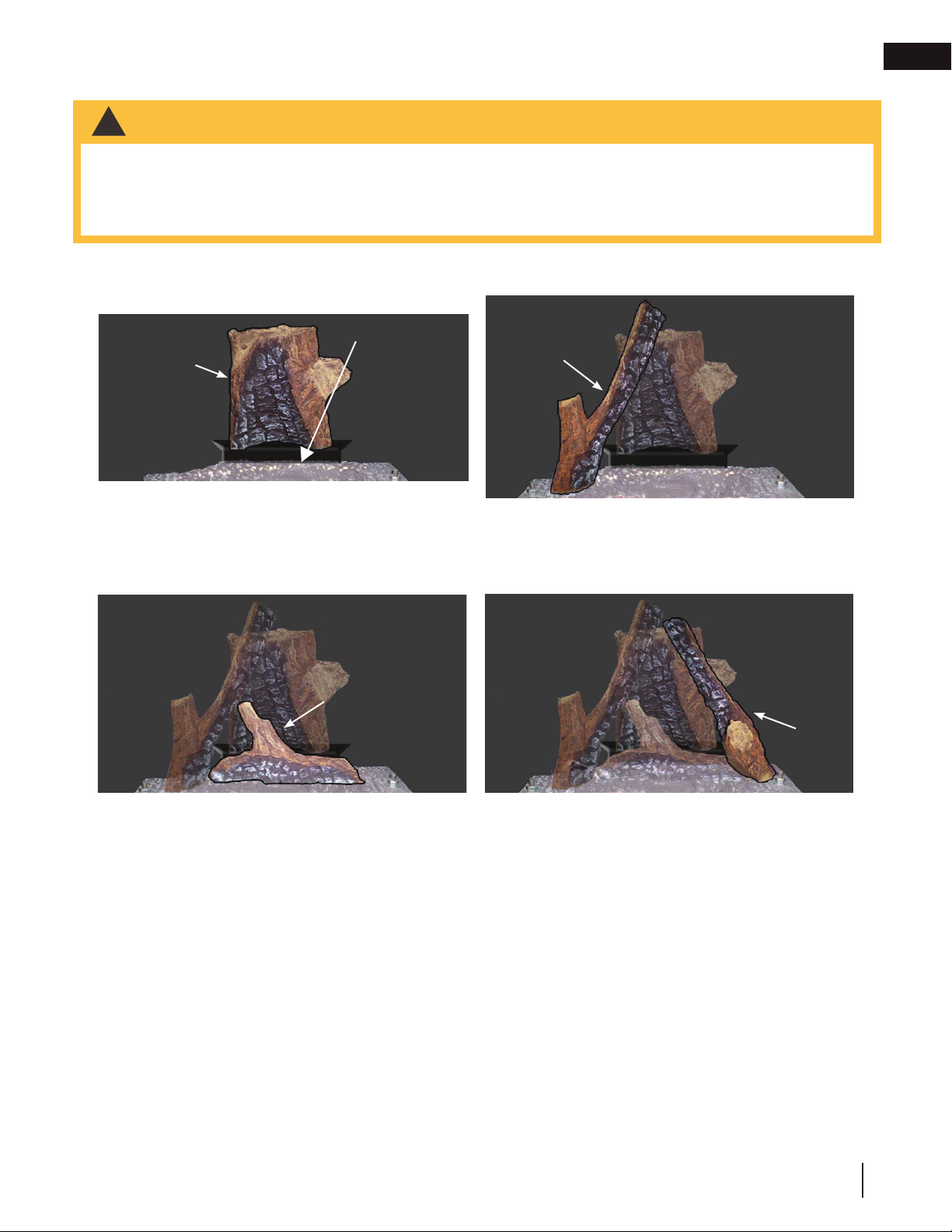

2.2 log placement

A. Place the rear log as shown, ensuring the

holes on the underside are placed onto the 2

pins of the log support.

In order to install the log set, the glass door must be removed (see “safety barrier and glass door” section in the

GD19N/P-2 manual).

C. Place the center log as shown, ensuring the

holes on the underside are placed onto the

two centre pins.

D. Place the hole in the underside of the right log

onto the locating pin on the burner base and

rest it against the rear log as shown.

E. Re-install the glass door.

B. Place the left log as shown, ensuring the hole

on the underside is placed onto the burner pin.

This will rest on the left side of the rear log.

!WARNING

• Failure to position the logs in accordance with these diagrams or failure to use only logs speciﬁcally approved

with this appliance may result in property damage or personal injury.

• Logs must be placed in their exact location in the appliance. Do not modify the proper log positions, since

appliance may not function properly and delayed ignition may occur.

• The logs are fragile and should be handled with care.

W415-2781 / 10.09.19 3

installation

BRACKET

2.4 glowing embers

2.3 charcoal embers

Randomly place the charcoal embers along the front and sides of the log support in a realistic manner.

Fine dust found in the bottom of the bag should not be used.

!WARNING

• Do not block or close off the burner ports. Blocked ports can cause an incorrect ﬂame pattern, carbon

deposits and delayed ignition.

• When supplied, charcoal embers, charcoal lumps and vermiculite are not to be placed on the burner.

note:

Charcoal embers are not to be placed on the burner.

ear the embers into pieces and loosely layer above the burner ports covering the burner area. Care should be

taken to shred the embers into thin, small irregular pieces as only the exposed edges of the ﬁbre hairs will glow.

The ember material will only glow when exposed to direct ﬂame; however, care should be taken to not

lock off the burner ports.

Blocked burner ports can cause an incorrect ﬂame pattern, carbon deposits and delayed ignition. PHAZER™

logs glow when exposed to direct ﬂame. Use only certiﬁed “glowing embers” and PHAZER™logs available from

your local authorized dealer / distributor.

!WARNING

• Completely blocking the burner ports can cause an incorrect ﬂame pattern, carbon deposits and delayed

ignition.

W415-2781 / 10.09.19

installation

Air Shutter Openings

P 1/16”

NG 1/32”

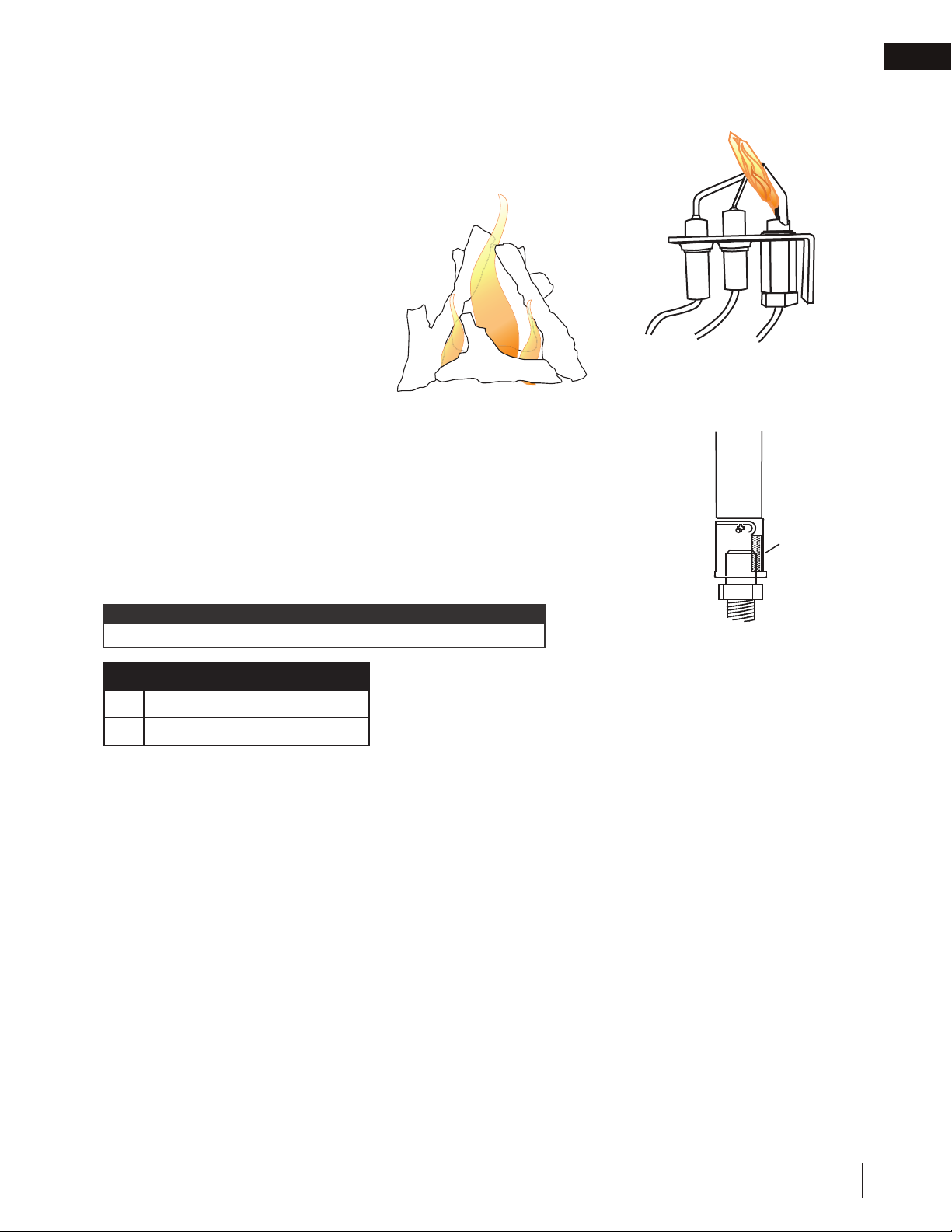

3.0 adjustment

3.1 ﬂame characteristics

3.2 venturi adjustment

It’s important to periodically perform a visual check of

the pilot and burner ﬂames. Compare them to the

illustration provided. If any ﬂames appear abnormal,

call a service person.

This appliance has an air shutter that has been factory set open according to

the chart below:

Regardless of venturi orientation, closing the air shutter will cause a more

yellow ﬂame, but can lead to carbonization. Opening the air shutter will cause

a more blue ﬂame, but can cause ﬂame lifting from the burner ports. The ﬂame

may not appear yellow immediately; allow 15 to 30 minutes for the ﬁnal ﬂame

colour to be established.

AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED

INSTALLER.

AIR

SHUTTER

OPENING

VENTURI

BURNER

ORIFICE

It is important that the oriﬁce is securely inserted into the venturi.

note:

W415-2781 / 10.09.19 5

Installation and repairs must be performed by a qualiﬁed installer, service agency, or the supplier.

note:

W415-2781 / 10.09.19

4.0 replacement parts

!WARNING

• Failure to position the parts in accordance with this manual or failure to use only parts speciﬁcally approved

with this appliance may result in property damage or personal injury.

Contact your dealer for questions concerning prices and policies on replacement parts. Normally, all parts can

be ordered through your Authorized dealer / distributor.

For warranty replacement parts, a photocopy of the original invoice will be required to honour the

claim.

When ordering replacement parts always give the following information:

• Model & Serial Number of appliance

• Installation date of appliance

• Part number

• Description of part

• Finish

Parts, part numbers, and availability are subject to change without notice.

Parts identiﬁed as stocked will be delivered within 2 to 5 business days for most delivery

destinations.

Parts not identiﬁed as stocked will be delivered within a 2 to 4 week period, for most cases.

Parts identiﬁed as ‘SO’ are special order and can take up to 90 days for delivery.

W415-2781 / 10.09.19 7

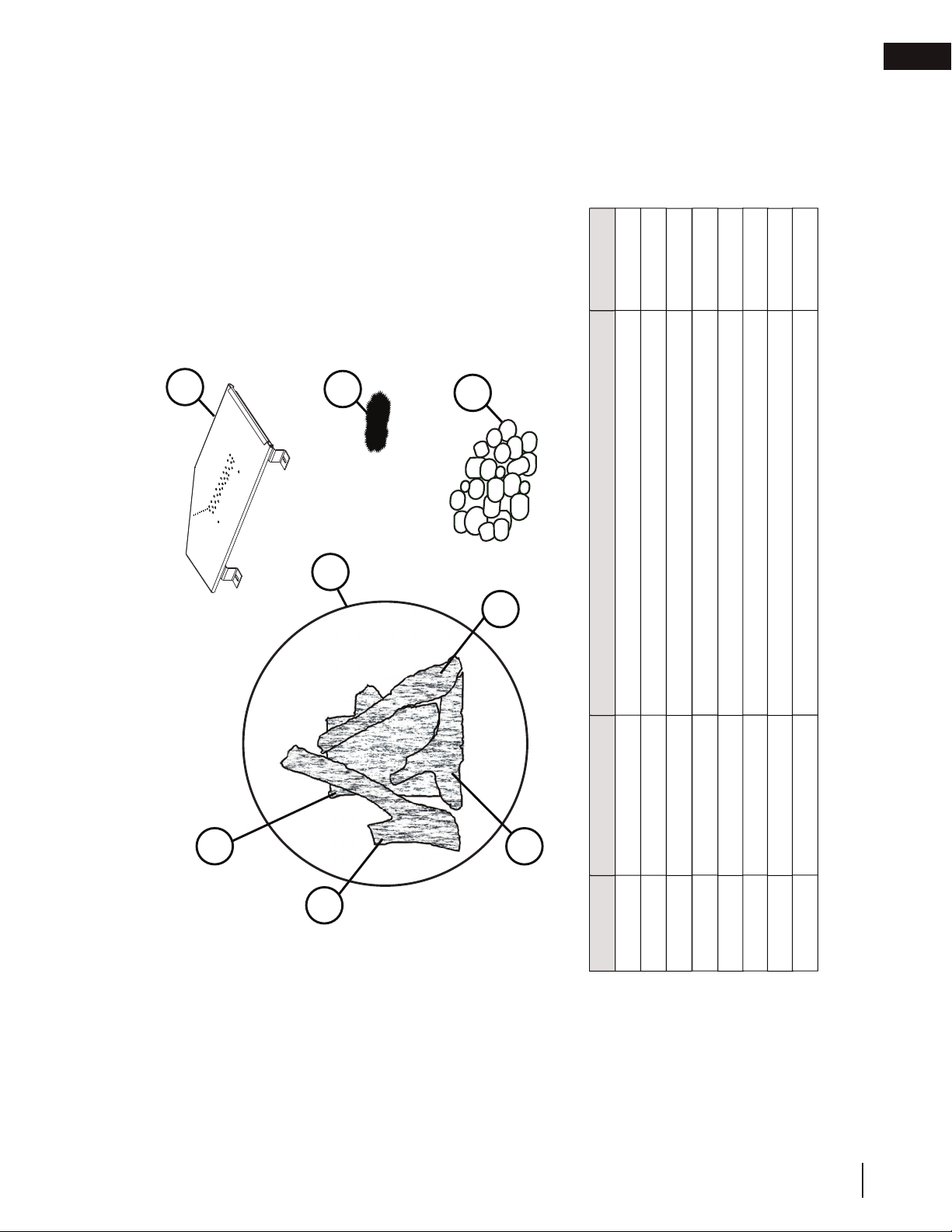

replacement parts

Ref. No. Part No. Description Stocked

3 W135-0323

W135-0324

W135-0322 Log #1, rear

Log #2, right

Log #3, left Yes

W135-0325

GL-662

W010-1760

Log #3, centre

Log set

Pan burner assembly

W361-0016

W550-0001

Glowing embers

Charcoal embers

Yes

4.1 overview

NAPOLEON CELEBRATING OVER 40 YEARS

OF HOME COMFORT PRODUCTS

OOOOO

7200, Route Transcanadienne, Montréal, Québec H4T 1A3

24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8

214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8

103 Miller Drive, Crittenden, Kentucky, USA 41030

Phone: 1-866-820-8686

napoleon.com

FRANÇAIS

W415-2781 / 10.09.19

ADD MANUAL TITLE

ADD PRODUCT CODE HERE (TRADE GOTHIC LT STD FONT)

Product Name / Code

(MUST use title from Price Book)

ADD ____ ILLUSTRATED

ADD PRODUCT IMAGE

CSA /

INTERTEK

LOGO

$10.00

MODÈLES DE GAZ NATUREL

MODÈLES DE PROPANE

INSTALLATEUR:

Laissez ce manuel avec l’appareil

PROPRIÉTAIRE:

Conservez ce manuel pour consultation

ultérieure

CONSIGNES DE SÉCURITÉ

- N’entreposez pas et n’utilisez pas d’essence

ou autres liquides et vapeurs inﬂammables à

proximité de cet appareil ou tout autre appareil.

- QUE FAIRE SI VOUS DÉTECTEZ UN

ODEUR DE GAZ:

• N’allumez aucun appareil.

• Ne touchez à aucun interrupteur

électrique; n’utilisez aucun téléphone dans

votre immeuble.

• Appelez immédiatement votre fournisseur

de gaz d’un téléphone voisin. Suivez ses

instructions.

• Si vous ne pouvez pas rejoindre votre

fournisseur de gaz, appelez le service des

incendies.

- L’installation et l’entretien doivent être faits par

un installateur qualiﬁé, une agence d’entretien

ou le fournisseur.

Cet appareil peut être installé dans une maison

préfabriquée (mobile) déjà installée à demeure

si les règlements locaux le permettent.

Cet appareil doit être utilisé uniquement

avec le type de gaz indiqué sur la plaque

d’homologation. Cet appareil ne peut être

converti à d’autres gaz, sauf si une trousse de

conversion est utilisée.

RISQUE D’INCENDIE OU D’EXPLOSION

Incapacité à suivre ces avertissements

exactement peuvent entraîner de grave

blessures, des pertes de vie ou des

dommages matériels.

AVERTISSEMENT!

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030

Téléphone 1(866)820-8686 • www.napoleon.com • [email protected]

CERTIFIÉ SELON LES NORMES NATIONALES CANADIENNES ET AMÉRICANES:

CSA 2.22 ET ANSI Z21.50 POUR LES APPAREILS À GAZ DÉCORATIF À ÉVACUATION

POUR USAGE INTÉRIEUR SEULEMENT

FRANÇAIS

IF INSTALLATION + OPERATION, ADD SERIAL

NUMBER LABEL HERE

IF SEPARATE MANUALS, ADD “PLACE

BARCODE LABEL ON THE OWNER’S MANUAL”

B19NL-2

B19PL-2

MANUEL D’INSTALLATION

ET D’OPÉRATION

Ensemble de Brûleur

avec Bûches

Pour utilisation avec modèles GD19-2

Cet ensemble de bûches et brûleur est approuvé pour une utilisation dans les appareil de chauffage au gaz

GD19N/P-2 seulement. Il n’est pas approuvé pour utilisation comme appareil autonome ou avec n’importe quel

autre appareil.

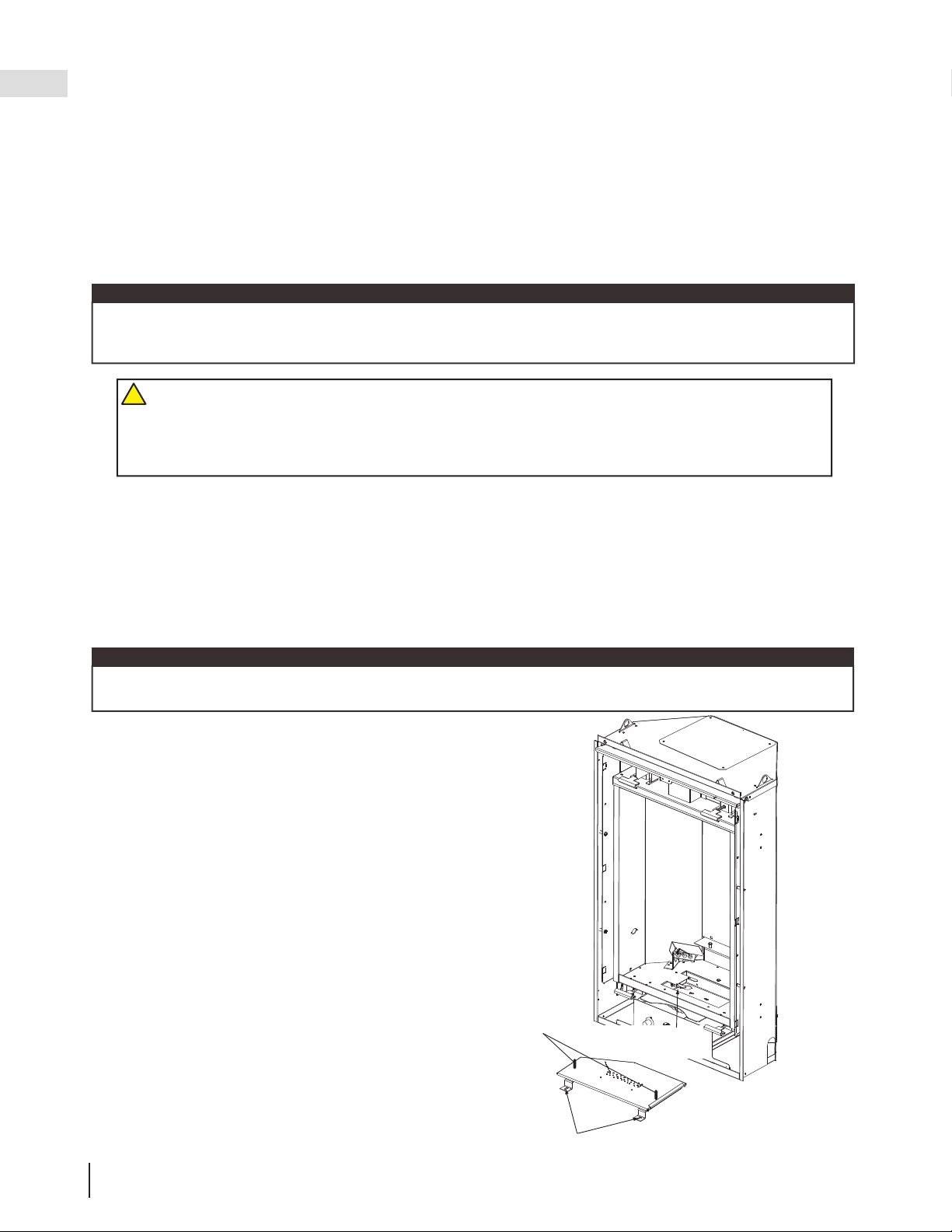

ASSEMBLAGE DU

BRÛLEUR

EMPLACEMENTS

DES VIS

EMPLACEMENT

DE L'INJECTEUR

PINS DE

LOCALISATION

AVERTISSEMENT:

Ce produit peut vous exposer à des substances chimiques incluant le

plomb et les composés de plomb qui, selon l’État de Californie, causeraient le cancer, et des

substances chimiques incluant le monoxyde de carbone qui, selon d’État de Californie, cause-

raient des malformations congénitales ou autres dangers pour la reproduction.

Pour de plus amples renseignements, visitez le www.P65Warnings.ca.gov.

W415-2781 / 10.09.19

table des matières

1.0 information générale

1.1 installation du brûleur

1.0 information générale 10

2.0 installation 10

1.1 installation du brûleur 10

2.1 disposition des bûches 11

2.2 braises de charbon de bois 12

2.3 braises incandescentes 12

3.0 réglages 13

3.1 caractéristiques de la ﬂamme 13

3.2 réglage du venturi 13

4.0 pièces de rechange 14

4.1 vue d’ensemble 15

A. Remettez en place le brûleur en vous assurant que le venturi

est bien placé par-dessus l’injecteur de brûleur.

B. Fixez à l’aide des vis (fournies).

note:

L’information contenue dans ce manuel est jugée correcte au moment de l’impression. Wolf Steel Ltd. se

réserve le droit de modiﬁer ou de modiﬁer toute information contenue dans ce manuel à tout moment sans

préavis. Les modiﬁcations, autres que les éditoriaux, sont désignées par une ligne verticale dans la marge.

note:

Avant d’installer le brûleur, réglez le volet d’air en fonction du type de combustible désiré. Si nécessaire,

installez un ensemble de conversion (voir la section « réglage du venturi »).

2.0 installation

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Napoleon Accessoires de cheminée

Napoleon

Napoleon GD862KT Manuel utilisateur

Napoleon

Napoleon W175-0284 Manuel utilisateur

Napoleon

Napoleon AK8 Manuel utilisateur

Napoleon

Napoleon GD861KT Manuel utilisateur

Napoleon

Napoleon ROGUE SE625-1 Manuel utilisateur

Napoleon

Napoleon FTD42BK Manuel utilisateur

Napoleon

Napoleon NEFTK30BK-3828 Manuel utilisateur

Napoleon

Napoleon DBPAX36 Manuel utilisateur

Napoleon

Napoleon W175-0681 Manuel utilisateur

Napoleon

Napoleon NEFP33-0114M Manuel utilisateur

Napoleon

Napoleon GPFTR Manuel utilisateur

Napoleon

Napoleon FPGI30 Manuel utilisateur

Napoleon

Napoleon NCEX36 Manuel utilisateur

Napoleon

Napoleon GSS48 Manuel utilisateur

Napoleon

Napoleon GS67-1 Manuel utilisateur

Napoleon

Napoleon RP6 Manuel utilisateur

Napoleon

Napoleon NP841KT Manuel utilisateur

Napoleon

Napoleon LPS62 Manuel utilisateur

Napoleon

Napoleon CISI3BK Manuel utilisateur

Napoleon

Napoleon WHD31 Manuel utilisateur

Napoleon

Napoleon LEGEND Series Manuel utilisateur

Napoleon

Napoleon BHD4 SEE-THRU Manuel utilisateur

Napoleon

Napoleon SBK4F4B3 Manuel utilisateur

Napoleon

Napoleon HD35 Manuel utilisateur

Manuels Accessoires de cheminée populaires d'autres marques

Valor

Valor L2 1700K Manuel utilisateur

Exodraft

Exodraft Xzense Manuel utilisateur

Whalen

Whalen Ruso MNFP62BF23-6 Manuel utilisateur

Lopi

Lopi Hearthview 864 Manuel utilisateur

Woodstock Soapstone

Woodstock Soapstone Fireview 201 Manuel utilisateur

EdilKamin

EdilKamin SERBATOIO 250 Guide de démarrage rapide

Bronpi

Bronpi KIT-1 Manuel utilisateur

Town & Country Fireplaces

Town & Country Fireplaces 22150051 Manuel utilisateur

Travis Industries

Travis Industries 33 DVI Manuel utilisateur

Superior

Superior ASD3628-TI Manuel utilisateur

pleasant hearth

pleasant hearth OFP28WG Manuel utilisateur

IHP

IHP Astria Series Manuel utilisateur

Firegear

Firegear FG-H-2110SS Manuel utilisateur

Nibe

Nibe Contura C i31 Manuel utilisateur

kozy heat

kozy heat KZK-052 Manuel utilisateur

SimpliFire

SimpliFire SF-WM36 Manuel utilisateur

Bluegrass Living

Bluegrass Living BC18NR Guide de démarrage rapide

pleasant hearth

pleasant hearth IRIS SCROLL Manuel utilisateur
