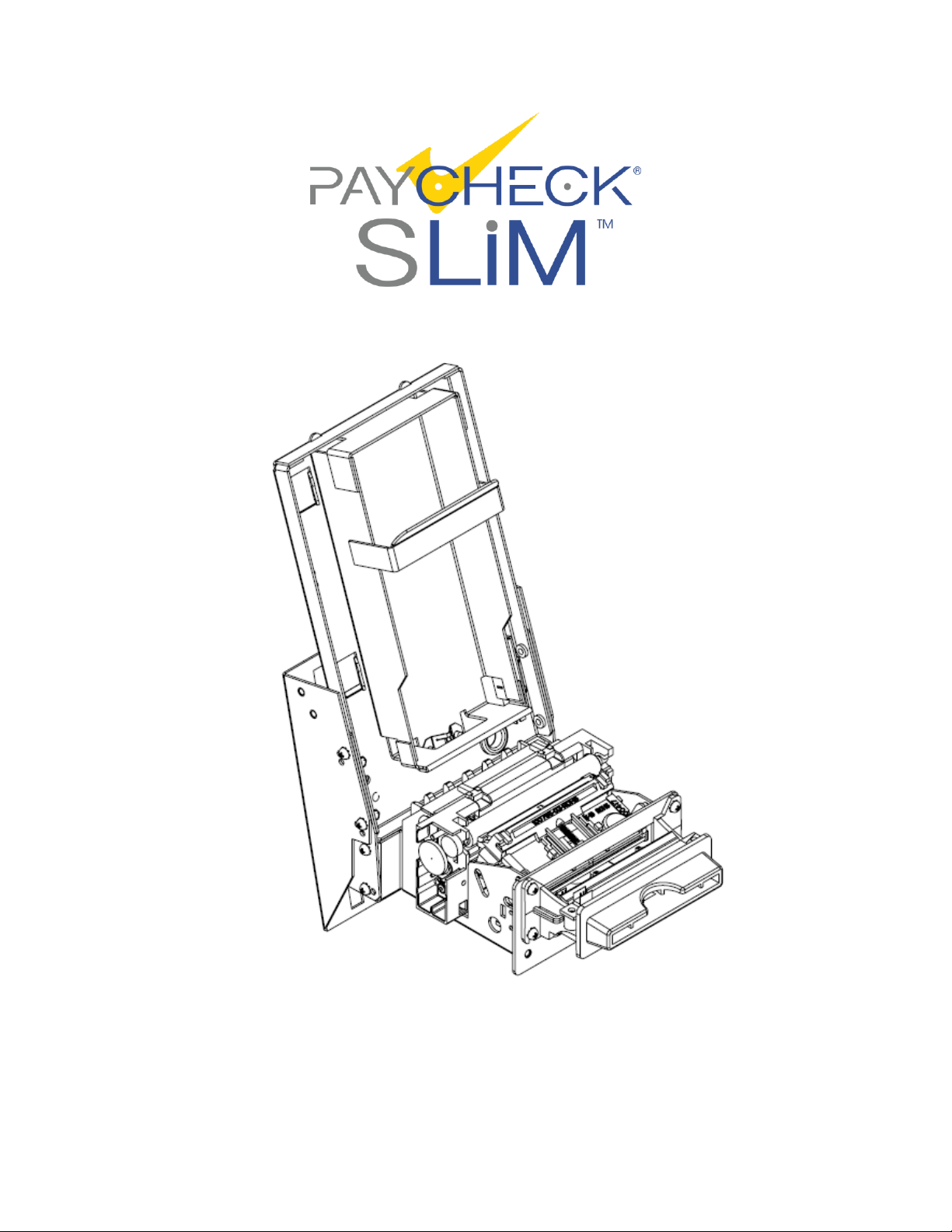

Nanoptix PAYCHEK SLIM Manuel utilisateur

Owner’s Manual

First Edition: January 2007

Latest Update August 2011

Document #979000-0000R

979000-0000R

August 2011

Legal Notices

Disclaimer

Information in this document is subject to change without notice. Consult your Nanoptix Inc. sales

representative for information that is applicable and current. Nanoptix Inc. reserves the right to

improve products as new technology, components, software, and firmware become available.

No part of this document may be reproduced or transmitted in any form or by any means,

electronic or mechanical, for any purpose without the express written permission of Nanoptix Inc.

Dieppe, New Brunswick Canada

Printed in Canada

Confidential, Unpublished

Property of Nanoptix Inc.

Trademarks

Epson is registered trademark of Epson Corporation.

Windows is registered trademark of Microsoft Corporation.

Nanoptix is a trademark. Other trademarks and registered trademarks are the property of their

respective holders.

Federal Communications Commission (FCC)

Radio Frequency Interference Statement

Warning

Changes or modifications to this unit not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Information to the User

This equipment must be installed and used in strict accordance with the manufacturer's

instructions. However, there is no guarantee that interference to radio communications will not

occur in a particular commercial installation. If this equipment does cause interference, which can

be determined by turning the equipment off and on, the user is encouraged to contact Nanoptix

Inc. immediately.

Nanoptix Inc. is not responsible for any radio or television interference caused by unauthorized

modification of this equipment or the substitution or attachment of connecting cables and

equipment other than those specified by Nanoptix Inc. The correction of interferences caused by

such unauthorized modification, substitution or attachment will be the responsibility of the user.

979000-0000R

August 2011

iii

In order to ensure compliance with the Product Safety, FCC and CE marking requirements, you

must use the power supply, power cord, and interface cable which were shipped with this product

or which meet the following parameters:

Power Supply

A UL Listed power supply with standard 60Hz-50Hz, 100-240VAC input and 24VDC output

equipped with AC line filtering, over-current and short-circuit protection must be used.

Use of this product with a power supply other than the Nanoptix Inc. power supply will require you

to test the power supply and Nanoptix Inc. printer for FCC and CE mark certification.

Communication Interface Cable

An approved Nanoptix interface cable must be used with this product. Use of a cable other than

Nanoptix approved product will require that you test the cable with the Nanoptix Inc. printer and

your system for FCC and CE mark certification.

Power Cord

A UL listed, detachable power cord must be used. A power cord with Type SVT marking must be

used. For applications outside the North America, power cords that meet the particular country’s

certification and application requirements should be used.

Use of a power cord other than described here may result in a violation of safety certifications

that is in force in the country of use.


979000-0000R
August 2011

iv


Table of Contents
1. About the Printer.................................................................... 1
1.1 Description of Printer ...................................................................................1
1.2 General specifications..................................................................................2
1.3 Printer Controls.............................................................................................3
Printer Reset (Service use only) .......................................................................................... 3
Paper Feed Button................................................................................................................. 4
LED.......................................................................................................................................... 5
1.4 Changing Paper ............................................................................................6
1.5 Testing the Printer ........................................................................................7
1.6 Troubleshooting the Printer.........................................................................8
Troubleshooting with LED.................................................................................................... 8
Printing Problems.................................................................................................................. 8
Printer Does Not Work .......................................................................................................... 9
2. Media and Supplies Guide................................................... 10
2.1 Media Specifications ..................................................................................10
2.2 Ordering Thermal Paper.............................................................................10
2.3 Ordering Miscellaneous Supplies .............................................................11
Power Supply and Power Cord .......................................................................................... 11
Ordering Communication Cables....................................................................................... 11
Communication Cables Pin-Out......................................................................................... 12
APPENDIX A: Mechanical Drawings............................................ 13

979000-0000R

August 2011

Figures

FIGURE 1: NANOPTIX PAYCHECK SLIM PRINTER................................................................................. 1

FIGURE 2: PRINTER RESET ................................................................................................................ 3

FIGURE 3: PAPER FEED BUTTON........................................................................................................ 4

FIGURE 4: LED POSITIONS................................................................................................................. 5

FIGURE 5: TEST TICKET ..................................................................................................................... 7

FIGURE 6: SIDE VIEW -MOUNTED IN POSITION A .............................................................................. 13

FIGURE 7: SIDE VIEW -MOUNTED IN POSITION B .............................................................................. 14

FIGURE 8: SIDE VIEW -MOUNTED IN POSITION C .............................................................................. 15

FIGURE 9: FRONT VIEW.................................................................................................................... 16

FIGURE 10: BACK VIEW................................................................................................................... 17

979000-0000R

August 2011

Tables

TABLE 1: SPECIFICATION................................................................................................................... 2

TABLE 2: TROUBLESHOOTING WITH LED............................................................................................ 8

TABLE 3: TROUBLESHOOTING PRINTING PROBLEMS ........................................................................... 8

TABLE 4: PRINTER DOES NOT WORK ................................................................................................. 9

TABLE 5: ORDERING THERMAL PAPER............................................................................................. 10

TABLE 6: PART NUMBERS................................................................................................................ 11

TABLE 7: COMMUNICATION CABLES PART NUMBERS........................................................................ 11

TABLE 8: 14-PIN RS-232 UNIVERSAL INTERFACE PIN-OUT............................................................... 12

TABLE 9: PIN-OUT AND SIGNALS OF FRONT MOLEX (FOR BEZEL)...................................................... 12

979000-0000R

August 2011

1.About the Printer

1.1 Description of Printer

The Nanoptix PayCheck Slim Printer is extremely fast, quiet, and very reliable. With

thermal printing technology, there is no ribbon cassette to change, and paper loading is

very simple. The printer’s intuitive design enables it to fit in very narrow cabinets.

Figure 1: Nanoptix PayCheck Slim Printer

979000-0000R

August 2011

1.2 General specifications

Print Method

Direct Thermal

Resolution

8 dot/mm (203 dpi)

Print Width

64mm

Paper Width

65mm

Cartridge Size

200

Operating Temperature

0° to 50° C

Storage Temperature

-20° to 60° C

Operating Relative Humidity

5 to 90% RH at 50°C (non-condensing)

Communication Interface Options

Serial and USB

Memory/Firmware

8MB RAM, 2MB Flash and 1MBit EEPROM

Resident Character Sets

Arial Bold (6 sizes)

Note: Other Character sets can be programmed

quickly

Integrated Bar Codes

Interleaved 2 of 5, Code 39, Code 93, UPC-A &

UPC-E, Codabar, EAN 8 & EAN 13, Code 128.

Note: Other Bar Codes can be programmed

quickly

Speed

Up to 200 mm/second (monochrome)

Up to 125 mm/second (two-color mode)

Sensors

•Paper in

•Tray open

•Top of form

•Paper low

Human Interface

Drop-in paper loading, status LED, paper feed

button

Dimensions

120mm width x 248.5mm height x 129mm depth

Weight

1.215 Kg

Table 1: Specification

979000-0000R

August 2011

1.3 Printer Controls

Printer Reset (Service use only)

To reset the printer, simply unplug and plug the cable. Once plugged in, the printer goes

through a startup routine and resets itself.

Figure 2: Printer Reset

979000-0000R

August 2011

Paper Feed Button

Press on the Paper Feed Button to advance the paper. The paper will automatically feed.

Figure 3: Paper Feed Button
