Nady Systems MRX-16 Manuel utilisateur

Instructions for use with any of these transmitters

MGT-16 SYSTEM

WHM-16 SYSTEM

LINK-16 SYSTEM

MHT-16 SYSTEM

MT-16A

MT-16R

MH-16

LK-16

WH-16

micro micro micro micro

MRX-16 RECEIVER

16-CHANNEL

MICRO WIRELESS

SYSTEM

Contents

Introduction............................................................................. 2

Using this Manual ..................................................................... 2

System Features

microMRX-16/microMHT-16/microLINK-16/microWHM-16 .......... 3

Quick User Controls/Connections Guide ....................................... 4

MRX-16 Wireless Instrument Receiver ..................................... 4

MT-16A/R Instrument Transmitter........................................... 6

MH-16 Horn Instrument Transmitter........................................ 7

LK-16 Snap-On Transmitter.................................................... 8

WH-16 Head-Worn Transmitter ............................................... 9

System Operation..................................................................... 10

MRX-16 Wireless Receiver...................................................... 10

MT-16A/R, MH-16, LK-16, WH-16 Transmitters ......................................12

Miscellaneous Tips .................................................................... 14

Cautions and Troubleshooting .................................................... 15

MRX-16 System DIP-Switch Frequency Selection Chart.................. 16

Specications........................................................................... 17

Servicing................................................................................. 18

Warranty ................................................................................. 19

Introduction

Thank you for choosing the Nady microMGT-16/microMHT-16/

microLINK-16/microWHM-16 Mini Wireless System. Each of these units is

a 16-channel, ultra-compact UHF wireless system featuring 16 selectable

frequencies, up to 250 feet operating range, and infrared ASC

(Auto

Sync Channel) for quick convenient setup. The miniature receiver can be

plugged directly into any amp or mixer.

Using This Manual

This booklet provides information regarding the use of the microMGT-16,

microMHT-16, microLINK-16 or microWHM-16 Wireless System with the

MRX-16 receiver and one of the following transmitters: MT-16A/R, MH-16,

LK-16 or WH-16. It includes a description of features and a step-by-step

guide to operation of the particular system you have purchased. This

manual should answer any questions you may have about the operation

and servicing of your

system.

MRX-16 Systems

•

UHF wireless system for musical instrument sounding

•

16 user-selectable PLL frequencies for interference-free operation

•

Up to 250’ operating range, line-of-sight

•

ASC

(Auto Sync Channel) infared wireless download pairs transmitters to selected

receiver frequency for quick, easy setup

• Battery operated receiver and transmitters

MRX-16 Instrument Receiver

•

Compact, portable, “pocket size” receiver

•

Flexible wire ¼ wave antenna

•

Unbalanced ¼” line output plug

• Power On/Off/Mute switch; Volume Control; LED indicators for Low Battery, and RF

Reception; DIP-switch channel selection with IR sync to transmitter; IR Sync LED

• Powered by one AA alkaline battery for portability (Up to 8 hours battery life)

Available Transmitters

MT-16A & MT-16R Instrument Transmitters

• Choice of two transmitter housings— MT-16A with 30° angled ¼” plug for use with

either recessed or surface mounted jacks, or MT-16R with 90° angled ¼” plug for

surface mounted jacks only

• Up to eight hours of battery life from a single AAA alkaline or NiMH rechargeable

battery

• Infrared channel sync with receiver for instant setup

• Power On/Off switch; Power/Low Battery LED indicators; IR Sync LED

• Input level attenuation switch; internal audio level control trim-pot

• External exible wire antenna

MH-16 Saxophone (Horn) Instrument Transmitter

• Clip-on-the-horn barrel style without any tangling wires

• Up to eight hours of battery life from a single AAA alkaline or NiMH rechargeable battery

• Infrared channel sync with receiver for instant setup

• Power On/Off switch; Power/Low Battery LED indicators; IR Sync LED

• Input level attenuation switch; internal audio level control trim-pot

• External exible wire antenna

LK-16 Snap-On Transmitter

• Female XLR input connector for mounting transmitter on any hardwired dynamic microphone

• Up to eight hours of battery life from a single AAA alkaline or NiMH rechargeable battery

• Infrared channel sync with receiver for instant setup

• Power On/Off switch; Power/Low Battery LED indicators; IR Sync LED

• External exible wire antenna

WH-16 Head-Worn Transmitter

• Head-Worn (over ears style) transmitter for hands free, cordless operation

• Up to eight hours of battery life from a single AAA alkaline or NiMH rechargeable battery

• Infrared channel sync with receiver for instant setup

• Power On/Off switch; Power/Low Battery LED indicators; IR Sync LED

• External exible wire antenna

System Features

Quick User Controls/Connections Guide

MRX-16 Receiver

DIPSWITCH

EXPLODED

VIEW

Quick User Controls/Connections Guide

MRX-16 Receiver

1. BATTERY COMPARTMENT COVER Holds one AA battery, slide to

open

2. AA BATTERY One required for operation, alkaline or NiMH

3. BATTERY COMPARTMENT Insert one AA battery for operation, note

correct polarity

4. AUDIO OUTPUT PLUG For connecting to other sound equipment

(amp or mixer) input jack

5. ANTENNA Permanently attached exible antenna

6. RF SIGNAL LED (Green) Indicates the received signal from the

transmitter

7. POWER & LOW BATTERY LED (Red) Flashes once at power up,

continuous ashing battery needs replacement

8. ACS™ IR SYNC BUTTON Press to make the IR link download the

receiver’s selected frequency to the TX. First, turn on the transmitter

(or turn off and then on again if already on) and position its IR window

6-12” away from the RX IR window, press the SYNC button once

and wait one second for the RX to respond. If the IR data download

is successful, the receiver SIGNAL LED (6) will light indicating the

transmitter is locked in and transmitting.

9. CHANNEL SELECT DIP-SWITCH Select one of 16 pre-set channels

per MRX-16 DIP-Switch Frequency Selection Chart (see page 16)

10. VOLUME CONTROL Adjusts the audio output level—at maximum

setting the gain will be about +4dB over a direct instrument-to-cord-to-

amp connection

11. POWER SWITCH Select OFF/MUTE/ON (MUTE=power On, audio

output highly attenuated)

12. ACS™ IR SYNC INFRARED LED WINDOW For downloading

selected Channel (Frequency) to transmitter

Quick microMGT-16 User Controls/Connections Guide

MT-16A/R Instrument Transmitter

17. POWER SWITCH Slide in arrow direction

to power transmitter On

18. 15dB ATTENUATION PAD Select to

reduce the input gain by 15dB for higher level

audio input signals

19. INPUT ¼” PLUG Connect directly

intoguitar/bass output jack

20. POWER & LOW BATTERY LED Flashes

once at power up, continuous ashing indicates

battery needs replacement

21. IR RECEPTOR SENSOR/WINDOW

Infrared LED sensor for linking the TX to the RX

during IR frequency download

22. BATTERY COMPARTMENT Insert one AAA

battery, observing correct polarity

23. INTERNAL AUDIO LEVEL ADJUST

Remove battery to access slot and adjust

internal trim-pot with small screwdriver for

optimal input level setting. Note: this is to be

done only in rare cases as factory level setting

is already optimized for most guitars and basses

and 15dB Pad also available.Note: Set control

carefully. If trim-pot is turned past minimum

and maximum adjustment points it may need to

be backed up to achieve desired setting.

24. ANTENNA Permanently attached exible

antenna

25. BATTERY Single AAA alkaline or NiMH

battery required for operation

26. BATTERY COMPARTMENT COVER Slide

to open

ASCTM IR Sync Download of Selected

Frequency of MRX-16 Receiver to

micro MT-16A/R, micro MH-16, micro

LK-16 or micro WH-16 Transmitter

(1) ASC

™

IR SYNC INFRARED LED WINDOW

For downloading selected Channel

(Frequency) to transmitter

(21, 31, 46, 56) MT-16A/R, MH-16, LK-16, WH-16

TRANSMITTER IR RECEPTOR SENSOR/WINDOW

Infrared LED sensor for linking the TX to the RX

during IR frequency download.

(14) ASC

™

IR SYNC BUTTON Press to make the IR link

download the receiver’s selected frequency to the TX.

First, turn on the system transmitter supplied (or turn

off and then on again if already on) and position its

IR window 6-12” away from the RX IR window, press

the SYNC button once and wait one second for the

RX to respond. If the IR data download is successful,

the receiver SIGNAL LED (6) will light indicating the

transmitter is locked in and transmitting.

Quick microMHT-16 User Controls/Connections Guide

MH-16 Saxophone (Horn) Instrument Transmitter

28. BATTERY COMPARTMENT COVER To cover AAA battery, slide to open

29. BATTERY Single AAA alkaline or NiMH battery required for operation

30. BATTERY COMPARTMENT Insert one AAA battery, observing correct polarity

31. IR RECEPTOR SENSOR/WINDOW Infrared LED sensor for linking the TX to the RX

during IR frequency download (See also ASCTM IR Sync Download section, page 6)

32. POWER & LOW BATTERY LED Flashes once at power up, continuous ashing

indicates battery needs replacement

33. ANTENNA Permanently attached exible antenna

34. INTERNAL AUDIO LEVEL ADJUST Remove battery to access slot and adjust internal

trim-pot with small screwdriver for optimal input level setting.

Note: This is to be done only in rare cases as factory level setting is already optimized for

most horns and 15dB Pad also available.

Note: Set control carefully. If trim-pot is turned past minimum and maximum adjustment

points it may need to be backed up to achieve desired setting.

35. POWER SWITCH Slide in arrow direction to power transmitter On

36. 15dB ATTENUATION PAD Select to reduce the input gain by 15dB for higher level

audio input signals

37. MOUNTING SCREW To secure the transmitter onto the bell of the horn

38. INPUT MIC For unidirectional pickup of horn’s sound

LK-16 Snap-On Transmitter

39. XLR LOCKING CLIP To lock the hardwired microphone securely

40. POWER SWITCH Slide in arrow direction to power transmitter On

41. BATTERY COMPARTMENT COVER To cover AAA battery, slide to open

42. BATTERY Single AAA alkaline or NiMH battery required for operation

43. ANTENNA Permanently attached exible antenna

44. FEMALE XLR PLUG Accepts any hardwire MIC with male XLR connector

45. BATTERY COMPARTMENT Insert one AAA battery, observing correct polarity

46. IR RECEPTOR SENSOR/WINDOW Infrared LED sensor for linking the TX to the RX

during IR frequency download (See also ASCTM IR Sync Download section, page 6)

47. POWER & LOW BATTERY LED Flashes once at power up, continuous ashing indicates

battery needs replacement

QUICK microLINK-16 SYSTEM USER CONTROLS/CONNECTIONS

GUIDE

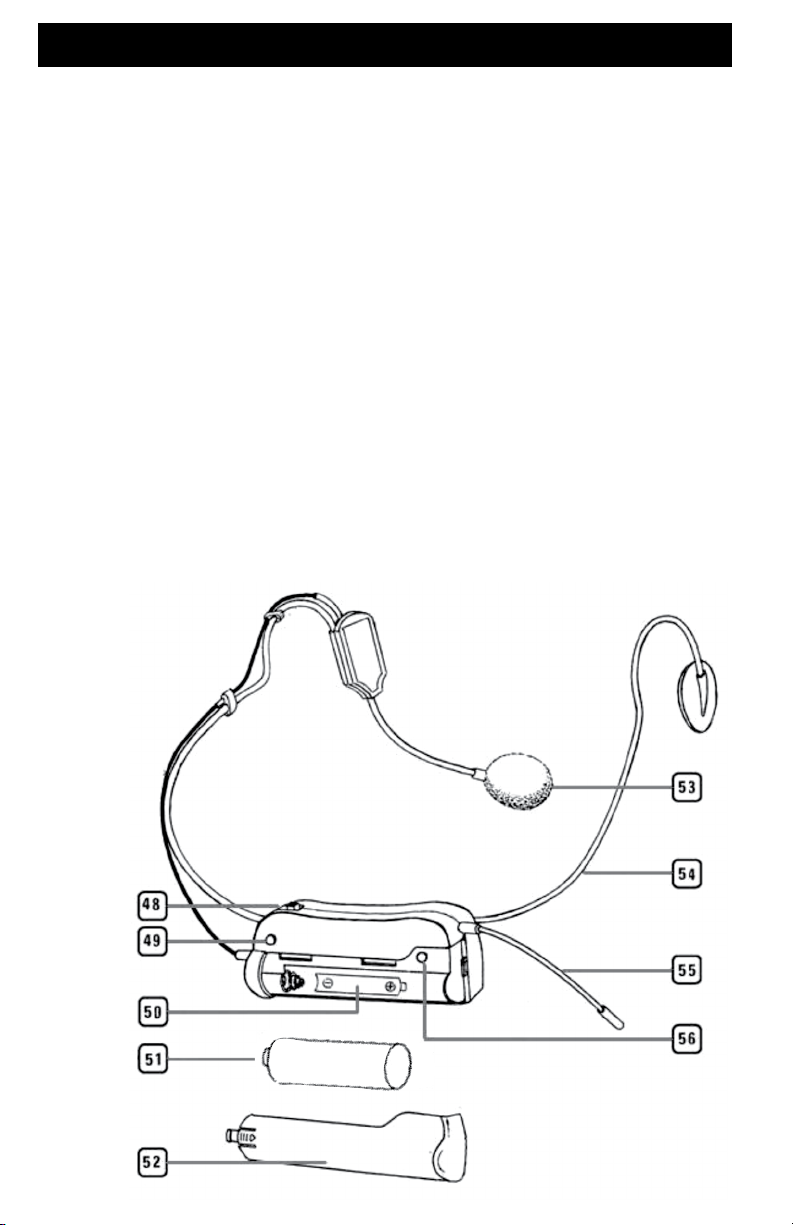

WH-16 Head-Worn Transmitter

48. POWER SWITCH Slide in arrow direction to power transmitter On

49. POWER & LOW BATTERY LED Flashes once at power up, continuous ashing

indicates battery needs replacement

50. BATTERY COMPARTMENT Insert one AAA battery, observing correct polarity

51. BATTERY Single AAA alkaline or NiMH battery required for operation

52. BATTERY COMPARTMENT COVER To cover AAA battery, slide to open

53. INPUT MIC Unidirectional pickup for vocals

54. FLEXIBLE HEADBAND For mounting over the ears

55. ANTENNA Permanently attached exible antenna

56. IR RECEPTOR SENSOR/WINDOW Infrared LED sensor for linking the TX to the RX

during IR frequency download (See also ASCTM IR Sync Download section, page 6)

QUICK microWHM-16 USER CONTROLS/CONNECTORS

GUIDE

AAA

Antenna

The MRX-16 receiver is supplied with an attached

Antenna (5). It should be extended fully to

obtain maximum range. For maximum range,

it is always best to maintain a line-of-sight (no

obstructions) between the receiver antennas and

the transmitter whenever possible.

Powering the Receiver

The MRX-16 receiver can operate with either

two AA size batteries (DC operation) or with the

supplied AC adaptor (AC operation).

For DC operation, open the receiver’s

Battery Compartment Door (1) and

place a fresh AA Battery (2) in the Battery

Compartment (3), observing the correct polarity.

A fresh alkaline or NiMH AA battery will generally

provide 6-8 hours performance, but in order to

ensure optimal performance it is recommended

that the batteries be replaced after six hours of

use, or as indicated by the Low Battery Indicator

(7). As the battery begins to weaken below

usable voltage, the low battery indicator will ash

continuously, warning that the battery is now too

low and should be replaced as soon as possible. To

preserve battery life, keep the receiver Off when it

is not in use.

Turn on the MRX-16 receiver by sliding

the Power Switch (11) to the second

position (receiver On but audio output muted/

attenuated), or to the third position for normal

operation (receiver On and audio un-muted).

The Power & Low Battery LED (7) will ash

once indicating receiver is operational.

SYSTEM OPERATION

MRX-16 Receiver

Selecting the MRX-16 Receiver

Channel and IR Sync

The Frequency Select DIP Switches

(9) are used for selecting one of 16

preset frequencies. Simply position the

DIP switches to a desired open channel

on the receiver. There should be no

ickering of the RF Signal LED (6) with

the transmitter off. See the MRX-16 DIP-

Switch Frequency Selection Chart on

page 16 for the correct switch position for

each of the 16 available channels. Once

you have selected the receiver frequency

it can easily be downloaded to the

transmitter to establish the necessary RF

connection. For further info on selecting

open channels, see RF Interference and

Finding Open Channels on page 15.

The IR Sync Button (8) on the MRX-16

receiver

is used to transfer the selected

frequency info from the receiver to the

transmitter for quick synchronization prior

to use. Begin programming by holding

the wireless transmitter’s IR Receptor/

Sensor Window (21, 31, 46, 56) about

6-12” from the receiver’s IR Synch

Infrared LED Window (12). Press the

IR Sync Button once to begin the IR sync

download of the selected frequency to the

transmitter.

Note: To insure proper synchronization, the

transmitter must always be just turned on, or

else turned off then on again, before syncing

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Nady Systems Système de microphone

Nady Systems

Nady Systems DKW-8U Manuel utilisateur

Nady Systems

Nady Systems U-800 Manuel utilisateur

Nady Systems

Nady Systems MGT-16 Manuel utilisateur

Nady Systems

Nady Systems ENCORE DUET Manuel utilisateur

Nady Systems

Nady Systems UHF-3 Manuel utilisateur

Nady Systems

Nady Systems Personal in Ear Monitor E03 Manuel utilisateur

Nady Systems

Nady Systems DKW-3 HT Manuel utilisateur

Nady Systems

Nady Systems 401X Quad Manuel utilisateur

Nady Systems

Nady Systems ALD-800 Manuel utilisateur

Nady Systems

Nady Systems WLT-15 Manuel utilisateur

Nady Systems

Nady Systems 401X Quad Manuel utilisateur

Nady Systems

Nady Systems EO3 Manuel utilisateur

Nady Systems

Nady Systems MGT-16 Manuel utilisateur

Nady Systems

Nady Systems IRW-220X Manuel utilisateur

Nady Systems

Nady Systems Encore I Manuel utilisateur

Nady Systems

Nady Systems DKW-1 Manuel utilisateur

Nady Systems

Nady Systems 2W-1KU Manuel utilisateur

Nady Systems

Nady Systems XR-61 Manuel utilisateur

Nady Systems

Nady Systems DKW-3 LT Manuel utilisateur

Nady Systems

Nady Systems UHF-4 Manuel utilisateur

Nady Systems

Nady Systems OCTAVO U-81 Manuel utilisateur

Nady Systems

Nady Systems 401 Manuel utilisateur

Nady Systems

Nady Systems UB-16 Manuel utilisateur

Nady Systems

Nady Systems ENCORE DUET Manuel utilisateur

Manuels Système de microphone populaires d'autres marques

Paso

Paso R824 Manuel utilisateur

Naxa

Naxa NAM-982 Manuel utilisateur

Motorola

Motorola PMNN4461 Manuel utilisateur

Xvive

Xvive U3 Manuel utilisateur

Tekon

Tekon DUOS Manuel utilisateur

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manuel utilisateur

Devine

Devine WMD-IE Manuel utilisateur

LG LF-D7150 Manuel utilisateur

GE S768DAV Manuel utilisateur

LD U305 HBH 2 Manuel utilisateur

Chainway

Chainway URA8 Manuel utilisateur

ORATOR

ORATOR D860TD Manuel utilisateur

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manuel utilisateur

Alpha Technologies

Alpha Technologies RBMS Manuel utilisateur

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manuel utilisateur

Shure

Shure UA844 Manuel utilisateur

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manuel utilisateur

Pyle

Pyle PDWM5000 Manuel utilisateur
