Specifications
Environment
HDMI2.0a, DolbyDigital, DTS or LPCM
Devices
Cable/Satellite Set-Top Box, DVD, Blu-Ray, TV, PC, laptops.
Video Bandwidth
18 Gbps
Frequency Range
25 to 600 MHz
Signals
HDMI2.0a protocol, DolbyDigital, DTS or LPCM up to 7.1
channels
HDCP
Revision 1.4 & 2.2 compliant.
Connectors
Two (2) HDMI connectors
Two (2) RCA Connectors
One (1) Mini-USB (for firmware updates)
Note: Audio cables not included.
Distortion
<0.001% @ 1KHz
SNR
> 90 dB (20Hz –20 KHz)
Sample Rate
32, 44.1, 48, 96 and 192 KHz
Power Supply
One (1) 110-240V/5VDC power supply
Power Consumption
3.20 Watt
Temperature
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure
Metal with ABS fire retardant plastic panel
Dimensions
4.50” x 3.00” x 1.25” (114 x 76 x 32 mm)
Weight
1.0 lb (0.45 kg)
Compliance
Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty
2 years
Order Information
500439-D&D HDMI Audio Extractor with Video Out, Dolby & DTS
Trademark acknowledgments
All products or services names mentioned in this document may be trademarks of the
companies with which they are associated.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS licensing
Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and
DTS 2.0 Channel is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
HDMI Audio Extractor with Video Out, Dolby & DTS
500439-D&D
Quick Installation Guide
Overview
The HDMI Audio Extractor with Video Out, Dolby & DTS (500439) down mixes all
channels from the original HDMI audio stream to a standard RCA analog 2CH audio
output. The product supports the following audio formats: LPCM up to 7.1 channels,
Dolby Digital & DTS. The HDMI 2.0 Audio Extractor with Video Out, Dolby & DTS
supports HDMI video up to 4K @ 60Hz (4:4:4).
Applications
Applications include commercial and residential audio systems, boardroom systems,
collaborative PC systems, and medical information systems.
Installation
1. Identify the connectors on the HDMI Audio Extractor with Video Out, Dolby &
DTS as indicated on the product panels above.
2. To install the HDMI Audio Extractor with Video Out, Dolby & DTS:
2a. Connect the extractor HDMI input to the source equipment with a HDMI Cable.
2b. Connect the extractor HDMI output to the sink equipment (such as a
Television) with a HDMI Cable.
2c. Connect the extractor Audio Out to the audio equipment using RCA cables.
3. Connect the 5 VDC power supply to the Audio Extractor first, and then plug
the power supply into an AC power outlet. If power is present, the green
power LED of the Audio Extractor will be ON.
Note: Power-on the Audio Extractor only after all connections are made.
© MuxLab Inc. 2017
4. Power-on the audio source and receiver. Verify the state of the connection based
on the LED status, see below.
When an HDMI signal is detected on the input, the HDMI In LED will be ON.
When an HDMI signal is detected on the output, the HDMI Out LED will be ON.
When a valid audio signal is processed, the Audio LED will be ON.

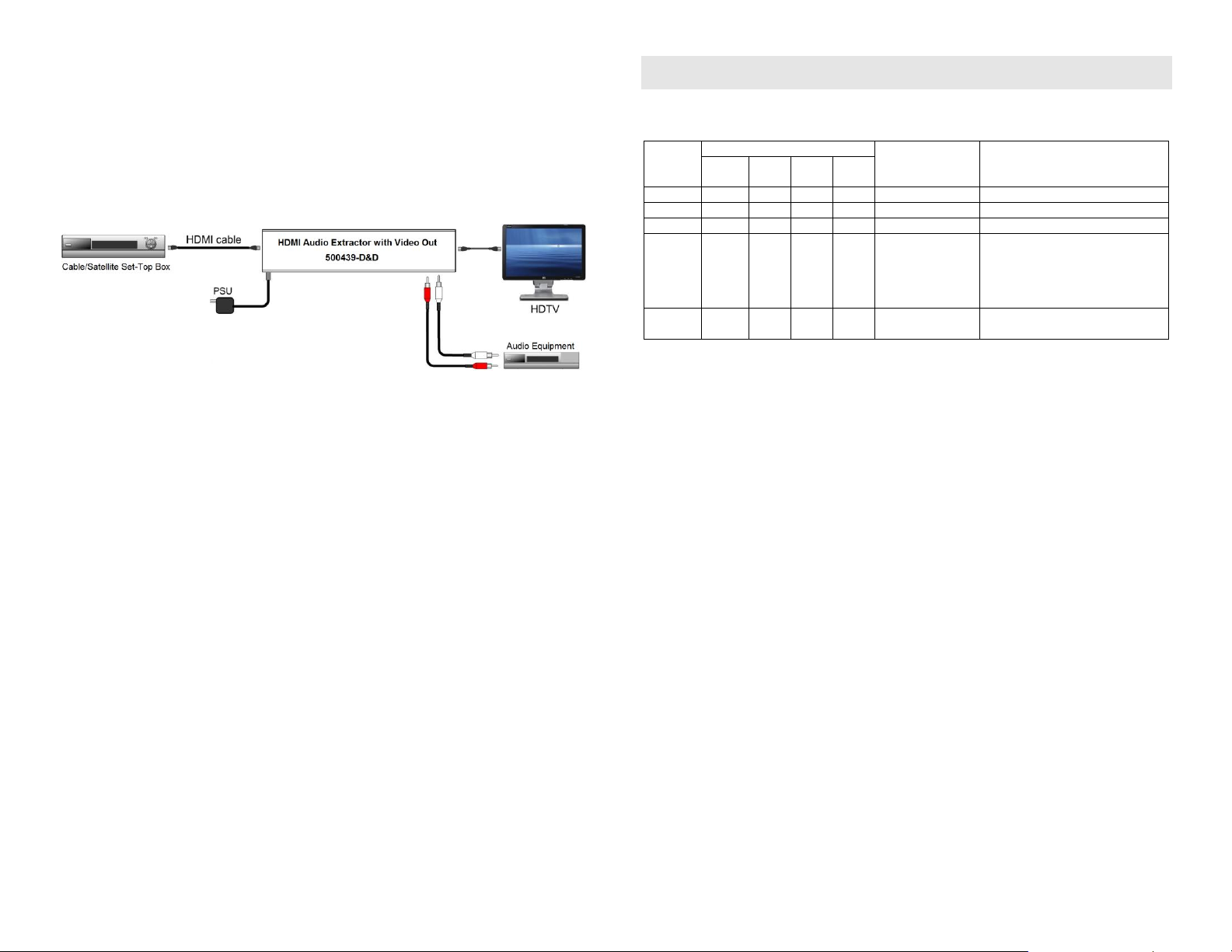

5. The following diagrams show the final configuration.
Troubleshooting
The following table describes some of the symptoms, probable causes and possible solutions
in regard to the installation of the HDMI Audio Extractor with Video Out, Dolby & DTS:
Symptom
LEDs
Probable
Cause
Possible
Solutions
Power
HDMI
In
HDMI
Out
Audio
No Video
OFF
OFF
OFF
OFF
No power
•Check power connections
No Video
ON
OFF
OFF
OFF
Source
•Check the source equipment.
No Video
ON
ON
OFF
OFF
Display
•Check the display equipment.
No Sound
ON
ON
ON
OFF
Connection
problem, or audio
source invalid or
not supported.
•Check RCA cable connection.
•Set the audio source to LPCM or
5.1 Bitstream digital audio which
is supporting Dolby digital and
DTS.
Choppy
sound
ON
ON
ON
ON
Poor Connection.
•Check RCA cable connection.
If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at
877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International).
