MuxLab PRODIGITAL Single Camera Live Streaming... Manuel utilisateur
94-000955-A / SE-000955-A Page 1
Single Camera
Live Streaming Solution
500786
User Manual
94-000955-A / SE-000955-A Page 2
Table of Contents
1Product Overview ..................................................................................................3
2Installation..............................................................................................................4
3Using the MuxStream App ....................................................................................6
3.1 Configuring the App............................................................................................6
3.1.1 Creating an account.......................................................................................6
3.1.2 Auto discover and configure your kit. ..........................................................7
3.2 Control interface ..................................................................................................8
3.2.1 Broadcast tab.................................................................................................9
3.2.2 Settings tab..................................................................................................10
3.2.3 Create Stream tab........................................................................................11
3.2.4 Start Streaming tab......................................................................................15
4Troubleshooting...................................................................................................17
94-000955-A / SE-000955-A Page 3
1Product Overview
The MuxLab “Single Camera Live Streaming Solution” (model 500786) includes the
main components needed to broadcast live content to mass recipients spread out
across the globe. The solution allows live presentations to effectively be streamed
over the Internet at 1080p/60, and can work with industry standard broadcast
streaming services such as YouTube, Facebook, Wowza, to name a few, and also
works with popular Audio/Video content production software tools such as OBS,
Wirecast, and others.
The kit comes complete with an AV over IP H.264/H.265 4K Streamer/Transmitter to
stream content to Broadcasting Services, an HDMI/IP PTZ camera @ 1080p/60, a
Wireless Lavalier Microphone, an intuitive control application (MuxStream App) to
manage the system, and a 6.6ft (2m) Premium Certified HDMI 2.0 cable.
The MuxLab MuxStream Control App is free to download from the MuxLab website
(for Windows PC), and from the iOS and Android App Stores (for tablet and
smartphone). The Control App manages the system setup, configures the
Transmitter to stream to various broadcast services such as YouTube, Facebook and
Wowza, manages camera settings including pan/tilt/zoom (PTZ), and the wireless
mic volume. The AV over IP H.264/H.265 4K Streamer/Transmitter supports up to 4K
video @ 30Hz and may be located up to 330ft (100m) from an Ethernet network
switch and supports PoE (but a PSU is included) and supports low bandwidth for
streaming the HDMI camera video and mic audio over the Internet.
94-000955-A / SE-000955-A Page 4
2Installation

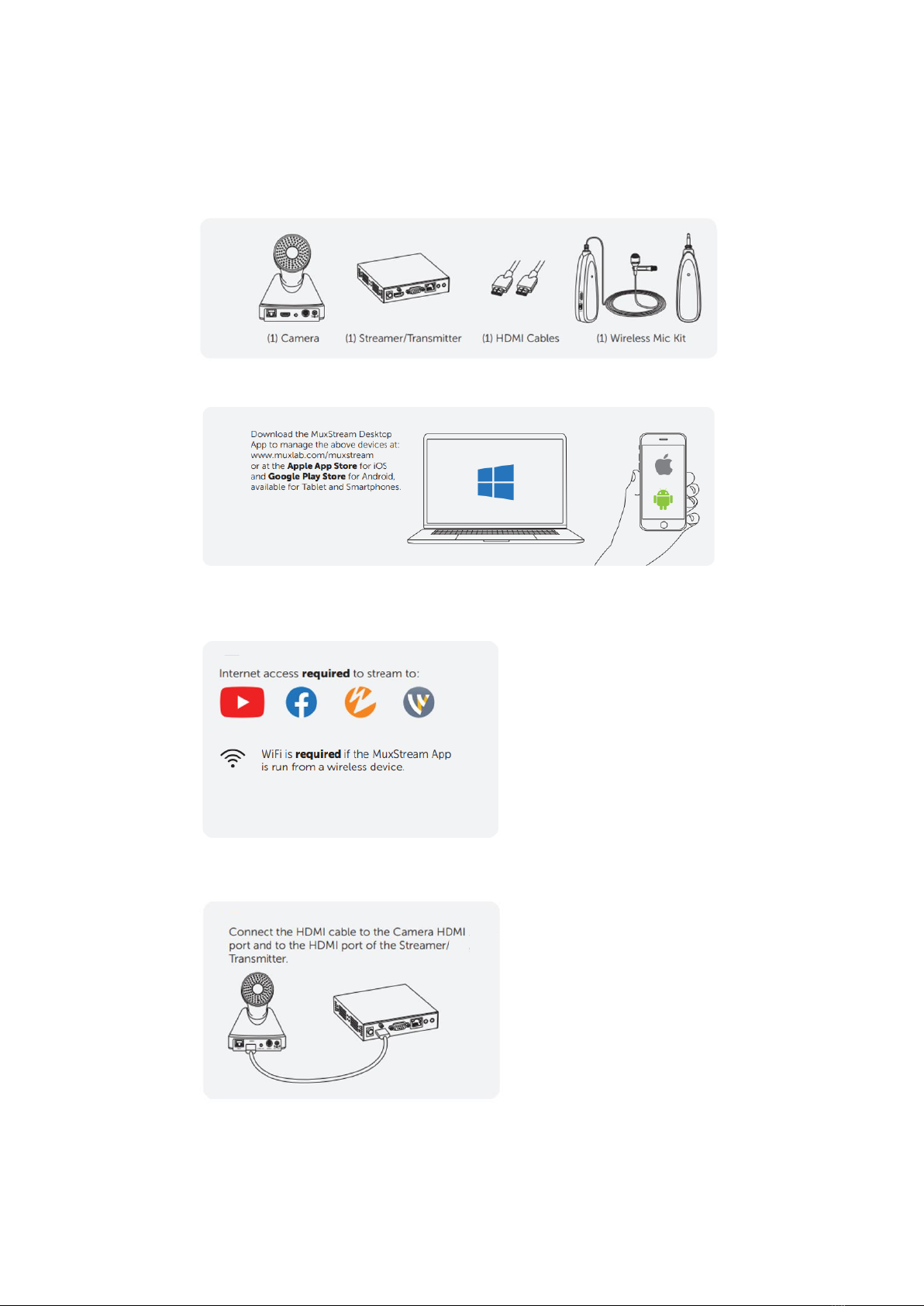

1. Please validate that you received all contents listed below.
2. Download the MuxStream App.
3. Make sure you have an internet connection.
4. Connect the Camera to the Streamer/Transmitter.
94-000955-A / SE-000955-A Page 5
5. Connect the Mic Wireless Receiver to the Streamer/Transmitter.
6. Connect the Camera to your Router.
7. Connect the Streamer/Transmitter to your Router.
8. Power On all devices.
94-000955-A / SE-000955-A Page 6
9. Open the MuxStream App.
3Using the MuxStream App
3.1 Configuring the App
3.1.1 Creating an account
If this is the first time you are running the MuxStream App, a new user
must be created, see figure below.
To create a new user, following these steps:
1. Enter your email address.
2. Enter your password.
3. Confirm your password.
4. Press the “Next” button.
your@email.com 1
2
3
4
94-000955-A / SE-000955-A Page 7
3.1.2 Auto discover and configure your kit.
After creating an account, the application will search for and discover the
devices on the network (PTZ Camera and Streamer/Transmitter) and will
configure them automatically.
Once the application has configured the devices, click the "Next" button to
begin (See figure below).
94-000955-A / SE-000955-A Page 8
To start using the application, the user must enter their email address and
password and then press the “Sign in” button.
your@email.com
After pressing the "Sign in" button, the system control interface will start
automatically.
3.2 Control interface
Once logged in, the User can see three main tabs: Broadcast, Create Stream
and Settings.
1
2
3
94-000955-A / SE-000955-A Page 9
3.2.1 Broadcast tab
When the "Broadcast" tab is selected, the application displays the camera
preview in the center of the window and allows you to control the different
PTZ options for the camera, mic volume, and pre-sets by selecting the icon on
the right-side of the window.
Click to open options for
camera, volume, and
presets.
Pressing or hovering the cursor over the control icon will bring up a pop-up
Window with different control options (Pan, Tilt, Recenter, Zoom, Volume,
Preset, etc.) that can be adjusted using the mouse or keyboard.
94-000955-A / SE-000955-A Page 10
Multiple Presets may be created, each recording the current pan/tilt/zoom and
mic volume settings at the time they are saved. Saved Presets may be recalled
by simply pressing on a given Preset button. To create a Preset, press on
"+ PRESET" and a new pop-up window will appear to allow the user to enter the
necessary data. The current pan/tilt/zoom and volume settings may be saved.
To create a new Preset, follow these steps:
1. Input the new “Preset” name. Any name may be given.
2. To include the mic volume level in the Preset, enable this option.
3. Input the mic volume level desired (if this option was enabled).
4. Press the “SAVE” button to confirm.
1
3
2
4
Saved Presets will show up as Preset buttons with their assigned name. To
activate a Preset, simply press on its button.
3.2.2 Settings tab
In the "Settings" tab, the application shows three options: Language, App
Version and Auto-Discover.
1
2
3
