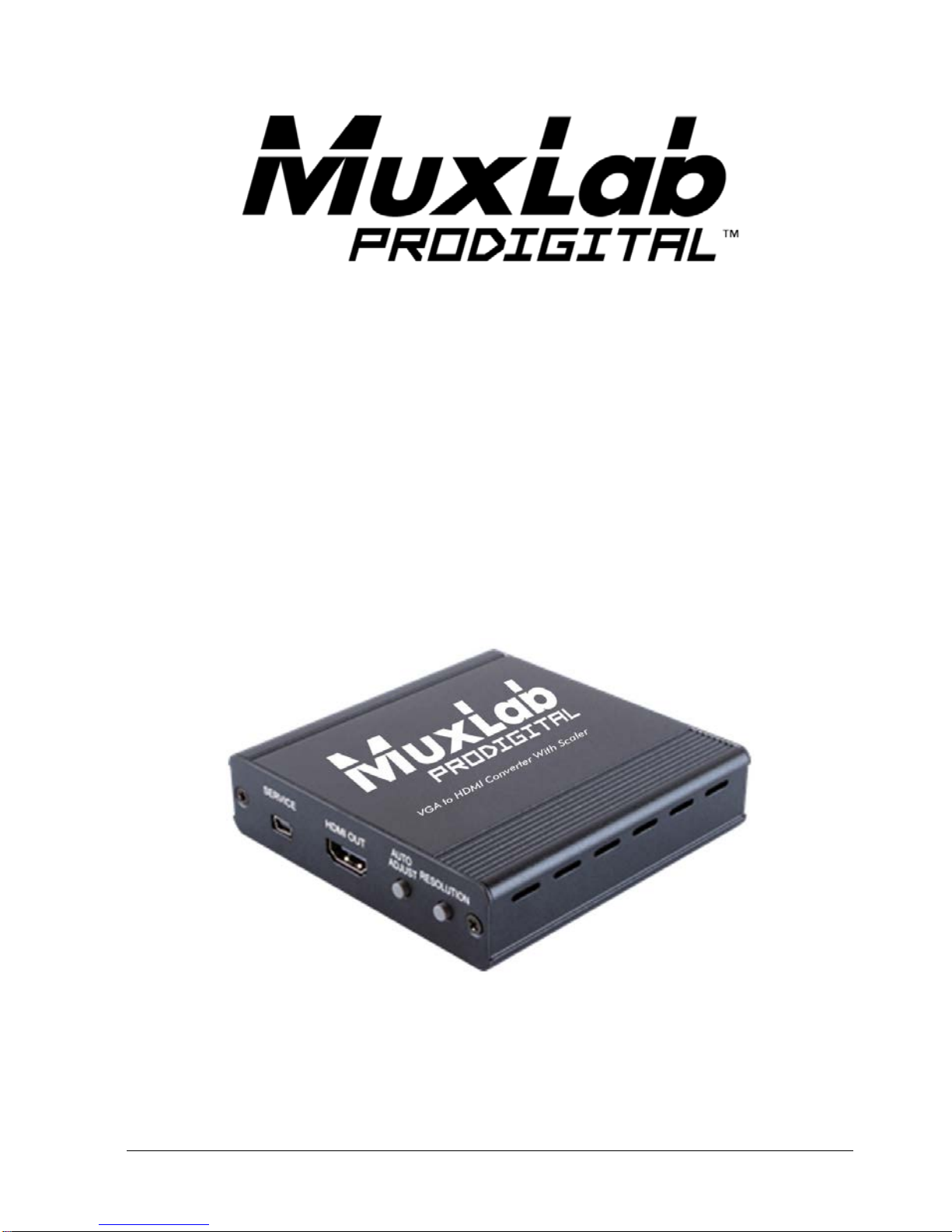

MuxLab 500149 Manuel utilisateur

VGA to HDMI Converter

with Scaler

Installation Guide

500149

VGAto HDMI Converter with Scaler Installation Guide

SAFETYPRECAUTIONS

Please read all instructions before unpacking, installing or

operating this equipment

and before connecting the power supply.

Please keep the following in mind as you unpack and install this equipment:

•

Always follow basic safety precautions to reduce the risk of fire, electrical shock

and injury to persons.

•

To prevent fire or shock hazard, do not expose the unit to rain, Moisture or install

this product near water.

•

Never spill liquid of any kind on or into this product.

•

Never push an object of any kind into this product through any openings or

empty slots in the unit, as you may damage parts inside the unit.

•

Do not attach the power supply cabling to building surfaces.

•

Use only the supplied power supply unit (PSU). Do not use the PSU

if it is

damaged.

•

Do not allow anything to rest on the power cabling or allow any weight to be

placed upon it or any person walk on it.

•

To protect the unit from overheating, do not block any vents or

openings in the

unit housing that provide ventilation and allow for

sufficient space for air to

circulate around the unit.

REVISIONHISTORY

Version

Date

Description

1.0

2014/12/01

Release Version

VGAto HDMI Converter with Scaler Installation Guide

Table of Contents

1. Introduction.................................................................................................................4

1.1 Introduction to VGAto HDMI Converter with Scaler..........................................4

1.2 Features ............................................................................................................4

1.3 Package Contents.............................................................................................4

2. Specifications..............................................................................................................5

3. Panel Description........................................................................................................6

3.1 Front Panel........................................................................................................6

3.2 Rear Panel.........................................................................................................7

4. System Connection.....................................................................................................8

4.1 Safety Precautions ............................................................................................8

4.2 System Diagram................................................................................................8

4.3 Connection Procedure.......................................................................................9

4.4 Application.........................................................................................................9

5. List of supported resolution.......................................................................................10

5.1 PC Input Resolution.........................................................................................10

5.2 HDMI output resolutions..................................................................................10

6. Troubleshooting & Maintenance ...............................................................................11

Regulatory Compliance ................................................................................................12

VGAto HDMI Converter with Scaler Installation Guide

1. Introduction

1.1 Introduction to VGA to HDMI Converter with Scaler

The VGAto HDMI Converter with Scaler is designed to scale analog video from PC input

source to digital HDMI output of wide-range HD and PC resolutions up to 1080p or

WUXGA. Besides video scaling, the device can convert analog stereo audio input to

digital format and embed it to HDMI output as 2-Channel LPCM. This unit has a

comprehensive resolution

button that allows user to select a variety of output resolutions

and adjust for best picture quality.

1.2 Features

•HDMI and DVI 1.0 Compliant.

•Scales many PC resolutions to many HD or PC

resolutions.

•Support high resolution output (see Section 5).

•PC resolutions supported: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA,

WUXGA.

•SD/HD resolutions supported: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p.

•Automatically detects the factory settings of the connected display and

outputs the corresponding resolution and refresh rate, when

the NATIVE

resolution is selected.

•Supports stereo analog input with PC video to HDMI output.

•Supports firmware upgrading via USB.

•Powered by local 5VDC power supply with locking connector.

•Elegant Aluminium enclosure designed for ruggedness and better cooling.

1.3 Package Contents

This product is delivered with the following parts.

•One (1) VGA to HDMI Converter with Scaler

•One (1) Power Adapter; 5VDC, 2.6A with Interchangeable Blades for the US,

the UK , Europe and Australia

•One (1) Installation Guide

Please confirm that the product and the accessories are all included. If not, please

contact your local distributor where the unit was purchased.

VGAto HDMI Converter with Scaler Installation Guide

2. Specifications

Environment

HDMI 1.3

Devices

Plasma, projectors, monitors, TV, PC, laptops, servers.

Transmission Transparent to the user

Video Resolution

PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA,

WUXGA

SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p

Audio Bandwidth

20Hz to 20KHz

Audio Impedance

>10Ω

Audio SNR

>70dB @ 20Hz to 20KHz

Signals

HDMI 1.3a protocol and HDCP

Connectors

One (1) VGAHD-15 input receptacle

One (1)Audio input 3.5mm Stereo Jack

One (1) HDMI output receptacle.

One (1) Mini USB Service port

One (1) 2.1mm barrel locking power connector

Note: HDMI cables not included.

Power Supply One (1) 110-240V/5VDC power supply with interchangeable

blades for use in the US, the UK, Europe and Australia.

LEDs

One (1) Power LED (green)

Push buttons

Two (2) Push-buttons forAuto Adjust and Resolution settings

Power

Consumption 4.6 Watts

Temperature

Operating: 0° to 40°C Storage: -20° to 85°C

Humidity: Up to 95% non-condensing

Enclosure Metal

Chassis Style

RuggedizedAluminium Extrusion

Dimensions

4.02” x 4.02” x 0.98” (102 x 102 x 25 mm)

Weight 1.43 lb (0.65 kg)

Compliance

Regulatory: FCC, CE, RoHS

Warranty

2 years

Order Information 500149 VGA to HDMI Converter with Scaler

VGAto HDMI Converter with Scaler Installation Guide

3. Panel Description

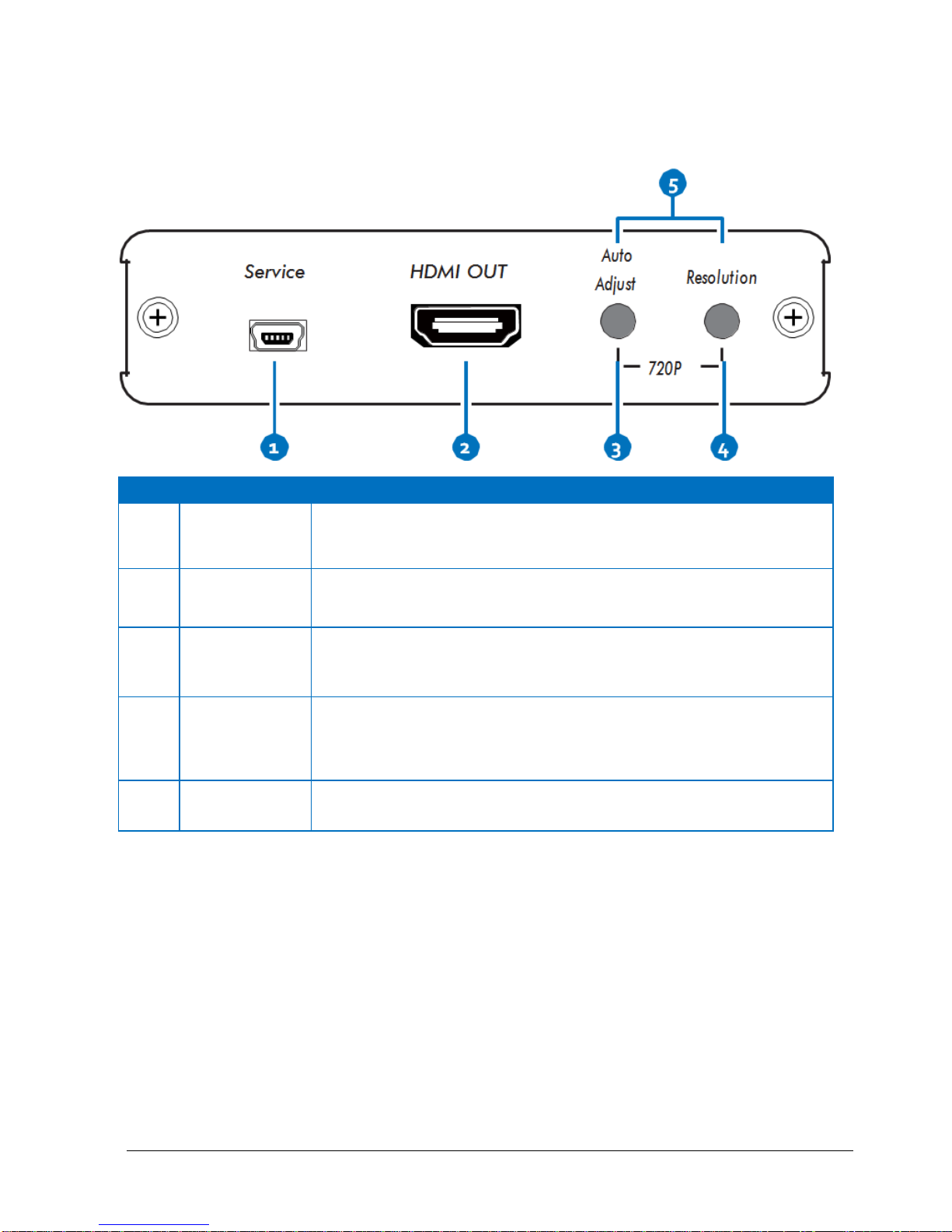

3.1 Front Panel

Item

Name

Description

1 Service This port is to connect a mini USB B type cable for firmware

update.

2 HDMI OUT Connect the HDMI output port to the HDMI input port of

your

display.

3 Auto Adjust Press this button when the display doesn’t fit into the screen.

The device will adjust automatically the image position.

4 Resolution Press this button to select the output resolution. The device

will sequentially toggle through all different output resolutions

available.

5 720P

Press these two buttons simultaneously to switch output

resolution to the most common 720p resolution.

VGAto HDMI Converter with Scaler Installation Guide

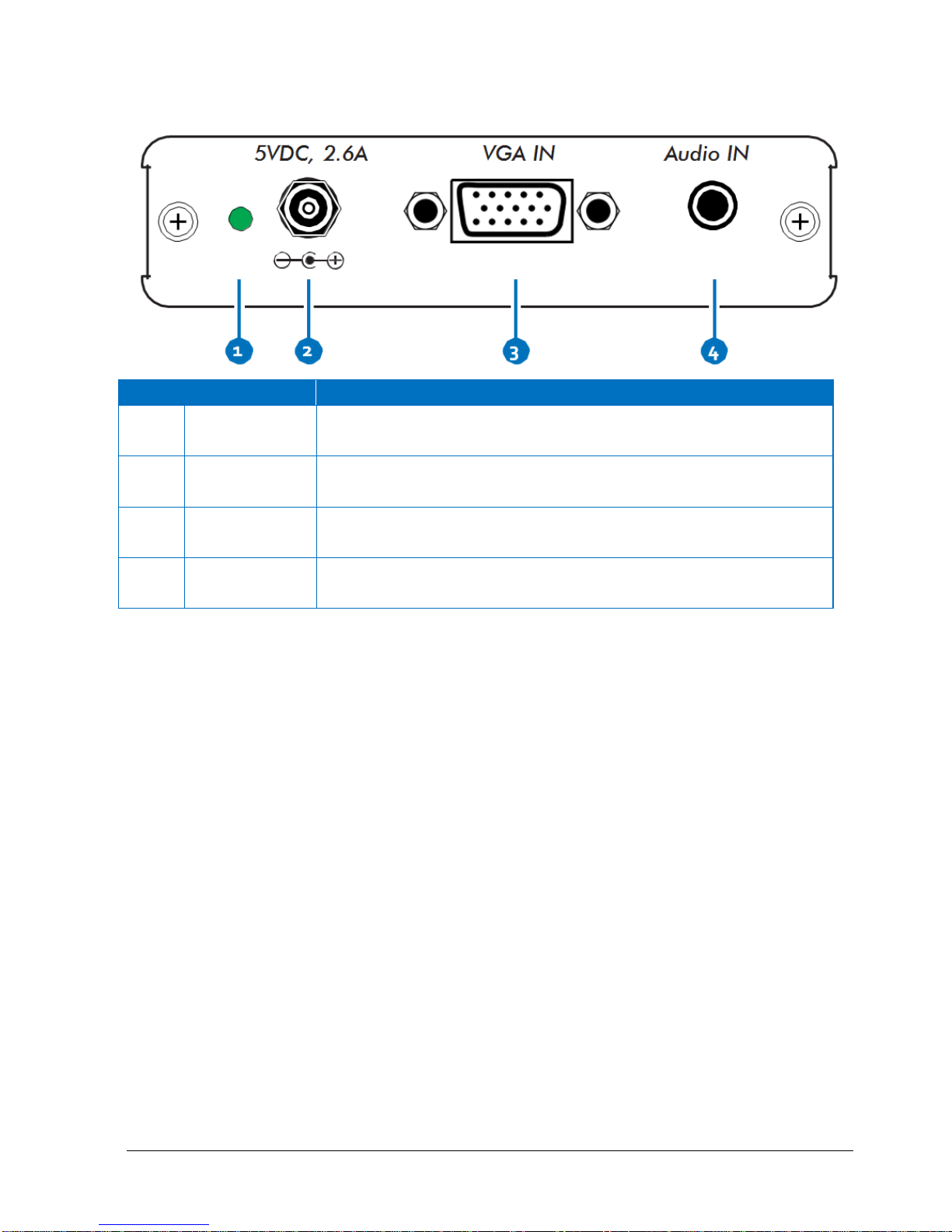

3.2 Rear Panel

Item.

Name

Description

1 Power LED Once the device is powered, the Power LED will illuminate

indicating that the device is powered.

2 5VDC, 2.6A Plug and lock the DC power supply into the unit and connect

the

adaptor to anAC outlet.

3 VGA IN Connect the VGA IN port to the VGA output

port of your

source equipment.

4 Audio In

Connect the 3.5mm stereo input port to the analog

audio

stereo output port of your source equipment.

VGAto HDMI Converter with Scaler Installation Guide

4. System Connection

4.1 Safety Precautions

The system should be installed in a clean environment with temperature and humidity

levels within the specifications.

All devices should be connected before powering on the product.

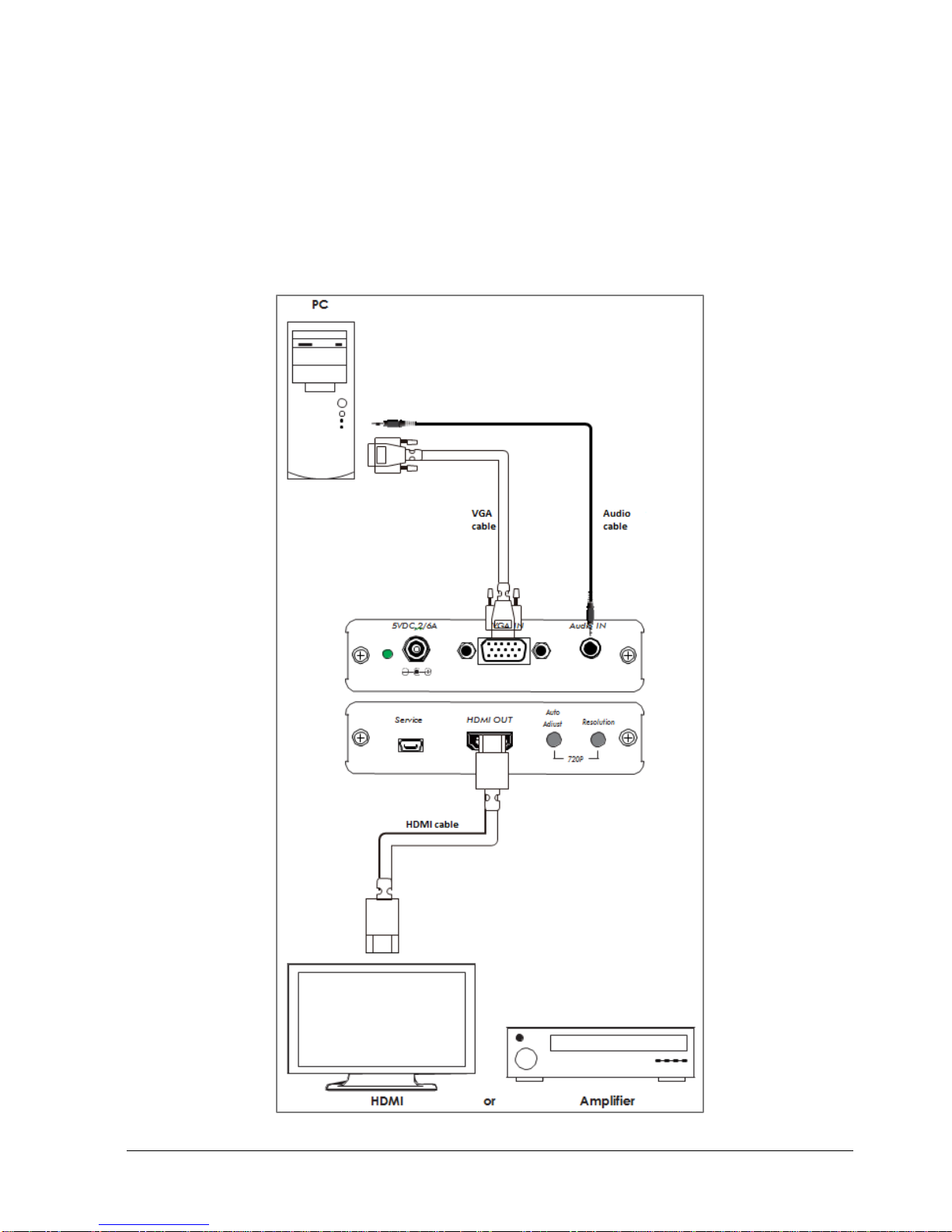

4.2 System Diagram

VGAto HDMI Converter with Scaler Installation Guide

4.3 Installation

1. Connect VGAsource device (i.e. Personal Computer) to VGAinput port of the VGA

to HDMI Converter with Scaler with a VGA cable.

2. Connect the audio source device (e.g. PC audio card) to the audio input port of the

VGA to HDMI Converter with Scaler with a 3.5mm stereo cable.

3. Connect an HDMI display to the HDMI Out port of the VGA to HDMI Converter with

Scaler.

4. Connect the 5VDC power adaptor to the power port of the VGA to HDMI Converter

with Scaler.

4.4 Application

The VGA to HDMI Converter with Scaler can be used for the type of applications such

as computer realm, monitoring, video-conference room and meeting rooms, corporate

boardroom, classroom auditorium and lecture theatres, training rooms and training

facilities, command & control centers, smart homes, etc.

The VGA to HDMI Converter with Scaler is used to solve odd VGAresolutions to display

on a standard HDMI display.

VGAto HDMI Converter with Scaler Installation Guide

5. List of supported resolution

5.1 PC Input Resolution

PCInput Resolution

VGA 640 x 480 @60/72/75Hz

SVGA 800 x 600 @56/60/72/75Hz

XGA 1024 x 768 @60/70/75Hz

XGA+ 1152 x 864 @75Hz

1280 x 720 @60Hz

1280 x 768 @60RB/60Hz

1280 x 800 @60RB/60Hz

1280 x 960 @60Hz

1280 x 1024 @60/75Hz

1360 x 768 @60Hz

SXGA 1400 x 1050 @60Hz

WXGA 1440 x 900 @60Hz

5.2 HDMI output resolutions

HDMI output Resolution

Native resolution

640 x 480 @60Hz

800 x 600 @60Hz

1024 x 768 @60Hz

1280 x 1024 @60Hz

1600 x 1200 @60Hz

1366 x 768 @60Hz

1680 x 1050 @60Hz

1920 x 1200 @60Hz

1280 x 800 @60Hz

1440 x 900 @60Hz

1400 x 1050 @60Hz

1600 x 900 @60Hz

480i @60Hz

480p @60Hz

720p @60Hz

1080i @60Hz

1080p @60Hz

576i @50Hz

576p @50Hz

720p @50Hz

1080i @50Hz

1080p @50Hz
