MuxLab 500080 Manuel utilisateur

8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5

Tel: (514) 905-0588 Fax: (514) 905-0589

Toll Free (North America): (877) 689-5228

E-mail: videoease

muxlab.co

URL: www.muxlab.co

Specifications

Environment Digital Audio, LPCM

Devices DVD, CD Players, TV, PC, laptops.

Transmission Transparent to the user

Signals 2 channel LPCM (Linear Pulse Code Modulation)

Connectors One (1) Coaxial connector

One (1) TOSLink Connector.

Two (2) RCA Connectors.

Note: TOSLink cable included. RCA cables not included.

Switch Selects between SPDIF and TOSlink

Distortion <0.001% @ 1KHz

SNR > 90 dB (20Hz – 20 KHz)

Sample Rate 32, 44.1, 48 and 96 KHz

Bit Depth 24 bit S/PDIF bitstream on right and left channels

Power Supply One (1) 110-240V/5VDC power supplies with interchangeable blades

Power Consumption 0.75 Watt

Temperature Operating: 0° to 40°C Storage: -20° to 85°C

Humidity: Up to 95% non-condensing

Enclosure ABS fire retardant plastic

Dimensions 2.4” x 2.25” x 1.0” (6.1 x 5.5 x 2.5 cm)

Weight 1.0 lb (0.45 kg)

Mounting Velcro pads included.

Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0

Warranty 2 years

Order Information 500080 Digital Audio Converter, LPCM

Digital Audio Converter, LPCM

500080

Quick Installation Guide

Overview

The Digital Audio Converter, LPCM (500080) converts one LPCM-encoded coaxial

(S/PDIF) or optical (TOSLink) digital audio signal to a standard left/right analog audio

output, thereby allowing a digital audio source such as a DVD or CD player without

RCA analog audio output to be connected to an audio-video receiver or TV.

Applications

Applications include commercial and residential audio systems, boardroom systems,

collaborative PC systems, and medical information systems.

Installation

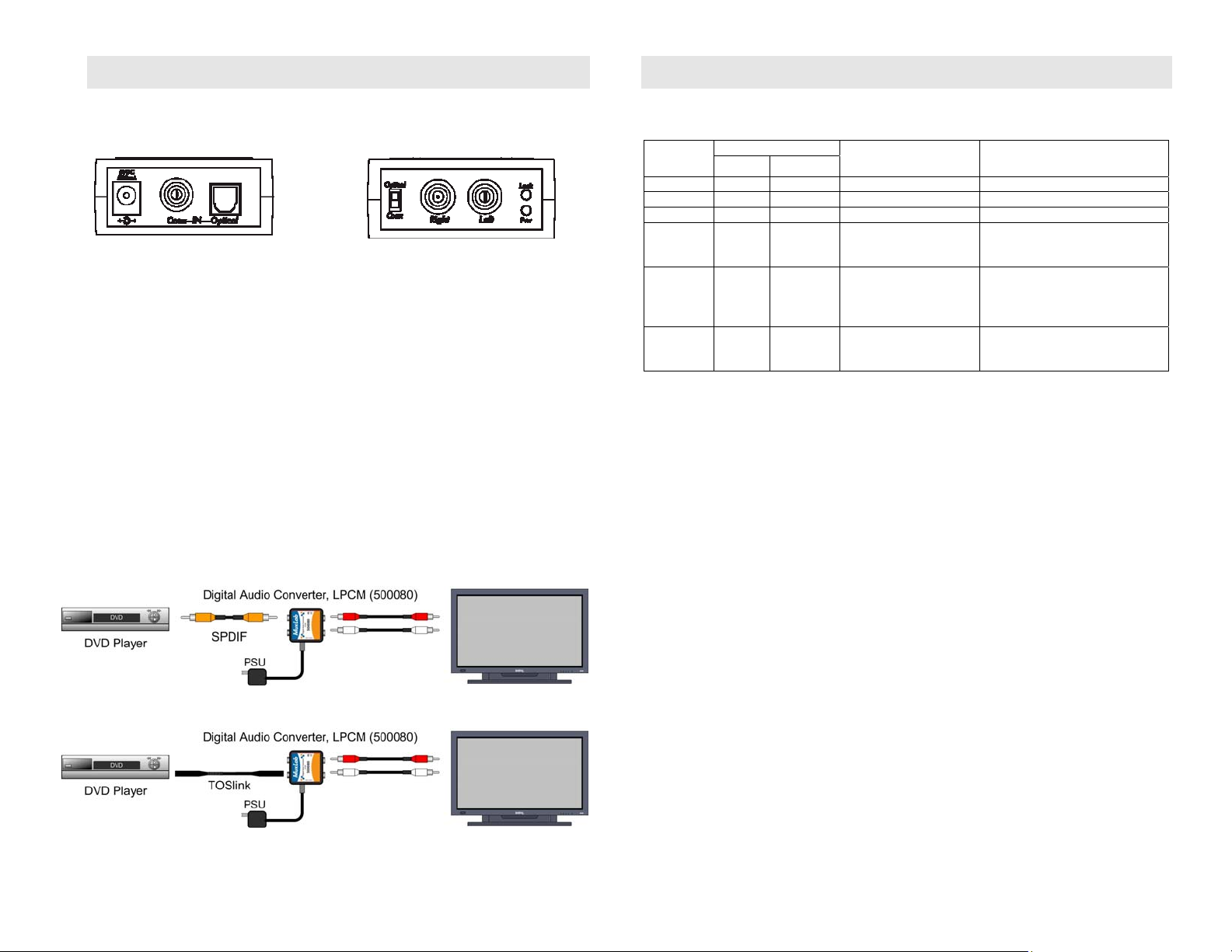

1. Identify the connectors on the Digital Audio Converter as indicated on the product

panels.

2. To install the Digital Audio Converter:

3a. Connect the converter input to the digital audio source with an Optical (TOSLink)

or 75-ohm coaxial (S/PDIF) cable.

3b. Set the input switch to the appropriate signal.

3c. Connect the converter output to the analog audio receiver with a stereo audio

compliant cable.

3. Connect the 5 VDC power supply to the converter first, and then plug the power

supply into an AC power outlet. If power is present, the green power LED of the

Digital Audio Converter will be ON.

Note: Power-on the Digital Audio Converter only after all connections are made.

4. Power-on the audio source and receiver and verify the image quality.

5. The following diagrams shows the final configuration.

Troubleshooting

The following table describes some of the symptoms, probable causes and possible solutions

in regard to the installation of the Digital Audio Converter:

LEDs

Symptom Power Lock

Probable

Cause

Possible

Solutions

No Sound OFF OFF No power • Check power connections

No Sound ON OFF Optical/Coaxial Cable • Check the Optical/Coaxial cables.

No Sound ON ON Stereo audio cable • Check the stereo audio cable.

No Sound ON ON Wrong input on receiver • Check if the selected input on the

receiver can receive analog stereo

audio.

Noise ON ON Audio source outputs a

compressed bitstream

such as Dolby

Digital/DTS

• Configure the source to only

output a uncompressed LPCM

bitstream

Choppy

sound

ON ON Weak Connections • Check cable connection

• Check the Optical/Coaxial Cable

Quality.

If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at

877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International).
