MUTOH PJ-2646NXE Manuel utilisateur

INSTALLATION

MANUAL

Grand-Format Inkjet Printer

PJ-2646NXE

Rev. PJ2646E-I-00

Read This Manual Before Using The

Product.

PJ-2646NXE INSTALLATION MANUAL

TABLE OF CONTENTS

1Introduction･･････････････････････････････････････････････････ 3

1.1 Purpose of this manual･･･････････････････････････････････････････････3

1.2 Safety instruction････････････････････････････････････････････････････3

2Unpacking･･･････････････････････････････････････････････････ 4

2.1 Unpacking procedure ････････････････････････････････････････････････4

2.2 Verification of packaged items ････････････････････････････････････････6

2.2.1 Contents of packaged items････････････････････････････････････････････････7

3Assembly ･･･････････････････････････････････････････････････ 8

3.1 Removal of protective packaging material ･･････････････････････････････8

3.2 Installing the Panel cover････････････････････････････････････････････10

3.3 Removal the media sticking prevention screen ･････････････････････････11

4Installation ･････････････････････････････････････････････････ 12

4.1 Choosing a place for the printer ･･････････････････････････････････････12

4.1.1 Installation environment Requirements ･････････････････････････････････････13

4.1.2 Required space ･････････････････････････････････････････････････････････14

4.2 Installing the printer･････････････････････････････････････････････････15

PJ-2646NXE INSTALLATION MANUAL

1 Introduction

1.1 Purpose of this manual

This manual explains the unpacking, assembly and installation operation procedures of the Grand-Format

Inkjet Printer (PJ-2646NXE) made by MUTOH INDUSTRIES LTD.

This manual is prepared for unpacking, assembly and installation of this printer.

Before unpacking, assembly and installation of the printer, first understand the contents and directions in

this manual.

CAUTION

 No part of this product or manual may be reproduced, copied, or transmitted in any form or

by any means, except for personal use, without the permission of MUTOH INDUSTRIES

LTD.

 The product and the contents of this manual may be changed without prior notification.

 MUTOH INDUSTRIES LTD. has made the best efforts to keep this publication free from

error, but if you find any uncertainties or misprints, please call us or call the shop where you

bought this product.

 MUTOH INDUSTRIES LTD. shall not be liable for any damages or troubles resulting from

the use of this products or this manual.

1.2 Safety instruction

Safety terms in this manual are categorized into the following three types depending on the degree of the

risk (or the scale of accident).

Read the following explanations carefully, and follow the instructions in this manual.

Safety terms Details

WARNING

Must be followed carefully to avoid death or serious bodily injury.

CAUTION

Must be observed to avoid bodily injury (moderately or lightly) or damage to your product.

NOTE

Contains important information and useful tips on the operation of your product.

PJ-2646NXE INSTALLATION MANUAL

2 Unpacking

The unpacking procedure and contents of the package are described below.

2.1 Unpacking procedure

Unpack the package according to the following procedure.

CAUTION

 When unpacking or moving this product, always work with 4 people or more.

 When removing this product from the packaging box, always remove the vinyl plastic, and

hold on the side of the product. Holding the unit over the vinyl plastic wrapping can result in

slippage and dropping the unit, resulting in damage.

1. Move the packaging to the location to unpack.

2. Remove the bolts (48) fixing the top boards (4) to

remove the top boards (4).

No. Name

1 Top board

2 Hexagon bolt to fix top board

3. Remove the bolts (18) fixing the fixed materials A

(9) to remove the fixed materials A (9).

No. Name

1 Fixed material A

2 Hexagon bolt to fix for fixed material A

4. Remove the bolts (26) fixing the side boards (left

and right) to remove the side boards (left and

right).

No. Name

1 Side board (right)

2 Side board (left)

3 Hexagon bolt to fix for side board (left and

right)

PJ-2646NXE INSTALLATION MANUAL

5. Remove the bolts (4) fixing the fixed materials

B (left and right) to remove the fixed materials

B (left and right).

No. Name

1 Fixed material B (right)

2 Fixed material B (left)

3 Hexagon bolt to fix for fixed material B (left

and right)

6. Remove the bolts (14) fixing the front board

and rear board to remove the front board and

rear board.

No. Name

1 Front board

2 Rear board

3 Hexagon bolt to fix for front board and rear

board

7. Cut near the welded area of the product

protection sheet with a box cutter to remove the

product protection sheet.

No. Name

1 Product protection sheet

2 Welded area

NOTE

When cutting the product protection sheet with a box

cutter, ensure not to damage the product.

8. Remove the bolts (12) fixing the adjuster fixed

materials A (4) and the adjuster fixed materials

B (4) to remove the adjuster fixed materials A

and B.

No. Name

1 Adjuster fixed material

2 Hexagon bolt to fix for adjuster fixed

material

PJ-2646NXE INSTALLATION MANUAL

9. Remove the bolts (4) fixing the stand fixed

materials (2) to remove the stand fixed

materials (2).

No. Name

1 Stand fixed material

2 Hexagon bolt to fix for stand fixed material

10. Pick up the slope (2) from the front board

removed in the procedure 6.

11. Attach the slope to the front side of the palette.

12. Using the slope, lower the product from the

palette.

No. Name

1 Slope

2 Palette

2.2 Verification of packaged items

After unpacking the packaging box, inspect to make sure that the unit is not damaged, and that all

necessary parts are present.

NOTE

 If any part is missing or broken, contact either of the following;

 The shop where you bought your MUTOH printer.

 Nearest MUTOH local dealer.

PJ-2646NXE INSTALLATION MANUAL

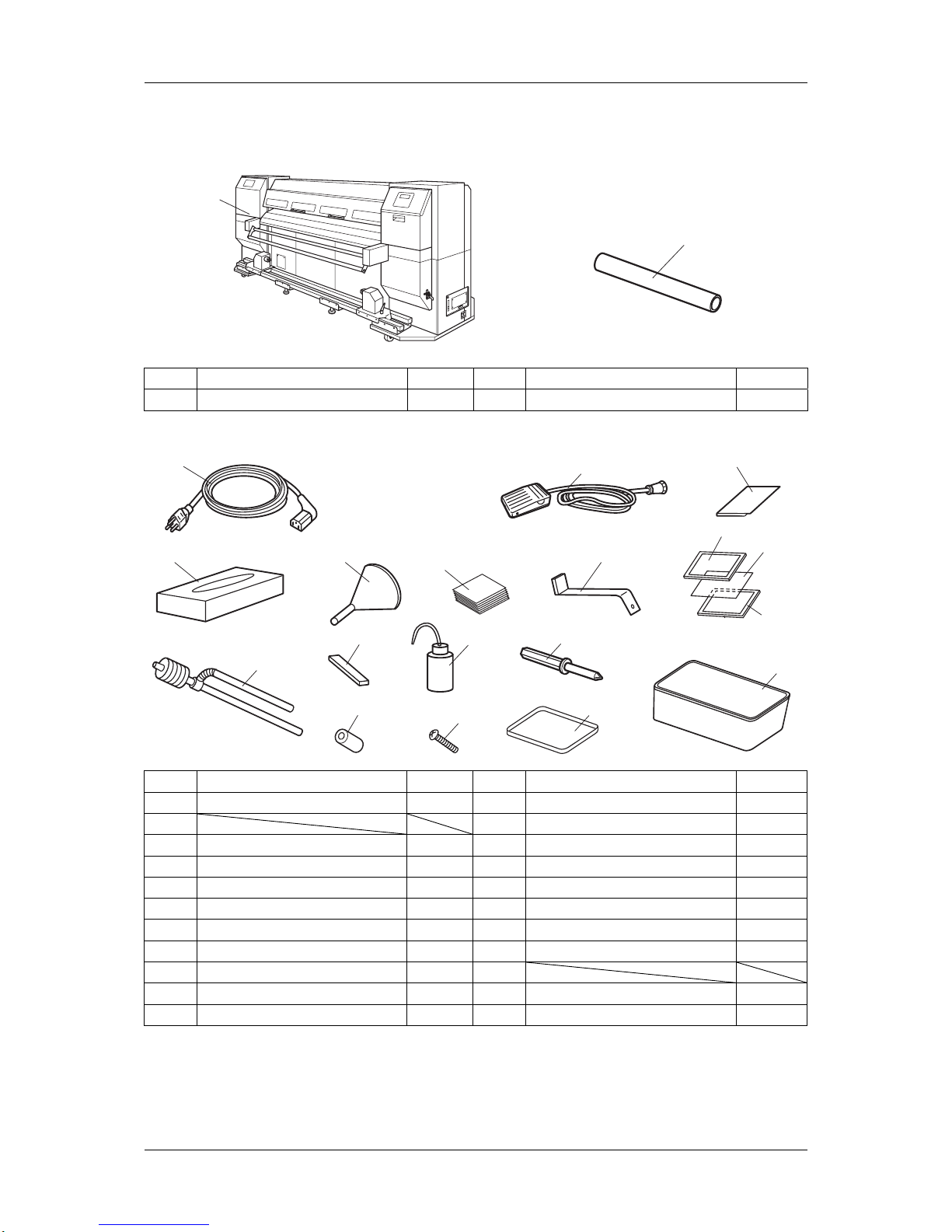

2.2.1Contents of packaged items

(1) Packaging box of the main unit

No. Name Q’ty No. Name Q’ty

1 Main unit, stand, winding unit 1 set 2 Media tube (for winding unit) 1

(2) Accessories packaging box

1 2 3

5 6 8 10

12 19

16 17 18

No. Name Q’ty No. Name Q’ty

1 Power cable 4 12 Hand pump 1

2 13 Cap Sponge 6

3 Foot switch 1 14 Wash bottle 1

4 Media holder plate 2 15 Screwdriver 1

5 Gloves 1 box 16 Plastic spacer 2

6 Funnel 1 17 Screw（for Plastic spacer）2

7 Polynit wiper 1 box 18 Tray 1

8 Print head wiper 1 19 Accessories box 1

9 Magnet sheet (white) 1 20

10 Panel cover 10 21 Operation Manual 1

11 Magnet sheet (black) 1 22 Installation Manual (this document) 1

PJ-2646NXE INSTALLATION MANUAL

3 Assembly

The assembly of this product is described below.

3.1 Removal of protective packaging material

Protective packaging material is attached in the following locations of this product.

Remove all protective packaging material according to the following procedure.

1. Remove tape from all parts of the product.

CAUTION

 Be careful not to pinch your fingers when opening and closing the maintenance cover.

NOTE

 Make sure that the Y-bare cable inside the front cover is as follows when the product is tilted to carry in:

 The Y-bare cable is not fallen down or is not out of position.

 The Y-rail cover is not interfered by the Y-bare cable.

2. Using the screwdriver attached to the product, the

screw that is fixing the head unit fixture material is

loosened.

No. Name

1 Head unit

2 Head unit fixture material

3 Screw

3. Remove the head unit.

4. Remove the protective packaging material from

the bottom of the purge plate.

No. Name

1 Protective packaging material

2 Print head cap

NOTE

The print head cap is wrapped at the shipment. Ensure

to remove the vinyl plastic wrapping when using the

product.

5. Close the maintenance cover.

PJ-2646NXE INSTALLATION MANUAL

6. Using the screwdriver attached to the product,

remove the following parts that to fixed both side

of the cushioning roller.

 Screw (2)

 Skirted collar (2)

No. Name

1 Cushioning roller

2 Skirted collar

3 Screw

7. Using the screwdriver attached to the product,

remove the following parts that to fixed both side

of the tension roller.

 Screw (2)

 Skirted collar (2)

No. Name

1 Tension roller

2 Skirted

3 Screw

8. Using the screwdriver attached to the product, fix

the following parts that to fixed both side of the

tension roller.

 Screw (2)

 Plastic spacer (2)

No. Name

1 Tension roller

2 Plastic spacer

3 Screw

123

PJ-2646NXE INSTALLATION MANUAL

3.2 Installing the Panel cover

Install the panel cover on the operation panel not to stain with the ink or the jetwash fluid.

Install the panel cover according to the following procedure.

1. Install the following parts on the operation panel

one over another as shown in the figure.

 Magnet sheet (black)

 Panel cover

 Magnet sheet (white)

No. Name

1 Operation panel

2 Magnet sheet (black)

3 Panel cover

4 Magnet sheet (white)

NOTE

 When the panel cover stains with the ink or the jetwash fluid, change the panel cover for new ones.
