Murray Parklander2690997 Manuel utilisateur

Part No. 1752618

Revision ‘-’

Riding Mower Model MT60

Model No. Description

2690997 Parklander, 14.5HP w/38" Mower Deck

2690998 Parklander, 15.5HP w/38" Mower Deck

2690999 Parklander, 15.5HP w/42" Mower Deck

Operator’s Manual

Not for

Reproduction

Thank you for purchasing this quality-built MURRAY PARKLANDER mower. We are pleased that you’ve placed your confidence

in the MURRAY PARKLANDER brand. When operated and maintained according to the instructions in this manual, your

MURRAY PARKLANDER mower will provide many years of dependable service.

This manual contains safety information to make you aware of the hazards and risks associated with mowers and how to

avoid them. Because the manufacturer does not necessarily know all the applications this mower could be used for, it is

important that you read and understand these instructions. Save these original instructions for future reference.

This mower requires final assembly before use. Refer to the Assembly section of this manual for instructions on final

assembly procedures. Follow the instructions completely.

Where to Find Us

You never have to look far to find support and service for your mower. There are many authorized service dealers who provide

quality service. You can also contact Customer Service by phone at 02 9584 7700, or on the Internet at www.murray.com or

www.parklands.net.

Mower

Model Number _____________________________________

Serial Number _____________________________________

Engine

Model/Type/Code _____________________________________

Date Purchased

PARKLANDS POWER PRODUCTS

(AUST) PTY LTD.

106 BELMORE ROAD-RIVERWOOD

2210 NEW SOUTH WALES

AUSTRALIA

transmitted in any form by any means without the express written

permission of Briggs & Stratton Power Products Group, LLC.

Not for

Reproduction

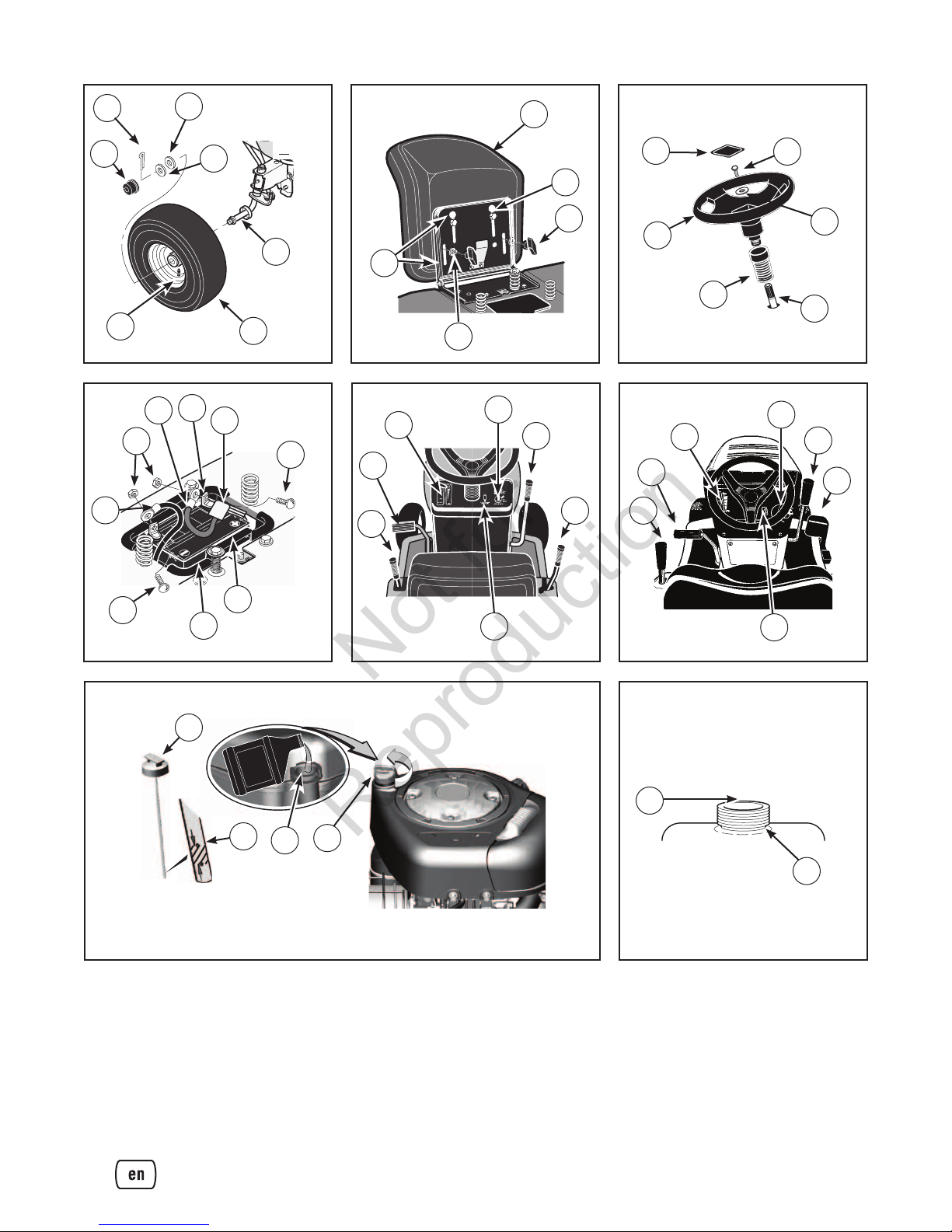

E(#4)

(#9)

(#8)

(#7)

(#5)

F(#3)

(#6)

(#1) C

(#2)

Not for

Reproduction

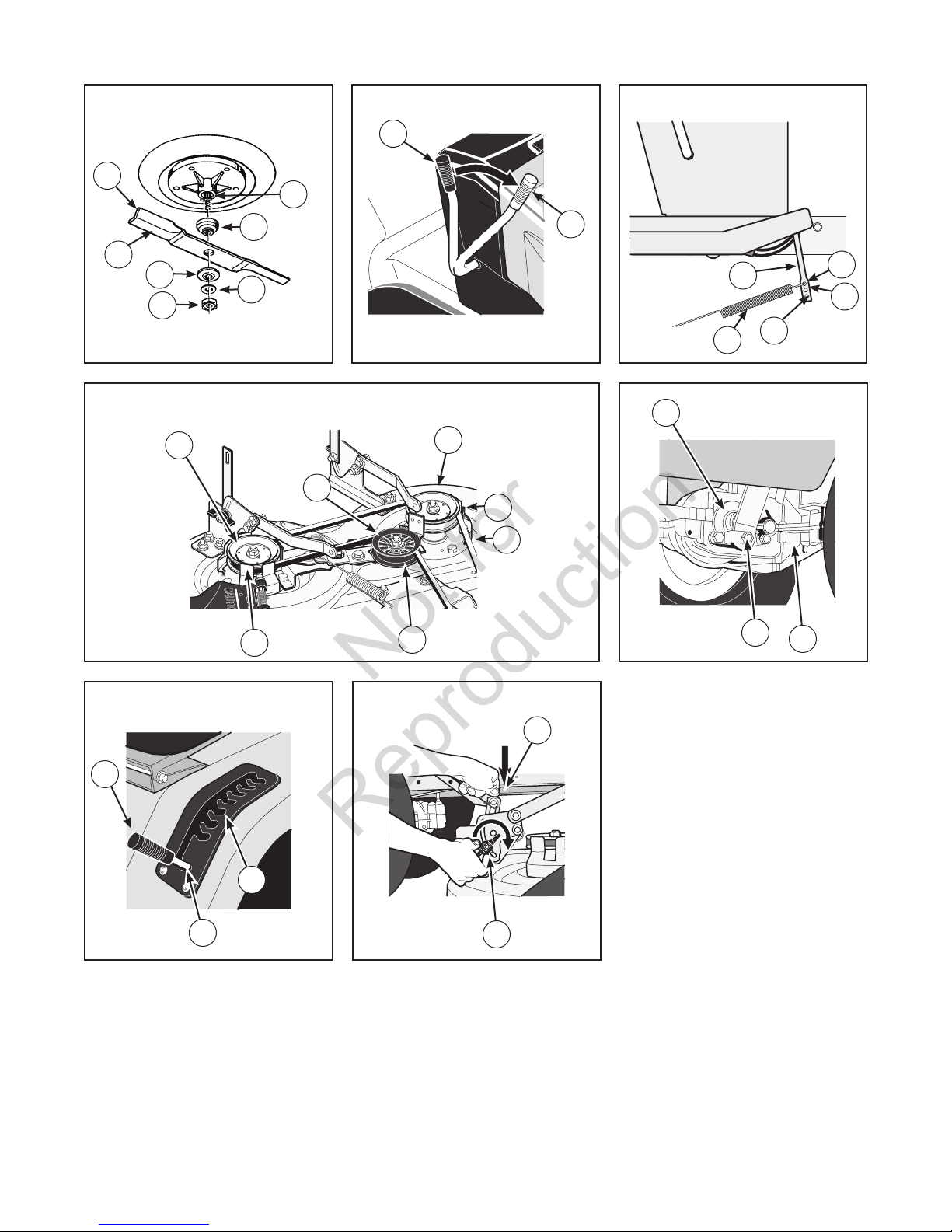

4 www.murray.com www.parklands.net

14 15

9 10

Not for

Reproduction

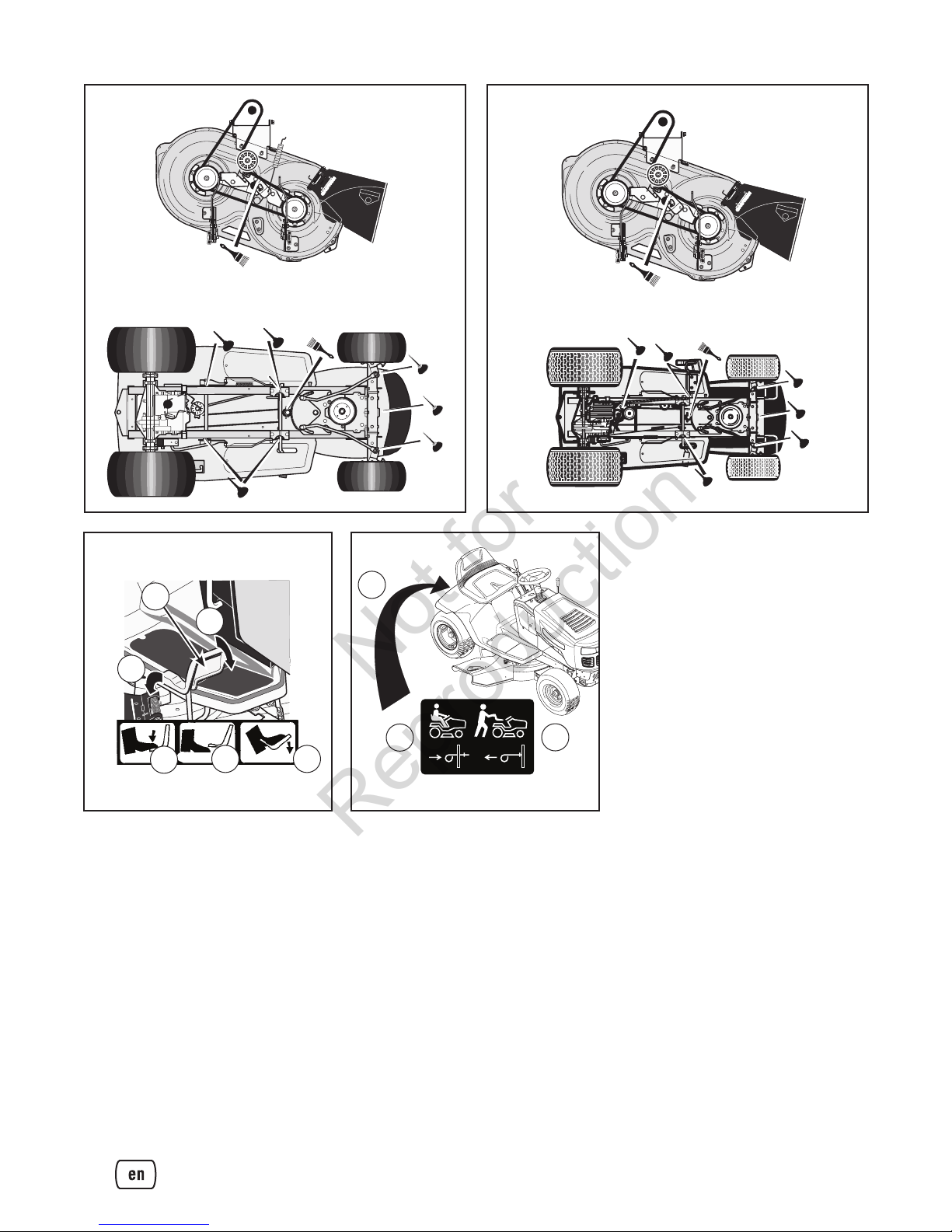

16 17

1918

BC D

7101935

Not for

Reproduction

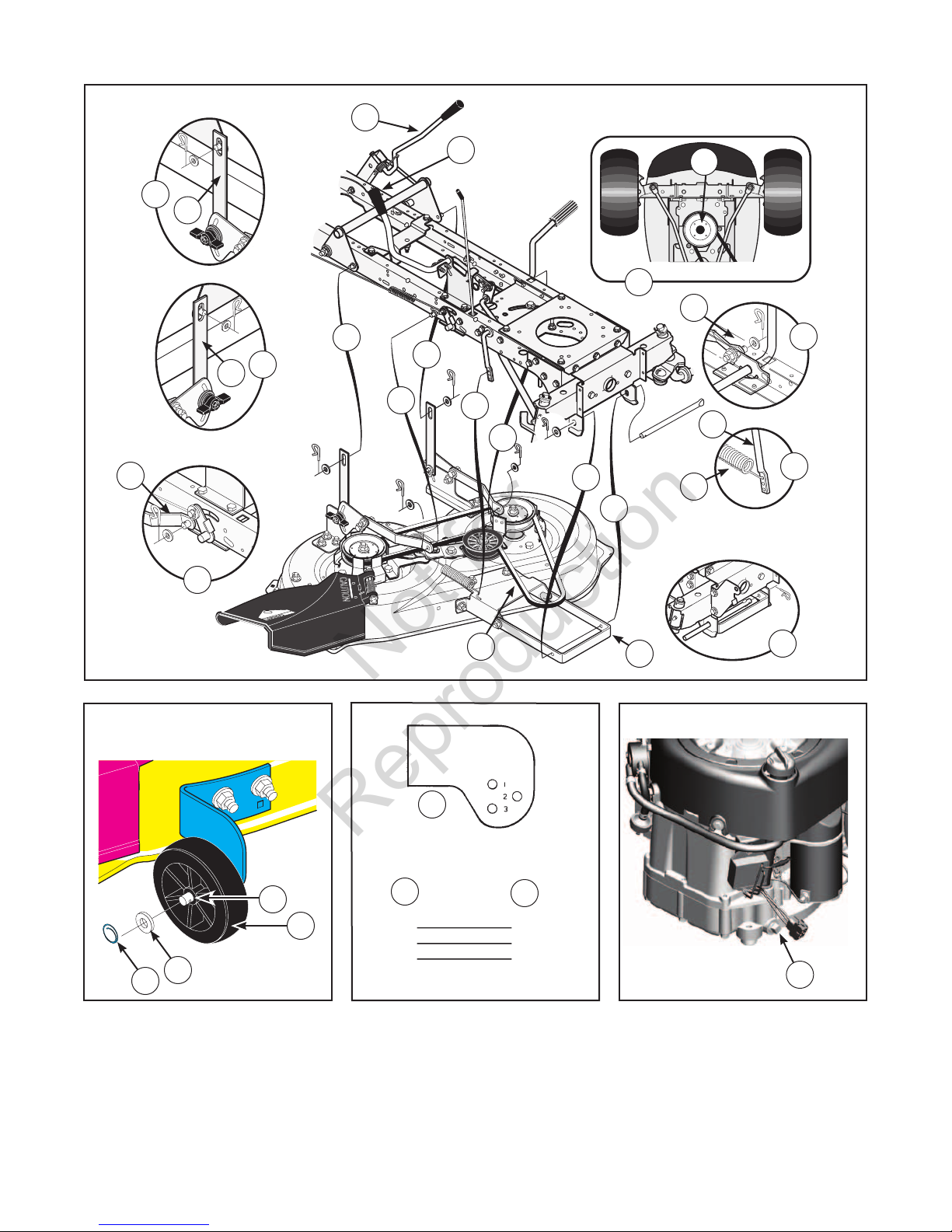

6 www.murray.com www.parklands.net

3 3,4,5,6

21 23

3 3,4,5,6

Not for

Reproduction

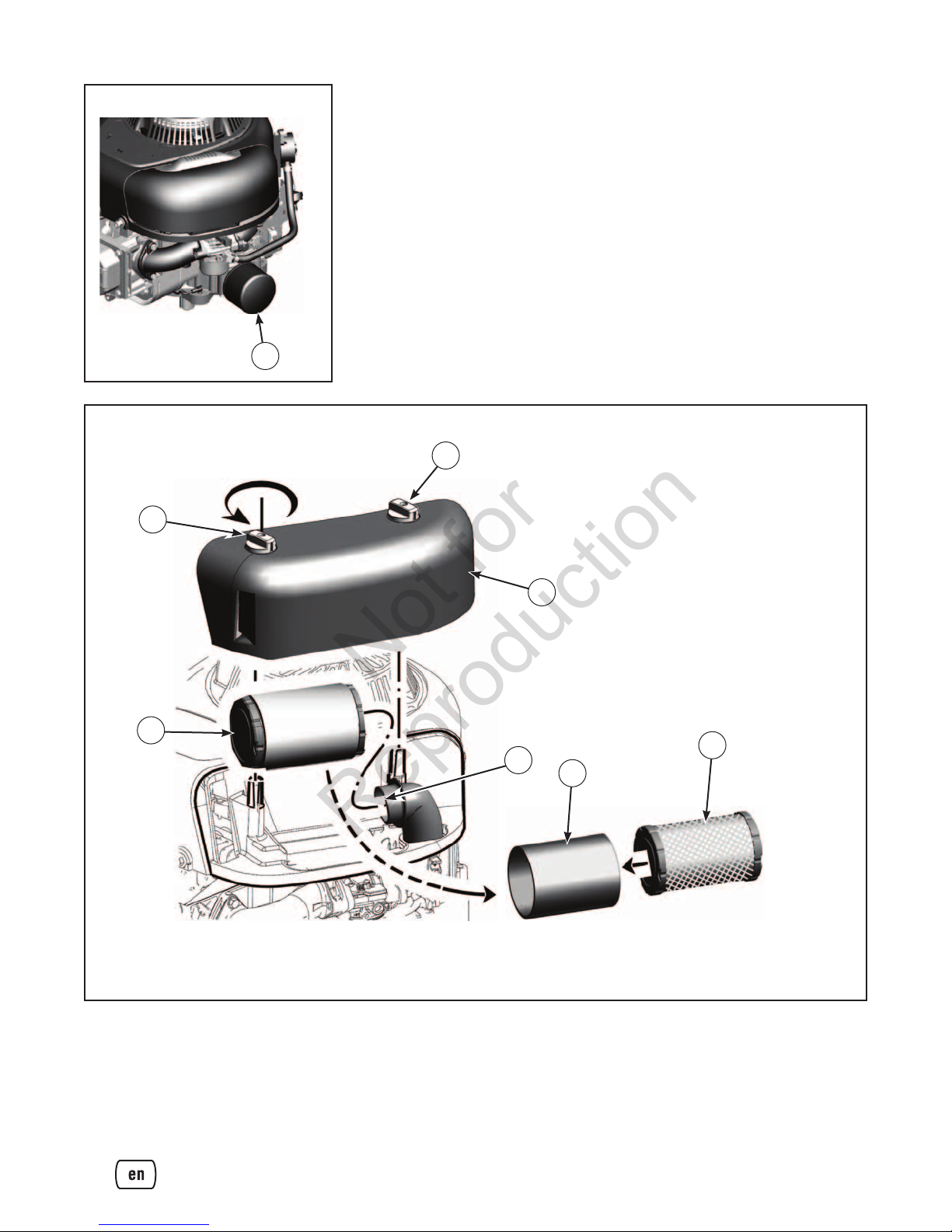

Not for

Reproduction

8 www.murray.com www.parklands.net

(#1) (#2) (#3)

(#5)

(#6)

(#7)

(#8)

(#9)

(#10)

(#4)

A B C DE

F G HI J

K M N OL

AB C D E F G H

IJ K L M

max 10°

max ±150N max ±90N

Not for

Reproduction

English

Table of Contents

Operator Safety.................................. 10

Assembly ...................................... 15

Front Wheels................................................. 15

Seat........................................................ 15

Steering Wheel ............................................... 15

Maintenance Free Battery ....................................... 15

Important! Before You Start Mowing .............................. 16

Features and Controls ............................. 17

Location of Controls ........................................... 17

Attachments ................................................. 17

Operation...................................... 18

Before Operating .............................................. 18

Operation - Gear Drive Models ................................... 19

Operation - Hydro-Drive Models .................................. 21

Maintenance ................................... 25

Maintenance Chart ............................................ 25

General Recommendations ...................................... 26

Maintenance - Tractor.......................................... 26

Maintenance - Engine .......................................... 29

Storage (over 30 days) ......................................... 31

How to Order Replacement Parts ................................. 31

Troubleshooting ................................. 32

Warranties ..................................... 34

Not for

Reproduction

10 www.murray.com www.parklands.net

Operator Safety

International Pictorials

IMPORTANT: The following pictorials are located on your

unit or on literature supplied with the product. Before you

operate the unit, learn and understand the purpose for each

pictorial.

NOTE: Illustrations and pictorials begin on page 3.

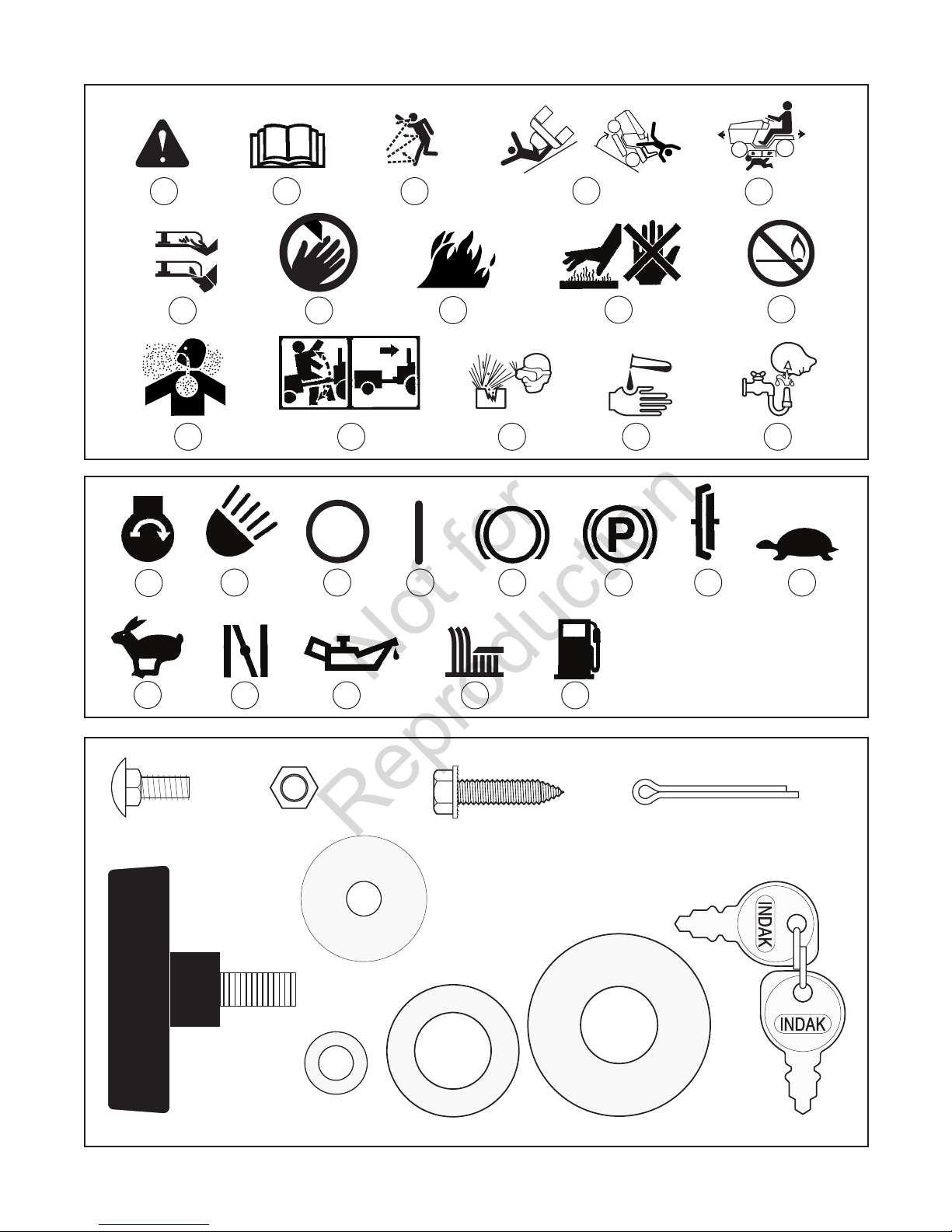

Safety Warning Pictorials (Figure 26)

A - SAFETY ALERT: Read Important Safety Information.

B - IMPORTANT: Read Owner’s Manual Before Operating

This Machine.

C - WARNING: Thrown Objects. Keep Bystanders Away.

Read User Instructions Before Operating This Machine.

D - WARNING: Do Not Use This Machine On Slopes Greater

Than 10 Degrees.

E - DANGER: Keep People, Especially Children, Away From

Unit.

F - DANGER: Keep Feet And Hands Away From Rotating

Blade.

G - DANGER: Keep Hands And Feet Away.

H - DANGER: Fire Hazard. Petrol And Yard Debris Are

Flammable.

I - WARNING: Hot Surface.

J - DANGER: No Sparks, Flames or Smoking.

K - DANGER: Carbon Monoxide Hazard. The Engine Emits

Poisonous Carbon Monoxide Gas.

L - WARNING: Use Caution When Connecting Or

Disconnecting Accessories.

M - DANGER: Shield Eyes. Explosive Gases Can Cause

Blindness Or Injury.

N - DANGER: Sulfuric Acid Can Cause Blindness Or Severe

Burns.

O - DANGER: Flush Eyes With Water. Get Medical Help Fast.

Control and Operating Pictorials (Figure 27)

A - Engine Start

B - Lights

C - Stop / Off

D - Run / On

E - Brake

F - Parking Brake

G - Clutch

H - Slow

I - Fast

J - Choke

K - Oil

L - Blade Rotation Control

M - Fuel

Responsibility of the Owner

Know your product: If you understand the unit and how the

unit operates, you will get the best performance. As you read

this manual, compare the illustrations to the unit. Learn the

location and the function of the controls. To help prevent

an accident, follow the operating instructions and the safety

rules. Keep this manual for future reference.

WARNING: Look for this symbol to indicate

important safety precautions. This symbol

indicates: “Attention! Become Alert! Your Safety Is

At Risk.”

WARNING: This cutting machine is capable of

amputating hands and feet and throwing objects.

Failure to observe the following safety instructions

could result in serious injury or death to the

operator or bystanders.

The responsibility of the owner is to follow the instructions

below.

Not for

Reproduction
