Murray 2691109-00 Manuel utilisateur

Mfg. No. Description

2691109-00 RDLT 22,0 and 107 cm, CE/Export

2691110-00 RDLT 26,0 and 107 cm, CE/Export

2691119-00 RDLT 17,5 and 96 cm, CE/Export

2691120-00 RDLT 18,0 and 96 cm, CE/Export

1755897

Revision A

en Operator’s Manual

Felhasználói kézikönyv

Bedienungsanleitung

cs Návod k obsluze

Manuale dell’operatore

pl 

Manuel de l’opérateur

nl Gebruikershandleiding

no Brukerhåndbok

Not for

Reproduction

Not for

Reproduction

5A6

Not for

Reproduction

Not for

Reproduction

Not for

Reproduction

Not for

Reproduction

CONTENTS

Front Cover ..........................................................................................................1

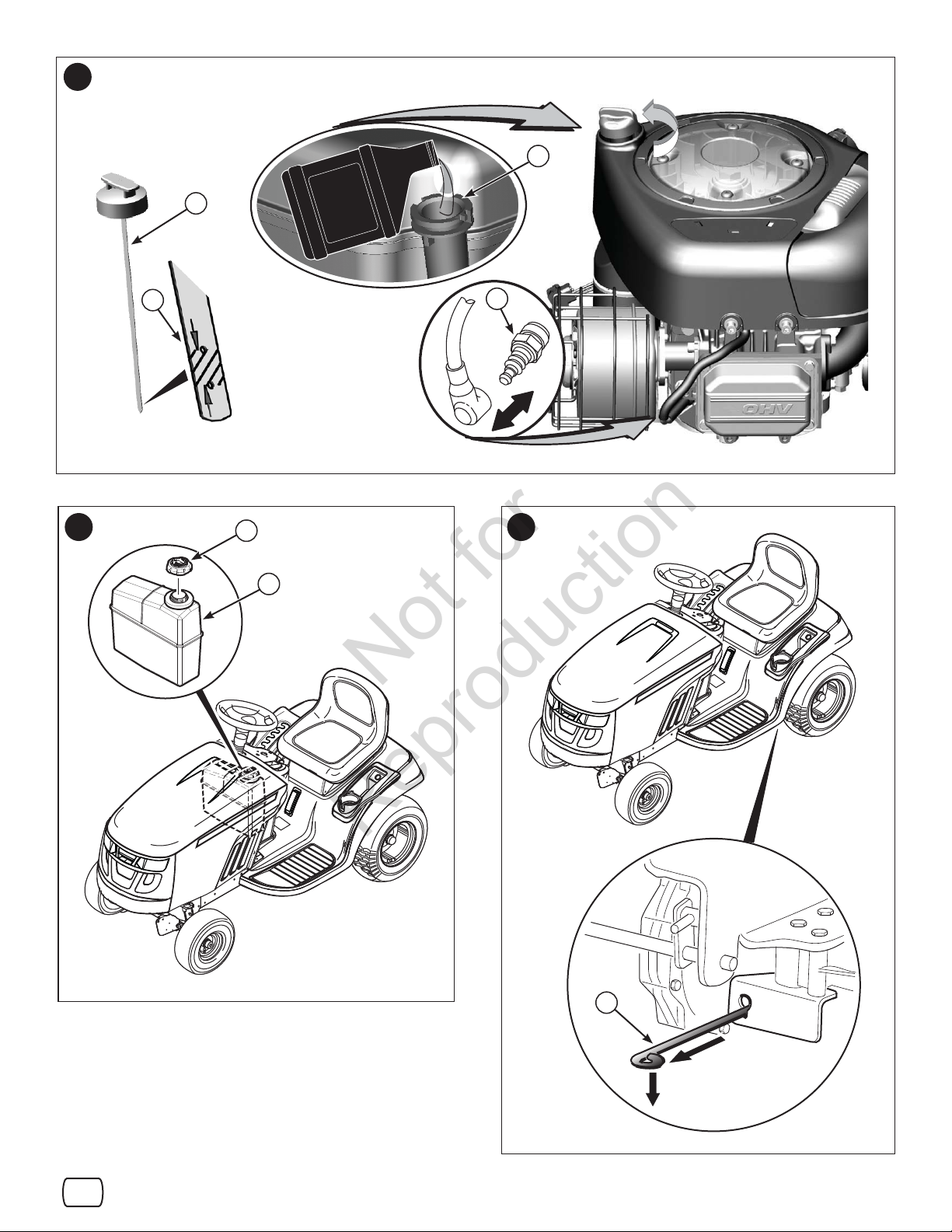

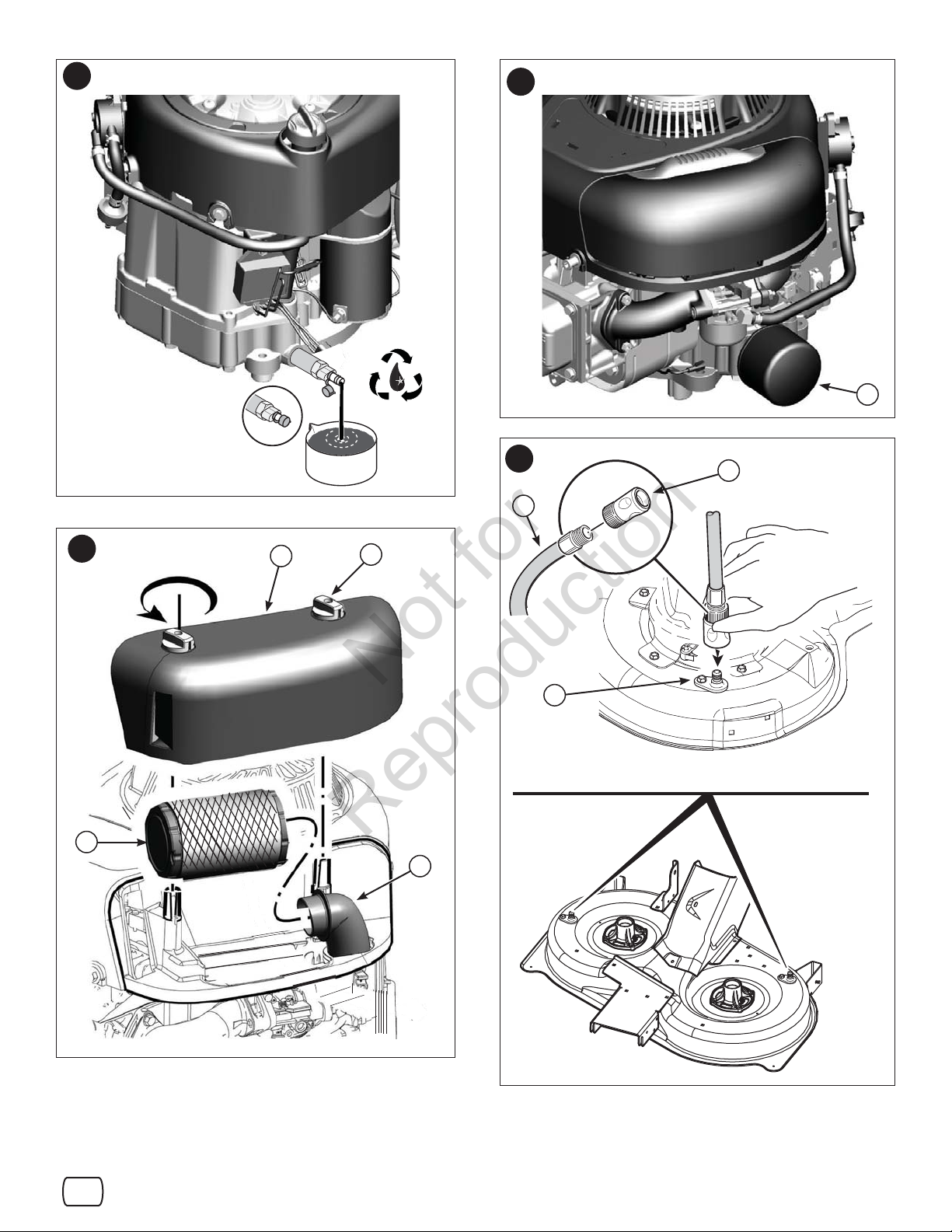

Illustrations..........................................................................................................3

Operator Safety ...................................................................................................8

Features and Controls......................................................................................16

Operation ...........................................................................................................19

Safety Interlock System Tests..........................................................................19

Maintenance ......................................................................................................24

Troubleshooting................................................................................................28

....................................................................................................30

Warranty.............................................................................................................31

General Information

Thank you for purchasing this quality-built riding mower. When operated and maintained according to the instructions in

this manual, your product will provide many years of dependable service.

This manual contains safety information to make you aware of the hazards and risks associated with riding mowers and

how to avoid them. This riding mower is designed and intended only for cutting grass and is not intended for any other

purpose. It is important that you read and understand these instructions thoroughly before attempting to start or operate

the equipment. Save these original instructions for future reference.

The Illustrated Parts List for this machine can be downloaded from murray.com. Please provide model and serial number when

ordering replacement parts.

Record your model name/number, manufacturer’s



provided for easy access. These numbers can be found in the

locations shown.

When contacting your authorized dealer for replacement

parts, service, or information you MUST have these

numbers.

 

 



D. Maximum Engine Speed in Rotations per Minute

E. Power Rating in Kilowatts

F. Mass of Unit in Kilograms

G. CE Compliance Logo

H. Year of Manufacture

I. Guaranteed Sound Power in Decibels

PRODUCT REFERENCE DATA

Model Description Name/Number

Unit MFG Number Unit Serial Number

Mower Deck MFG Number Mower Deck Serial Number

Dealer Name Date Purchased

ENGINE REFERENCE DATA

Engine Make Engine Model

Engine Type/Spec Engine Code/Serial Number



Product Reference Data

MODEL NO. xxxxxxx

SERIAL NO. xxxxxxxxxx

20xx

x.x kW

xxxx min-1

xxx

xxx kg

XXXXXXXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXX

“Vibration measurement uncertainty – machine vibration

was recorded using methods and procedures outlined in the



manufacture. The uncertainties due to the measurement may

result in a variance of up to 5% from the published value shown

in the Declaration of Conformity.”

Not for

Reproduction

WARNING

Certain components in this product and its related ac-

cessories contain chemicals known to the State of California to

cause cancer, birth defects, or other reproductive harm.Wash

hands after handling.

WARNING

Battery posts, terminals, and related accessories contain

lead and lead compounds - chemicals known to the State of

California to cause cancer, birth defects, or other reproductive

harm.Wash hands after handling.

WARNING

The engine exhaust from this product contains chemicals

known to the State of California to cause cancer, birth defects, or

other reproductive harm.

Important Safety Instructions

SAVE THESE INSTRUCTIONS - This manual contains impor-

tant instructions that should be followed during the initial set-up,

the operation, and the maintenance of the equipment. Save

these original instructions for future reference.

The safety alert symbol is used to identify safety informa-

tion about hazards that can result in personal injury. A signal



alert symbol to indicate the likelihood and the potential severity

of injury. In addition, a hazard symbol may be used to represent

the type of hazard.

NOTICE indicates a situation that could result in damage to

the product.

Fire Moving Parts Shock Stop

Toxic Fumes Kickback Explosion 

Choke

Fuel

Hot SurfaceHazardous

Chemical

Wear Eye

Protection

Read

Manual Fast Slow Oil

Safety Symbols and Meanings

WARNING



colorless, poison gas.

Breathing carbon monoxide can cause headache, fatigue,

dizziness, vomiting, confusion, seizures, nausea, fainting

or death.





windows, doors, ventilation intakes, or other openings.

Roll-Over

Hazard Amputation

Hazard

Fuel



Operator Safety

DANGER indicates a hazard which, if not avoided, will

result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

WARNING

Running engines produce heat.Engine parts, especially



Severe thermal burns can occur on contact.

Combustible debris, such as leaves, grass, brush, etc.



  

touching.

  

cylinder area.

 

4442, to use or operate the engine on any forest-covered,

brush-covered, or grass-covered land unless the exhaust

 

 

states or federal jurisdictions may have similar laws. Con-

tact the original equipment manufacturer, retailer, or dealer

to obtain a spark arrester designed for the exhaust system

installed on this engine.

CAUTION indicates a hazard which, if not avoided,

could result in minor or moderate injury.

Not for

Reproduction

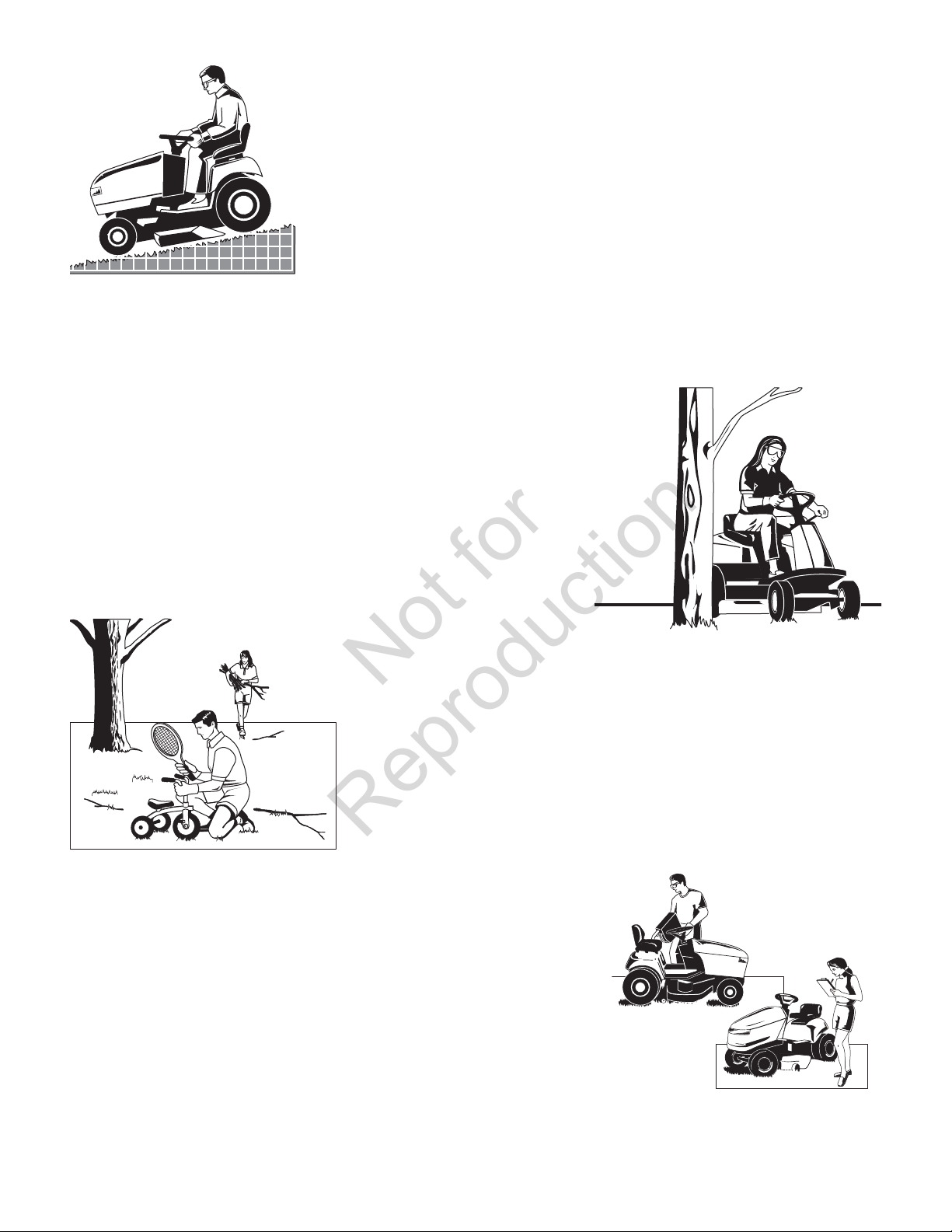

Operating Safety

Power equipment is only as safe as the operator. If it is

misused, or not properly maintained, it can be dangerous!

Remember, you are responsible for your safety and that of those

around you. Use common sense, and think through what you are

doing. If you are not sure that the task you are about to perform

can be safely done with the equipment you have chosen, ask a

professional: contact your local authorized dealer.

Read the Manual

The operator’s manual contains important safety information you





Safe operating techniques, an explanation of the product’s features

and controls, and maintenance information is included to help you

get the most out of your equipment investment.

Be sure to completely read the Safety Rules and Information found

on the following pages. Also completely read the Operation section.

Children

Tragic accidents can occur with children. Do not allow them

anywhere near the area of operation. Children are often



children will remain where you last saw them. If there is a

risk that children may enter the area where you are mowing,

have another responsible adult watch them.



encourages them to come near the unit in the future while it

is running, and they could be seriously hurt. They may then

approach the unit for a ride when you are not expecting it,

and you may run over them.

Reverse

Do not mow in reverse unless

absolutely necessary.

Always look down and

behind before and while

traveling in reverse even

with the mower blades

disengaged.

Safe Operation Practices

Not for

Reproduction

3.5 ft

(1,5 m)

20.0 ft (6,0 m)

Slope Operation

You could be seriously injured or even killed if you use this unit on too

steep an incline. Using the unit on a slope that is too steep or where you

don’t have adequate traction can cause you to lose control or roll over.

A good rule of thumb is to not operate on any slope you cannot back up



greater than a 3.5 foot rise over a 20 foot length. Always drive up and

down slopes: never cross the face.

Also note that the surface you are driving on can greatly impact stability



to control the unit.

If you feel unsure about operating the unit on an incline, don’t do it. It’s

not worth the risk.

Moving Parts

This equipment has many moving parts that can injure you or someone else.

However, if you are seated in the seat properly and follow all the rules in this book,

the unit is safe to operate.

The mower deck has spinning mower blades that can amputate hands and feet.

Do not allow anyone near the equipment while it is running!

To help you, the operator, use this equipment safely, it is equipped with an



See your dealer immediately if the system does not pass all the safety interlock

system tests found in this manual.

Thrown Objects

This unit has spinning mower blades. These blades can pick up and throw

debris that could seriously injure a bystander. Be sure to clean up the area to



Do not operate this unit without the entire grass catcher or discharge guard



Do not allow anyone in the mowing area while the unit is running! If someone



Fuel and Maintenance











 









Not for

Reproduction
