MULTISPAN MI-631P Manuel utilisateur

Page 1

TERMINAL CONNECTION

Front view (mm)

MECHANICAL INSTALLATION

MI-631P

SIGNAL ISOLATOR

Linearized O/P

1.5KV isolation between supply, input &

output

FEATURES

TECHNICAL SPECIFICATION

Zero & span correction facility through

trim port

Fast Response time <150ms

Din Rail Mounting

Input Type Input Range

0 TO 400°C PT-100/3W

INPUT SPECIFICATION:

Current Input <100Ω

Voltage Input >100KΩ

CMRR >120dp (Typical)

Temperature

Co-efficient <100 PPM

INPUT IMPEDANCE:

Output

OUTPUT SPECIFICATION:

Voltage Output <0.4Ω@10V DC with 500Ωload

V Output Load Current <25mA

OUTPUT IMPEDANCE:

LOAD RESISTANCE

0 to 10V DC

Response Type <150ms

Isolation between

supply, input & Output At least 1.5KV AC for 1 min

Auxiliary Voltage

SUPPLY:

100 to 270V AC

Isolation Type Optical - 3 way

ISOLATION:

DIMENSION:

Size (HxWxD) mm 76 X 27 X 116

76 76

27 116

Side view (mm)

PT-100/3W

MI 631P

SUPPLY

PT-100/3W

Output

0 To 10V DC

Supply

100 To 270V AC

www.multispanindia.com

Input

PT-100/3W

MI 631P

SUPPLY

Made in India

Range

0 To 400°C

Page 2

Read complete instructions prior to installation

and operation of the unit.

WARNING : Risk of electric shock.

SAFETY PRECAUTION

All safety related codifications, symbols and instructions

tha appear in this operating manual or on the equipment must

be strictly followed to ensure the safety of the operating

personnel as well as the instrument.

If all the equipment is not handled in a manner specified by

the manufacturer, it might impair the protection provided by

the equipment.

WARNING GUIDELINES

WARNING : Risk of electric shock.

1. To prevent the risk of electric shock, power supply to the

equipment must be kept OFF while doing the wiring

arrangement. Do not touch the terminals while power is

being supplied.

2. To reduce electro magnetic interference, use wire with

adequate rating and twists of the same of equal size shall

be made with shortest connection.

3. Cable used for connection to power source, must have a

cross section of 1mm or greater. These wires should have

insulations capacity made of at least 1.5kV.

4. A better anti-noise effect can be expected by using

standard power supply cable for the instrument.

INSTALLATION GUIDELINES

MECHANICAL INSTALLATION GUIDELINES

MAINTENANCE

1. The equipment should be cleaned regularly to avoid

blockage of ventilating parts.

2. Clean the equipment with a clean soft cloth. Do not use

isopropyl alcohol or any other cleaning agent.

3. Fusible resistor must not be replaced by operator.

1) To install the instrument on a DIN rail, raise the clamp at

the back of the instrument and place it on the rail. Now

release the clamp, so the instrument fits on the DIN rail.

2) Ensure proper fitting of the instrument by pulling it

outwards.

3) To remove the instrument raise the clamp to release it

from the DIN rail.

4) The equipment in its installed state must not come in

close proximity to any heating source, caustic vapors, oil

steam, or other unwanted process byproducts.

5) Do not connect anything to unused terminals.

1) Do not allow pieces of metal, wire clippings, or fine

metallic fillings from installation to enter the product or

else it may lead to a safety hazard that may in turn

endanger life or cause electrical shock to the operator.

2) Circuit breaker or mains switch must be installed

between power source and supply terminal to facilitate

power ‘ON’ or ‘OFF’ function. However this mains switch

or circuit breaker must be installed at convenient place

normally accessible to the operator.

3) Use and store the instrument within the specified ambient

temperature and humidity ranges as mentioned in this

manual.

Specifications are subject to change, since development is a continuous process,

So for more updated operating information and Support,

Please contact our Helpline: 9978991476/9978991482/9978991474 or

Email at Ver:200206[email protected]

Autres manuels MULTISPAN Instrument de mesure

MULTISPAN

MULTISPAN AMP 13 Manuel utilisateur

MULTISPAN

MULTISPAN PI 38 Manuel utilisateur

MULTISPAN

MULTISPAN MPD-19N Manuel utilisateur

MULTISPAN

MULTISPAN MFM 14DC-M1 Manuel utilisateur

MULTISPAN

MULTISPAN AVH 13N Manuel utilisateur

MULTISPAN

MULTISPAN MFM 13-M1 Manuel utilisateur

MULTISPAN

MULTISPAN AVH-14N Manuel utilisateur

MULTISPAN

MULTISPAN MFM 142DC-M1 Manuel utilisateur

MULTISPAN

MULTISPAN RPM-1201 Manuel utilisateur

MULTISPAN

MULTISPAN MS-1208A Manuel utilisateur

MULTISPAN

MULTISPAN PIC-4202 Manuel utilisateur

MULTISPAN

MULTISPAN MFM13 Manuel utilisateur

MULTISPAN

MULTISPAN AMP 23 Manuel utilisateur

MULTISPAN

MULTISPAN EM-1P Manuel utilisateur

MULTISPAN

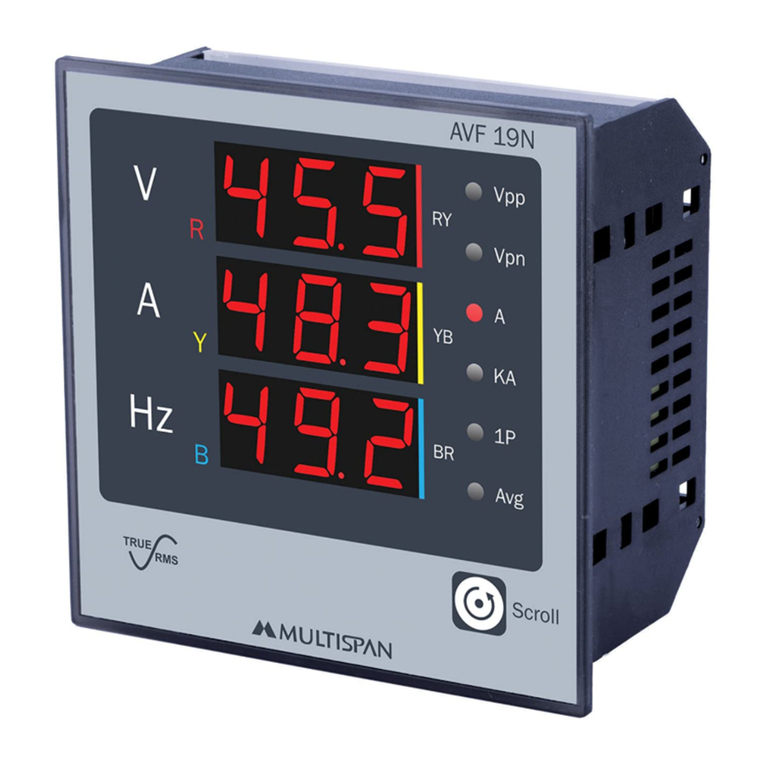

MULTISPAN AVF-19N Manuel utilisateur
