OPERATION AND PARTS MANUAL

THIS MANUAL MUST ACCOMPANYTHE EQUIPMENT AT ALL TIMES.

SERIES

MODEL MVC-90H

ONE-WAY PLATE COMPACTOR

(HONDA GASOLINE ENGINE)

Revision #3 (01/10/11)

www.discount-equipment.com

Discount-Equipment.com

Discount-Equipment.com is your online resource for commercial and industrial

quality parts and equipment sales.

Locations:

Florida (West Palm Beach): 561-964-4949

Outside Florida TOLL FREE: 877-690-3101

Need parts? Check out our website at www.discount-equipment.com

Can’t find what you need?

Click on this link: http://www.discount-equipment.com/category/5443-parts/ and fill out

the request form.

Please have the machine model and serial number available in order to help us get

you the correct parts. One of our experienced staff members will get back to you with

a quote for the right part that your machine needs.

We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mayco, Toro/Stone,

Diamond Products, Magnum, Airman, Mustang, Power Blanket, Nifty Lift, Atlas Copco,

Chicago Pneumatic, Allmand Brothers, Essick, Miller Spreader, Skyjack, Lull, Skytrak,

Tsurumi, Husquvarna/Target, Whiteman-Concrete/Mortar, Stow-Concrete/Mortar, Baldor,

Wacker, Sakai, Snorkel, Upright, Mi-T-M, Sullair, Neal, Basic, Dynapac, MBW, Weber,

Bartell, Bennar Newman, Haulotte, Ditch Runner, Blaw-Knox, Himoinsa, Best, Buddy,

Crown, Edco, Wyco, Bomag, Laymor, Terremite, Barreto, EZ Trench, Takeuchi, Basic, Bil-

Jax, Curtis, Gehl, Heli, Honda, ICS/PowerGrit, Puckett, Waldon, ASV, IHI, Partner, Imer,

Clipper, MMD, Koshin, Rice, Gorman Rupp, CH&E, Cat Pumps, Comet, General Pump,

Giant,AMida, Coleman, NAC, Gradall, Square Shooter, Kent, Stanley, Tamco, Toku, Hatz,

Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air, Small Line, Wanco, Yanmar

Discount-Equipment.com

PAGE 2 — MVC-90H PLATE COMPACTOR — OPERATION AND PARTS MANUAL — REV. #3 (01/10/11)

PROPOSITION 65 WARNING

Discount-Equipment.com

PAGE 4 — MVC-90H PLATE COMPACTOR — OPERATION AND PARTS MANUAL — REV. #3 (01/10/11)

TABLE OF CONTENTS

MULTIQUIP MVC-90H

PLATE COMPACTOR

Proposition 65 Warning ..............................................2

Table Of Contents ......................................................4

Parts Ordering Procedures ........................................5

Safety Information ................................................ 6-10

Dimensions ............................................................. 12

Specifications .......................................................... 13

General Information ................................................ 14

Components (Plate Compactor) ............................. 15

Components (Honda Engine) ................................. 16

Inspection ........................................................... 17-18

Start-Up Procedure ................................................. 19

Shut-down Procedure ............................................. 20

Operation ................................................................ 21

Maintenance ...................................................... 22-24

Preparation For Long Term Storage ....................... 25

Troubleshooting (Engine) ................................... 26-27

Troubleshooting (Compactor) ................................. 28

Explanation Of Codes In Remarks Column ............ 30

Suggested Spare Parts ........................................... 31

NOTE Specification and part number

are subject to change without

notice.

COMPONENT DRAWINGS

Name Plate and Decals ..................................... 32-33

Body Assembly .................................................. 34-37

Vibrator Assembly .............................................. 38-39

Clutch Assembly (Old Type) ............................... 40-41

Clutch Assembly (New Type) ............................. 42-43

HONDA GX160K1QMX2/

GX160U1QMX2

GASOLINE ENGINE

Air Cleaner (Dual) Assembly ............................. 44-45

Camshaft Assembly .......................................... 46-47

Carburetor Assembly ........................................ 48-49

Control Assembly .............................................. 50-51

Crankcase Cover Assembly .............................. 52-53

Crankshaft Assembly ........................................ 54-55

Cylinder Barrel Assembly .................................. 56-57

Cylinder Head Assembly ................................... 58-59

Fan Cover Assembly ......................................... 60-61

Flywheel Assembly ........................................... 62-63

Fuel Tank Assembly .......................................... 64-65

Ignition Coil Assembly ....................................... 66-67

Muffler Assembly .............................................. 68-69

Piston Assembly ................................................ 70-71

Recoil Starter Assembly.................................... 72-73

Gasket Kit Assembly ......................................... 74-75

Label Assembly ................................................. 76-77

Terms and Conditions Of Sale — Parts .................. 78

Discount-Equipment.com

PAGE 6 — MVC-90H PLATE COMPACTOR — OPERATION AND PARTS MANUAL — REV. #3 (01/10/11)

SAFETY INFORMATION

Do not operate or service the equipment before reading

the entire manual. Safety precautions should be followed

at all times when operating this equipment.

Failure to read and understand the safety

messages and operating instructions could

result in injury to yourself and others.

SAFETY MESSAGES

The four safety messages shown below will inform you

about potential hazards that could injure you or others.The

safety messages speciﬁcally address the level of exposure

to the operator and are preceded by one of four words:

DANGER, WARNING, CAUTION or NOTICE.

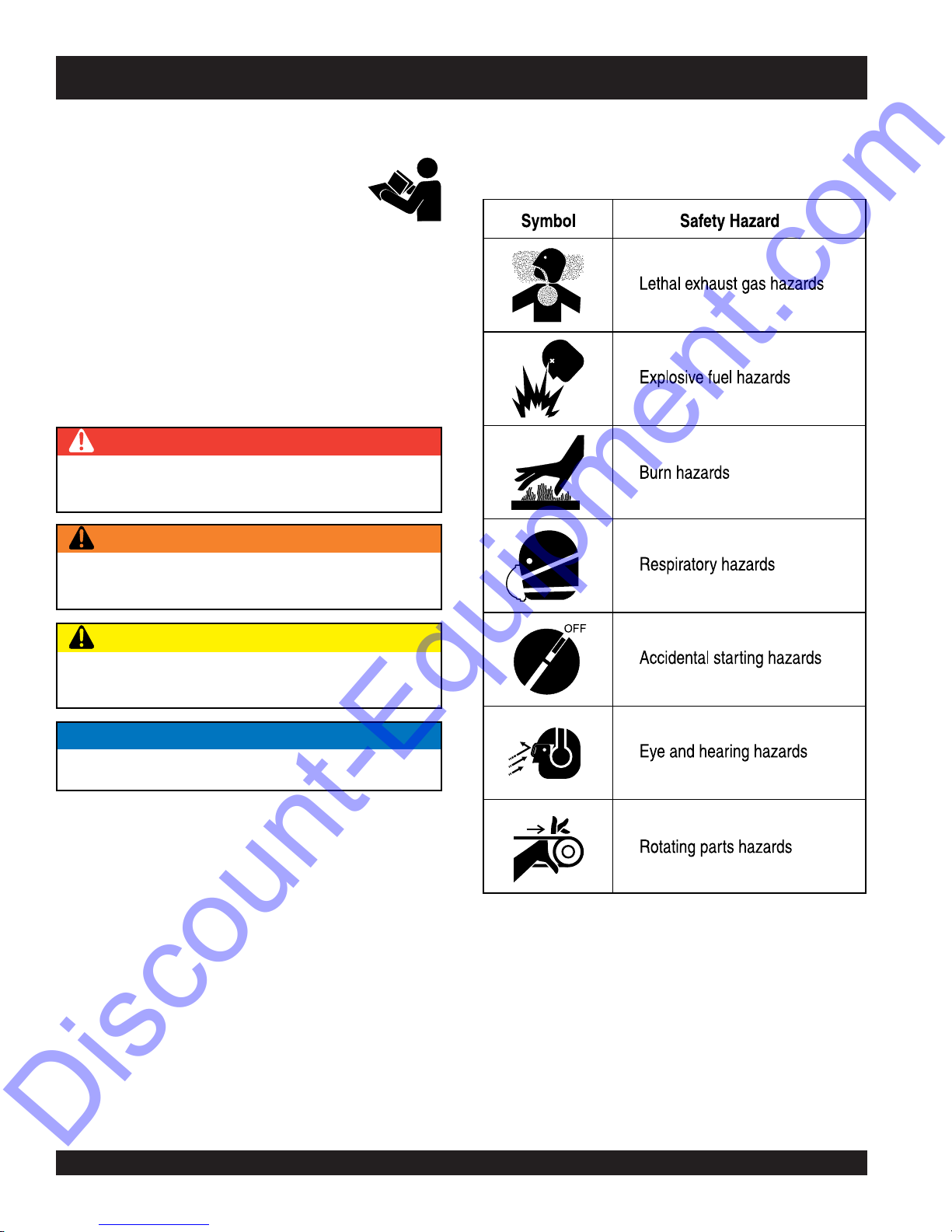

SAFETY SYMBOLS

DANGER

Indicates a hazardous situation which, if not avoided,

WILL result in DEATH or SERIOUS INJURY.

WARNING

Indicates a hazardous situation which, if not avoided,

COULD result in DEATH or SERIOUS INJURY.

CAUTION

Indicates a hazardous situation which, if not avoided,

COULD result in MINOR or MODERATE INJURY.

NOTICE

Addresses practices not related to personal injury.

Potential hazards associated with the operation of this

equipment will be referenced with hazard symbols which

may appear throughout this manual in conjunction with

safety messages.

Discount-Equipment.com

MVC-90H PLATE COMPACTOR — OPERATION AND PARTS MANUAL — REV. #3 (01/10/11)— PAGE 7

SAFETY INFORMATION

GENERAL SAFETY

CAUTION

NEVER operate this equipment without proper protective

clothing, shatterproof glasses, respiratory protection,

hearing protection, steel-toed boots and other protective

devices required by the job or city and state regulations.

NEVER operate this equipment when not

feeling well due to fatigue, illness or when

under medication.

NEVER operate this equipment under the inﬂuence of

drugs or alcohol.

ALWAYS check the equipment for loosened threads or

bolts before starting.

DO NOT use the equipment for any purpose other than

its intended purposes or applications.

ALWAYS clear the work area of any debris, tools, etc.

that would constitute a hazard while the equipment is

in operation.

NOTICE

This equipment should only be operated by trained and

qualiﬁed personnel 18 years of age and older.

Whenever necessary, replace nameplate, operation and

safety decals when they become difﬁcult read.

Manufacturer does not assume responsibility for any

accident due to equipment modiﬁcations. Unauthorized

equipment modiﬁcation will void all warranties.

NEVER use accessories or attachments that are not

recommended by Multiquip for this equipment. Damage

to the equipment and/or injury to user may result.

ALWAYS know the location of the nearest

ﬁre extinguisher.

ALWAYS know the location of the nearest

ﬁrst aid kit.

ALWAYS know the location of the nearest phone or keep

a phone on the job site. Also, know the phone numbers

of the nearest ambulance, doctor and ﬁre department.

This information will be invaluable in the case of an

emergency.

Discount-Equipment.com

PAGE 8 — MVC-90H PLATE COMPACTOR — OPERATION AND PARTS MANUAL — REV. #3 (01/10/11)

SAFETY INFORMATION

COMPACTOR SAFETY

DANGER

NEVER operate the equipment in an explosive

atmosphere or near combustible materials.An

explosion or ﬁre could result causing severe

bodily harm or even death.

WARNING

NEVER disconnect any emergency or safety devices.

These devices are intended for operator safety.

Disconnection of these devices can cause severe injury,

bodily harm or even death.Disconnection of any of these

devices will void all warranties.

CAUTION

NEVER lubricate components or attempt service on a

running machine.

NOTICE

ALWAYS keep the machine in proper running condition.

Fix damage to machine and replace any broken parts

immediately.

ALWAYS store equipment properly when it is not being

used. Equipment should be stored in a clean, dry location

out of the reach of children and unauthorized personnel.

ENGINE SAFETY

DANGER

The engine fuel exhaust gases contain poisonous carbon

monoxide. This gas is colorless and odorless, and can

cause death if inhaled.

The engine of this equipment requires an adequate

free ﬂow of cooling air. NEVER operate this equipment

in any enclosed or narrow

area where free ﬂow of the

air is restricted. If the air

ﬂow is restricted it will cause

injury to people and property

and serious damage to the

equipment or engine.

WARNING

DO NOT place hands or fingers inside engine

compartment when engine is running.

NEVER operate the engine with heat shields or

guards removed.

Keep ﬁngers, hands hair and clothing away

from all moving parts to prevent injury.

DO NOT remove the radiator cap while the

engine is hot. High pressure boiling water will gush out

of the radiator and severely scald any persons in the

general area of the compactor.

DO NOT remove the coolant drain plug

while the engine is hot. Hot coolant will

gush out of the coolant tank and severely

scald any persons in the general area of

the compactor.

DO NOT remove the engine oil drain plug while the

engine is hot. Hot oil will gush out of the oil tank and

severely scald any persons in the general area of the

compactor.

CAUTION

NEVER touch the hot exhaust manifold,

mufﬂer or cylinder. Allow these parts to cool

before servicing equipment.

NOTICE

NEVER run engine without an air ﬁlter or with a dirty air

ﬁlter. Severe engine damage may occur. Service air ﬁlte

frequently to prevent engine malfunction.

NEVER tamper with the factory settings

of the engine or engine governor. Damage

to the engine or equipment can result

if operating in speed ranges above the

maximum allowable.

NEVER tip the engine to extreme angles during lifting as

it may cause oil to gravitate into the cylinder head, making

the engine start difﬁcult.

Discount-Equipment.com

MVC-90H PLATE COMPACTOR — OPERATION AND PARTS MANUAL — REV. #3 (01/10/11)— PAGE 9

SAFETY INFORMATION

FUEL SAFETY

DANGER

DO NOT add fuel to equipment if it is placed inside truck

bed with plastic liner. Possibility exists of explosion or

ﬁre due to static electricity.

DO NOT start the engine near spilled fuel or combustible

ﬂuids. Diesel fuel is extremely ﬂammable and its vapors

can cause an explosion if ignited.

ALWAYS refuel in a well-ventilated area, away from

sparks and open ﬂames.

ALWAYS use extreme caution when working with

ﬂammable liquids.

DO NOT ﬁll the fuel tank while the engine is running

or hot.

DO NOT overﬁll tank, since spilled fuel could ignite if it

comes into contact with hot engine parts or sparks from

the ignition system.

Store fuel in appropriate containers, in well-ventilated

areas and away from sparks and ﬂames.

NEVER use fuel as a cleaning agent.

DO NOT smoke around or near the

equipment. Fire or explosion could result

from fuel vapors or if fuel is spilled on a

hot engine.

FUEL

BATTERY SAFETY (ELECTRIC START ONLY)

DANGER

DO NOTdrop the battery. There is a possibility that the

battery will explode.

DO NOT expose the battery to open ﬂames,

sparks, cigarettes, etc.The battery contains

combustible gases and liquids. If these

gases and liquids come into contact with a

ﬂame or spark, an explosion could occur.

WARNING

ALWAYS wear safety glasses when

handling the battery to avoid eye irritation.

The battery contains acids that can cause

injury to the eyes and skin.

Use well-insulated gloves when picking up

the battery.

ALWAYS keep the battery charged. If the battery is not

charged, combustible gas will build up.

DO NOT charge battery if frozen. Battery can explode.

When frozen, warm the battery to at least 61°F (16°C).

ALWAYS recharge the battery in a well-ventilated

environment to avoid the risk of a dangerous concentration

of combustible gases.

If the battery liquid (dilute sulfuric acid)

comes into contact with clothing or skin,

rinse skin or clothing immediately with

plenty of water.

If the battery liquid (dilute sulfuric acid) comes into

contact with eyes, rinse eyes immediately with plenty

of water and contact the nearest doctor or hospital to

seek medical attention.

CAUTION

ALWAYS disconnect the NEGATIVE battery terminal

before performing service on the equipment.

ALWAYS keep battery cables in good working condition.

Repair or replace all worn cables.

Discount-Equipment.com

PAGE 10 — MVC-90H PLATE COMPACTOR — OPERATION AND PARTS MANUAL — REV. #3 (01/10/11)

SAFETY INFORMATION

TRANSPORTING SAFETY

CAUTION

NEVER allow any person or animal to stand underneath

the equipment while lifting.

NOTICE

Before lifting, make sure that the equipment parts (hook

and vibration insulator) are not damaged and screws are

not loose or missing.

Always make sure crane or liﬁtng device has been

properly secured to the lifting bail (hook) of the

equipment.

ALWAYS shutdown engine before transporting.

NEVER lift the equipment while the engine is running.

Tighten fuel tank cap securely and close fuel cock to

prevent fuel from spilling.

Use adequate lifting cable (wire or rope) of sufﬁcient

strength.

Use one point suspension hook and lift straight

upwards.

DO NOT lift machine to unnecessary heights.

ALWAYS tie down equipment during transport by

securing the equipment with rope.

ENVIRONMENTAL SAFETY

NOTICE

Dispose of hazardous waste properly.

Examples of potentially hazardous waste

are used motor oil, fuel and fuel ﬁlters.

DO NOT use food or plastic containers to dispose of

hazardous waste.

DO NOT pour waste, oil or fuel directly onto the ground,

down a drain or into any water source.

Discount-Equipment.com

PAGE 12 — MVC-90H PLATE COMPACTOR — OPERATION AND PARTS MANUAL — REV. #3 (01/10/11)

Figure 1. MVC-90H Plate Compactor Dimensions

MVC-90H PLATE COMPACTOR — DIMENSIONS

SNOISNEMID.3ELBAT

retteLecnerefeR noitpircseD )mm(.nisnoisnemiD

)deyolpeDeldnaH(thgieH ).mm6.368(.ni43

htdiWlarevO ).mm335(.ni12

)ylnoetalP(htgneL ).mm485(.ni32

)deyolpeDeldnaH(htgneL ).mm912,1(.ni84

)dehctateDeldnaH(thgieH ).mm787(.ni13

Discount-Equipment.com

Table des matières

Autres manuels MULTIQUIP Outils électriques

MULTIQUIP

MULTIQUIP V305EH Mode d’emploi

MULTIQUIP

MULTIQUIP Mikasa Series Manuel utilisateur

MULTIQUIP

MULTIQUIP Mikasa MVC-88VGE Mode d’emploi

MULTIQUIP

MULTIQUIP Mikasa MVH-150D2 Mode d’emploi

MULTIQUIP

MULTIQUIP Mikasa Series Mode d’emploi

MULTIQUIP

MULTIQUIP Mikasa Series Mode d’emploi

MULTIQUIP

MULTIQUIP QP40TH Manuel utilisateur

MULTIQUIP

MULTIQUIP Mikasa Series Mode d’emploi

MULTIQUIP

MULTIQUIP Mikasa MVC82VE Mode d’emploi

MULTIQUIP

MULTIQUIP Mikasa MVH-402DSB Mode d’emploi

MULTIQUIP

MULTIQUIP DuoScreed LightWeight DSGPULW Mode d’emploi

MULTIQUIP

MULTIQUIP BPX Mode d’emploi

MULTIQUIP

MULTIQUIP Mikasa Series Mode d’emploi

MULTIQUIP

MULTIQUIP Mikasa MVC88VTH Mode d’emploi

MULTIQUIP

MULTIQUIP Mikasa MVH502DSB Mode d’emploi

MULTIQUIP

MULTIQUIP MVH408DZ Mode d’emploi

MULTIQUIP

MULTIQUIP MTX SERIES Manuel utilisateur

MULTIQUIP

MULTIQUIP Mikasa MTX60HF Mode d’emploi

MULTIQUIP

MULTIQUIP Mikasa MT-86D Mode d’emploi

MULTIQUIP

MULTIQUIP Mikasa MVC-77 Series Manuel utilisateur

MULTIQUIP

MULTIQUIP Mikasa MTX-80 Mode d’emploi

MULTIQUIP

MULTIQUIP JIMMY JB5135 Mode d’emploi

MULTIQUIP

MULTIQUIP Mikasa MVC-88VGH Guide d'application

MULTIQUIP

MULTIQUIP Mikasa Series Mode d’emploi

Manuels Outils électriques populaires d'autres marques

AEG

AEG OMNI-JS Manuel utilisateur

SIP

SIP 01533 Manuel utilisateur

Ribimex

Ribimex PRS499 Manuel utilisateur

3M Fiber Optic Connector Crimp Tool Manuel utilisateur

Ryobi

Ryobi P524 Manuel utilisateur

ROJEK

ROJEK FSN 300A Manuel utilisateur

Kemper

Kemper 1740PRO Manuel utilisateur

WABCO

WABCO OptiTire Manuel utilisateur

EINHELL

EINHELL TE-MS 18/210 Li Manuel utilisateur

Orgapack

Orgapack OR-T 85 Guide rapide

TOUGHCUT

TOUGHCUT Diamond 400 Manuel utilisateur

Yaros

Yaros PB-3603 Manuel utilisateur

Fein

Fein BSS 2.0 E Guide de configuration

Baileigh Industrial

Baileigh Industrial SS-2725 Manuel utilisateur

Milwaukee

Milwaukee 2674-20 Manuel utilisateur

Fein

Fein BLs 1.6 Manuel utilisateur

Princess

Princess Electric Multi Sharpener Manuel utilisateur

FOREDOM

FOREDOM K.1050 Manuel
