M Motorized Ceilingmount Inverted

EAN: 7350073739585

Szerelési kézikönyv

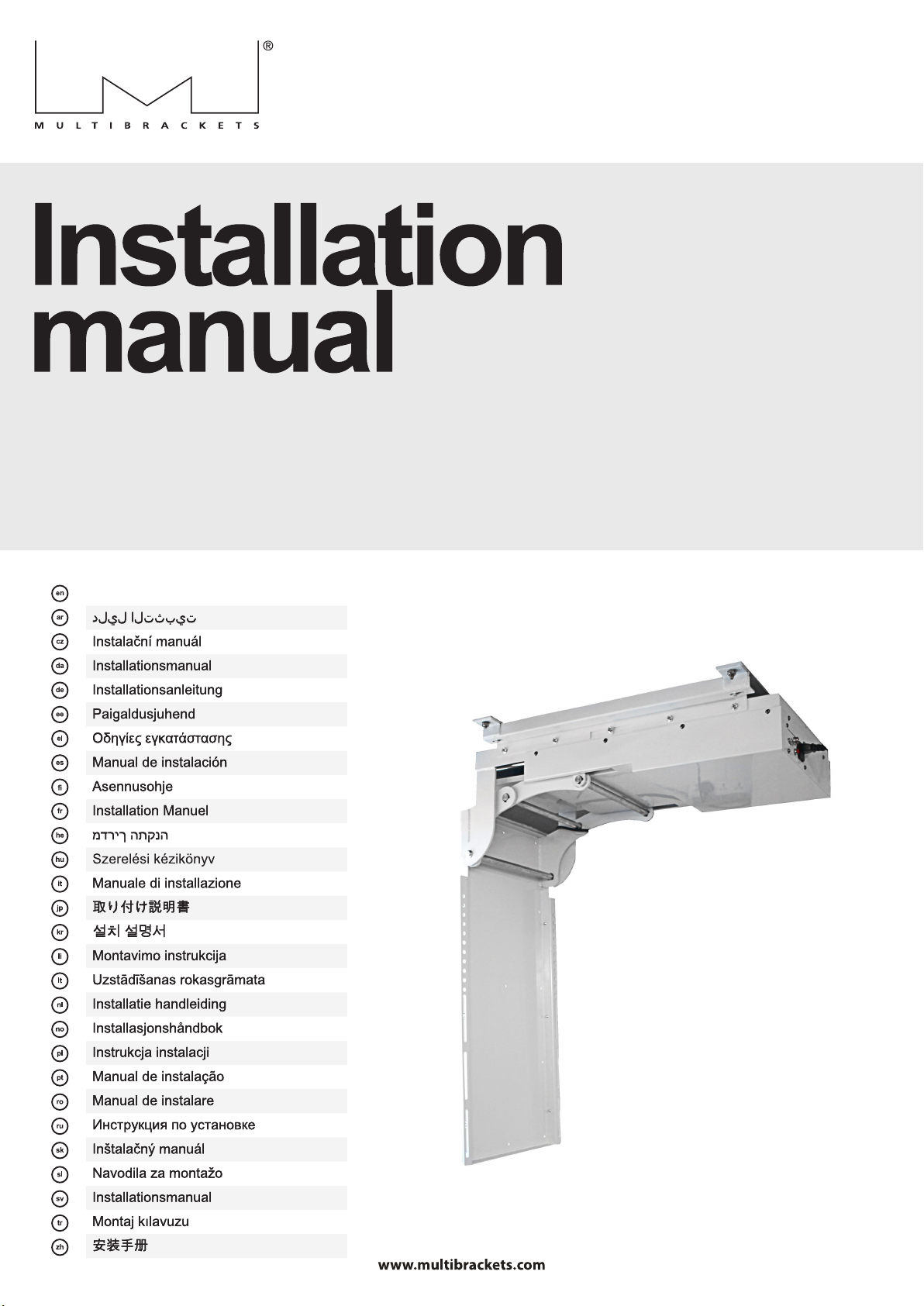

Installation manual

IMPORTANT!

VIGTIGT!

TÄHTIS!

ACHTUNG!

IMPORTANT!

FONTOS!

UWAGA!

SVARBU!

IMPORTANT!

tavan sau podea.

Parts

Power cable

(x1)

Remote control

(x1)

Lift extension plate

(x1)

Long VESA extension

strips (x2)

Ceiling suspension angle

(x4)

MZ 4.8 short screw

(x22)

Small screw

(x8)

A B C

Short VESA extension

strips (x1)

Product dimensions

Connectivity

VGA Power

connector

Manual switch

interface

Remote control

learning key

Please pay attention to the screw holes on the back of your screen

200x200, 300x200, 300x300, 400x200, 400x400, 600x400, 600x600mm.

Installation notes:

Suitable VESA:

Always consult a professional installer for mounting this ceiling mount

Fix the mounting frame provided with the product in the ceiling through the expansion

screws.

Attach the ceiling mount onto the mounting frame and lock it with four (4) M6 screws to

prevent it from slipping.

According to the actual size of the screen/display, adjust the arm bracket that is provided

with the ceiling mount to a suitable position.

200

300

400

Punch four (4) blast screw holes on the ceiling and ﬁx them

Please disassemble two (2) anti-vibration sheets when powering on

The TV is ﬂat on the ﬂip frame

The four (4) screws are ﬁxed to the screen

The decoration board and the ﬂip frame are ﬂattened

Six (6) screws to ﬁx the decoration board and the ﬂipper

Product

installation

Remote control

Operating instructions

Buttons

First press the memory button on the

panel, the indicator light starts to ﬂash.

Release the memory button (1), press the

settings button (2) on the back of the

remote control and hold it down. The light

indicator stops ﬂashing. This indicates that

the code has been successfully written and

the remote control can be used. If not,

repeat the above steps and try a few more

times.

Code matching mode for ceiling mount & remote control

VGA Power

connector

Manual switch

interface

Remote control

learning key

DOWN

STOP

Light indicator

RearFront

SETTINGS button

Battery

We recommend to set the upper position ﬁrst, then the lower position. You can always restart the position setup process

by unplugging the power and follow the steps below again.

Unplug and connect

the power

Press the SETTINGS button

(Backside of remote)

Press the STOP button

Press the UP button

The machine will always beep

alarm sound the lower limit has

been deleted successfully when

leaving the factory, enter the

lower limit to re-adjust

Press the DOWN button

once and complete within

5 seconds

The machine descends to

the lower setting

If the lift has not

reached your ideal

position, you can press

the UP and DOWN keys

to jog ﬁne adjustment

Press the STOP button

Press the SETTINGS button

once (alarm release)

The lower position

is set successfully

It will now automatically move in

between the two positions

If the ideal height is not reached

it can be ﬁne tuned by pressing

the up and down keys on the

remote control

Press the SETTINGS button

once (a short beep is heard)

The upper

limit is set

successfully

The machine rises to the

ideal upper setting

Set the upper position

Note: The lower position setting is set without beep/alarm initiation.

Set the lower position

Lower position

Upper position

Learn mode

How to set upper and lower ideal position

WIRING OVERVIEW FOR AUTOMATED SETUPS

Dry Contact Control

Overview Wiring Hub

Please always check online for the latest updated version of this manual

www.multibrackets.com

Please check the wire and function in the below picture for RJ12 and RJ45

Please check the wire and function in the below drawing

Up line

Down line

Earth lead

Public line

Fire wire

Null line

Earth lead

Up button

Stop button

Down button

DC12V

Public line

MOTOR

POWER INPUT

MANUAL SWITCH

Serial port A line

Manual control down line

Manual control stop line

Manual control up line

Manual control Public line

Serial port B line

ATTENTION: The working mode of the external

hand control switch is passive dry contact mode, and

the functions of the two wiring ports are the same,

regardless of the primary and secondary interfaces.
