CX600 (MS-1682) Disassemble Guide

■ 1、BATTERY PACK

■ 2、BOTTOM DOOR ASSY

■3、HDD MODULE

■4、ODD MODULE

■5、THERMAL-KIT、CPU、DRAM AND WLAN MODULE

■ 6、KEYBOARD

■ 7、SEPARATE UPPER CASE AND LOWER CASE

■ 8、LOWER CASE ASSY

■9、UPPER CASE ASSY

■10、LCD MODULE ASSY

CX600（MS-1682）Disassemble Guide

1、BATTERY PACK

1.1：Move the “Unlock’ button base on left picture

shows;

1.2：Release the “Release” button and move the

battery pack base on left picture.

Component P/N Qty

Battery Pack S9N-2062200-CE1 1

CX600（MS-1682）Disassemble Guide

2、BOTTOM DOOR ASSY

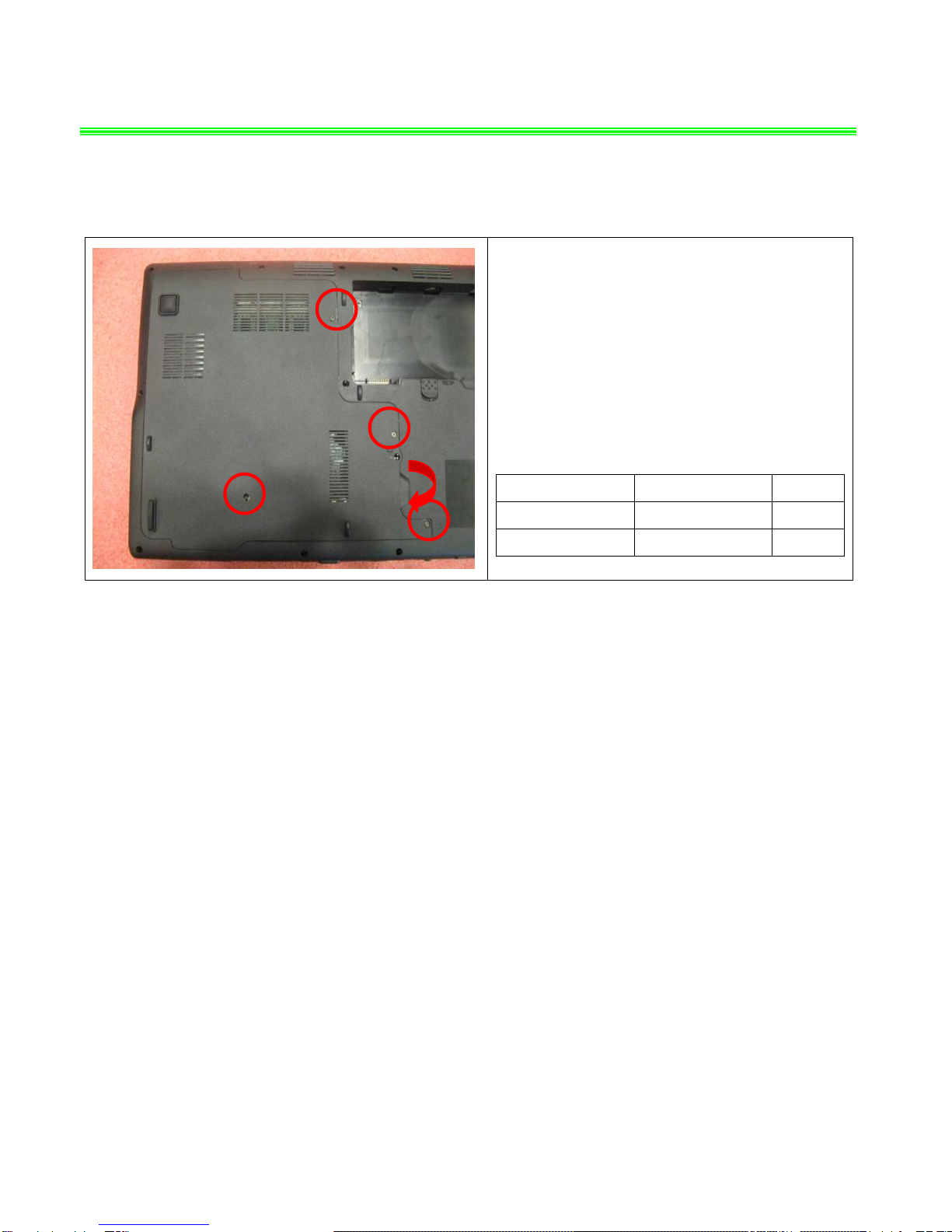

2.1：Remove the 4 screws (M2.5*5mm),

then remove the Bottom door.

Attention: the screw driver touque is: 2.0-2.5Kgf-cm

Component P/N Qty

Bottom door 307-681J211-Y31 1

Screw E43-1255007-H29 4

CX600（MS-1682）Disassemble Guide

3、HDD MODULE

3.1：Remove the 2 screws(M2.5*5mm);

Attention: the screw driver torque: 2.0-2.5Kgf-cm

Component P/N Qty

Screw E43-1255007-H29 2

3.2：Remove the HDD Module according to the

direction as pic shows;

CX600（MS-1682）Disassemble Guide

3、HDD MODULE

3.3：Remove the 2 screws(M3*3.5mm)

that stabilize the bracket;

Attention: the screw driver torque is 2.0-2.5Kgf-cm

Component P/N Qty

Screw E43-1303501-H29 2

3.4：Remove the HDD bracket;

Component P/N Qty

HDD Bracket 307-6810111-A89 1

HDD Module S71-2425521-W36 1

CX600（MS-1682）Disassemble Guide

4、ODD MODULE

4.1：Remove the 1 screw(M2.5*5mm);

Attention: the screw driver torque: 2.0-2.5Kgf-cm

Component P/N Qty

Screw E43-1255007-H29 1

4.2：Remove the ODD Module according to the

direction as pic shows;

CX600（MS-1682）Disassemble Guide

4、ODD MODULE

4.3：Remove ODD Bezel as below.

Component P/N Qty

ODD Bezel E2P-681F211-Y31 1

4.4：Remove 2pcs M2*3mm Screws Then remove

ODD Bracket as below;

Component P/N Qty

Screw E43-1203003-H29 2

ODD Bracket E2M-6510211-Y28 1

ODD Module S7D-2270015-H44 1

CX600（MS-1682）Disassemble Guide

5、THERMAL-KIT、CPU、DRAM AND WLAN MODULE

5.1:Remove the 6 screws(M2.5*5mm) and FAN

cable, after that remove the Fansink

Attention：the screw driver torque is 2.0-2.2Kgf-cm

Component P/N Qty

Screw E43-1255007-H29 6

Fansink E32-0800220-F05 1

5.2：Open the CPU Slot with Screw Driver, then

remove CPU Module as below.

Component P/N Qty

CPU A09-21201G6-I06 1

5.3：Push the two side shielding of RAM as pic

shows;

CX600（MS-1682）Disassemble Guide

5、THERMAL-KIT、CPU、DRAM AND WLAN MODULE

5.4：Then remove the RAM module according the

direction as pic shows;

Component P/N Qty

RAM Module S7C-S357701-T10 1

5.5：Remove one screw(M2*3mm); then remove

the two side wireless card antenna as pic shows:

Attention: the screw driver torque is: 1.5-2.0Kgf-cm

Component P/N Qty

Screw E43-1203003-H29 1

5.6：Remove the WLAN module according to the

direction of pic shows;

Component P/N Qty

WLAN Module S57-0800290-T46 1

CX600（MS-1682）Disassemble Guide

6、KEYBOARD

6.1：Before remove K/B, firstly remove the

Hinge Cover;

Component P/N Qty

Hinge Cover 307-682E221-Y31 1

6.2：Remove the 5 screws(M2*3mm);

Attention: the screw driver torque is: 1.5-2.0Kgf-cm

Component P/N Qty

Screw E43-1203003-H29 5

6.3 ：Firstly push connector according to the

direction as pic shows; then remove the cable;

Component P/N Qty

Keyboard S1N-3UUS1B1-C54 1
