CX61/CR61 (MS-16GB) Disassembly Guide
■1、BATTERY PACK
■2、BOTTOM DOOR ASSY
■ 3、HDD MODULE
■ 4、THERMAL-KIT、CPU、DRAM AND WIRELESS
■ 5、ODD MODULE
■6、SEPARATE UPPER CASE AND LOWER CASE
■7、LOWER CASE ASSY
■8、UPPER CASE ASSY
■ 9、LCD MODULE ASSY
CX61/CR61 (MS-16GB)Disassembly Guide
1、BATTERY PACK
1.1：Move the “Unlock’ button base on left picture
shows.
1.2：Release the “Release” button and move the
battery pack base on left picture.
Component P/N Qty
Battery Pack S9N-2262210-M47 1
CX61/CR61 (MS-16GB)Disassembly Guide
2、BOTTOM DOOR ASSY
2.1 Remove the 5 screws (M2.5*5mm). Then remove
the Bottom door.
Attention: the screw driver touque is: 2.0-2.5 gf-cm
Component P/N Qty
Bottom door 307-6G1J214-P89 1
Screw E43-1255001-G68 6
CX61/CR61 (MS-16GB)Disassembly Guide
3、HDD MODULE
3.1: Remove the 2 screws (M2.5*5mm); then
remove the HDD Module according to the direction
as pic shows.
Attention: the screw driver torque is 2.0-2.5Kgf-cm
Component P/N Qty
Screw E43-1255001-G68 2
3.2: Remove the 2 screws (M3*3.5mm) that
stabilize the HDD bracket, then remove the HDD
bracket.
Attention: the screw driver torque is 3.0-3.5Kgf-cm
Component P/N Qty
Screw E43-1303502-H29 2
HDD Bracket 307-6G10111-A89 1
HDD Module S71-2450540-W36 1
CX61/CR61 (MS-16GB)Disassembly Guide
4、THERMAL-KIT、CPU 、DRAM AND WIRELESS
4.1: Remove the 3 screws(M2.5*4mm) and FAN
cable, after that remove the Fan.
Attention：the screw driver torque is 2.0-2.5Kgf-cm
Component P/N Qty
Screw E43-1254001-G68 3
FAN E33-0800221-MC2 1
4.2: Remove the 6 screws (M2.5*4mm), after that
remove the Heatsink.
Attention：the screw driver torque is 2.0-2.2Kgf-cm
Component P/N Qty
Screw E43-1254001-G68 7
Heatsink E31-0803490-CA9 1
4.3：Open the CPUSlot with Screw Driver, then
remove CPU Module as below.
Component P/N Qty
CPU OA3-16F3009 1
1
3
2
1
2
5
4
6
3
CX61/CR61 (MS-16GB)Disassembly Guide
4、THERMAL-KIT、CPU 、DRAM AND WIRELESS
4.4：Push the two side shielding of RAM as pic
shows; Then remove the RAM module according
the direction as pic shows.
Component P/N Qty
RAM Module S7C-S459H04-E54 1
4.5：Remove 1 screw (M2*3mm); then remove the
two side wireless card antenna as pic shows.
Attention: the screw driver torque is: 1.5-2.0Kgf-cm
Component P/N Qty
WLAN Module OS5-1762002 1
Screw E43-1203003-H29 1
CX61/CR61 (MS-16GB)Disassembly Guide
5、ODD MODULE
5.1：Remove the ODD Module according to the
direction as pic shows.
5.2：Remove ODD Bezel as below.
Component P/N Qty
ODD Bezel E2P-6G1F221-P89 1
5.3：Remove 2pcs (M2*3mm) Screws; Then remove
ODD Bracket as below.
Attention：the screw driver torque is 1.5-2.0Kgf-cm
Component P/N Qty
Screw E43-1203003-H29 2
ODD Bracket E2M-6G10711-A89 1
ODD Module S7D-2270076-T87 1
CX61/CR61 (MS-16GB)Disassembly Guide
6、SEPARATE UPPER CASE AND LOWER CASE
6.1：Remove the Keyboard. firstly from upside,
then left side to right side, last remove down side.
.
，
6.2 ：Firstly push connector according to the
direction as pic shows; then remove the cable.
Component P/N Qty
Keyboard S1N-3EUS2D1-SA0 1
6.3：Remove the cable.
CX61/CR61 (MS-16GB)Disassembly Guide
6、SEPARATE UPPER CASE AND LOWER CASE

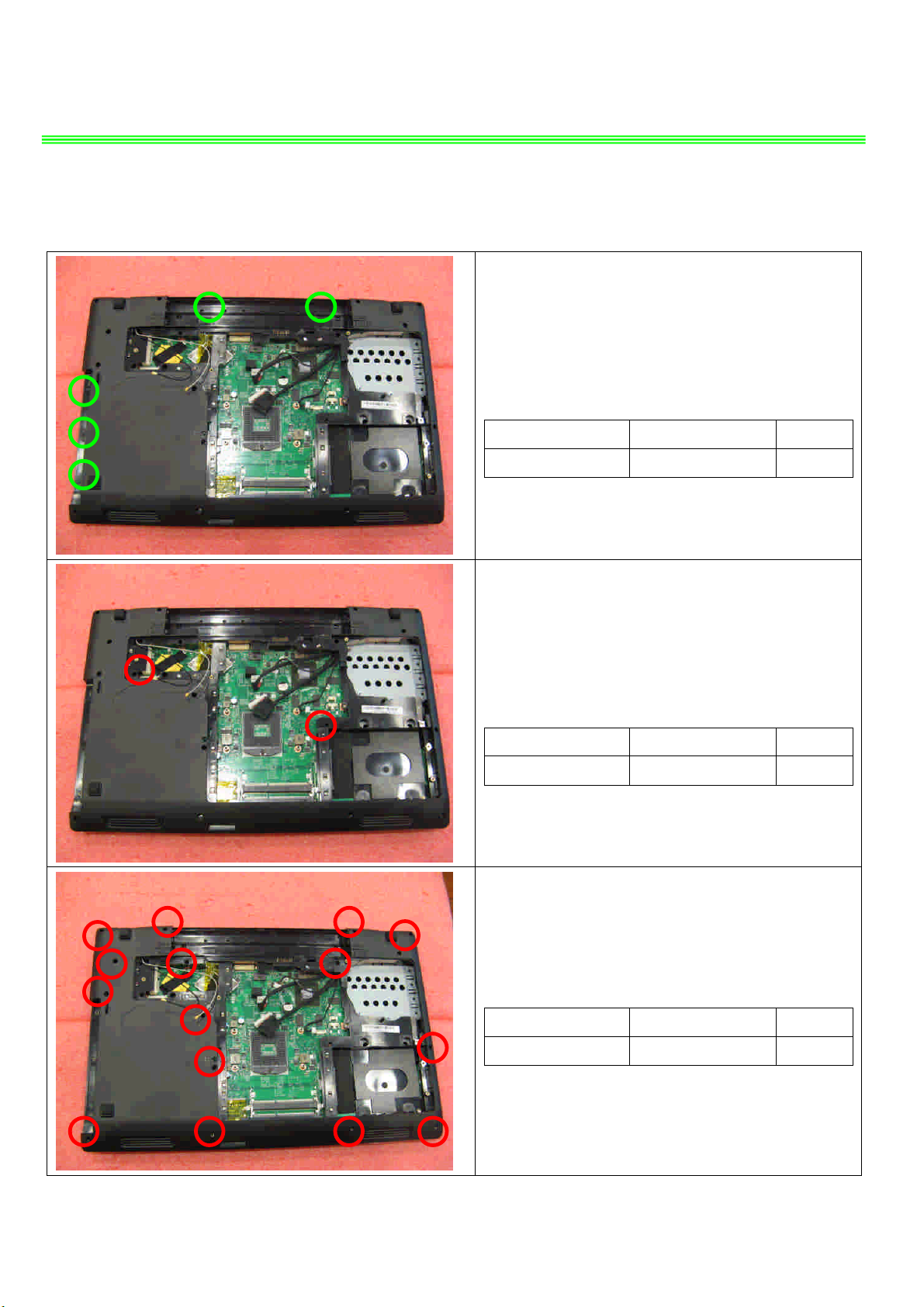

6.4：Remove 5 screws (M2*3.5mm).
Attention: the screw driver torque is 1.5-2.0Kgf-cm
Component P/N Qty
Screw E43-1203501-H29 5
6.5：Remove 2 screws (M2.5*5mm).
Attention: the screw driver torque is 2.0-2.5Kgf-cm
Component P/N Qty
Screw E43-1255001-G68 3
6.6：Remove the 15 screws (M2.5*5mm) .
Attention: the screw driver torque is 2.0-2.5Kgf-cm
Component P/N Qty
Screw E43-1255001-G68 15
CX61/CR61 (MS-16GB)Disassembly Guide
6、SEPARATE UPPER CASE AND LOWER CASE
6.7：Remove the LVDS, speaker and MIC cable.
6.8：Remove the power cable as pic shows.
6.9：Remove the 2 screws (M2.5*5mm). then
remove the upper case.
Attention: the screw driver torque is 2.0-2.5Kgf-cm
Component P/N Qty
Screw E43-1255001-G68 2
