How to Use this Service Guide

This Service Guide is designed for MSI-authorized dealers or service centers. It

provides in-depth illustration of disassembling/assembling the system. Since the

topics in this guide may be related, it is recommended that you read it from cover to

cover first. After that, you may go directly to any specific topic that most meets your

immediate needs.

⚠

Important

All information is subject to change without prior notice. The system photos are

provided for demonstration of system disassembly only. The internal view of your

system may vary depending on the model you purchased.

Necessary Tools

Screwdriver Pliers Tweezers Anti-Static Gloves

Safety Precautions

The following precautions should be observed while handling the system:

∙Place the system on a flat and stable surface.

∙Do not place the system in environments subject to mist, smoke, vibration,

excessive dust, salty or greasy air, or other corrosive gases and fumes.

∙Do not drop or jolt the system.

∙Do not bump or knock the LCD screen as it is fragile and could break.

∙Do not use another power adapter other than the one enclosed with the system.

∙Disconnect the AC/DC adapter before performing any installation procedures on the

system.

∙Do not perform any maintenance with wet hands.

∙Prevent foreign substances, such as water, other liquids or chemicals, from

entering the system while performing installation procedures on the system.

∙Use a grounded wrist strap before handling system components such as CPU,

Memory, HDD, mini PCI-E card, etc.

∙Place system components on a grounded antistatic pad or on the bed that came with

the components whenever the components are separated from the system.

∙If there are any difficulties installing hardware devices, please contact MSI for

further information.

4Other Notice

Other Notice

The peripheral devices contained herein may vary depending on your actual system

configuration.

Third-party trademarks and names are the properties of their respective owners.

The information contained herein relevant to software and hardware are for reference

only and in accordance with actual system configuration. All information is subject to

change without notice.

Upgrade and Warranty

Please note that certain components preinstalled in the product users purchased

may be upgradable or replaceable by user’s request. To learn more about upgrade

limitation, please refer to the specification in the User Guide. For any further

information about the product users purchased, please contact the local dealer. It is

strongly recommended that you contact the authorized dealer or service center for

any upgrade or replace service.

Acquisition of Replaceable Parts

Please be noticed that the acquisition of replaceable parts (or compatible ones) of

the product users purchased in certain countries or territories may be fulfilled by

the manufacturer within 2 years at most since the product has been discontinued,

depending on the official regulations declared at the time. Please contact the

manufacturer via https://www.msi.com/support/ for the detailed information about

the acquisition of spare parts.

Removing Side Cover

⚠

Important

Before you remove or install any components, make sure the system is not turned on

or connected to the power.

1. Place the system on a flat and steady surface. Unlock the screws and keep the

screws for later use.

Right Side Left Side

2. Pull to open the cover carefully. Remove it, and set it aside for later use.

Right Side Left Side

∙

Follow the above procedures in reverse order to replace the cover.

6Right Side View

Right Side View

2.5” HDD

CPU & CPU Cooler

Memory Module

Left Side View

Graphics Card

M.2 SSD

⚠

Important

Reference image only. Appearance will vary.

Removing CPU Cooler

1. Unlock screws of the CPU fan

module.

2. Remove screws on the CPU thermal

module.

3. Unplug the power cable and the RGB

LED cable

∙

Follow the above procedures in

reversed order to replace the CPU

cooler if needed.

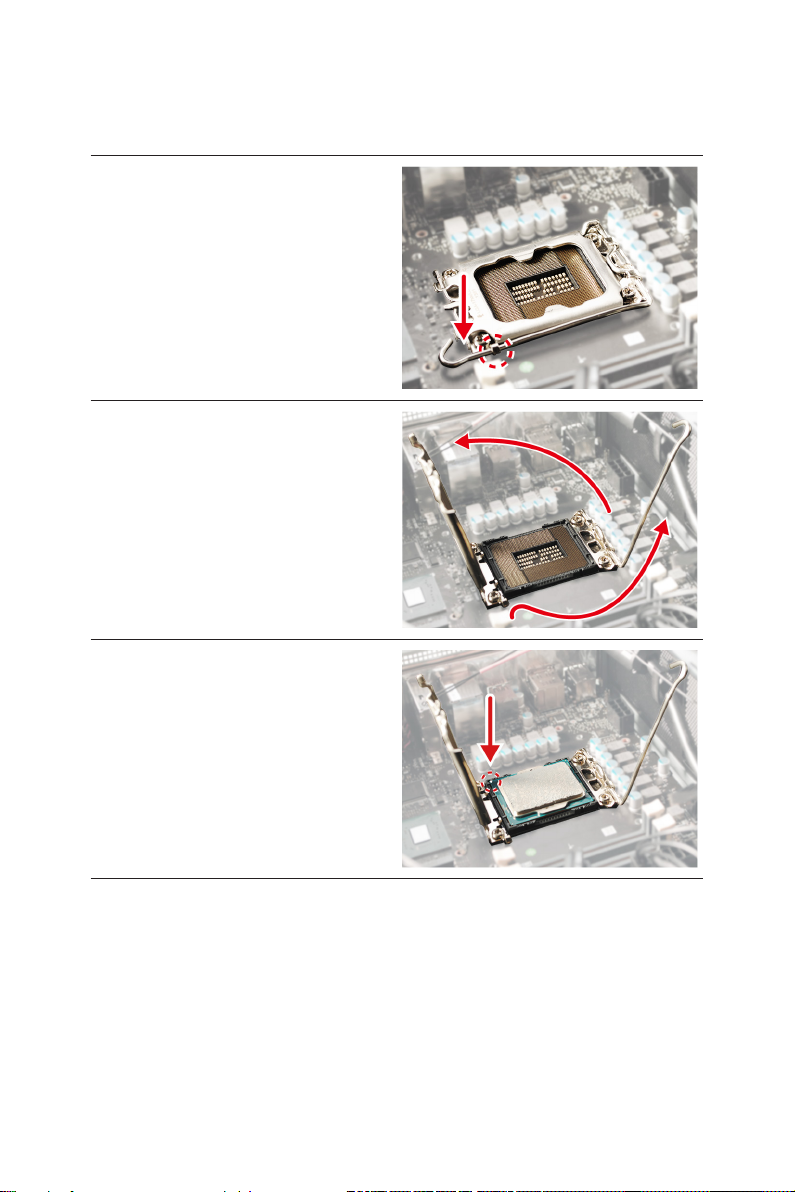

8Installing CPU

Installing CPU

1. Open the load lever.

2. Lift the load lever and load plate up

to fully open position.

3. After confirming the CPU direction

for correct mating, lower the CPU

straight down without tilting or

sliding the CPU in the socket. Inspect

the CPU to check if it is properly

seated in the socket.

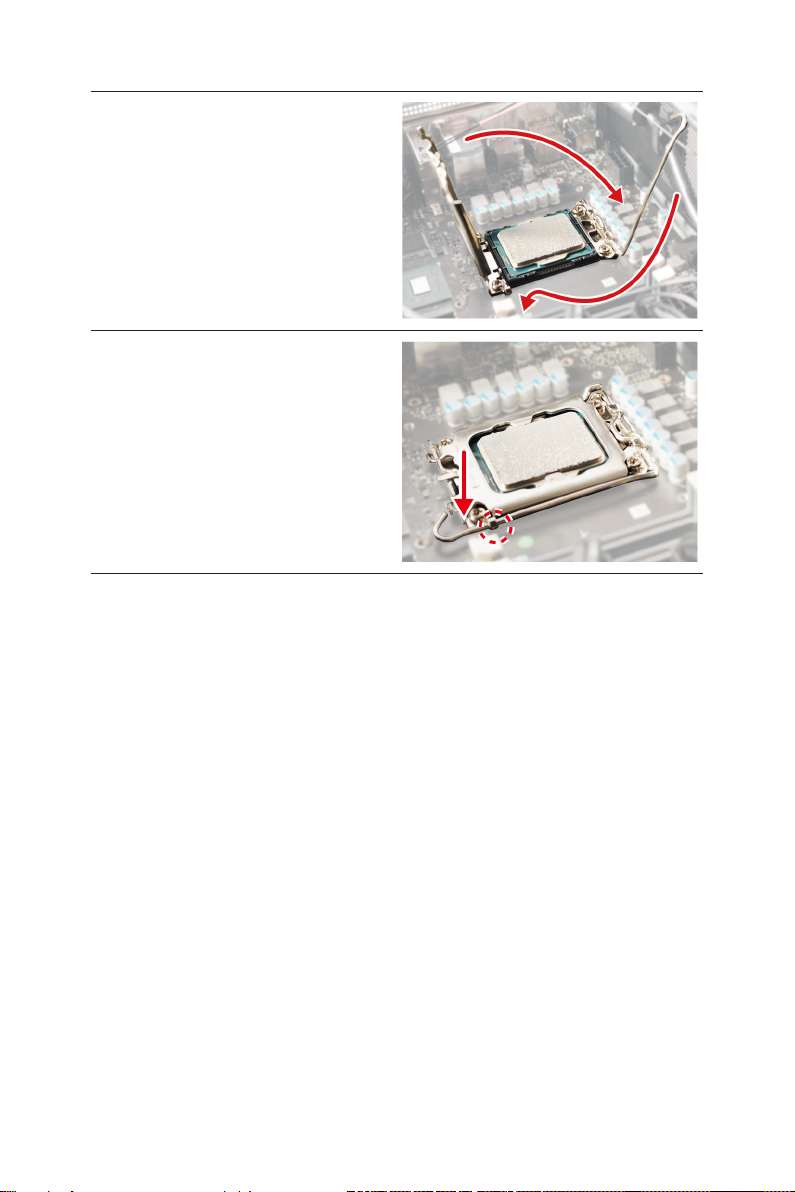

Installing CPU

4. Close and slide the load plate under

the retention knob.

5. Close the load lever.

6. Secure the load lever with the hook

under the retention tab.

∙

Follow the above procedures in

reverse order to replace the CPU if

needed.

10 Installing Memory

Installing Memory

1. Flip the slot clips outwards.

2. Align the notch on the memory with

the key on the slot and insert the

memory into the slot with correct

orientation. Push the memory

module gently downwards until the

slot clips click and lock the memory

in place.

∙

Follow the above procedures in

reverse order to replace the memory

module if needed.
