Getting Started

This chapter provides you with the information on hardware setup procedures. While

connecting devices, be careful in holding the devices and use a grounded wrist strap

to avoid static electricity.

Package Contents

Personal Computer Trident B924

Documentation

User Guide (Optional)

Quick Start Guide (Optional)

Warranty Card & Warranty Book (Optional)

Accessories

Mouse (Optional)

Keyboard (Optional)

Power Cord

⚠

Important

∙

Contact your place of purchase or local distributor if any of the items is damaged or

missing.

∙

Package contents may vary by country.

∙

The included power cord is exclusively for this personal computer and should not be

used with other products.

∙

The internal cables are exclusive to this computer and should not be randomly

replaced.

Safety & Comfort Tips

∙Choosing a good workspace is important if you have to work with your PC for a long

period of time.

∙Your work area should have enough illumination.

∙Choose the proper desk and chair and adjust their height to fit your posture when

operating.

∙When sitting on the chair, sit straight and keep a good posture. Adjust the chair’s

back (if available) to support your back comfortably.

∙Place you feet flat and naturally on the floor, so that your knees and elbows have the

proper position (about 90-degree) when operating.

∙Put your hands on the desk naturally to support your wrists.

∙Avoid using your PC in a place where discomfort may occur (such as on the bed).

∙The PC is an electrical device. Please treat it with great care to avoid personal

injury.

4Getting Started

System Overview

Trident B924 (MPG Trident A & AS 12)

678

910

12 13

Getting Started

1Power Button

2Hard Disk Drive LED

This indicator shows the activity status of the HDD. It flashes when the

system is accessing data on the HDD and remains off when no disk activity

is detected.

3USB 3.2 Gen 1 Port (Type-C)

This connector is provided for USB peripheral devices. (Speed up to 5 Gbps)

4USB 3.2 Gen 1 Port

This connector is provided for USB peripheral devices. (Speed up to 5 Gbps)

5USB 2.0 Port

This connector is provided for USB peripheral devices. (Speed up to 480

Mbps)

⚠

Important

High-speed devices are recommended for USB 3.2 ports whereas low-

speed devices, such as mouse or keyboard, are suggested to be plugged

into the USB 2.0 ports.

6Mic-In Jack

For microphones.

7Line-Out Jack

For headphones or speakers.

8Line-In Jack

For external audio output devices.

92.5 Gbps LAN Jack

The standard RJ-45 LAN jack is provided for connection to the Local Area

Network (LAN). You can connect a network cable to it.

LINK/ACT

LED

SPEED

LED

LED Status Description

Link/ Activity

LED

Off No link

Yellow Linked

Blinking Data activity

Speed LED

Off 10 Mbps

Green 100/1000 Mbps

Orange 2.5 Gbps

10 USB 3.2 Gen 2 Port

This connector is provided for USB peripheral devices. (Speed up to 10

Gbps)

6Getting Started

11 USB 3.2 Gen 2 Port (Type-C)

This connector is provided for USB peripheral devices. (Speed up to 10

Gbps)

12 DisplayPort 1.4 Port

Supports a maximum resolution of 4K @60Hz.

⚠

Important

∙

Graphics specifications may vary depending on the installed CPU.

∙

For processors without integrated graphics, connect your monitor to the

discrete graphics card.

13 HDMI 2.0b with HDR Port

Supports a maximum resolution of 4K @60Hz.

⚠

Important

∙

Graphics specifications may vary depending on the installed CPU.

∙

For processors without integrated graphics, connect your monitor to the

discrete graphics card.

14 Ventilator

15 Power Jack

Getting Started

Hardware Setup

Connect your peripheral devices to suitable ports.

⚠

Important

For detailed instructions on how to connect, please refer to the manuals of your

peripheral devices.

Connect the power cord to the system and electrical outlet.

Power Rating

•750W: 100-240V~, 50-60Hz, 10-5A

⚠

Important

When unplugging the AC power cord, always hold the connector part of the cord.

Never pull the cord directly.

8Getting Started

Press the power button to power on the system.

Windows 11 System Operations

⚠

Important

All information and Windows screenshots are subject to change without prior notice.

Power Management

Power management of personal computers (PCs) and monitors has the potential to

save significant amounts of electricity as well as deliver environmental benefits.

To be energy efficient, turn off your display or set your PC to sleep mode after a period

of user inactivity.

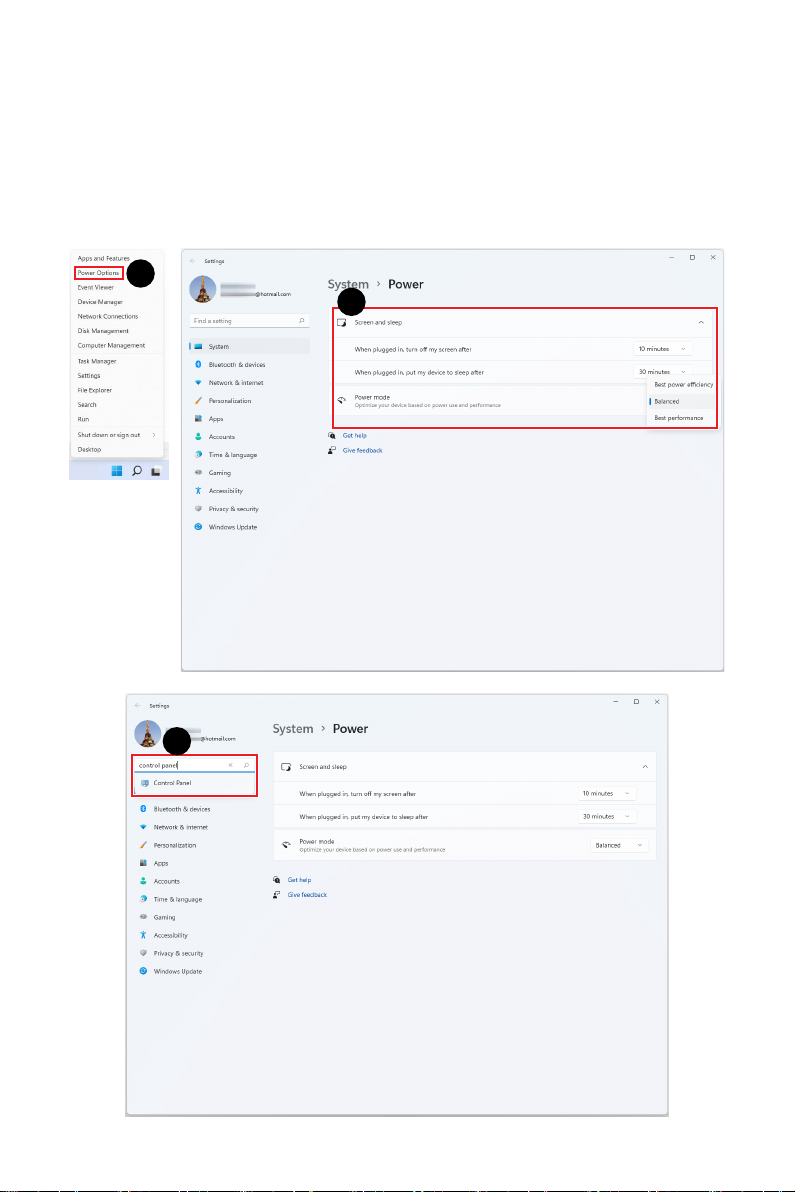

1. Right-click [Start] and select [Power Options] from the list.

2. Adjust [Screen and sleep] settings and select a power mode from the list.

3. To choose or customize a power plan, type control panel in the search box and

select [Control Panel].

4. Open up [All Control Panel Items] window. Select [Large icons] under [View by]

drop-down menu.

5. Select [Power Options] to continue.

6. Select a power plan and fine-tune the settings by clicking [Change plan settings].

7. To create your own power plan, select (Create a power plan).

8. Select an existing plan and give it a new name.

9. Adjust settings for your new power plan.

10.The [Shut down or sign out] menu also presents power saving options for rapid and

easy management of your system power.

Energy Savings

The power management feature allows the computer to initiate a low-power or

“Sleep” mode after a period of user inactivity. To take advantage of these potential

energy savings, the power management feature has been preset to behave in the

following ways when the system is operating on AC power:

∙Turn off the display after 10 minutes

∙Initiate Sleep after 30 minutes

Waking the System Up

The computer shall be able to wake up from power saving mode in response to a

command from any of the following:

∙the power button,

∙the network (Wake On LAN),

∙the mouse,

∙the keyboard.

Energy Saving Tips:

10 Windows 11 System Operations

∙Turn off the monitor by pressing the monitor power button after a period of user

inactivity.

∙Tune the settings in Power Options under Windows OS to optimize your PC’s power

management.

∙Install power saving software to manage your PC’s energy consumption.

∙Always disconnect the AC power cord or switch the wall socket off if your PC would

be left unused for a certain time to achieve zero energy consumption.
