MSI PRO AP241 Manuel utilisateur
PRO Series
All-in-one PC
PRO AP241
(MS-AE03)
User Guide
2Contents
Contents
Getting Started.............................................................................................................. 3
Package Contents................................................................................................... 3
Safety & Comfort Tips ............................................................................................ 3
System Overview..................................................................................................... 4
Hardware Setup...................................................................................................... 7
Component Replacement & Upgrade .................................................................. 10
System Operations ..................................................................................................... 11
Power Management ............................................................................................. 11
Network Connection (Windows 10) ...................................................................... 13
System Recovery (Windows 10)............................................................................ 16
System Recovery (F3 Hotkey Recovery) (Optional) .............................................. 20
Troubleshooting.......................................................................................................... 21
Safety Instructions...................................................................................................... 23
Regulatory Notices..................................................................................................... 25
Revision
V1.0, 2021/07
3
Getting Started
Getting Started
This chapter provides you with the information on hardware setup procedures. While
connecting devices, be careful in holding the devices and use a grounded wrist strap
to avoid static electricity.
Package Contents
All-in-one PC MS-AE03
Documentation
User Guide (Optional)
Quick Guide (Optional)
Warranty Card & Warranty Book (Optional)
Accessories
Mouse (Optional)
Keyboard (Optional)
Webcam (Optional)
AC/DC Adapter
Power Cord
⚠
Important
∙
Contact your place of purchase or local distributor if any of the items is damaged or
missing.
∙
Package contents may vary by country.
∙
The included power cord is exclusively for this personal computer and should not be
used with other products.
Safety & Comfort Tips
∙Choosing a good workspace is important if you have to work with your PC for a long
period of time.
∙Your work area should have enough illumination.
∙Choose the proper desk and chair and adjust their height to fit your posture when
operating.
∙When sitting on the chair, sit straight and keep a good posture. Adjust the chair’s
back (if available) to support your back comfortably.
∙Place you feet flat and naturally on the floor, so that your knees and elbows have the
proper position (about 90-degree) when operating.
∙Put your hands on the desk naturally to support your wrists.
∙Avoid using your PC in a place where discomfort may occur (such as on the bed).
∙The PC is an electrical device. Please treat it with great care to avoid personal
injury.
4Getting Started
System Overview
1
4
789
6
11
2
12 13
3
10 10
55
5
Getting Started
1USB 2.0 Port
This connector is provided for USB peripheral devices. (Speed up to 480
Mbps)
⚠
Important
High-speed devices are recommended for USB 3.2 ports whereas low-
speed devices, such as mouse or keyboard, are suggested to be plugged
into the USB 2.0 ports.
2Ventilator
3Power Button
4Brighness Adjustment Button
5Stereo Speaker
6Kensington Lock
7Power Jack
8HDMI 2.0a Port
Supports a maximum resolution of 4K 60Hz.
⚠
Important
∙
Available for the processor with integrated graphics.
∙
Graphics specifications may vary depending on the installed CPU.
9Serial Port
10 USB 3.2 Gen 1 Port
This connector is provided for USB peripheral devices. (Speed up to 5 Gbps)
6Getting Started

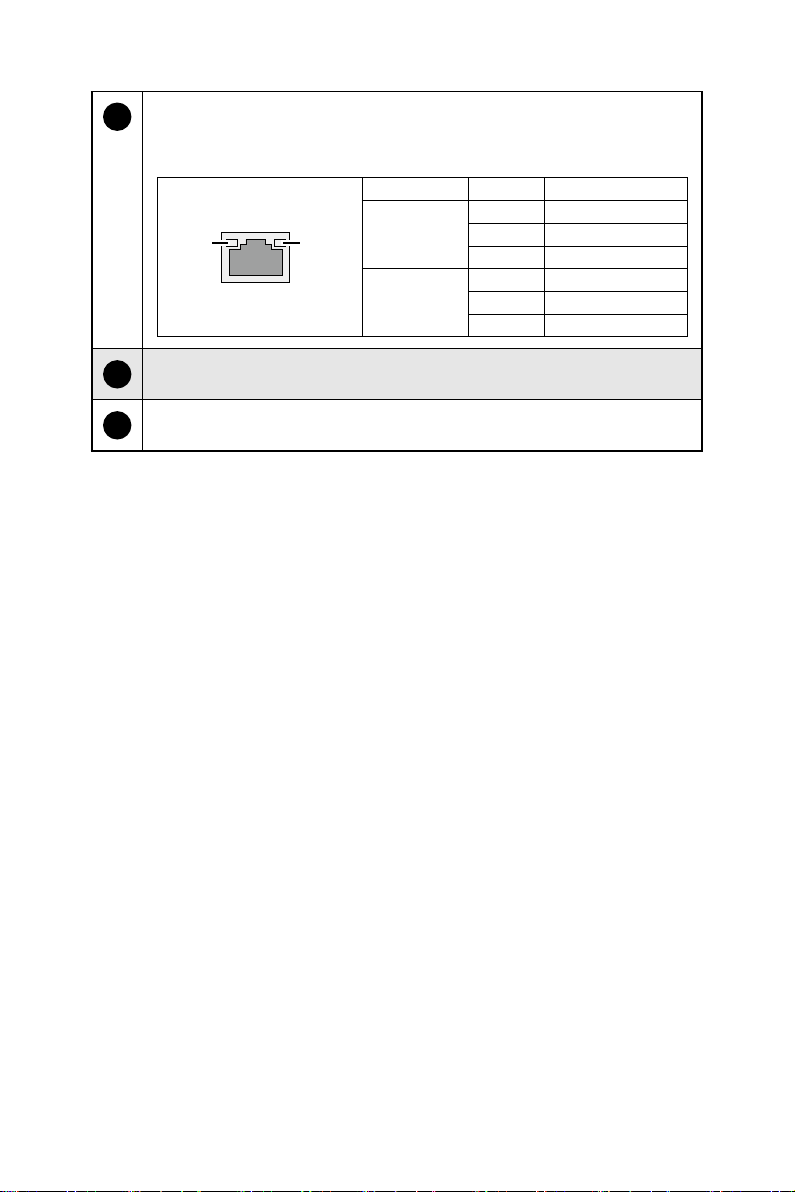

11 LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
LINK/ACT
LED
SPEED
LED
LED Status Description
Link/ Activity
LED
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Off 10 Mbps
Green 100 Mbps
Orange 1 Gbps
12 Mic-In Jack
13 Line-Out
7
Getting Started
Hardware Setup
Installing the Monitor Stand
1. Take out the stand assembly and base from the package.
2. Rotate the stand assembly counter-clockwise and push the it downwards to the
base.
3. Rotate closewise until it locks in place. You can hear an audible “Click” when the
latch is engaged.
4. Align the stand to sockets on monitor groove. Push the stand up until it snaps into
its place. Make sure the stand assembly is properly installed before setting the
monitor upright.
45°
45°
2
3
4
8Getting Started

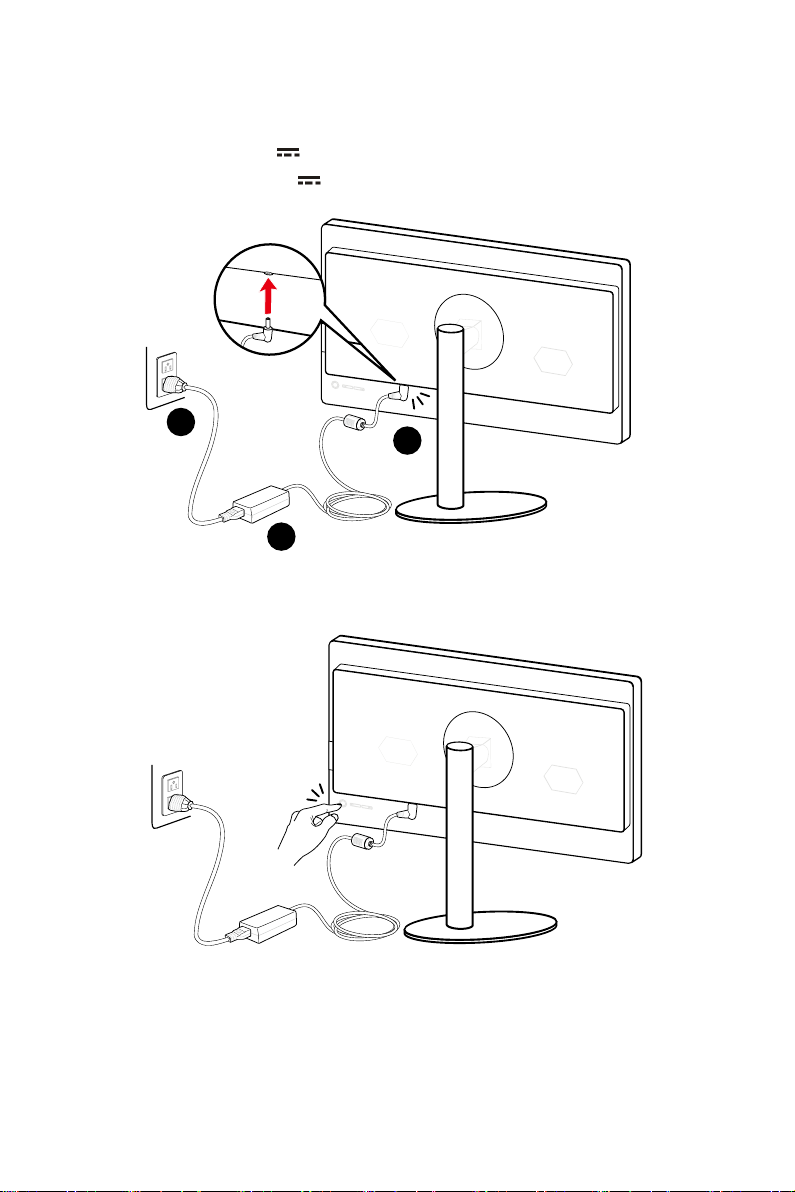

Connecting the Power
Connect the adapter to the AIO PC and plug in the power cord.
•90W: 100-240V, 19V 4.74A (optional)
•120W: 100-240V, 19.5V 6.15A
1
32
Press the power button to power on the AIO PC.
9
Getting Started
Adjusting the Monitor
This AIO PC is designed to maximize your viewing comfort with its adjustment
capabilities.
⚠
Important
∙
The illustrations are for reference only. Your AIO PC may vary in appearance.
∙
Please make sure the AIO PC has been grounded to earth through the AC power
cord and the electrical outlet before powering on the AIO PC.
∙
Do not use any sharp objects on the display panel.
∙
Avoid pressing the display panel when adjusting.
-5
O
20
O
10 Getting Started

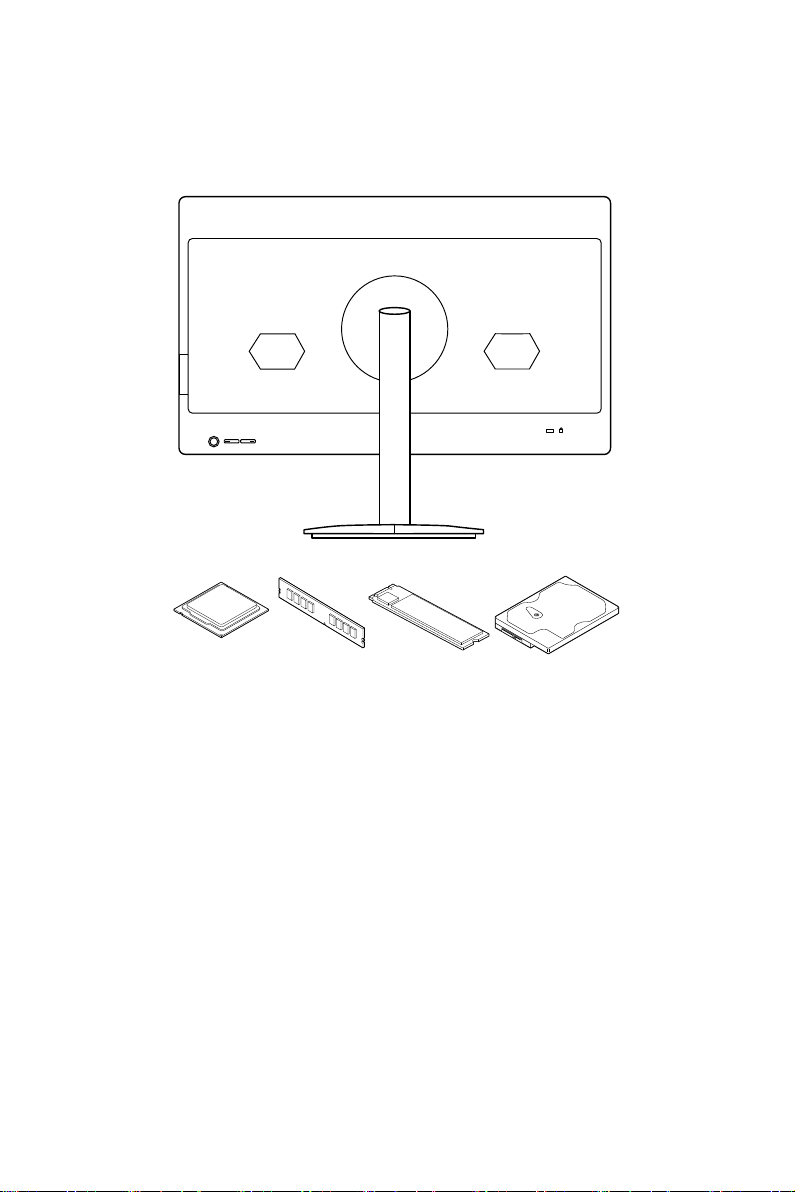

Component Replacement & Upgrade
Please note that certain components preinstalled in the product may be upgradable or
replaceable by user’s request depending on the models users purchased.
For any further information on the product users purchased, please contact the local
dealer. Do not attempt to upgrade or replace any component of the product if you are
not an authorized dealer or service center, since it may cause the warranty void. It is
strongly recommended that you contact the authorized dealer or service center for
any upgrade or replace service.
