MSA SavOx TR Manuel utilisateur

MSAsafety.com

Operating Manual

MSA SavOx TR / MSA SavOx Industry TR

Demonstration and Training Device

Order No. 10024577/02

MSA Europe GmbH

Schlüsselstrasse 12

8645 Rapperswil-Jona

Switzerland

SavOx TR / SavOx Industry TR 3

Contents

1 Safety Regulations .........................................................................................4

1.1 Correct Use ...........................................................................................4

1.2 Liability Information ...............................................................................4

2 Description .....................................................................................................5

2.1 Overview ...............................................................................................5

2.2 Function ................................................................................................6

2.3 Differentiating Features with regard to the Emergency Use Device .....6

2.4 Marking .................................................................................................6

3 Use ...................................................................................................................7

3.1 Carrying the Device ..............................................................................7

3.2 Donning the Device ..............................................................................7

3.3 Multiple Use ........................................................................................12

4 Maintenance and Service ............................................................................13

4.1 General ...............................................................................................13

4.2 Disassembly .......................................................................................13

4.3 Cleaning and Disinfection ...................................................................15

4.4 Tightness Test of the Connection Piece .............................................16

4.5 Assembly ............................................................................................17

5 Ordering Information ...................................................................................21

SavOx TR / SavOx Industry TR 4

Safety Regulations

1 Safety Regulations

1.1 Correct Use

The SavOx TR or SavOx Industry TR demonstration and training device is only intended for training

and education purposes.

The SavOx TR is carried at the belt. The SavOx Industry TR is carried over the shoulder.

The demonstration and training device is used to practise donning and breathing in emergency situa-

tions. The demonstration and training device is NOT a respiratory protection device and must NOT be

used in dangerous atmospheres.

It is imperative that this operating manual be read and observed when using the device. In particular,

the safety instructions, as well as the information for the use and operation of the device, must be care-

fully read and observed. Furthermore, the national regulations applicable in the user's country must be

taken into account for a safe use.

Alternative use, or use outside this specification will be considered as non-compliance. This also

applies especially to unauthorised alterations to the product and to commissioning work that has not

been carried out by MSA or authorised persons.

1.2 Liability Information

MSA accepts no liability in cases where the device has been used inappropriately or not as intended.

The selection and use of the device are the exclusive responsibility of the individual operator.

Product liability claims, warranties and guarantees made by MSA with respect to the device are voided,

if it is not used, serviced or maintained in accordance with the instructions in this manual.

WARNING

This product is supporting life and health. Inappropriate use, maintenance or servicing may affect the

function of the device and thereby seriously compromise the user's life.

Before use the product operability must be verified. The product must not be used if the function test

is unsuccessful, it is damaged, a competent servicing/maintenance has not been made, genuine

MSA spare parts have not been used.

SavOx TR / SavOx Industry TR 5

Description

2 Description

2.1 Overview

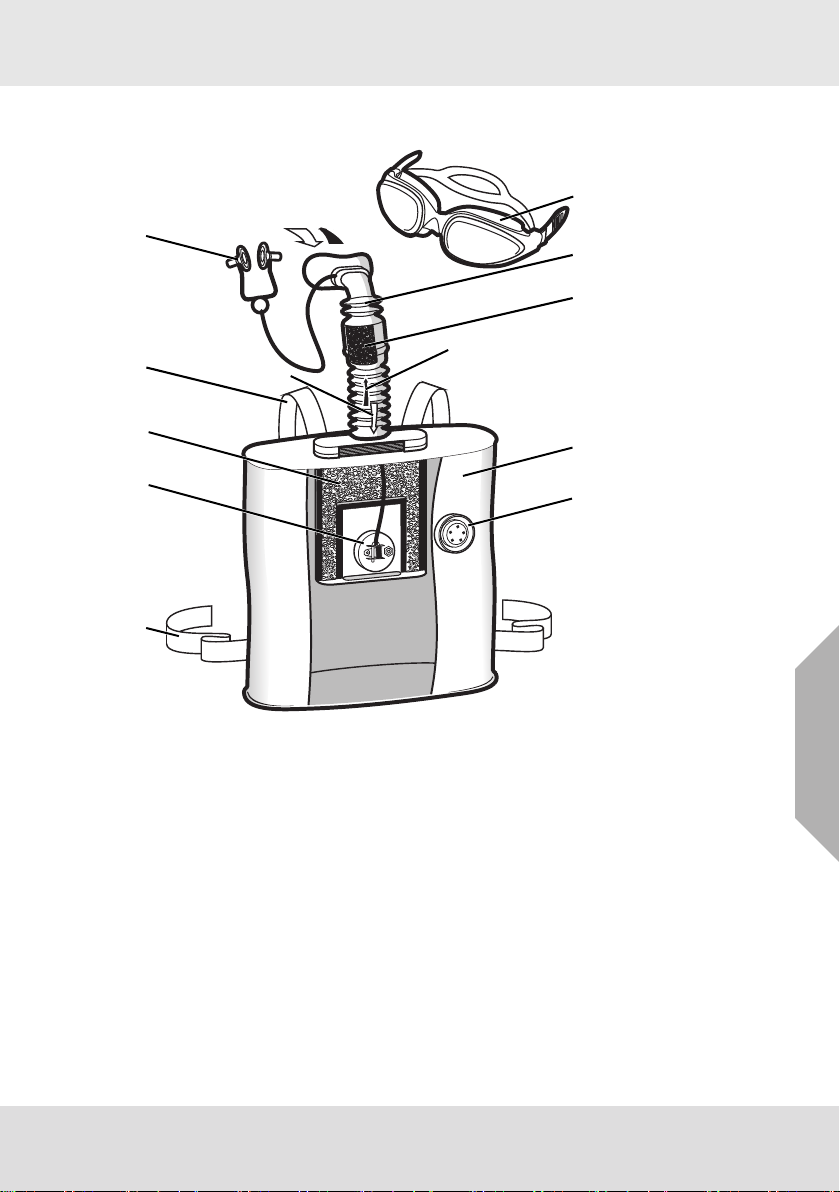

Fig. 1 Design of the device

The device is contained in an enclosed and sealed sturdy stainless steel container.

A Inhalation 5 Pressure relief valve

B Exhalation 6 Waist belt

1 Goggles 7 Starter

2 Breathing tube with mouthpiece 8 Canister

3 Heat exchanger 9 Neck strap

4 Breathing bag 10 Nose clip

SavOx TR / SavOx Industry TR 6

Description

2.2 Function

The demonstration and training device can be used for demonstration and practise of wearing and

breathing without using a chemical canister. The inhalation air is taken from the ambient air and the

exhalation air is expelled outside.

The demonstration and training device is comparable in size, weight, external construction, handling

and breathing resistance to the emergency use devices.

To distinguish it from the emergency use devices, the demonstration and training device has marked blue.

2.3 Differentiating Features with regard to the Emergency Use Device

Several components of the demonstration and training device are not identical to the corresponding

components of the emergency use device and are therefore marked blue or structurally modified in

such a way as to highlight differences or to prevent one being confused with the other:

-Container cover with blue label

-Breathing bag made of blue material

-Canister is shorter and with blue label

-Breathing tube with mouthpiece and nose clip has holes on the upper side and is screwed into the

canister with a connecting piece and thus is easily removable

2.4 Marking

The devices are classified according to EN 13794 and marked with the type [code letter] and nominal

duration [minutes]. The type, nominal duration and referenced standard are marked on the device.

The device are marked as follows:

For the demonstration and training device the breathing air is taken from the ambient

atmosphere, i.e. training must be made in environments free from contamination.

Device Marking

upper side

MSA

SavOx TR

MSA AUER

SavOx TR

MSA

SavOx Industry TR

MSA AUER

SavOx TR

SavOx TR / SavOx Industry TR 7

Use

3Use

3.1 Carrying the Device

Carrying the SavOx TR

(1) Pull the waist belt through the belt loops.

(2) Close the belt.

Carrying the SavOx Industry TR

(1) Clip the snap hook of the shoulder strap into the lifting eye.

(2) Close the neck strap.

3.2 Donning the Device

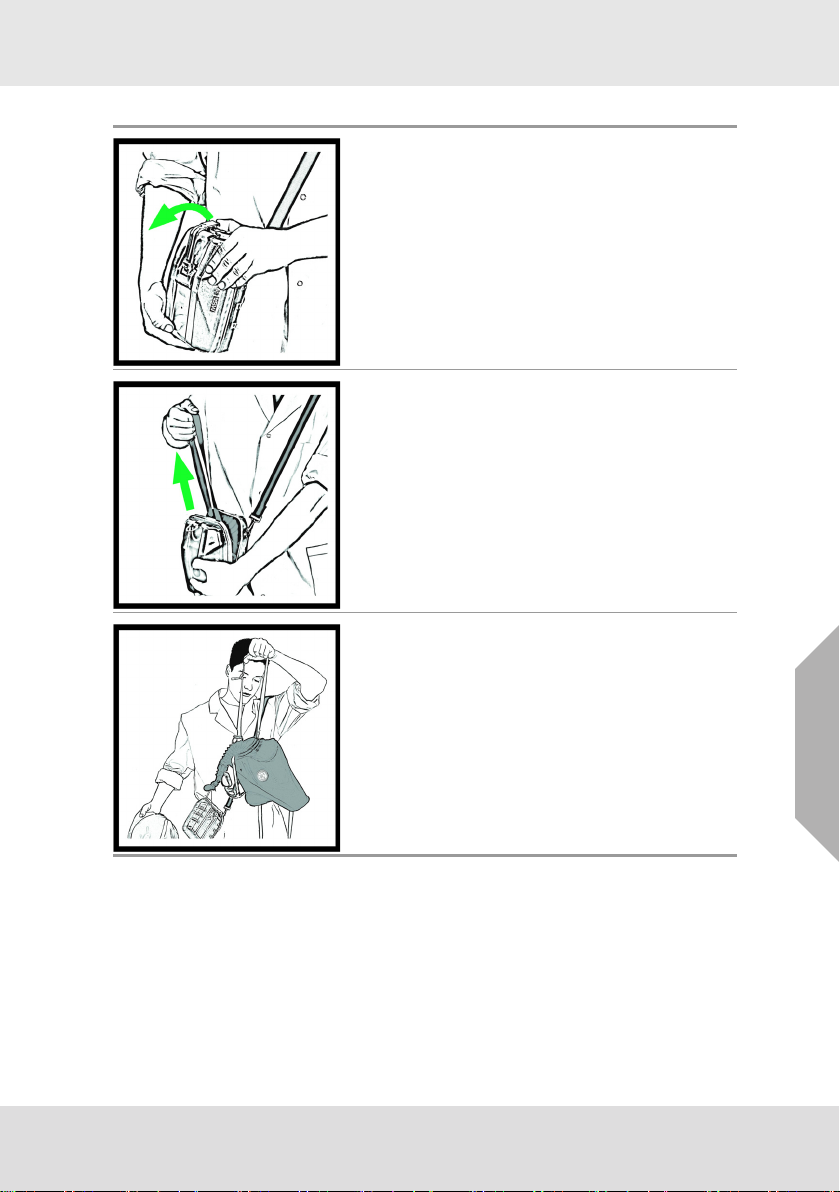

Donning the SavOx TR

Opening the Container

(1) Push the locking lever in the direction of the arrow until

the seal breaks and locking device falls off.

Removing the Device

(2) Grasp container cover with one hand.

(3) Pull out the device by the neck strap with the other hand.

(4) Discard container cover.

Donning the Neck Strap

(5) Take off the protective helmet, if used.

(6) Place the neck strap around the neck.

The valve of the bag must be visible on the front of the

bag.

Do not adjust neck strap!

(7) Put the protective helmet on.

SavOx TR / SavOx Industry TR 8

Use

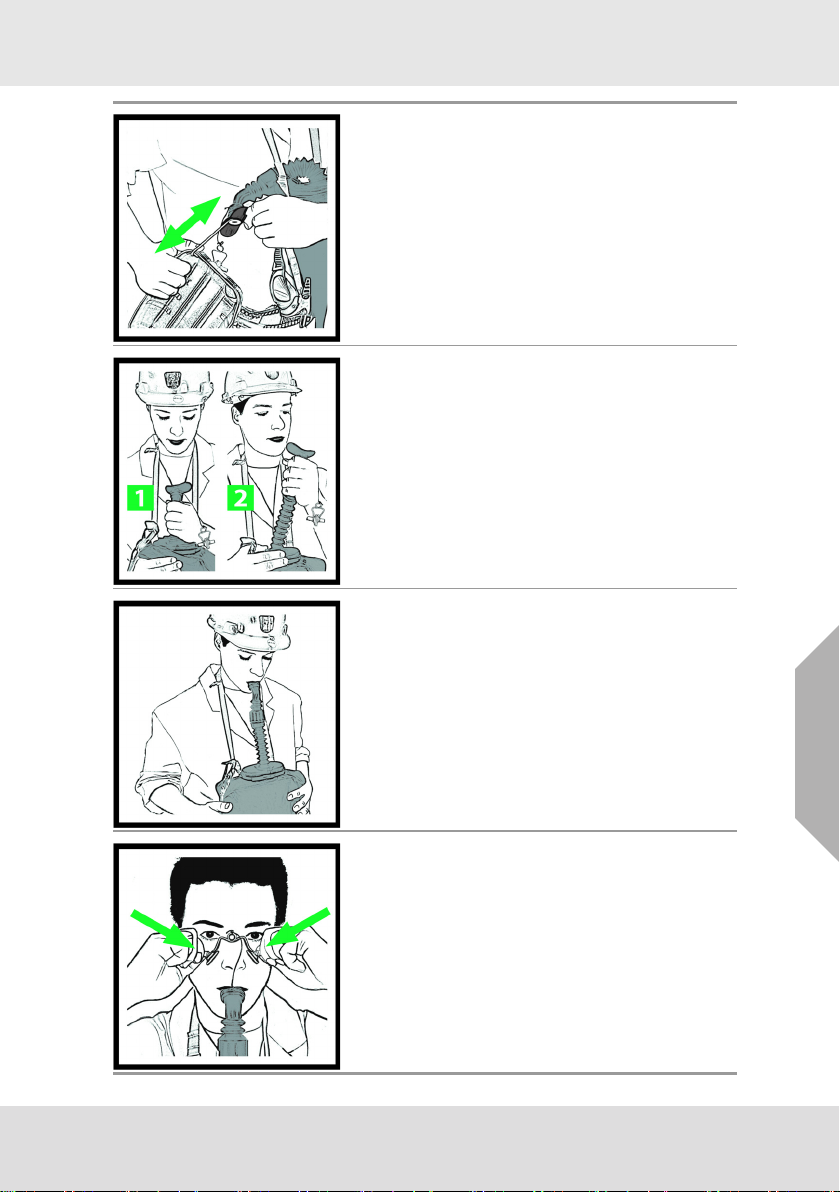

Detaching the Device

(8) Detach device from mouthpiece plug.

Activating the Device

(9) Grasp breathing tube at the mouthpiece.

(10) Fully extend the breathing tube to activate the starter.

A drop in pull resistance indicates the starter is initi-

ated.

Inserting the Mouthpiece

(11) Place mouthpiece into mouth with flange of mouthpiece

between teeth and lips.

(12) Bite down on the two lugs.

(13) Exhale into the device.

So the breathing bag is inflated.

It might be necessary to unfold the breathingbag by

hand.

Fit the Nose Clip

(14) Grasp nose clip by rubber pads, pull nose pads apart and

fit them onto nose.

SavOx TR / SavOx Industry TR 9

Use

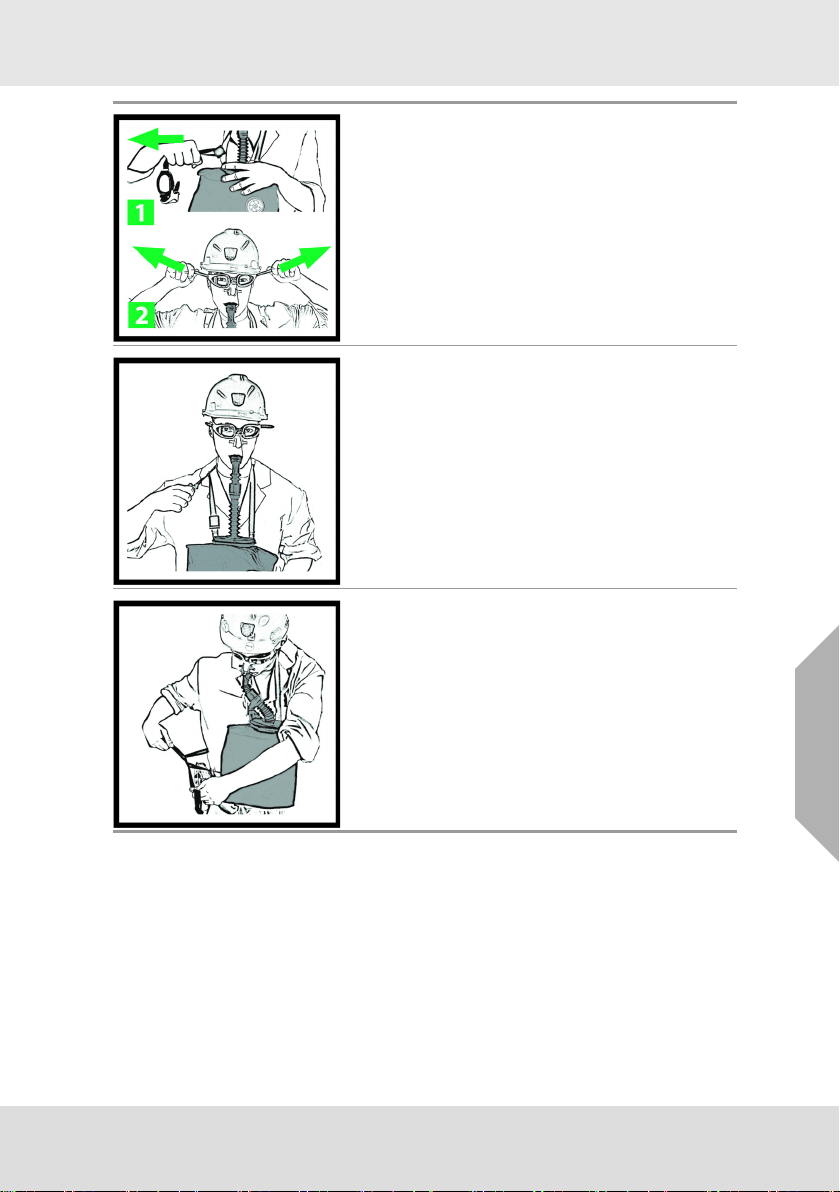

Removing and Fitting the Goggle

Note: Goggle is on the right side of the neck strap.

(15) Grasp the goggle strap and pull to remove the goggle

from neck strap.

(16) Fit the goggle.

(17) Tighten goggle straps.

Adjusting the Neck Strap

(18) Adjust neck strap.

Ensure that the head is able to move freely.

Tying the Waist Belt

(19) Tie waist belt and tighten with knot.

SavOx TR / SavOx Industry TR 10

Use

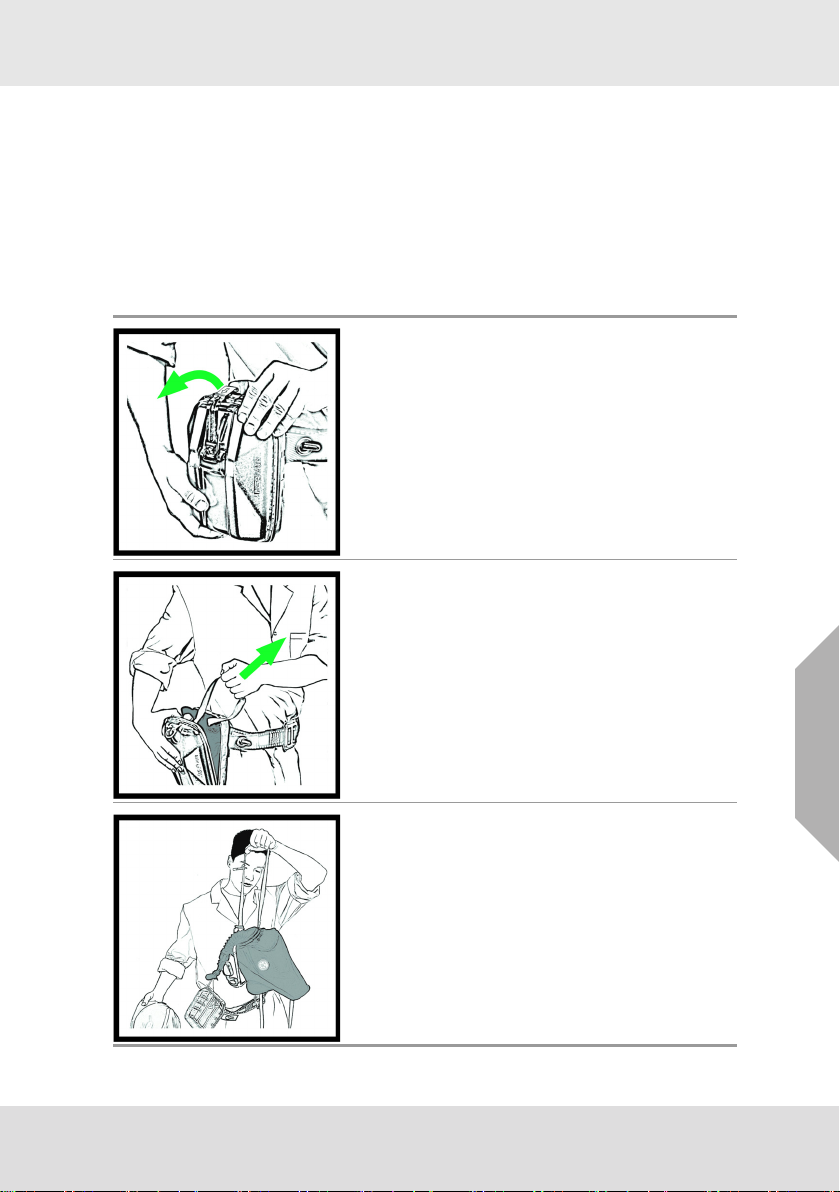

Donning the SavOx Industry TR

Opening the Container

(1) Push the locking lever in the direction of the arrow until

the seal breaks and locking device falls off.

Removing the Device

(2) Grasp container cover with one hand.

(3) Pull out the device by the neck strap with the other hand.

(4) Discard container cover.

Donning the Neck Strap

(5) Take off the protective helmet, if used.

(6) Place the neck strap around the neck.

The valve of the bag must be visible on the front of the

bag.

Do not adjust neck strap!

(7) Put the protective helmet on.
