MRC SI-600 Manuel utilisateur

Operation Manual for

Multi-Tubbe Vortexer

SI-600

PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION

3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com

MRC.VER.01-8.12

Foreword

Thank you for purchasing our Products: Multi-Tube Vortexer. This Manual

for users contains function and operation of the Instrument. In order to use

the instrument properly, please read this manual carefully before using the

Instrument.

Opening Check

Please check the Instrument and Appendix with the packing list when

you first open the instrument packing case. If you find there is something

wrong with the Instrument and the Appendix, do contact the vendor or the

producer.

Safety Warnings and Guidelines

1. Important operation information of the security:

Before the users’ operation, they should have a perfect conception of how to

use the Instrument. Therefore, read this Manual carefully before using it.

2. Security:

The operation, maintenance and repair of the Instrument should comply with

the basic guidelines and the remarked warning below. If you don’t comply with

them, it will have effect on the scheduled using life of the Instrument and the

protection provided.

This product is a normal and an indoor Instrument which conforms

to Standard B style- I type- GB9706.1.

Before using the device, read the Manual carefully. These units are

designed for use in laboratory environments. The device must be used

by skilled personnel with the appropriate training.

The operator should not open or repair the Instrument by himself,

which will result in losing the qualification of repair guarantee or occur

accident. If there is some wrong with the Instrument, the company will

A.C. power’s grounding should be reliable to safeguard against an

electric shock. The 3-pin plug supplied with thermo-shaker’s power

cable is a safety device that should be matched with a suitable grounded

socket.

Operation before reading the Manual is forbidden. Read the

guidelines and directions below and carry out the countermeasure

according to them.

3. The maintenance of Instrument

The platform and clamp should be cleaned by the cloth stained with a little

alcohol. If there are smutches on the Instrument, clean them by soft cloth stained

with cleaning cream.

Power off when you finish your work. Pull off the connector plug

when there’s long time no use of the Instrument and cover it with a

cloth or plastic paper to prevent from dust.

Pull the connector plug from the jack at once in the following cases,

and contact the vendor:

There is some liquid flowing into the Instrument;

Drenched or fire burned.

Abnormal operation: such as abnormal sound or smell.

Instrument dropping or outer shell damaged.

The function has obviously changed.

Before power on, guarantee the voltage used should be accordant to

the voltage needed, and the rated load of electrical outlet should not

lower than the demand. If the electric line is damaged, you should

replace it with the same type. You should assure there’s nothing on the

electric line and you should not put the electric line in the ambulatory

place. Hold the jack when you pull out the electric line, and don’t pull

the electric line.

Contents

Chapter 1 Introduction ------------------------------------------------------------------------- 1

Chapter 2 Specifications ---------------------------------------------------------------------- 2

1. The normal operating condition --------------------------------------------- 2

2. The basic parameters and the function ----------------------------------- 2

Chapter 3 Preparations ------------------------------------------------------------------------ 3

1. Structure Description ----------------------------------------------------------- 3

2. Keyboard and Display panel ------------------------------------------------- 4

3. Power connection --------------------------------------------------------------- 5

4. Exchangeable Tube Foam Rack--------------------------------------------- 5

Chapter 4 Operation Guide ------------------------------------------------------------------- 6

1.Speed and time setting -------------------------------------------------------- 6

2.Key combination ----------------------------------------------------------------- 7

3.Pulsing mode-----------------------------------------------------------------------8

Chapter 5 Failure analysis and handling ------------------------------------------------ 9

ANNEX 1. Wiring Diagram for SI-600……………………………………………...10

SI-600 Multi-tube Vortexer Chapter 1 Introduction

─

Chapter 1 Introduction

The Multitube Vortexer is designed for mechanical and chemical cell lysis,

mixing suspensions, and general sample agitation. This vortex mixer gives

a distinctly different motion than shaking a sample. With vortexing, greater

shearing forces are placed on materials in the bottom of a tube, thus

promoting either disruption or solubility.

The multi-tube vortex mixer is a tool to provide that extra degree of mixing,

however it accommodates full racks of tubes or microwell plates as

opposed to singe tubes. Consequently, this unit is useful for higher

throughput mixing of samples.

Features

•

LCD display, it is easy to setup and use.

•

Procedure restored function; when it power-down suddenly and then

re-power-on, the device can return to the set procedure automatically.

•

Timing function. It can be set mixing time within 00:00~99:59h,

display window shows the remnant time to do timing.

•

Brushless motor with precise speed, long-lifetime, and without

maintenance

SI-600 Multi-tube Vortexer Chapter 2 Specification

─

Chapter 2 Specifications

1. The normal operating condition:

Ambient temperature：

：：

：4°

°°

°C ～

～～

～45°

°°

°C

The relative humidity: ≤70%

Power supply：

：：

：AC100-240V 1.5A

2. The basic parameters and function

Model

Parameter

SI-600

Speed 500~2500rpm

Orbit 3.6mm

Time setting 1min ~ 99h59min

Max. load 4.5kg

Input power 60W

Outer dimension(mm)

426×250×480

Weight(kg) 14.5

SI-600 Multi-tube Vortexer Chapter 3 Preparations

─

Chapter 3 Preparations

This chapter introduces Multi-Tube Vortexer’s mechanical structure and the central

panel’s functions and some preparations before power-on. You should be familiar with

this chapter before the Multi-Tube Vortexer is first operated.

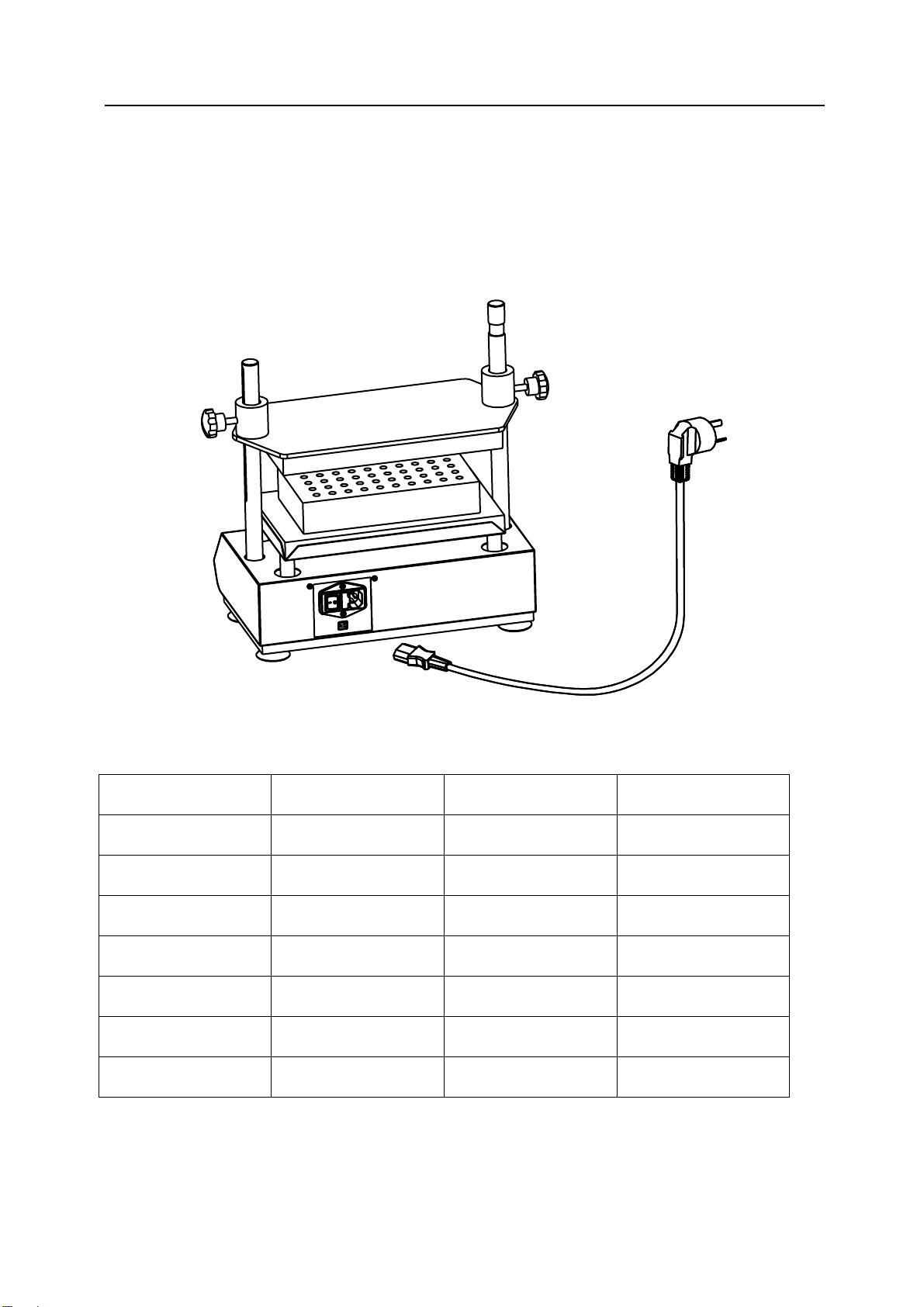

1. Structure Description

Support plate

Mains power supply

Power connector

Screw knobs

Foam tube rack

Panel

USB input interface

SI-600 Multi-tube Vortexer Chapter 3 Preparations

─

Keyboard and Display panel

Short

Start

Stop

Short mix key: the machine mixes in the highest speed by

pressing this key continuously, and will stop running when leaving

go of it.

Start key, short pressing this key to start the procedure

Stop key, short pressing this key to start the procedure

Increasing key for speed and time, it can setup speed and time

Decreasing key for speed and time, it can setup speed and

time

SI-600 Multi-tube Vortexer Chapter 3 Preparations

─

3. Power connection

Place the Multi-Tube Vortexer on a level bench or table. Plug the extend power supply

unit into the socket at the rear side of the machine. The external power supply unit

(power adapter AC100-240V) ensures the external safety of the unit.

4. Exchangeable Tube Foam Rack

Type Parameter Tube Capacity Dimension (mm)

SI-B01 10mm 50 245X132X45

SI -B02 12mm 50 245X132X45

SI -B03 13mm 50 245X132X45

SI -B04 16mm/15ml 50 245X132X45

SI -B06 25mm 15 245X132X45

SI -B07 50ml 15 245X132X45

–B00

Replacement tray

pad set / 305X178.5X25

AC100-240V~
