Dual motion shaker

S2D-300

S2D-400

1. PRODUCT DESCRIPTION

2. USER CONSIDERATION

3. USER OPERATION

4. ACCESSORY

5. MAINTENANCE AND CLEANING

6. FAULTY RUNNING

7. WARRANTY

Operating Manual

All manuals and user guides at all-guides.com

all-guides.com

* Orbital range (14mm)

* Speed range (45~400rpm)

* Orbital range (28mm)

* Speed range (45~400rpm)

Change between orbital or reciprocating motion

Smooth and powerful orbital or reciprocating motion at

a low speed

Optional platform available for flasks

LED display (shown actual speed or time)

High quality permanent brushless DC motor for gentle and

powerful motion

Continuous or timed operation

PRODUCT DESCRIPTION

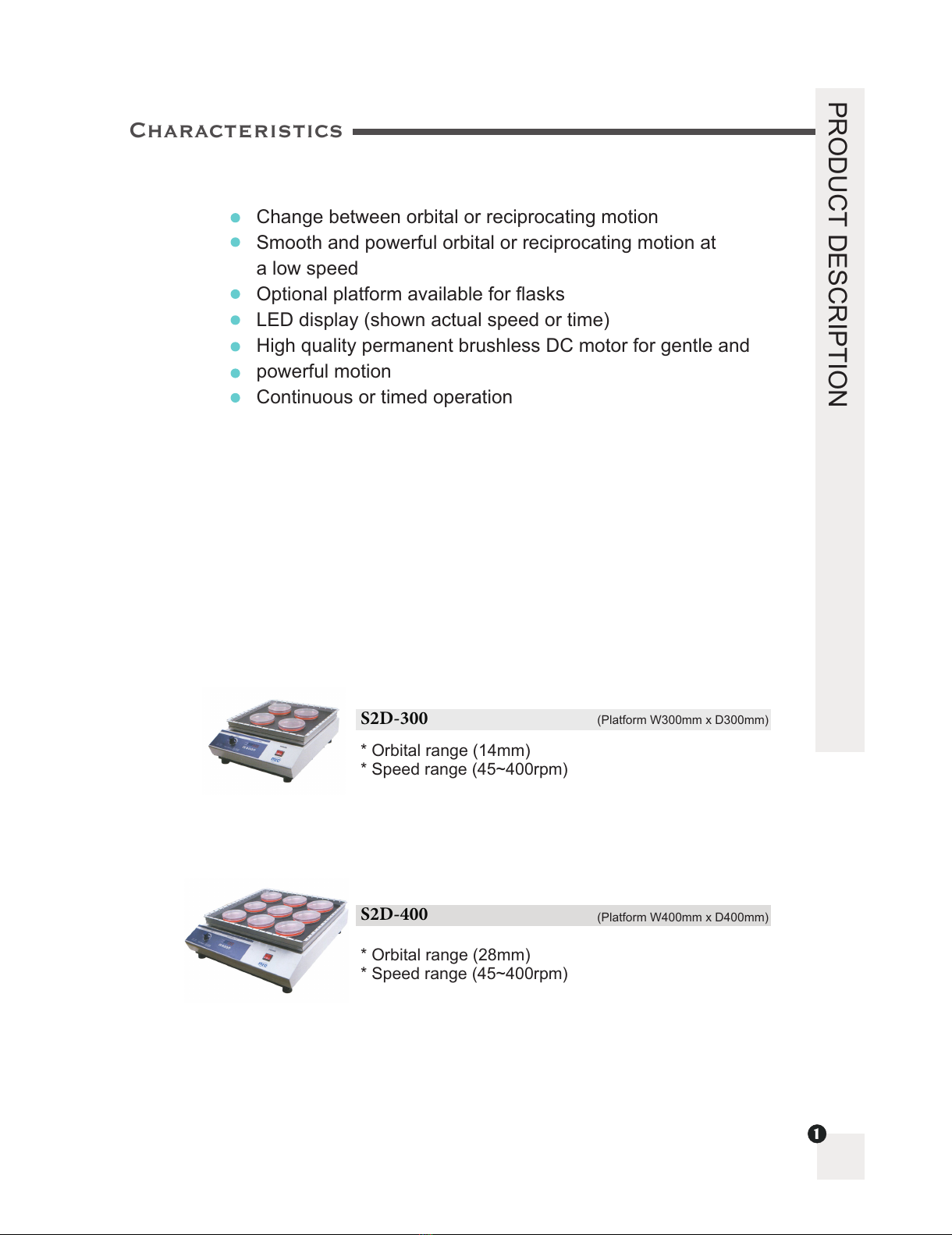

Characteristics

S2D-400

S2D-300

(Platform W400mm x D400mm)

(Platform W300mm x D300mm)

All manuals and user guides at all-guides.com

Non-slip pad

Shaking Platform

Rubber foot

Power ON/OFF switch

Tachometer/time

Speed control

PRODUCT DESCRIPTION

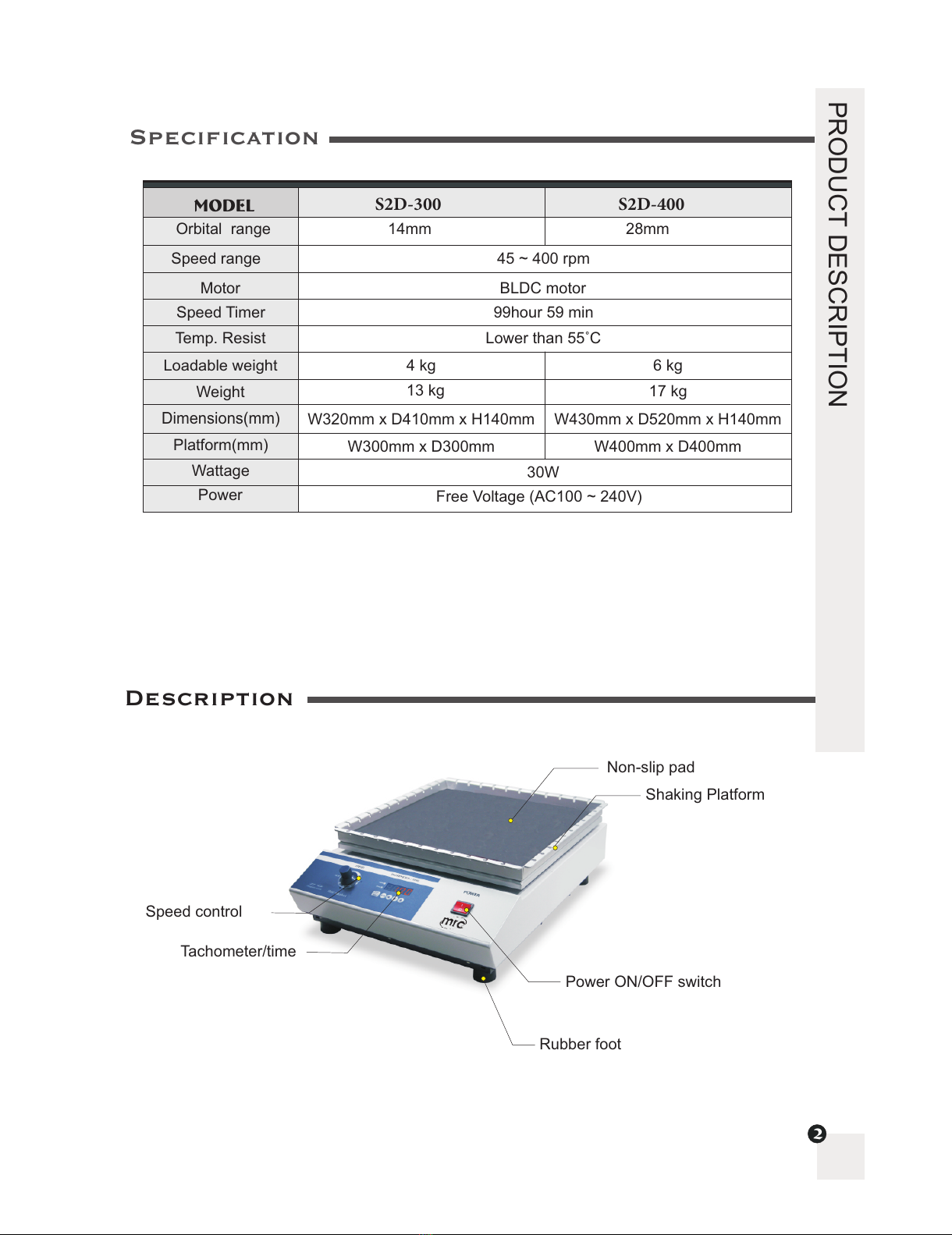

Specification

Description

Model

S2D-300

Free Voltage (AC100 ~ 240V)

W430mm x D520mm x H140mm

17 kg

Dimensions(mm)

Weight

Power

BLDC motor

Motor

28mm

Orbital range

45 ~ 400 rpm

Speed Timer

Loadable weight

6 kg

Temp. Resist Lower than 55˚C

Platform(mm) W400mm x D400mm

Wattage

Speed range

S2D-400

13 kg

14mm

4 kg

W300mm x D300mm

30W

W320mm x D410mm x H140mm

99hour 59 min

All manuals and user guides at all-guides.com

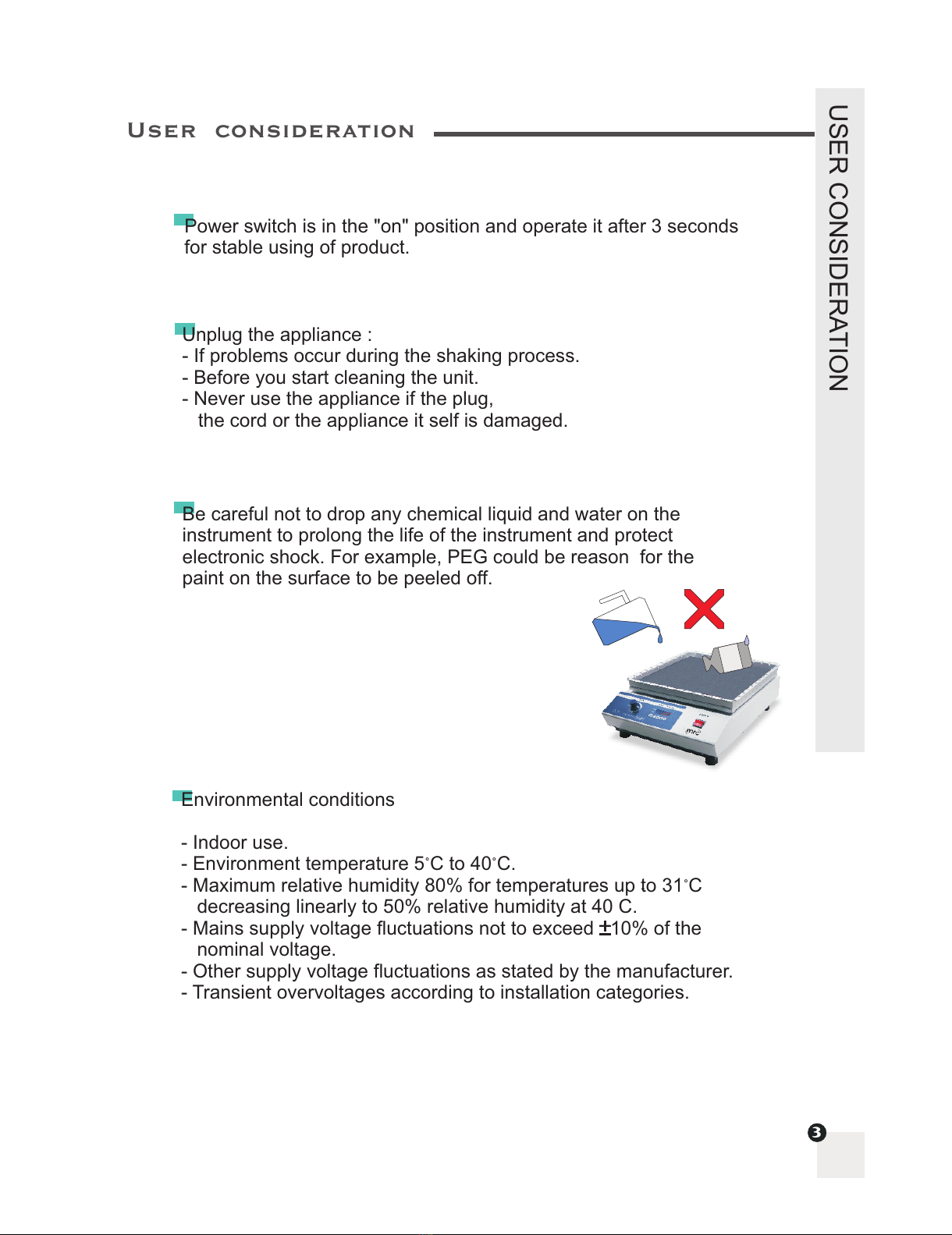

Unplug the appliance :

- If problems occur during the shaking process.

- Before you start cleaning the unit.

- Never use the appliance if the plug,

the cord or the appliance it self is damaged.

Be careful not to drop any chemical liquid and water on the

instrument to prolong the life of the instrument and protect

electronic shock. For example, PEG could be reason for the

paint on the surface to be peeled off.

Environmental conditions

- Indoor use.

- Environment temperature 5˚C to 40˚C.

- Maximum relative humidity 80% for temperatures up to 31˚C

decreasing linearly to 50% relative humidity at 40 C.

- Mains supply voltage fluctuations not to exceed 10% of the

nominal voltage.

- Other supply voltage fluctuations as stated by the manufacturer.

- Transient overvoltages according to installation categories.

User consideration

USER CONSIDERATION

Power switch is in the "on" position and operate it after 3 seconds

for stable using of product.

All manuals and user guides at all-guides.com

This section summarizes operation procedures for Dual Motion Shaker

controlling the rotation.

If you want to do "Timer Setting", the last

two numbers of the " " on the screen

will be blinking when you push the <MODE>

button. The maximum time period is

99hours and 59min.

Plug the power cord

into the wall receptacle.

When you turn on the power switch.

" " signal is going to be appeared

on the screen. In case of you are dealing

with speed control, there will be the red

light on the rpm part, and you can check

the current speed through the screen.

STOP

rpm ●

time ●

RUN MODE

STOP

RPM/TIMER

0000

STOP

rpm ●

time ●

RUN MODE

STOP

00000000

0000

00000000

User operation

USER OPERATION

RPM/TIMER

All manuals and user guides at all-guides.com

This section summarizes operation procedures for Dual Motion Shaker

controlling the rotation.

If you want to finish the Timer Setting,

please kindly push the <RUN/STOP>,

then it will be changed as RPM mode.

For example when you want to do

" Timer Setting" for 5 minutes, push

button repeatedly until the number "5"

appears on the screen. Then, when you

push the <MODE> button, the setting

will be finished. In case of you push

<RUN/STOP> button there will be the

yellow light on the part of "TIME", and

then the timer will be operating.

cf) The number of timer is going to be

lessened such as 60, 59, 58...

STOP

rpm ●

time ●

RUN MODE

STOP

0005

5If the timer setting finishes, there will be

an automatic buzz sounds for 3 times

for 4 seconds each, and the signal "END",

it will be appeared on the screen.

7Control the shaking speed.

(45~400rpm)

STOP

rpm ●

time ●

RUN MODE

STOP

rpm ●

time ●

RUN MODE

STOP

0005

Speed

fast

RPM/TIMER

User operation

USER OPERATION

All manuals and user guides at all-guides.com

all-guides.com

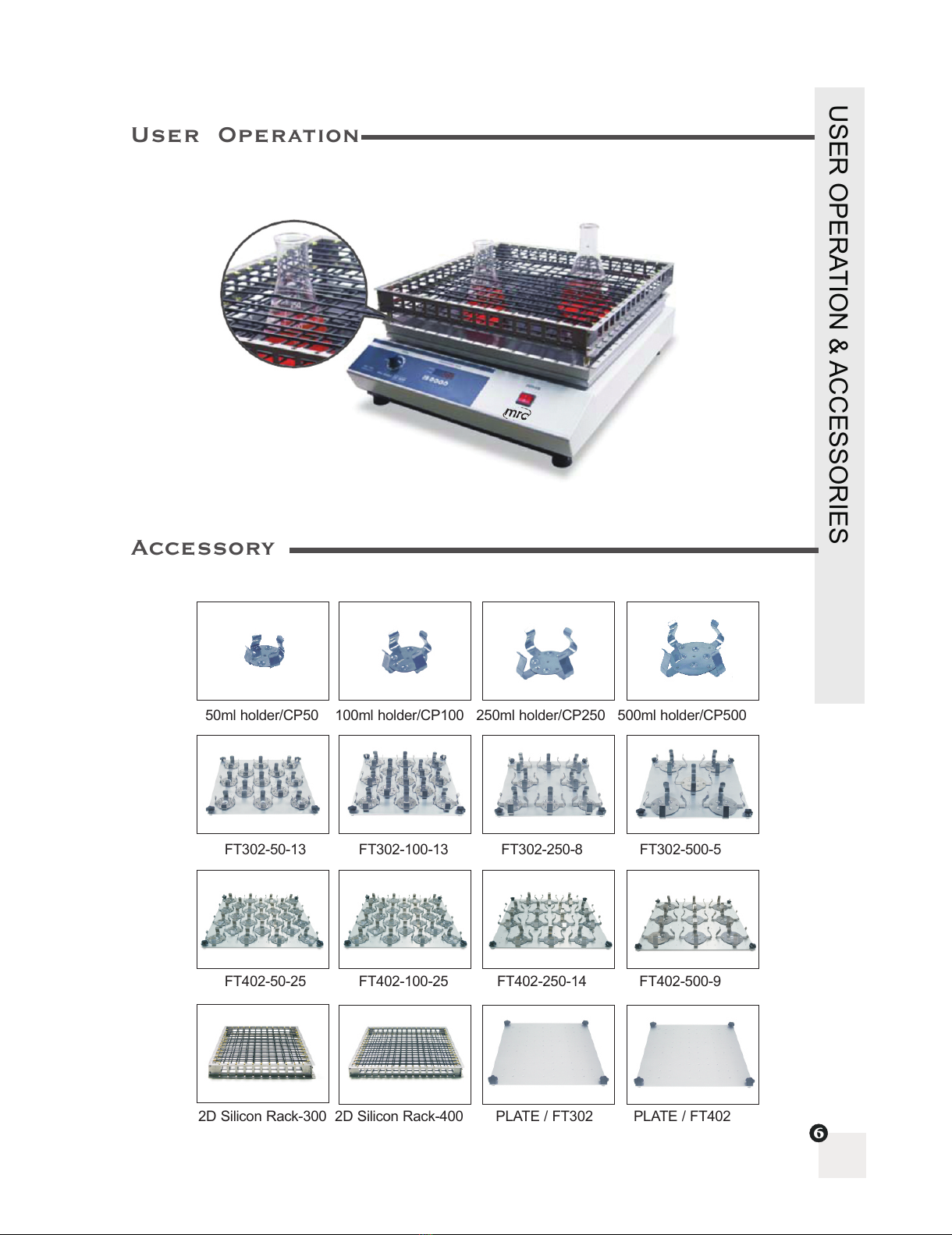

50ml holder/CP50 100ml holder/CP100 250ml holder/CP250 500ml holder/CP500

FT302-50-13 FT302-100-13 FT302-250-8 FT302-500-5

FT402-50-25 FT402-100-25 FT402-250-14 FT402-500-9

2D Silicon Rack-300 2D Silicon Rack-400 PLATE / FT302 PLATE / FT402

User Operation

USER OPERATION & ACCESSORIES

Accessory

All manuals and user guides at all-guides.com

The method of change for the dual motion

1.Lift the rubber pad out of the shaking plate

2. Loosen 4 bolt on the four corners of the shaking plate.

3. Also, loosen 4 bolts in middle of the BASE PLATE

4. ORBITAL → RECIPROCATING motion

- the base plate rotated 90 degrees and bolt up in holes NO.①

5. RECIPROCATING → ORBITAL motion

- the base plate rotated 90 degrees and bolt up in holes NO.②

Bolt

Base plate

Main body

①

②

User Operation

USER OPERATION

All manuals and user guides at all-guides.com

Bolt

Silicon rack

Post

Shaking

plate

The method of the silicon rack combination

1. Loosen 4 bolts on the four corners of the shaking plate.

2. The 4 posts stood on holes on each corner.

And put silicon rack down in there.

3. Fasten 4 screw bolts with posts.

User Operation

USER OPERATION

All manuals and user guides at all-guides.com

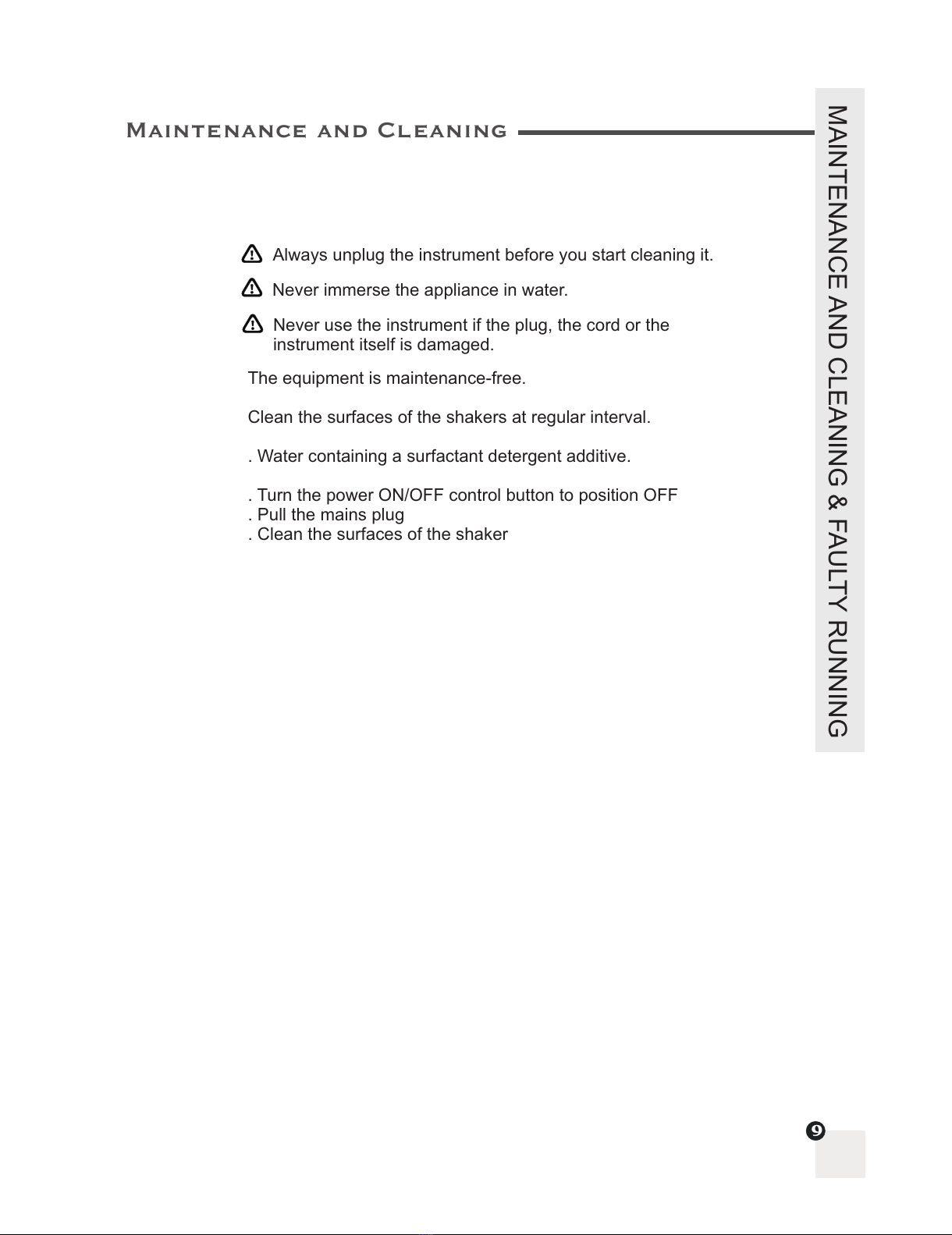

Always unplug the instrument before you start cleaning it.

Never immerse the appliance in water.

Never use the instrument if the plug, the cord or the

instrument itself is damaged.

The equipment is maintenance-free.

Clean the surfaces of the shakers at regular interval.

. Water containing a surfactant detergent additive.

. Turn the power ON/OFF control button to position OFF

. Pull the mains plug

. Clean the surfaces of the shaker

Maintenance and Cleaning

MAINTENANCE AND CLEANING & FAULTY RUNNING

All manuals and user guides at all-guides.com
