MP-Man MPQCG77 Manuel utilisateur
EN USER MANUAL
For Model No.
MPQCG77
Tablet of Contents
Specifications………………………………………………………………….
Tablet Parts……………………………………………………………………
Getting started………………………………………………………………...
How to use TF card …………………………………………………………
How to connect to PC ………………………………………………………
Connection to Internet………………………………………………………..
Camera……………………………………………………………………….
Trouble Shooting…………………………………………………………….
Warnings…………………………………………………………….……
Specifications
Display: 7 inch HD (1024x600) Capacitive multi-touch screen
CPU: Spreadtrum&SC7731G Quad Cortex A7@ 1.3GHz
RAM: 512M/1 GB DDR III
GPU Mali-400 mp2
Internal Storage:4GB/ 8GB
Expansion Memory: Micro SD card up to 32GB (not supplied)
Built-In Wireless: 802.11b/g/n
SIM 3G module
Built-in Bluetooth (2.0 +EDR)
Built-in GPS (GPS + AGPS)
FM Radio
Double camera: front 0,3 Mpixels and back 2 Mpixels
AC Adapter: DC 5V-2A
Operating System: Android 5.1

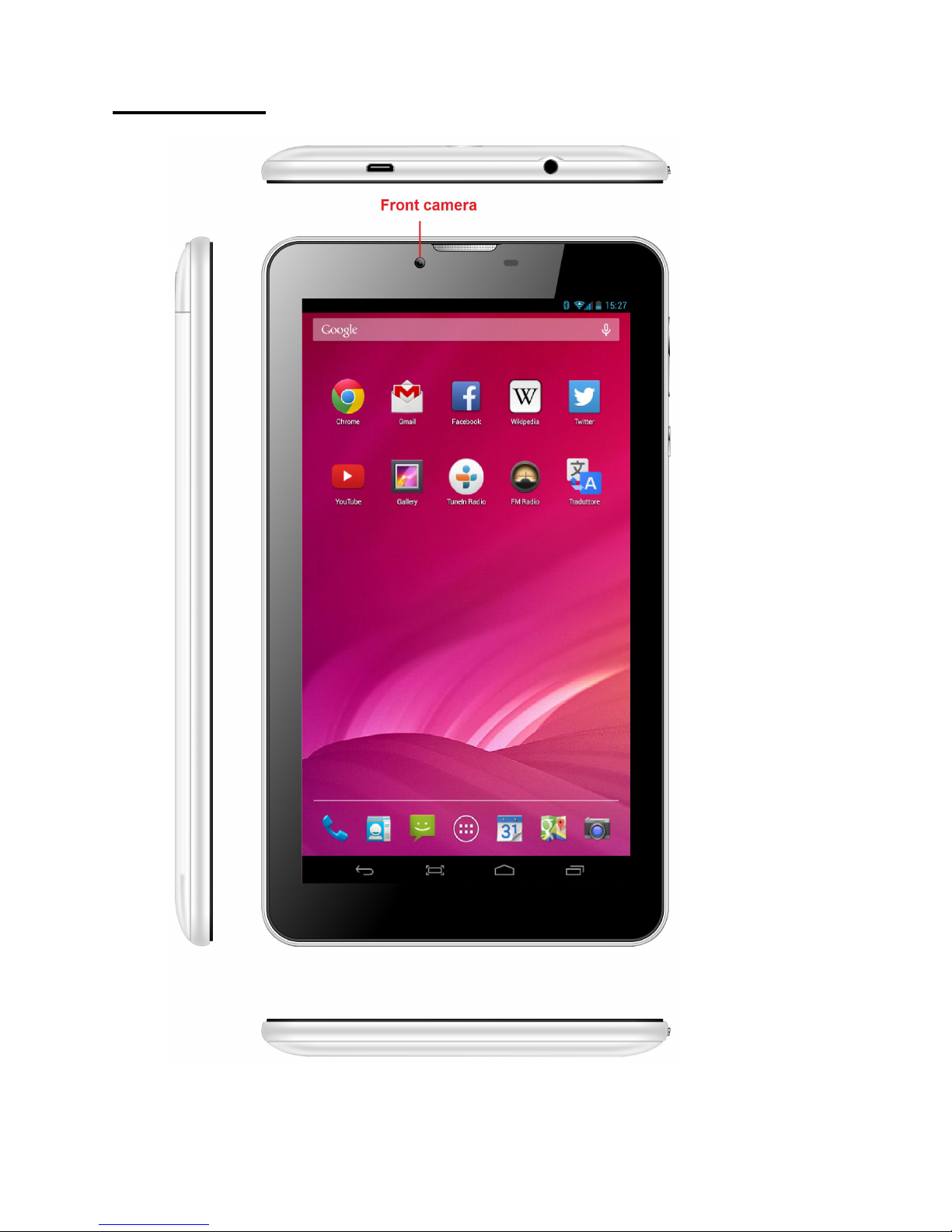

Tablet Part
Name
function
Volume +
Press to increase the volume
Volume -
Press to decrease the volume
Power
Keep pressed to turn on/off the tablet; shortly
press to activate standby
Reset
Reset the system in case of device stuck and
restart
Earphone jack
Connect earphone to this standard 3.5mm jack
Micro USB port/OTG
port
PC connection / Peripheral connection through
HOST cable (for example keyboard, USB
device)
Back camera
2 Mpixels camera
Front camera
0,3 Mpixels camera
Micro SD input
Insert a micro SD card (up to 32GB)
SIM slot
SIM card port
Getting Started
Battery Charging
The tablet has a built-in rechargeable Li-polymer battery.
1. To charge connect the AC power adapter to the DC 5V jack on the
right side of the tablet.
2. The battery icon shows the battery status and charging status
3. The tablet can be used even if the battery is being charged.
the above icons indicate the different level of electricity left in the battery
4. no replacement of battery without authorization, or the explosion
hazard might happen.
5. Recharge it for at least half hour if it has been idle for long time and
fails to start itself.
6. Regularly recharge it at least one time monthly
7. 40°—5°is the optimum temperature for the battery recharging or
the battery performance might deteriorate slightly
Disposal
the battery might contain the polluting material, please give it to the
official recycling-station before disposing the tablet pc, and don’t litter.
Power ON/OFF
ON:
press the button for continuous 5 seconds until the tablet turns
“ON”.
OFF:
1.Press the button for continuous 5 seconds and it will appear
2.Select OK to power off the tablet
Screen Lock
This feature locks the screen, at the same time turn OFF the screen’s
backlight after a few seconds.
Screen locks when:
1. System is idle.
2. Manually activated by pressing the Power button once.
Screen unlock :
Home screen
The Home screen will look similar to the picture below. It is actually five
screens, each of which can have a different layout of icons. To switch
between screens, simply slide your finger left or right across the display.
The status bar and navigation buttons are always visible, no matter
which Home screen you can currently viewing.
The Desktop contains shortcuts to your most-used applications and widgets
Touch the screen icon to quickly search the World Wide Web using Google.
The icon will launch the Application menu.
The status bar displays system information, such as current time, wireless
connectivity and battery.
Touch to Expand the status bar for more detailed information.
The button moves back one step to the previous menu/page.
The buttons returns immediately to the Android desktop.
The button display a menu of recently opened applications.
Settings Menu
The settings menu allows you to adjust Tablet system configuration.
To change settings:
1. Touch the "Settings" menu icon on the Application menu.The
Settings menu will open.
2. Guide your finger up or down the left side of the screen to scroll through the
list of available categories.
3. Touch a category title to view further options on the right side of the screen.
Wi-Fi - Connect to /disconnect from wireless networks, view connection status
Data usage - Enable / disable mobile data, view current usage, set mobile data limit (note:
this function is available only on devices supplied with 3G card)
Sound - Change volume, touch sound, screen lock sounds etc
Display - Change brightness, wallpaper, sleep settings, font size etc
Storage - Manage NAND and Micro SD card, view available capacity etc
Battery - See battery status and powered-on time
Apps - Manage applications, running services etc
Location services - Change approximate location detection, improve search results, GPS
satellites
Security - Change screen lock type, encryption, password, credential storage etc
Language & input Select language, add to the dictionary, edit on-screen keyboard settings,
vocal search, etc
Backup & reset - Backup & restore data, perform factory reset, etc
Date & time - Set date, time zone, time, clock format etc
Turn on/off – automatic turning on / off settings
Accessibility - Set up large text, auto-rotate screen, speak password etc
Developer options - Advanced functions for Android developers - debugging, HDCP check
etc
About telephone - Information about your Android device
Telephone function
1. in off mode insert SIM card in the slot.
2. after inserting SIM card turn on the tablet and wait to display the cell reception icon.
3. once the connection with the operator open the application and dial the
number.
