NPort 6150/6250 Series

Quick Installation Guide

Edition 8.0, August 2016

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

The NPort 6150/6250 series secure serial device servers provide reliable

serial-to-Ethernet connectivity for a wide range of serial devices. The

NPort 6150/6250 support TCP Server, TCP Client, UDP, and

Pair-Connection operation modes to ensure the compatibility of network

software. In addition, the NPort 6150/6250 also support Secure TCP

Server, Secure TCP Client, Secure Pair-Connection, and Secure Real COM

modes for security critical applications such as banking, telecom, access

control, and remote site management.

Package Checklist

Before installing a NPort 6150/6250 secure device server, verify that the

package contains the following items:

•1 NPort 6150 or NPort 6250

•Power adapter (does not apply to -T models)

•2 wallmount ears

•Documentation and software CD

•Quick installation guide (this guide)

•Warranty card

Optional Accessories

•DK-35A: DIN-rail mounting kit (35 mm)

•DIN-rail power supply

•CBL-RJ45M9-150: 8-pin RJ45 to male DB9 cable

•CBL-RJ45M25-150: 8-pin RJ45 to male DB25 cable

NOTE: Please notify your sales representative if any of the above items

are missing or damaged.

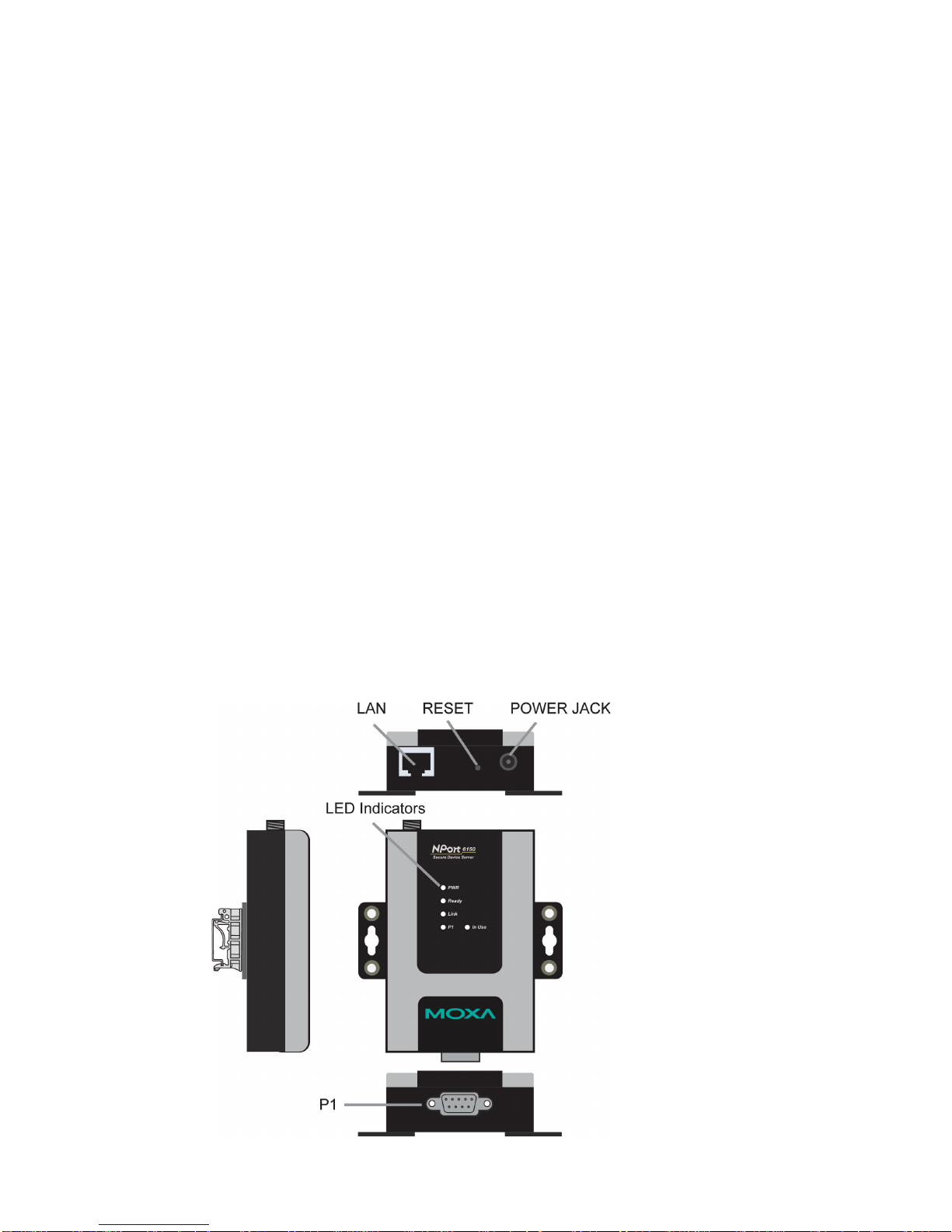

Hardware Introduction

NPort 6150

- 3 -

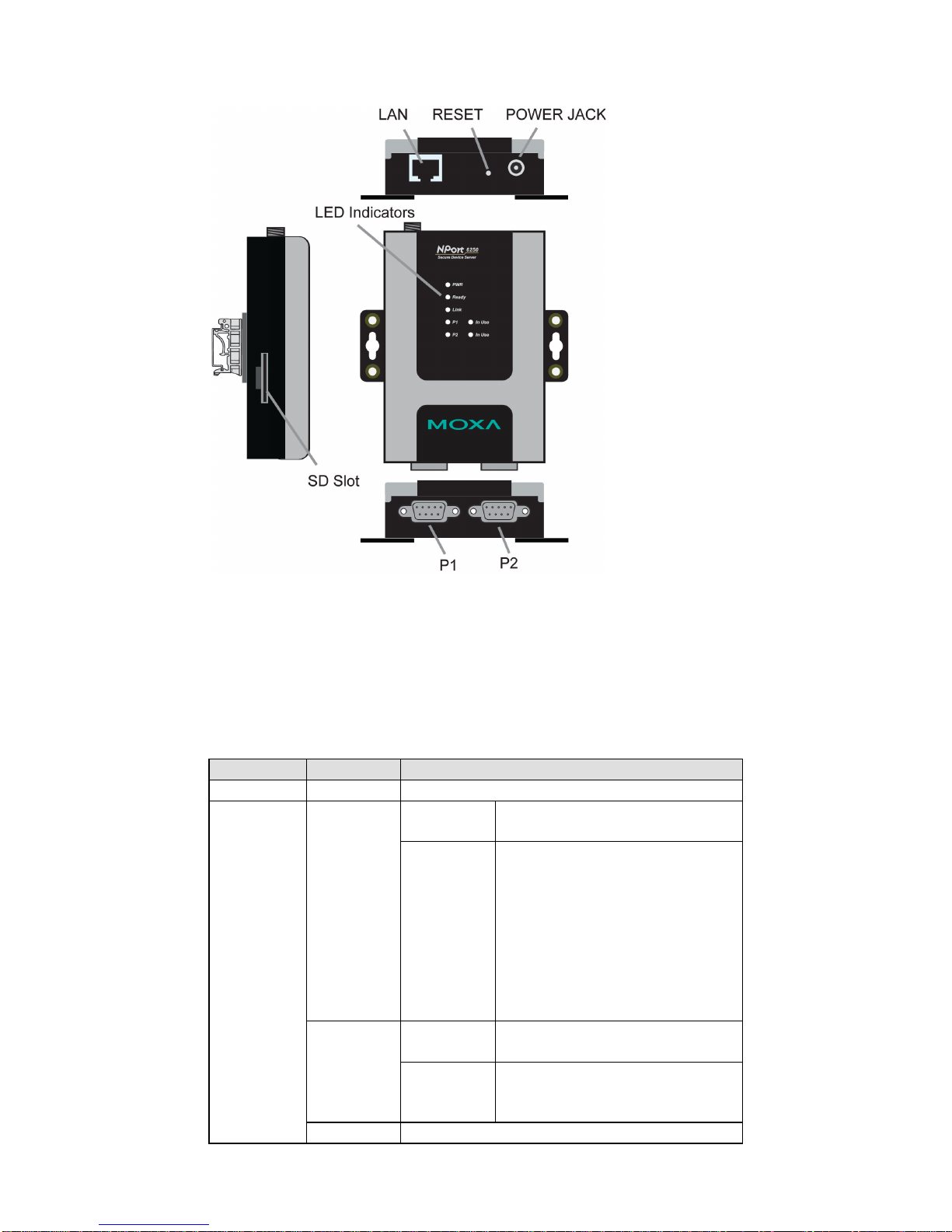

NPort 6250

Reset Button—Press the Reset Button continuously for 5 sec to load

factory defaults. Use a pointed object, such as a straightened paper clip or

toothpick, to press the reset button. This will cause the Ready LED to blink

on and off. The factory defaults will be loaded once the Ready LED stops

blinking (after about 5 seconds). At this point, you should release the

reset button.

LED Indicators

LED Name

LED Color

LED Function

PWR

Red

Power is being supplied to the power input.

Ready

Red

Steady on

Power is on and the NPort is

booting up.

Blinking

Indicates an IP conflict, or, the

DHCP or BOOTP server did not

respond properly or a relay

output occurred. Check the relay

output first. If after resolving the

relay output the RDY LED is still

blinking, then there is an IP

conflict, or the DHCP or BOOTP

server did not respond properly.

Green

Steady on

Power is on and the NPort is

functioning normally.

Blinking

The device server has been

located by the Administrator’s

Location function.

Off

Power is off, or power error condition exists.

- 4 -

LED Name

LED Color

LED Function

Link

Orange

10 Mbps Ethernet connection

Green

100 Mbps Ethernet connection

Off

Ethernet cable is disconnected, or has a short.

P1, P2

Orange

Serial port is receiving data.

Green

Serial port is transmitting data.

Off

No data is being transmitted or received

through the serial port.

P1, P2

in-use LED

Green

Serial port was opened by server side

software.

Off

Serial port has not been opened by server side

software.

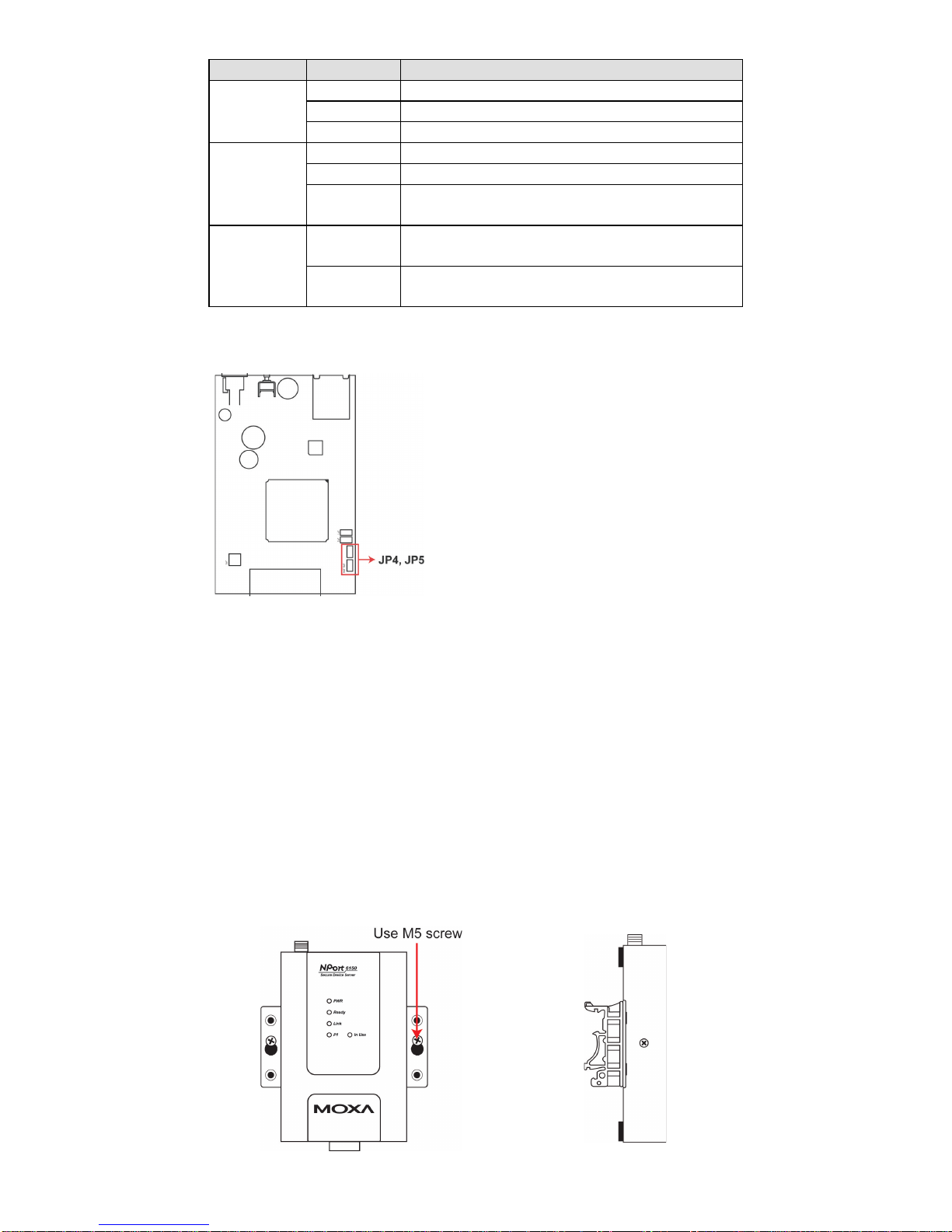

Adjustable pull high/low resistor for RS-422/485 (150

KΩor 1 KΩ)

Jumpers are used to set the pull high/low

resistors. The default is 150 kΩ. Short

the jumpers to set this value to 1 kΩ. Do

not use the 1 kΩ setting with RS

-232

mode, since doing so will degrade the

-232 signals and shorten the

communication distance.

Hardware Installation Procedure

STEP 1:

Connect the 12-48 VDC power adaptor to the NPort 6150 and

then plug the power adaptor into a DC outlet.

STEP 2:

For first-time configuration, use a cross-over Ethernet cable to

connect the NPort

6150 directly to your computer’s Ethernet

cable. For connecting to a network, use a standard

straight-through Ethernet cable to connect to a hub or switch.

STEP 3:

Connect the NPort 6150’s serial port to a serial device.

Placement Options

The NPort 6150/6250 can be placed flat on a desktop or other horizontal

surface. In addition, you may use the DIN-rail or wallmount options, as

illustrated below.

Wallmount

Din Rail

- 5 -

Software Installation Information

The Documentation and software CD contains the user’s manual, NPort

Search Utility, and the PComm Lite Suite. Insert the CD into your

computer’s CD-ROM drive and follow the on-screen instructions. Please

refer to the user’s manual for additional details on using the NPort Search

Utility and PComm Lite.

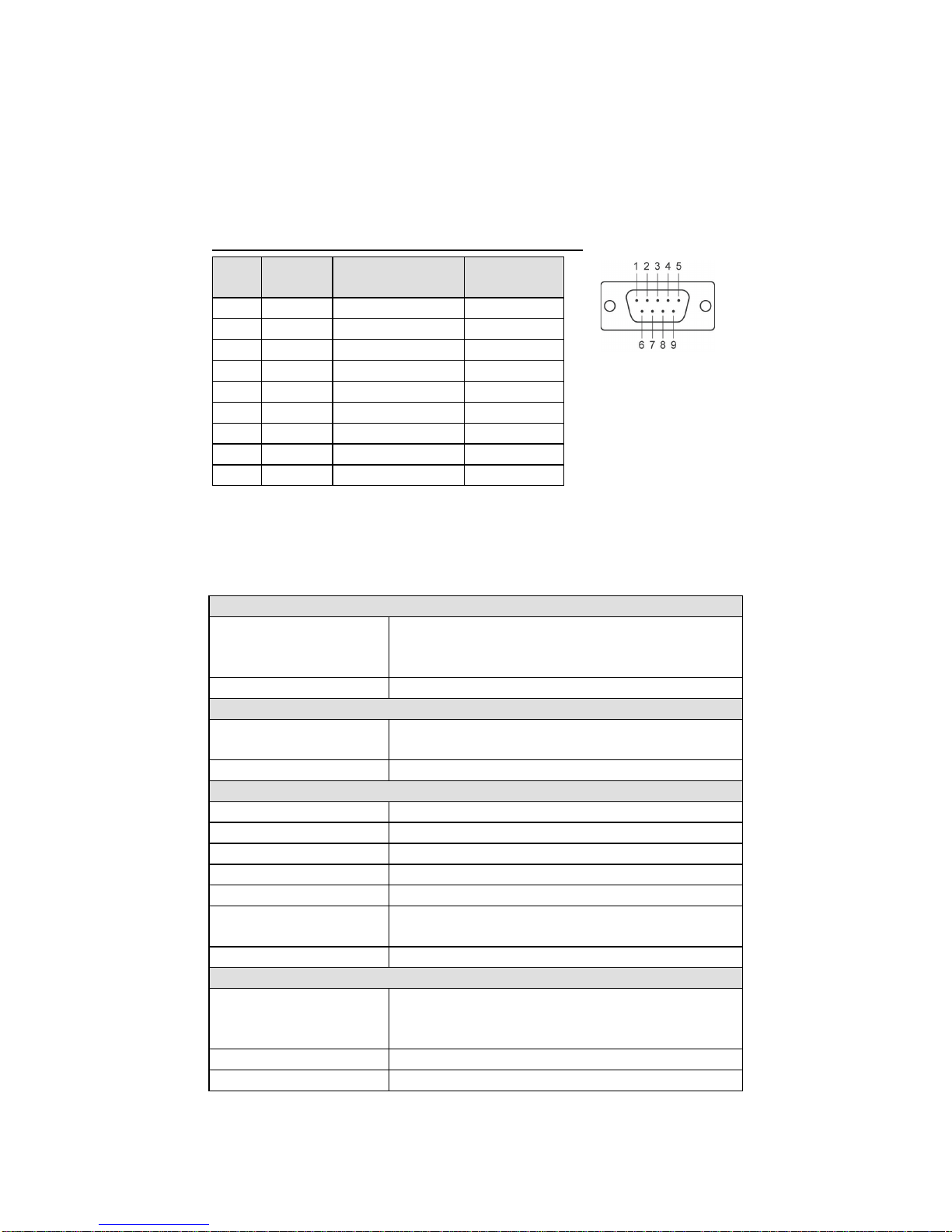

Pin Assignments and Cable Wiring

RS-232/422/485 Pin Assignment (male DB9)

Pin RS-232

RS-422

4-wire RS-485

2-wire

RS-485

DCD

TxD-(A)

–

RXD

TxD+(B)

–

TXD

RxD+(B)

Data+(B)

DTR

RxD-(A)

Data-(A)

GND

DSR

–

RTS

–

CTS

–

Two serial cables for connecting the NPort 6150 to a serial device can be

purchased separately. The wiring diagrams for the two cables are shown

below.

Specifications

LAN

Ethernet

NPort 6150/6250: 10/100 Mbps, RJ45

NPort 6250-S-SC: Single-mode fiber

NPort 6250-M-SC: Multi-mode fiber

Protection

Built-in 1.5 kV magnetic isolation

Serial

No. of ports

NPort 6150: 1

NPort 6250: 2

Interface

RS-232/422/485 (male DB9)

Serial Communication Parameters

Parity

None, Even, Odd, Space, Mark

Data bits

5, 6, 7, 8

Stop bit(s)

1, 1.5, 2

Flow control

RTS/CTS, XON/XOFF, DTR/DSR

Speed

50 bps to 921.6 kbps

Console Port RS-232 (please see the User’s Manual for

detailed operating instructions)

Memory

One SD socket

Software Features

Protocols

ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet,

DNS, SNMP, HTTP, SMTP, HTTPS, SSL, SSH,

PPPoE, RFC2217

Utilities

NPort Search Utility for Windows

Security Protocols

DES/3DES/AES

- 6 -

OS Driver Support

Windows Real COM Drivers: Windows

95/98/ME/NT/2000, Windows

XP/2003/Vista/2008/7/8/8.1/10 (x86/x64),

Windows 2008 R2/2012/2012 R2 (x64),

Windows Embedded CE 5.0/6.0, Windows XP

Embedded

Fixed TTY Drivers: SCO Unix, SCO OpenServer,

UnixWare 7, QNX 4.25, QNX 6, Solaris 10,

FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x

Management: SNMP MIB-II

IP Routing: Static, RIP-I, RIP-II

Configuration

Web Console, Serial/Telnet Console, Windows

utility

Power Requirements

Power input

12 to 48 VDC

Mechanical Specifications

Material

Aluminum (1 mm)

Environmental Limits

Operating Temperature

Standard models:

NPort 6150/6250 series:

0 to 55°C (32 to 131°F)

Wide temp. models:

NPort 6150-T/6250-T series:

-40 to 75°C (-40 to 167°F)

Storage Temperature

Standard models:

NPort 6150/6250 series:

0 to 55°C (32 to 131°F)

Wide temp. models:

NPort 6150-T/6250-T series:

-40 to 75°C (-40 to 167°F) ,

5 to 95% RH

Regulatory Approvals

EMC

FCC Class A, CE Class A

Safety

UL, CUL, TÜV
