1Introduction



TheADSLHomeStationrouterprovidesagraphicalandintuitivewebserverwherebasic

devicemonitoringandset‐upfunctionscanbeperformed.

ThesaidservercanbeaccessedfromacomputerwithanInternetbrowserandanEthernet

orwirelessconnectionbyenteringtherouter'sprimaryIPaddress(thisaddresscanbe

changedbyusers):

http://192.168.1.1

Youmayalsousethefollowingaddress(regardlessofwhetheryouhavechangedtheprimary

addressornot):

http://homestation

SupportedbrowsersareInternetExplorer6orhigher;NetscapeNavigator,Mozilla,Chrome,

FirefoxandOpera.



HomeStationADSL



WebSet‐upPortal2

2Userinterfaceoverview



Whenyouaccessthewebserver,thehomepagewillopen.Thispagedisplaysanetworkmap

comprisingtherouterandthedeviceslinkedtoit.Thenetworkmapisagraphical

representationofallthedevicesonthenetwork,suchascomputers,printers,mobilephones,

gameconsoles....Itdisplayswhichdevicesareconnected(greyicons)andwhicharenot

(greyed‐outicons),fromamongthosethathavepreviouslybeenlinkedtotherouter.Italso

indicateswhethertheyareconnectedviacable(Ethernet),wirelessnetwork(Wi‐Fi)orUSB

interface.

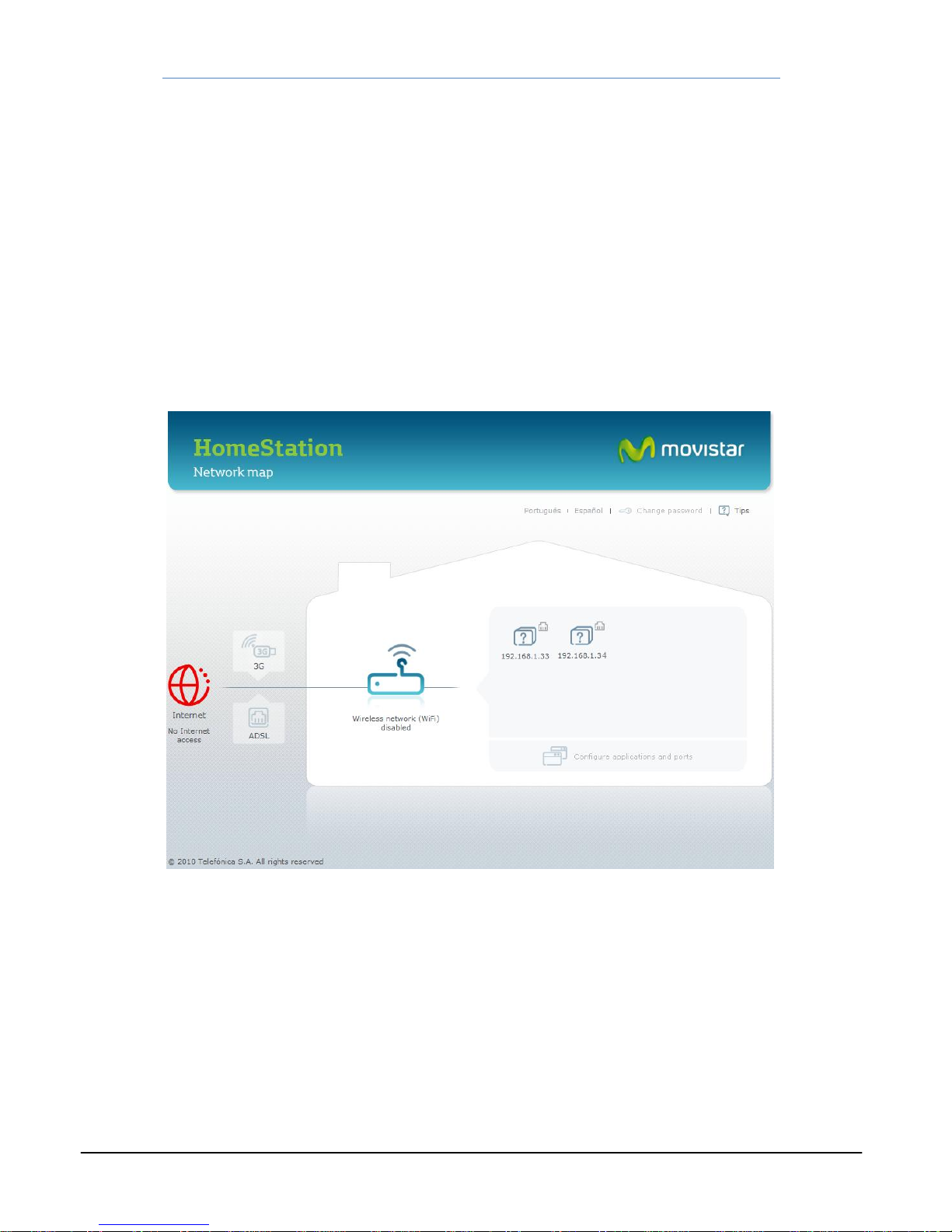

Figure2.1displaysthemainscreen:



‐‐Figure2.1—



Thisscreenprovidesaccesstoseveralwebtools.Simplyusethemousetoclickonthe

relevanticonorbox.Therelevantwindowswillthenappearonscreen.Inthecaseof

windowswhereset‐uptaskscanbeperformed,apreviouswindowwillappear(figure2.2)

requestingapasswordinordertolog‐in.Thedefaultpasswordis"1234",butyoumay

subsequentlychangeitusingthespecifictooldescribedbelow.Ineachsession,thiswindow

willonlyappearthefirsttimeyouneedtoopenaset‐uptool.Ifthepasswordisentered

correctly,itwillnotappearagainuntilyoulaunchanotherwebsession.



HomeStationADSL



WebSet‐upPortal3



‐‐Figure2.2—



Thescreenincludesanumberofsections:

ROUTERSET‐UP.‐Somerouterfeaturescanbeset‐upandmonitoredselectingtheiconinthe

centreofthescreen:



ThisfunctionalityisdescribedinChapter3.

DEVICESCONNECTED.‐Totherightoftheabove‐mentionediconthereisaniconforeachof

thedeviceslinkedtotherouter.



Themeaningofeachiconandhowtomanagethedifferentdeviceswillbeexplainedin

Chapter5.



INTERNETCONNECTIONSTATUS.‐AniconindicatingtheInternetconnectionstatusislocated

ontheleftofthescreen.



HomeStationADSL



WebSet‐upPortal4

 

GreenindicatesthattherouterisconnectedtotheInternetandredthatitisnotconnected

byanymeans(ADSLand/or3G).Inthiscase,youmayselecttheicontoaccessanumberof

helpscreenstotrytoachieveaconnection(figure2.3).



‐‐Figure2.3—



ADSLCONNECTIONSTATUS.‐TheADSLConnectioniconisontherightoftheInterneticon.



GreyindicatesthatthereisnoADSLconnectionandgreenthataconnectionexists.Selecting

thisicondisplaystheADSLset‐upwindow,whichwillbedescribedinChapter4.



3GCONNECTIONSTATUS.‐The3GConnectioniconisalsoontherightoftheInterneticon.



Greyindicatesthatthereisno3GLconnectionandgreenthataconnectionexists.Selecting

thisicondisplaysthe3Gset‐upwindow,whichwillbedescribedinChapter4.



HomeStationADSL



WebSet‐upPortal5

APPLICATIONSANDPORTS.‐The"Configureapplicationsandports"linkislocatedinthe

bottomright‐handsectionofthewindow.Selectthisitemtoopentheapplicationsandport

set‐upwindowthatwillbedescribedinChapter6.



LANGUAGESELECTION.‐Thelanguagelabelsthatcanbeusedtoselectthelanguageinwhich

wewantallthemessagesandtextsintheapplicationtoappeararelocatedintheupper

right‐handsectionofthewindow.AvailablelanguagesareSpanish,EnglishandPortuguese.

ThedefaultlanguageisSpanish.



PASSWORDMANAGEMENT.‐The"ChangePassword"label,whichprovidesaccesstothe

toolrequiredtochangetheset‐uppassword,isalsolocatedinthetopright‐handsectionof

thewindow.Thistoolcanbeseeninfigure2.4.



‐‐Figure2.4—



Youwillhavetokey‐inthecurrentpasswordandthenthenewpasswordtwice.Finally,press

the"Accept"button.



HomeStationADSL



WebSet‐upPortal6

HELP.‐The"Tips"labelinthetopright‐handsectionprovidesaccesstohelpscreens(figures

2.5and2.6)whereyouwillfindinformationthatwillhelpyouuseyourrouterandthisweb

applicationcorrectly.



‐‐Figure2.5—



‐‐Figure2.6—

HomeStationADSL



WebSet‐upPortal7



WELCOMESCREEN.‐Finally,thelabelinthebottomleft‐handsectionopensthewelcome

pagetothiswebset‐upapplication(figure2.7)



‐‐Figure2.7—



Thisscreenprovidesaquickintroductiontothemainfeaturesavailableanddirectlinksto:



‐TheHomePage

‐TheSet‐upScreen

‐AddtoFavourites



HomeStationADSL



WebSet‐upPortal8

3LANandWLANsettings



Somerouterfeaturescanbeset‐upandmonitoredselectingtheiconinthecentreofthe

screen:



Thewindowdisplayedinfigure3.1willopen:



‐‐Figure3.1—



Thefollowingfeaturescanbeset:
