ENGLISH

SAFETY REGULATIONS

SYMBOLS

The following symbols can be found on the ma-

chine to remind you of the care and attention that

are required during use.

The symbols mean:

Warning! Read the Instruction Book and

Safety Manual before using the machine.

Warning! Keep onlookers away. Beware

of objects being flung out.

Warning! Keep hands and feet clear of the

cutting deck when the machine is running.

Warning! Before starting any repair work,

remove the spark plug cable from the

spark plug.

GENERAL

This symbol indicates a WARNING. Per-

sonal injury and/or damage to property

may result if the instructions are not fol-

lowed carefully.

• Read the instructions carefully. Familiarise

yourself with all the controls and correct opera-

tion of the machine.

• This machine is only intended for mowing

lawns. Any other type of usage, e.g. the cutting

of bushes, hedges or climbing plants, is forbid-

den due to the risk of personal injury.

• Never let children or any person not acquainted

with these regulations use the mower. Local

regulations may include restrictions concerning

the minimum age of the driver (operator).

• Never use the machine if other people, particu-

larly children, or animals are in the vicinity.

• Remember that the driver (operator) will be

held responsible for any accidents involving

other persons or their property.

• Do not use the machine while under the influ-

ence of alcohol, drugs or medicines, or when

you are tired or unwell.

PREPARATIONS

• Always wear strong shoes and long trousers

when mowing. Do not operate the machine in

bare feet or when wearing sandals.

• Always use hearing protectors (earplugs or

muffs).

• Check the area to be cut thoroughly and remove

any stones, sticks, steel wire or other objects.

• Replace the silencer if defective.

• Before use, always check to make sure that the

blades and their fixing components are not

worn or damaged. Replace worn or damaged

components in complete sets to ensure that the

correct balance is maintained.

WARNING - Petrol is highly inflammable:

• Always store petrol in containers specially

made for the purpose.

• Only refill with petrol outdoors. Never smoke

while refilling.

• Fill with petrol before starting the engine. Nev-

er remove the filler cap or refill with petrol

while the engine is running or still hot.

• If any petrol is spilt, do not try to start the en-

gine. Move the mower from the place where the

petrol was spilt and avoid any form of sparking

until the petrol fumes have evaporated.

• Do not forget to replace the petrol filler cap and

storage container cap after refuelling.

OPERATION

• Do not run the engine in confined spaces in

which dangerous carbon monoxide gas can ac-

cumulate.

• Use the machine only in daylight or where there

is good illumination.

• Avoid cutting wet grass if possible.

• Ensure that you can walk steadily when work-

ing on slopes.

• Never run, always walk.

• When using mowers fitted with wheels, always

cut across the slope, never in an up or down di-

rection.

ENGLISH GB

• Great care is required when changing direction

on a slope.

• Do not use the machine on slopes of more than

15°.

• Great care is required when reversing or when

pulling the mower towards you.

• Switch off the engine if the mower must be tilt-

ed when being transported over surfaces other

than grass, and also when the mower is being

transported to and from the area to be cut.

• Never operate the mower with inadequate pro-

tection or without safety equipment, e.g. deflec-

tors and/or the grass collector, in place.

• Do not change the setting of the engine regula-

tor and never rev the engine.

• Start the engine carefully according to the in-

structions given. Keep your feet well away from

the blades.

• Do not tilt the mower when starting the engine

unless the mower must be tilted for starting. If

this is the case, it should not be tilted more than

necessary, and the part furthest away from the

operator should be tilted.

• Keep hands and feet away from the rotating

blade and other rotating parts. If the mower has

a grass ejector opening, never put you hand into

it.

• Never lift or carry the mower while the engine

is running.

• Close the throttle before stopping the engine. If

the engine is fitted with a petrol tap, it should be

turned off on completion of cutting.

Shut off the engine and detach the spark plug

lead:

• When leaving the mower unattended.

• When removing sticks and other rubbish, or

when the grass ejector has become clogged.

• During inspection, cleaning, or when servicing

the mower.

• When checking for damage and performing any

repairs after running over a foreign object, be-

fore restarting the mower.

• When checking the machine if it starts to vi-

brate excessively. (Check immediately.)

• Before refilling with petrol.

MAINTENANCE AND STORAGE

• Check that all nuts and bolts are tightened so

that the machine is in a safe operating condi-

tion.

• Never keep the machine, with petrol in the tank,

inside buildings where fumes can come into

contact with naked flames or sparks.

• Allow the engine to cool before putting the ma-

chine away.

• To reduce the risk of fire, keep the engine, si-

lencer and fuel tank free from grass, leaves and

excess oil.

• If the machine is fitted with a grass collector, it

should be checked regularly for signs of wear or

damage.

• To ensure safe operation, replace any worn or

damaged parts.

• If it becomes necessary to empty the fuel tank,

this must be done out of doors.

• Store the machine where children cannot gain

access to it.

THE ENVIRONMENT

In order to protect the environment, we recom-

mend that the following points should be given

special consideration:

• Always use pure unleaded petrol.

• Always use a funnel and/or a petrol can with a

level control to avoid spillage when refilling the

fuel tank.

• Do not fill the fuel tank completely.

• Do not overfill with engine and/or transmission

oil (see ‘Instructions for Use’ for correct quan-

tities).

• When changing the oil, ensure that all the used

oil is collected. Avoid spillage. Take the used

oil to a recycling unit.

• Do not dispose of the used oil filter in a rubbish

bin. Take it to a recycling unit.

• Replace the silencer if faulty. When carrying

out repairs, always use original spare parts.

• If the machine was originally equipped with a

catalyser which is now faulty, a new one must

be fitted when the silencer is replaced.

ENGLISH

• Always seek professional help when the carbu-

rettor requires adjustment.

• Clean the air filter according to the directions.

• When, after many years of service, your ma-

chine needs to be replaced or is no longer re-

quired, we recommend that the machine is

returned to your distributor for recycling.

IMPORTANT

Equipment which is marked with an asterisk (*)

comes as standard in certain models.

Certain models do not have throttle control. The

engine’s speed is set for optimal function and min-

imal exhaust emissions.

INTRODUCTION

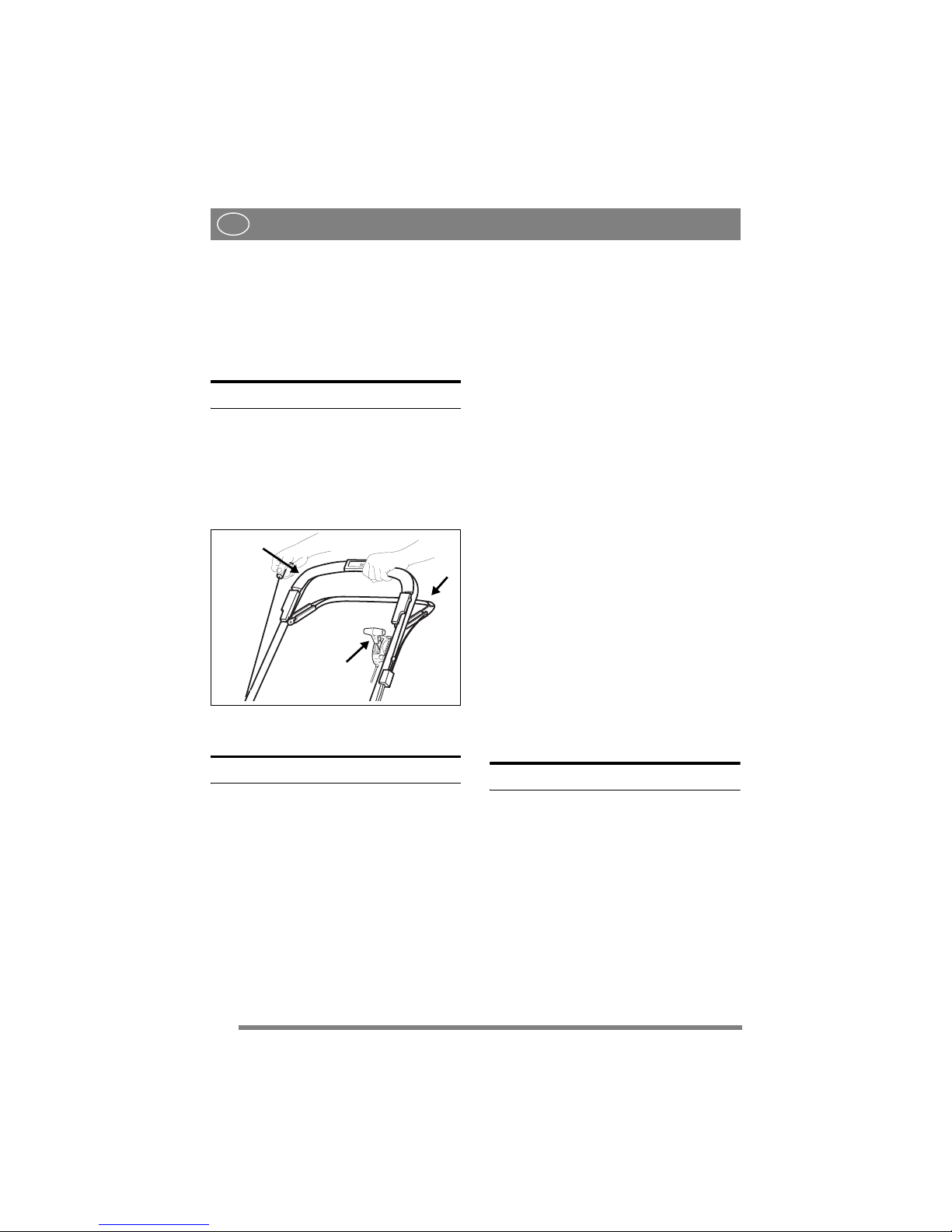

1. Throttle control (*)

2. Clutch loop (*)

3. Start/Stop loop

INSTALLATION

LOOSE PARTS IN THE BOX

2 brackets for the grass collector

4 screws for the brackets

1 Allen key

1 socket wrench

+ Instruction books

HANDLE

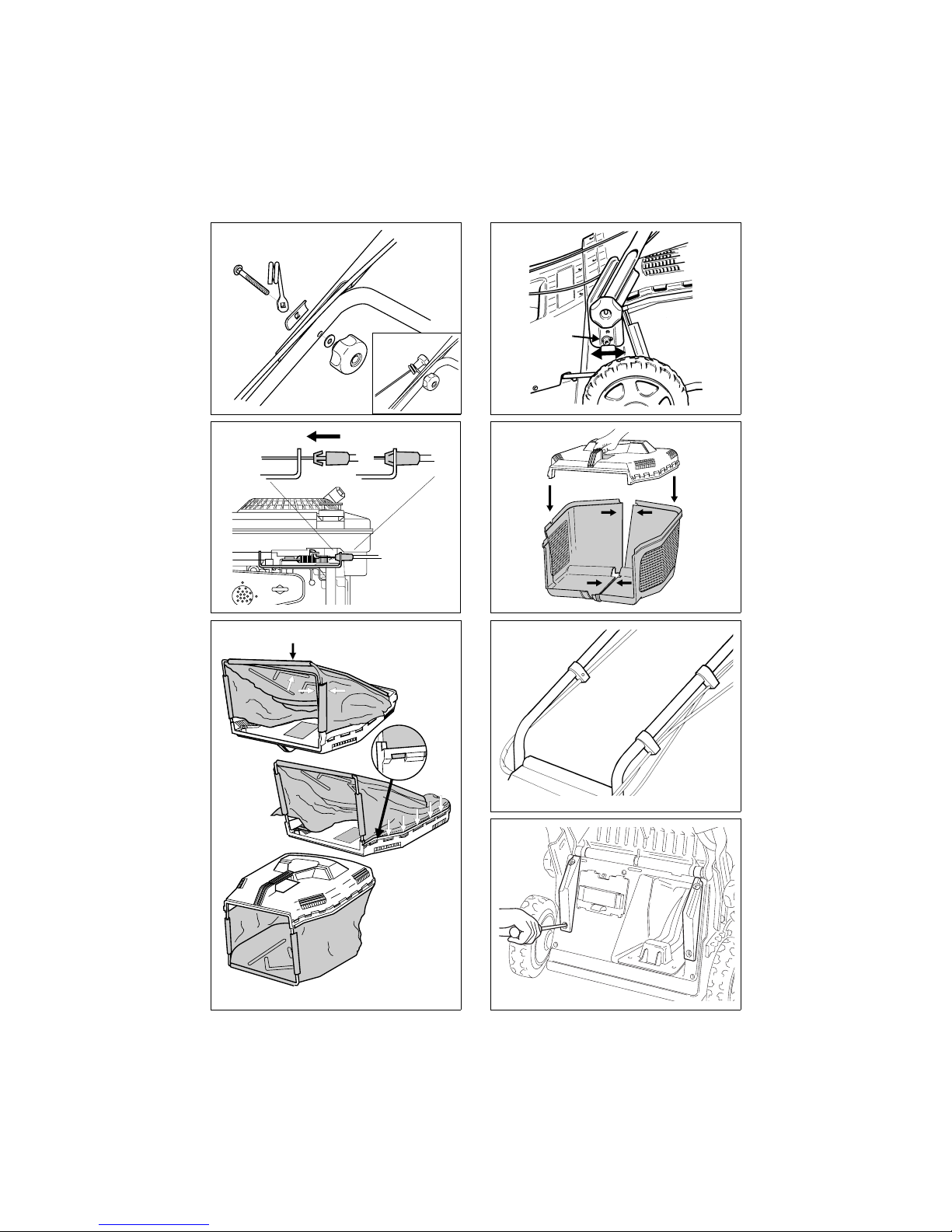

1. Fold up the lower part of the handle.

2. Install the upper part of the handle mounts using

screws, washers and locking wheels. A lug is

installed on the right hand side for the starter

handle (fig. 1).

3. Then tighten the locking wheels onto the lower

part of the handle. When these have been tight-

ened, the height of the handle can be adjusted by

tightening the screws Bwith the wrench provid-

ed. (fig. 2)

ENGINE BRAKE CABLE

Secure the engine brake cable to the engine brake

(fig. 3). Note that the cable should be installed in

the direction of the handle.

CABLE HOLDER

Secure the cables in the cable holders (fig. 5):

D: Start/Stop cable + Clutch cable (*)

E: Throttle cable (*) + Clutch cable (*)

GRASS COLLECTOR

Raise the collector flap and attach the two brackets

to the grass collector with the screws provided.

The brackets are marked with L and R and should

be installed at the corresponding mark on the rear

of the mower (fig. 7).

Fabric grass collector (*): Fit the fabric bag over

the steel frame and then snap the bag onto the plas-

tic lid (fig. 6).

Plastic grass collector (*): Snap together both

halves and then the upper part (fig. 4).

Open the flap on the machine and attach the grass

collector to the brackets.

NOTE! The lawnmower can be operated without

the grass collector. The grass is then left in a line

behind the machine.

USING THE MOWER

COMBI

Your new lawnmower combines two different

functions in the same machine:

1. “MULTICLIP“

The machine comes equipped with a plug installed

in the ejector opening (fig. 23). The machine can

be used for ‘Multiclip’ i.e. the blade finely cuts up

the grass during mowing. The grass then falls into

the lawn where it is allowed to rot. This provides

the lawn with nourishment.

STOP

ENGLISH GB

To remove the plug, press in the catch (S). On re-

installing the plug ensure that both pins are pressed

firmly into the holes so that the plug snaps in place.

M2 Combi:

To remove the plug, unscrew the wing nut.

2. COLLECTION

Assemble the grass collector provided (fig. 4, 6).

Open the flap, remove the plug and instead hook

the collector onto the rear of the machine.

When mowing, the grass is collected in the collec-

tor. Empty the grass onto the compost heap or

spread it over borders as fertiliser. The machine is

also ideal for collecting up leaves in the autumn.

BEFORE STARTING

FILL THE CRANKCASE WITH OIL

The lawnmower is delivered without

any oil in the engine crankcase. The

crankcase must be filled with oil before

the engine is started for the first time.

Remove the oil dipstick (fig. 8, 9). Fill the en-

gine’s crankcase with approx. 0.55 litres of good

quality oil (service class SE, SF or SG). Use SAE

30 or SAE 10W-30 oil.

Slowly fill to ‘FULL/MAX’. Do not overfill.

CHECK THE OIL LEVEL

Check before using the machine that the oil level is

between ‘FULL/MAX’ and ‘ADD/MIN’ on the

dipstick.

Remove and wipe off the dipstick (fig. 8, 9). Slide

it down completely and tighten it. Unscrew and

pull it up again. Read off the oil level. If the oil lev-

el is low, fill with oil up to the ‘FULL/MAX’ mark.

FILL UP THE PETROL TANK

Never remove the filler cap or fill with

petrol while the engine is running or still

warm.

Never completely fill the petrol tank. Al-

low a little room for the petrol to expand

if necessary.

Preferably use environmentally friendly petrol, i.e.

alkylate petrol. This type of petrol has a composi-

tion that is less harmful to people and nature. It has

e.g. no lead additives, no oxygenators (alcohols

and ethers), no alkenes and no benzene.

NOTE! If you change to environmental-

ly friendly petrol in an engine previously

run on ordinary lead-free petrol (95),

the petrol manufacturer’s recommenda-

tions must be followed carefully.

Ordinary lead-free 95 octane petrol can also be

used. You must never use 2-stroke petrol mixed

with oil. NOTE! Bear in mind that lead-free petrol

is a perishable; do not purchase more petrol than

can be used within thirty days.

STARTING THE ENGINE

(Briggs & Stratton)

1. Place the lawnmower on flat, firm ground. Do

not start in long grass.

2. Make sure the spark plug cable is connected to

the spark plug.

3. When starting a cold engine: Press down the

primer fully 6 times (fig. 10).

When starting a warm engine, the primer does

not need to be used. If the engine stops due to a

lack of petrol, refill and press down the primer

3 times.

4. Press in the Start/Stop loopGtowards the han-

dle. NOTE! The Start/Stop loopGmust be kept

pressed in to prevent the engine stopping (fig.

12).

5 Grasp the starter handle and start the engine by

pulling briskly on the starter cord.

For ease of starting, press down the handle so

that the front wheels lift slightly from the

ground. Do not start in thick grass.

Keep hands and feet away from the ro-

tating blade(s). Never put your hand or

foot under the blade casing or in the

grass ejector while the engine is run-

ning.

STARTING THE ENGINE (Honda)

1. Place the lawnmower on flat, firm ground. Do

not start in long grass.

2. Make sure the spark plug cable is connected to

the spark plug.

3. Open the fuel tap (fig. 11).

ENGLISH

4. Set the throttle control Bin the choke posi-

tion . NOTE! It is not necessary to use the

choke position when the engine is warm (fig.

12).

5. Press the Start/Stop loop Gtowards the handle.

NOTE! The Start/Stop loop Gmust be kept

pressed in to prevent the engine stopping (fig.

12).

6. Grasp the starter handle and start the engine by

pulling briskly on the starter cord.

7. When the engine starts, move the throttle con-

trol backwards until max. revs are obtained.

NOTE! The engine should always be run at

maximum revs to avoid abnormal machine vi-

brations.

Keep hands and feet away from the ro-

tating blade(s). Never put your hand or

foot under the blade casing or in the

grass ejector while the engine is run-

ning.

STOPPING THE ENGINE

The engine may be very warm immedi-

ately after it is shut off. Do not touch the

silencer, cylinder or cooling flanges.

This can cause burn injuries.

1. Release the Start/Stop loop G(fig. 12) to stop

the engine. This loop must not be disengaged

(e.g. by setting it in the depressed position

against the handle), as it will not be possible to

stop the engine.

Honda: Close the fuel tap.

2. If the lawnmower is left unattended, remove the

spark plug cable from the spark plug.

If the start/stop loop ceases to work, stop

the engine by removing the spark plug

cable from the spark plug. Immediately

take the lawn mower to an authorised

workshop for repair.

REAR WHEEL DRIVE (*)

Engage the drive by pressing the clutch loop Ito-

wards the handle. Disengage the drive by releasing

the clutch loop I (fig. 12).

CUTTING HEIGHT

Shut off the engine before adjusting the

cutting height.

Do not set the cutting height so low that

the blade come into contact with uneven

ground.

The mower has single-lever control for adjusting

the cutting height. Pull the lever out, and set the

cutting height to one of the nine positions best suit-

ed to your lawn (fig. 13).

MAINTENANCE

No servicing may be carried out on the

engine or lawnmower without first re-

moving the spark plug cable from the

spark plug.

Stop the engine and remove the spark

plug cable if the mower is to be lifted,

e.g. during transportation.

If the lawnmower needs to be tilted, it

must be tilted so that the engine’s spark

plug faces upwards. Tilt the lawnmower

when the fuel tank is empty.

CLEANING

After each use the mower should be cleaned. This

is particularly important on the underside of the

mower casing. Rinse clean with the garden hose.

The mower will then last longer and work better.

High-pressure washers should not be used.

If grass has dried on to the mower casing, it can be

scraped clean. If necessary, touch up the underside

with paint to prevent rust damage.

Clean the silencer and the surrounding

area regularly to remove grass, dirt and

flammable waste products.

Remove the transmission cover by removing the

screws S (fig. 20) and clean around the transmis-

sion (*) and drive belts (*) with a brush or com-

pressed air once or twice a year.

Once every season, the drive wheels (*) should be

cleaned internally. Remove both wheels. Clean the

gear wheel and the wheel gear rim of grass and dirt

using a brush or compressed air (fig. 14). Replace

the wheel.

ENGLISH GB

COOLING SYSTEM

Before each use, the engine’s cooling system must

be cleaned. Clean the cylinder’s cooling flanges

and air intake of grass remains, dirt, etc.

LUBRICATING DRIVE SHAFT (*)

Once per season, the wedge on the drive shaft

should be greased. Remove the wheel (wheel cap,

screw and washer). Then remove the circlip and

washer so that the gear wheel can be removed from

the shaft. Lubricate the wedge with universal

grease.

Reinstall the wedge (the wedge is installed differ-

ently on the right and left side, fig. 15-16). Install

the gear wheel so that the L faces out on the left

side and the R faces out on the right side (machine

viewed from the rear).

OIL CHANGE

Replace the oil when the engine is warm

and the fuel tank is empty. In order to

prevent burns, take care while draining

as the oil is hot.

Change the oil the first time after 5 hours of oper-

ation, and subsequently every 50 hours of opera-

tion or once a season. Remove the dipstick, tilt the

mower and let the oil run out into a container. Be

careful not to let any oil run on to the grass.

Fill with new oil: Use SAE 30 or SAE 10W-30 oil.

The crankcase holds approx. 0.55 litre. Fill until

the oil reaches the “FULL/MAX“ mark on the dip-

stick.

AIR FILTER

A dirty and blocked air filter reduces the engine

output and increases engine wear.

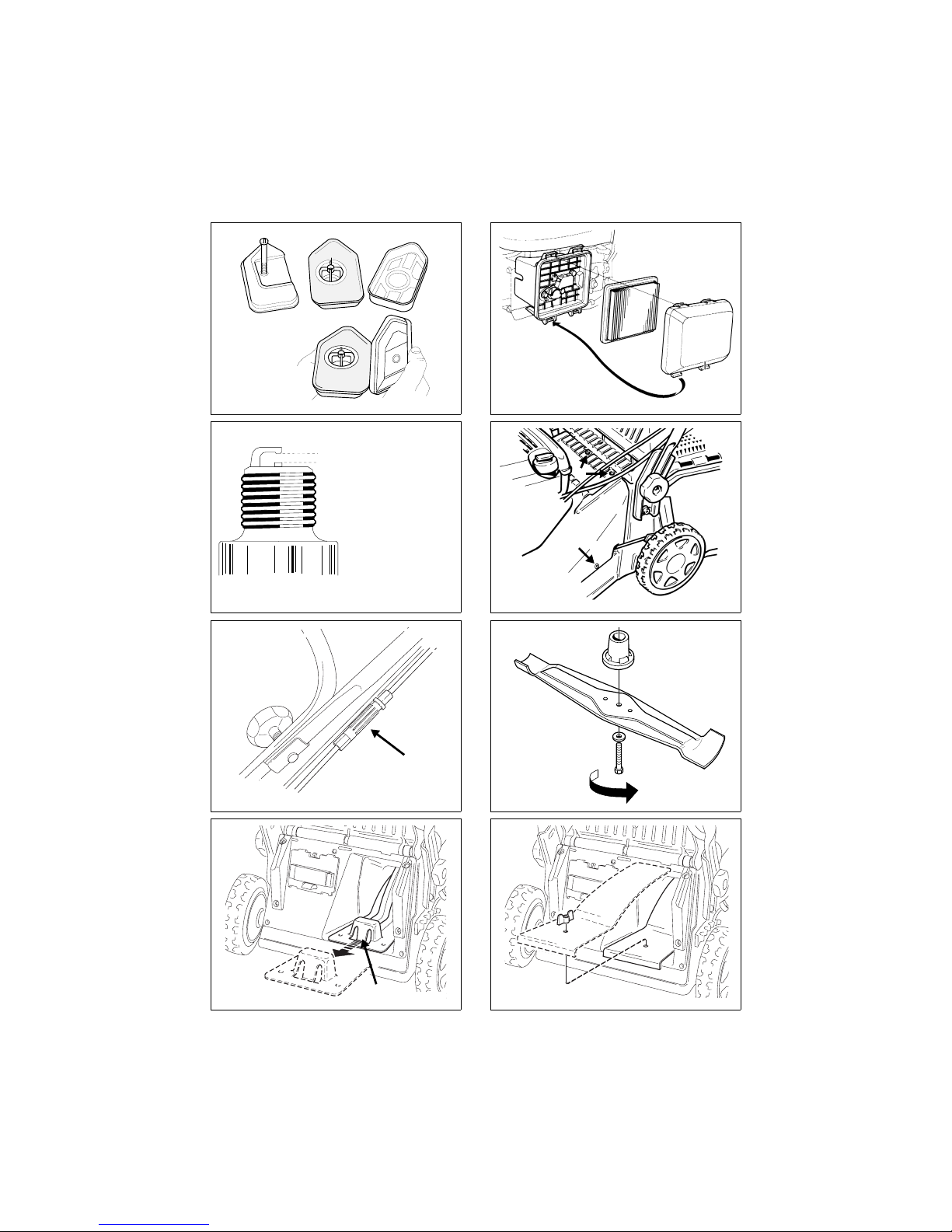

Briggs & Stratton (fig. 17): Carefully remove the

air cleaner so that no dirt falls down into the carbu-

rettor. Remove the expanded plastic filter and

wash it in liquid detergent and water. Dry the filter.

Pour a little oil on the filter and squeeze it in. Re-

install the air cleaner.

Clean the filter every three months or after every

25 hours of use, whichever occurs first. More fre-

quently if the engine is working on dusty ground.

Honda (fig. 18): Remove the cover and take out the

filter. Carefully check the filter for holes or other

damage. A broken or damaged filter must be re-

placed.

To remove dirt, carefully knock the filter several

times against a hard surface or use compressed air

from the back of the filter to blow-clean. Do not try

to brush the filter clean as this forces dirt down into

the fibres. A very dirty filter should be replaced.

Clean the air filter after every 25 hours of use or

once a season. More frequently if the engine is

working on dusty ground.

SPARK PLUG

Never remove the spark plug or spark

plug cable when checking to see if there

is a spark. Always use an approved test

instrument.

Clean the spark plug regularly (every 100 hours of

run time). Use a wire brush for cleaning.

Change the spark plug if the electrodes are exces-

sively burnt or if the plug is damaged. The engine

manufacturers recommendations are as follows:

(fig. 19):

Briggs & Stratton: Champion J19LM (RJ19LM),

spark gap 0.76 mm.

Honda: NGK BPR6ES,

Spark gap 0.7-0.8 mm.

ADJUSTING CLUTCH CABLE (*)

If the drive does not engage when the clutch loop

is pressed against the handle, or if the lawnmower

feels cumbersome or slow, this may be because the

clutch in the transmission is slipping. To rectify

this situation, adjust the clutch cable as follows:

1. When the clutch loop is released, it should be

possible to push the mower without any resist-

ance. If this is not the case, screw in the nipple

Tuntil the mower can be pushed (fig. 21).

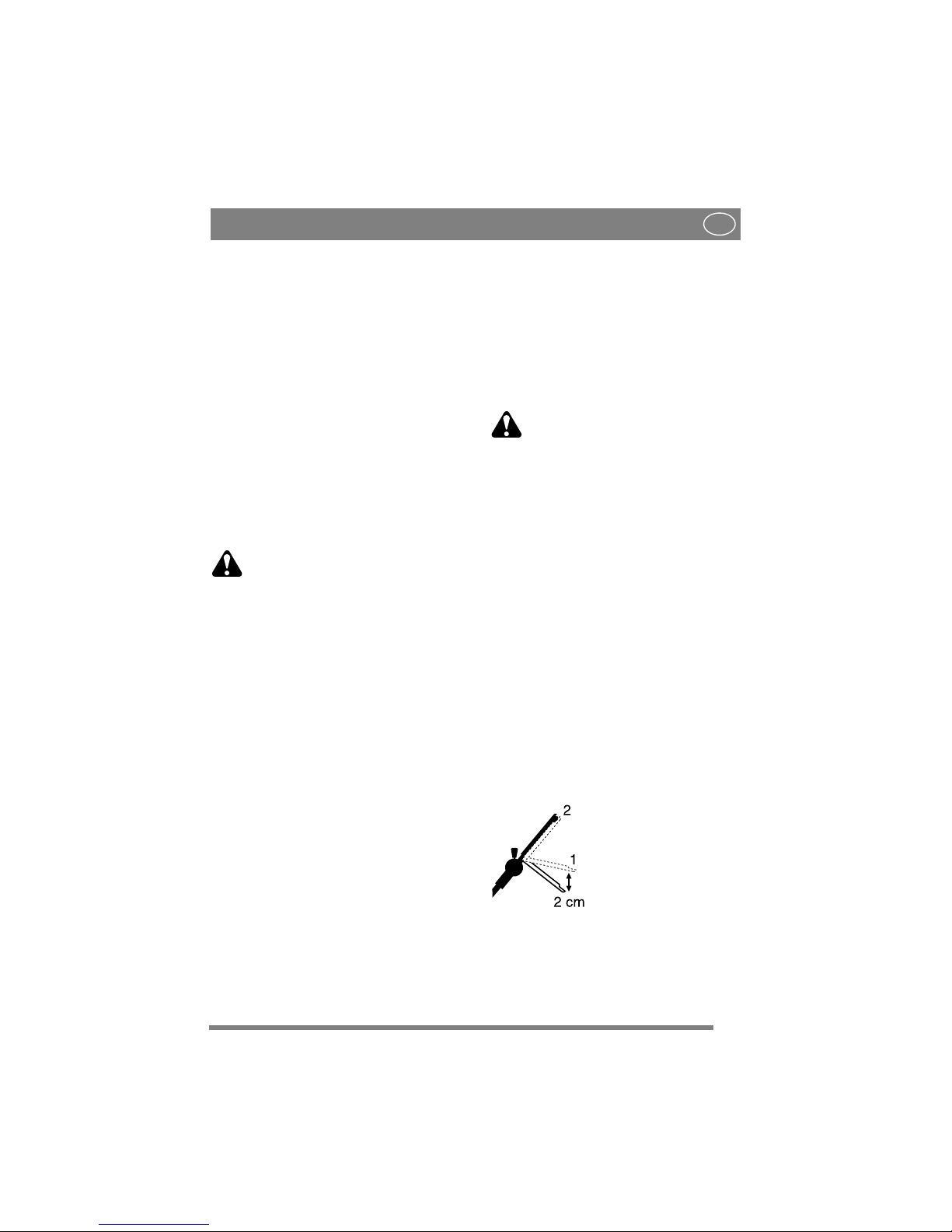

2. When the clutch loop is

pressed in approx. 2 cm (posi-

tion 1), there should be some

resistance when pushing the

lawnmower. With the clutch

loop fully pressed in (position

2) it should not be possible to

push the mower. Unscrew the

nipple Tuntil this position is

achieved.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Mountfield Tondeuse à gazon

Mountfield

Mountfield SP474 Manuel utilisateur

Mountfield

Mountfield SP 554 Manuel utilisateur

Mountfield

Mountfield SP534-ES Manuel utilisateur

Mountfield

Mountfield SP536ES Manuel utilisateur

Mountfield

Mountfield 2135H Manuel utilisateur

Mountfield

Mountfield NTL 430 TR-R Li 48 Series Manuel utilisateur

Mountfield

Mountfield ME330 Manuel utilisateur

Mountfield

Mountfield EL 340 Li 48L Instructions d'utilisation et d'installation

Mountfield

Mountfield MC 300 Li Manuel utilisateur

Mountfield

Mountfield 420 Manuel utilisateur

Mountfield

Mountfield HP470 Manuel utilisateur

Mountfield

Mountfield HP41 Manuel utilisateur

Mountfield

Mountfield 550 SP TRI-CUT Manuel utilisateur

Mountfield

Mountfield HP183 Manuel utilisateur

Mountfield

Mountfield EL350 Manuel utilisateur

Mountfield

Mountfield MJ 66 Series Manuel utilisateur

Mountfield

Mountfield 4135H Manuel utilisateur

Mountfield

Mountfield HP180 Manuel utilisateur

Mountfield

Mountfield M150 Manuel utilisateur

Mountfield

Mountfield El 33 Manuel utilisateur

Mountfield

Mountfield SPL 410 Manuel utilisateur

Mountfield

Mountfield SP555 Manuel utilisateur

Mountfield

Mountfield 4140H Manuel utilisateur

Mountfield

Mountfield HP164 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
