INSTRUCTIONS
ATTACHING THE WHEELS
Depress the spring buttons on the axles of the two
rear wheels and push into the aperture situated at the
end of the buggy frame (when folded these are situ-
ated at the front of the buggy beside the footplate).
When the wheel has been firmly placed the button
will spring back preventing the wheel from involun-
tarily pulling away from the frame.
Note: If a button should stick, exert light pressure and
it will “pop” up.
Front wheel – the same process as for the rear wheels.
However, pull the tri-knob to ensure that locking pin
is about three quarters of the way out.
Simply push the wheel shaft into the aperture, twist-
ing the shaft as you push and the wheel will on its
own accord.
Retighten the tri-knob only half way for the swivel
wheel position.
Important:
Check that all the spring buttons located on the 3
wheels are “popped” out before using your buggy.
CHANGING THE SWIVEL TO A FIXED
WHEEL
Simply align the front wheel so that it sits directly
under the footplate and is pointing directly ahead.
Move the position of the black tri-knob at the front
swivel chamber at the extreme front of the buggy so
that the pin locks into the swivel wheel.
ASSEMBLING THE BUGGY INTO UPRIGHT
POSITION
Simply lift the buggy by the handle and pull the rear
frame backwards. You may need to use your foot to
assist with pulling the frame back.
The frame will lock automatically with an audible
“click”. The rear wheels and frame will fall into posi-
tion without manual assistance.
Warning:
Before using your buggy check all spring buttons
have sprung into position (wheels and handles).
We advise you to be in attendance of the buggy at all
times when your infant is seated or laying within the
buggy.
Children must be securely harnessed at all times with
the straps provided when lying or seated in the
buggy.
Do not carry extra children or bags in the buggy.
Maximum recommended weight of child 40kg.

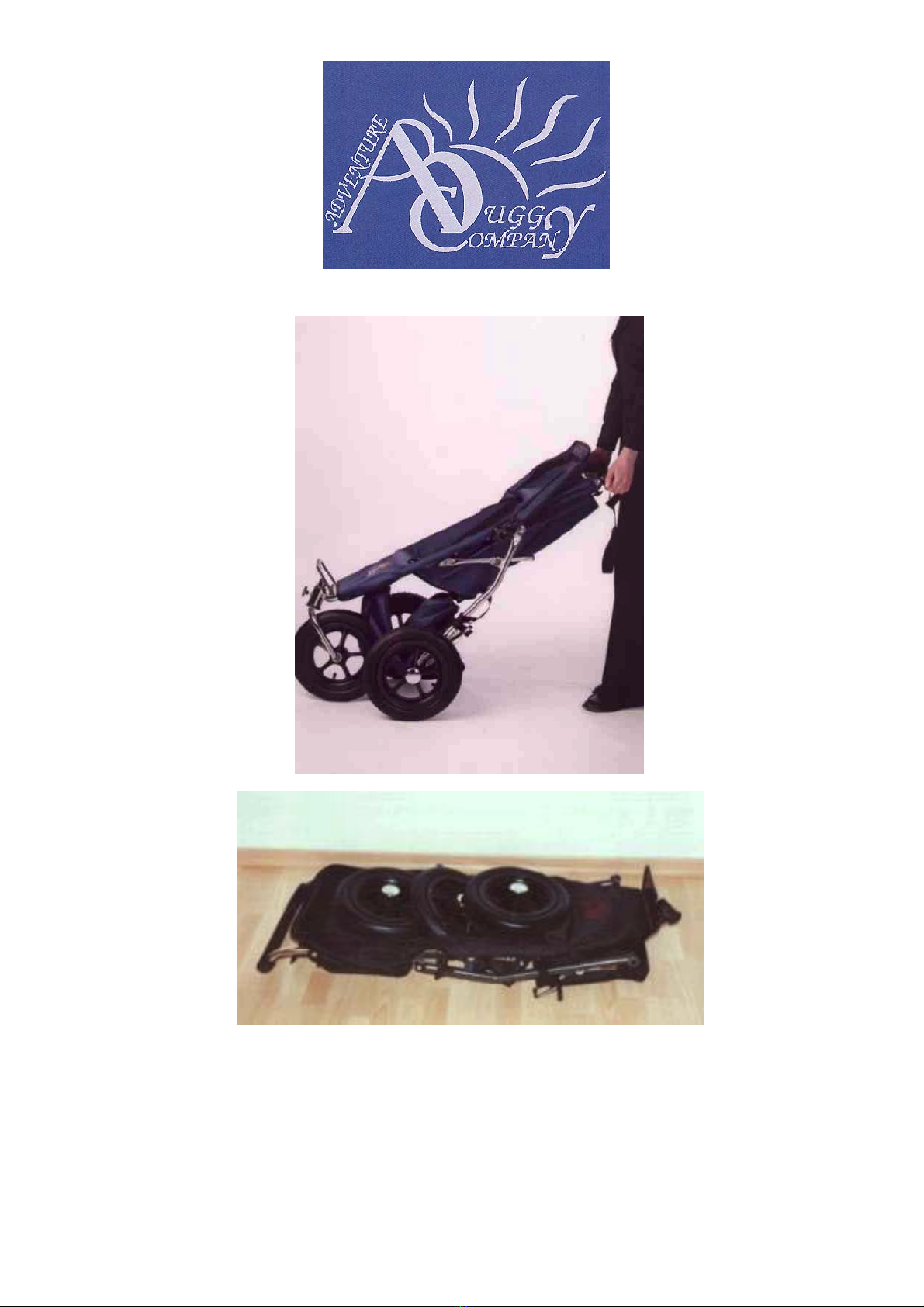

COLLAPSING THE BUGGY
Standing in front of the buggy, reach around the two
chrome sliding arms (that joins the frame sections) and
pull out the two small black tri-knobs simultaneously.
When both knobs are released simply start to push the
buggy away from you. You may need to use your knee
to assist with pushing the frame.
Move your hands to the top of the main frame and then
continue folding.
Warning:
Once the knobs are released and the buggy has begun
to fold, move hands well away to prevent an injury
occurring.
Place your hands at the top of the mainframe before
folding the frame completely.
To prevent possible injury always keep your children
clear when folding your buggy.
APPLYING THE BRAKE
Standing behind your buggy, use your foot to push on
the brake. The brake will spring onto the wheel with
force.
Warning:
Always wear appropriate footwear when applying or
dis-engaging the brake.
Always apply the brake when the buggy is parked.
When adjusting your brake keep children well clear of
the buggy because injury could occur.
DIS-ENGAGING THE BRAKE
The reverse process as for applying the brake. The
brake springs back into an upward position.
ADJUSTING THE HEIGHT OF THE HANDLE
The handle can be adjusted to various heights with the
assistance of two black tri-knobs situated under the
frame.
First apply the brakes then simply slide the handle to
your desired height and tighten both tri-knobs.
REMOVING THE HANDLE
The handle can be taken completely out and turned
around to give you a different handle height. This is
also useful if your rubber grip is damaged – it can be
easily removed and replaced.
First apply the brakes the pull the handle out to the end
and two springs will spring into position. Depress the
spring buttons on the side of the frame and one at a
time also pulling the handle each side as you go.
Turn the handle around and simply push the handle
back into the aperture.
Depress the two spring buttons on both sides and slide
to the desired height.
Retighten both tri-knobs.
