Motorola APX 8000XE Guide de référence

English

ASTRO®APX™ 8000XE Series

Digital Portable Radios

Quick Reference Card

RF Energy Exposure and Product Safety

Guide for Portable Two-Way Radios

ATTENTION!

This radio is restricted to Occupational use only. Before using

the radio, read the RF Energy Exposure and Product Safety

Guide for Portable Two-Way Radios which contains important

operating instructions for safe usage and RF energy awareness

and control for Compliance with applicable standards and

Regulations.

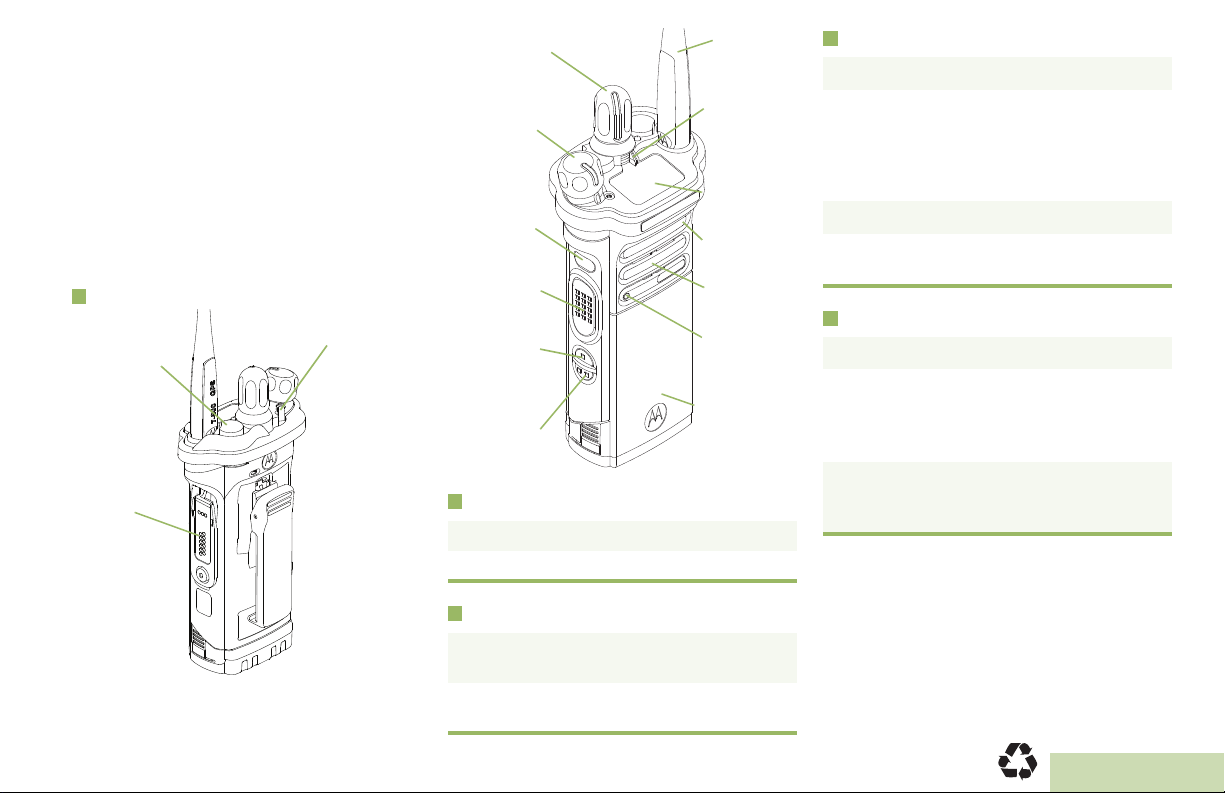

Radio Controls

Radio On/Off

Zones and Channels

Receiving and Transmitting

Sending an Emergency Alarm

*Default timer of Emergency button press to

activate Emergency is 50 milliseconds. This

timer is programmable, see Emergency

Operation in the user guide for details.

To exit emergency at any time, press and hold

the Emergency button.

3-Position A/B/C Switch

__________________

Accessory

Connector

Top (Orange)

Button

__________

•On – On/Off/Volume knob clockwise.

•Off – On/Off/Volume knob counterclockwise.

•Zone – Toggle the Zone switch or use the radio

menu to the desired zone.

•Channel – Turn the Channel knob or use the

radio menu to the desired channel.

Battery

Side Button 1

__________

Side Button 2

__________

PTT Button

On/Off/Volume

Control Knob

16-Position

Select Knob

__________

Top Side

(Select) Button

__________

Main

Speaker

Top

Display

Antenna

2-Position

Concentric

Switch

Bluetooth

Pairing

Indicator

Microphone

1Select zone/channel.

2Listen for a transmission.

Press and hold Volume Set button.

Press Monitor button and listen for activity.

3Adjust volume, if necessary.

4Press the PTT button to transmit; release to

receive.

1Press and hold the Emergency button*.

2The display shows EMERGNCY and the

current zone/channel. A short, medium-

pitched tone sounds, and the LED blinks red

momentarily.

3When acknowledgment is received, you hear

four beeps; alarm ends; and radio exits

emergency.

*PMLN7485A*

MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All

1303 East Algonquin Road., Schaumburg, Illinois 60196, U.S.A.

PMLN7485A

English

Sending an Emergency Call

To exit emergency at any time, press and hold

the Emergency button.

Sending a Silent Emergency Call

To exit emergency at any time, press and hold

the Emergency button.

Display Status Icons

1Press the Emergency button.

2Press and hold the PTT button. Speak clearly

into the microphone.

3Release the PTT button to end call.

4Press and hold Emergency button to exit

emergency.

1Press the Emergency button.

2The display does not change; the LED does

not light up, and there is no tone.

3Silent emergency continues until you:

Press and hold the Emergency button to exit

emergency state.

Press and release the PTT button to exit the

Silent Emergency Alarm mode and enter

regular dispatch or Emergency Call mode.

Blinks when the battery is low.

The more stripes, the stronger the

signal strength for the current site

(trunking only).

Direct radio to radio communication or

connected through a repeater.

On = Direct

Off = Repeater

This channel is being monitored.

L= Radio is set at Low power.

H= Radio is set at High power.

Scanning a scan list.

Blinking dot = Detects activity on the

Priority-One Channel

during scan.

Steady dot = Detects activity on the

Priority-Two Channel

during scan.

The vote scan feature is enabled.

On = Secure operation.

Off = Clear operation.

Blinking = Receiving an encrypted

voice call.

On steady = View mode

Blinking = Program mode

HOR L

Basic Zone Bank 1

A= Radio is in Zone 1.

B= Radio is in Zone 2.

C= Radio is in Zone 3.

Basic Zone Bank 2

D= Radio is in Zone 4.

E= Radio is in Zone 5.

F= Radio is in Zone 6.

Enhanced Zone Bank

A = Contains Zone 1, Zone 2 and Zone

B = Contains Zone 4, Zone 5 and Zone

C = Contains Zone 7, Zone 8 and Zone

X = Contains Zone 70, Zone 71 and

Zone 72,

Y= Contains Zone 73, Zone 74 and

Zone 75.

Bluetooth is ready.

Bluetooth is connected to the device.

Aor

Bor

Dor

Eor

A, B,

C... ...

xor
