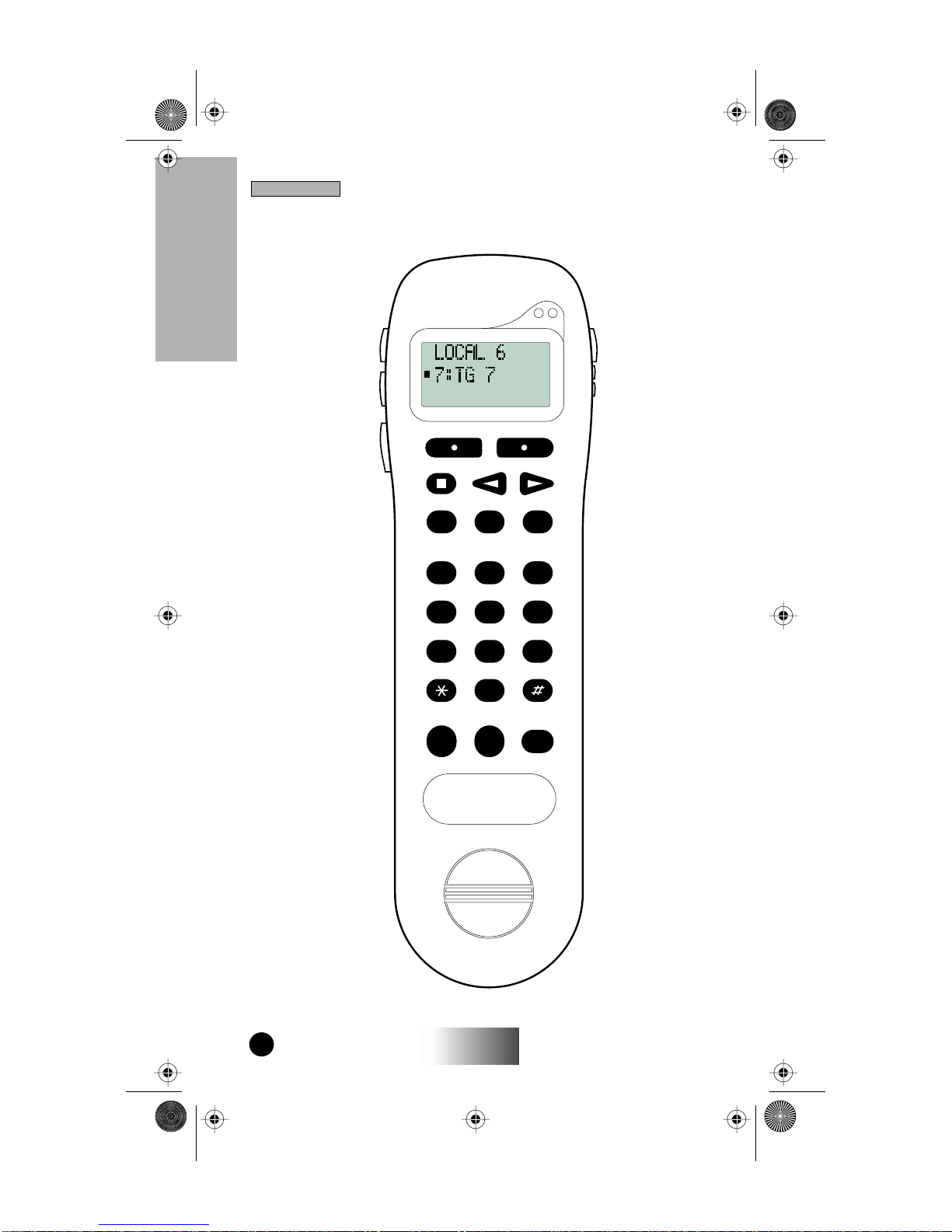

USER’S GUIDE

470

GETTING STARTED

Welcome...........................................................................1

ADVANCED FEATURES

Advanced Features (m470).............................................3

Multi-Simultaneous Talkgroup Scan.............................3

Entering Group Mode .............................................3

Initiating a Group Call .............................................4

Responding to a Secondary Talkgroup ..................5

Turning Scan On and Off........................................6

Talkgroup Mode Selection by Direct Entry..........6

Talkgroup Mode Selection by Memory Scroll ......7

Emergency Group Call ...................................................8

Placing an Emergency Group Call..........................8

Cancelling an Emergency Group Call....................8

Receiving an Emergency Group Call.....................8

Receiver Operations During an Emergency Call..9

Status Message ................................................................10

Entering the Status Message Function ..................10

Selecting a Status Message with Direct Entry ......10

Selecting a Status Message Using Memory Scroll.11

Selecting a Target by Direct Entry ........................11

Selecting a Target by Memory Scroll .....................11

Selecting a Target by Alpha Search........................12

Sending a Status Message .......................................12

Exiting the Status Message Function ....................13

Receiving a Status Message ....................................13

ID List Programming...............................................13

Isolated Site Operation ...................................................14

Entering ISO ............................................................14

Initiating a Group Call .............................................15

Exiting ISO...............................................................15

Other Operations......................................................16

82C89-O_TOC Page 1 Friday, January 3, 1997 9:01 AM

USER’S GUIDE

470

PROGRAMMING MENU

Programming Menu ........................................................17

SAFETY AND GENERAL

Safety and General Information.....................................19

Cleaning Instructions......................................................22

, Motorola, Call Alert and Fast Access

are trademarks of Motorola, Inc.

82C89-O_TOC Page 2 Friday, January 3, 1997 9:01 AM

Getting Started

GettingStarted

USER’S GUIDE

470 3

WELCOME

The iDEN m470 integrated digital mobile allows you to place

and receive phone calls, make and receive person-to-person or

group radio calls, and receive alphanumeric messages exactly the

same as you would with an m370 mobile. Refer to the m370

User’s Guide (Motorola part number 68P81078C55) for the

description and operation of these features.

Unlike the m370 Mobile, the m470 Mobile provides an advanced

feature set that includes:

• Multi-Simultaneous Talkgroup Scan,

• Emergency Group Call,

• Status Message, and

• Isolated Site Operation.

These advanced features are described in this supplementary

manual. Additionally, the m470 has 9.6/4.8 kbs data functionality

that allows it to initiate and receive data calls. For a complete

description of these functions, refer to the Circuit Data User’s

Guide (Motorola manual number 68P81084C18).

82C89-O_GettingStartedText Page 3 Friday, January 3, 1997 9:05 AM

USER’S GUIDE

470

GettingStarted

Getting Started

ABC

DEF

MNO

JKL

GHI

PQRS

TUV

WXYZ

END PWR

PHONE GROUP

PRVT

SEND

82C89-O_GettingStartedText Page 4 Friday, January 3, 1997 9:05 AM

Advanced Features

USER’S GUIDE 5

470

AdvancedFeatures

ADVANCED FEATURES (

470)

The m470 is provided with an advanced feature set as described

in this section. Additionally, the m470 has 9.6/4.8 kbs data func-

tionality and can initiate and receive data calls. For a complete

description of these functions please refer to the Circuit Data

User’s Guide (publication number 68P81084C18).

MULTI-SIMULTANEOUS TALKGROUP SCAN

Multi-Simultaneous Talkgroup Scan (Scan) allows users within a

ﬂeet to monitor more than one talkgroup. A Talkgroup Mode,

with ID’s in the range of 1-255, is comprised of up to four talk-

groups (one Primary Talkgroup and up to three Secondary Talk-

groups). Calls can only be initiated on the user’s Primary

Talkgroup, however, a user can respond to an active call on either

a Primary or Secondary Talkgroup. Both Primary and Secondary

Talkgroups can be named (aliased); however, Talkgroup Modes

cannot be aliased. The default setting of the Scan feature is

“ON”, but the user has the capability of disabling Scan through

an option key. The unit will store the last Scan setting, and power

on with that setting.

Entering Group Mode

Press the key to power on your unit. Press

to enter the

Group Mode.

Two different Talkgroup Modes are displayed below. The dis-

play on the left shows a non-aliased Primary Talkgroup, and the

display on the right shows an aliased Primary Talkgroup. On the

second line of the display, the talkgroup mode ID will be shown,

followed by a colon, then followed by the Primary Talkgroup.

Primary Talkgroup Primary Talkgroup

Not Aliased Aliased

PWR

GROUP

82C89-O_AdvancedFeaturesText Page 5 Friday, January 3, 1997 9:06 AM

USER’S GUIDE

470

AdvancedFeatures

Advanced Features

Initiating a Group Call

Press and hold the PTT button to initiate

a group call on your Primary Talkgroup. A

talk permit tone will be heard.

The example to the right illustrates the

display if Fred pressed the PTT to initiate

a call on the Electricians talkgroup. This is

Fred’s Primary Talkgroup for Mode 3.

All subscriber units that have afﬁliated

with your Primary Talkgroup as either a

Primary or Secondary Talkgroup in any Talkgroup Mode will

receive your group call if they are not already engaged in an

active call.

The following screens will be displayed on the receiver sub-

scriber units indicating they have joined the call. The second line

of the display will indicate the Mode number followed by Pri-

mary or Secondary Talkgroup, which may be aliased. The third

line of the display indicates the PTT-ID of the unit initiating the

group call, which can also be aliased.

Example: Jason joins the Electricians talk-

group. He has also selected Electricians as

his Primary Talkgroup for Talkgroup 3, but

he has no alias for his talkgroup, so the

Talkgroup number (TG ID) is displayed.

Fred’s PTT-ID is displayed on the third

line.

Example: Julie joins the call and the unit

updates the alias to indicate active Sec-

ondary Talkgroup. (Mode 1, Secondary

Talkgroup 3). Fred’s PTT-ID is displayed

on the third line.

MAEPF-25838-O

Fred’s Display

MAEPF-25839-O

Jason’s Display

MAEPF-25840-O

Julie’s Display

82C89-O_AdvancedFeaturesText Page 6 Friday, January 3, 1997 9:06 AM

Advanced Features

USER’S GUIDE 7

470

AdvancedFeatures

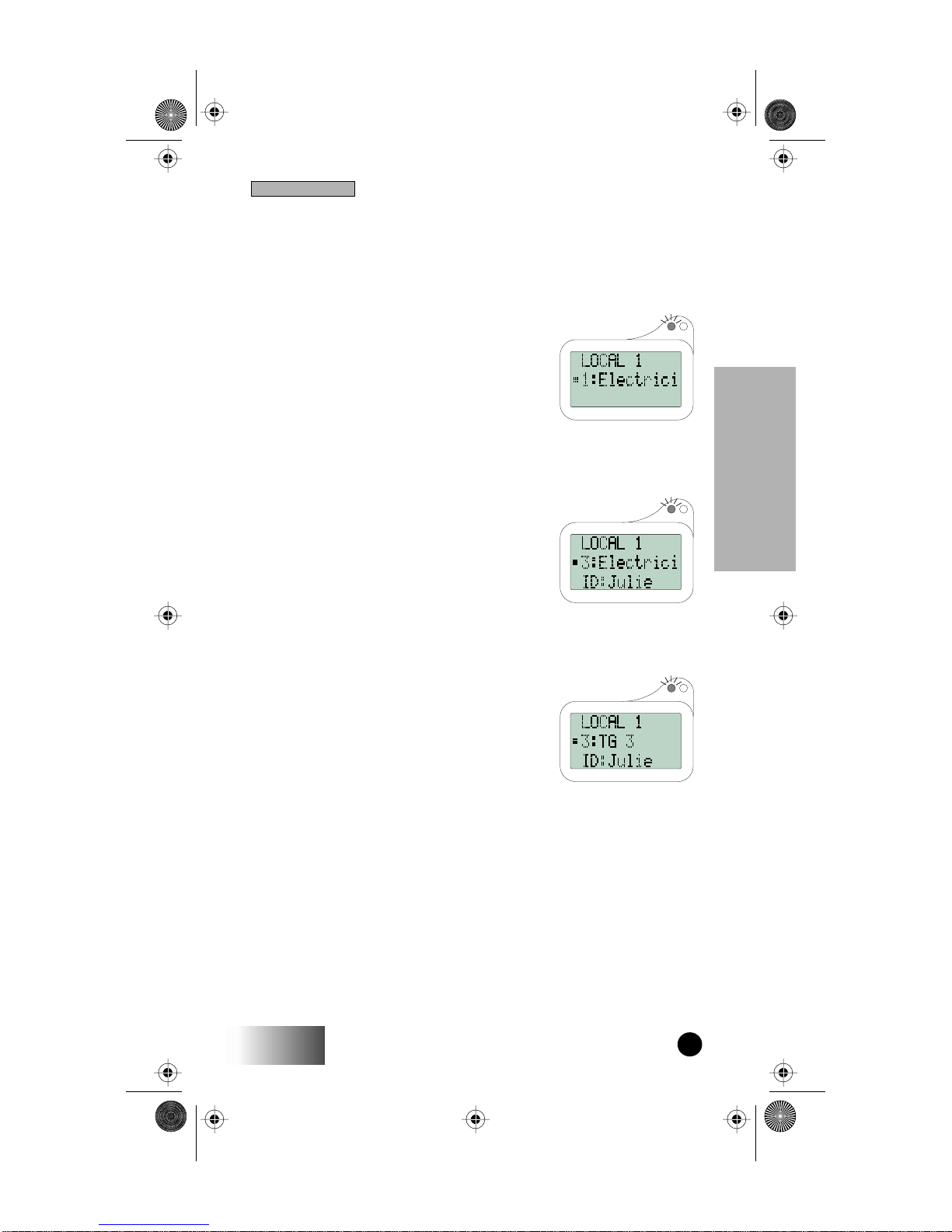

Responding to a Secondary Talkgroup

To respond to a call on a Secondary Talkgroup, press the PTT

button.

FOR EXAMPLE:

Julie responds to Fred by pressing the

PTT button.

Fred has released his PTT button, then

begins to receive Julie’s response.

Jason receives Julie’s response.

After the Secondary Talkgroup call is completed, all receiving

subscriber units’ displays will revert to their Primary Talkgroup

of their selected Talkgroup Mode.

MAEPF-25841-O

Julie’s Display

MAEPF-25842-O

Fred’s Display

MAEPF-25843-O

Jason’s Display

82C89-O_AdvancedFeaturesText Page 7 Friday, January 3, 1997 9:06 AM

USER’S GUIDE

470

AdvancedFeatures

Advanced Features

Turning Scan On and Off

The capability to turn scan on and off is available as an option

key.

Press the “Scan” soft option key. The unit will afﬁliate with the

selected mode. Press the “S Off” soft option key to disable scan.

When Scan is disabled, you will not have access to your second-

ary talkgroups.

Talkgroup Mode Selection by Direct Entry

You may select a different Talkgroup Mode at any time.

1. Press the key. To erase a digit, press . To clear all dig-

its, press and hold . To return to your previously selected

Talkgroup Mode, press the “Cancl” option key.

2. Press the key.

3. Press the PTT button or the “Ok”

option key. “Mode 18” will ﬂash until afﬁl-

iation is complete. If you selected the

Talkgroup Mode by pressing the PTT

button, you will initiate a call on your Pri-

mary Talkgroup.

TUV

Scan Enabled Scan Disabled

82C89-O_AdvancedFeaturesText Page 8 Friday, January 3, 1997 9:06 AM

Advanced Features

USER’S GUIDE 9

470

AdvancedFeatures

Talkgroup Mode Selection by Memory Scroll

The Memory Scroll feature allows you to use the keys to

scroll through memory for Talkgroup Modes.

1. Press . Press and hold this key to

Auto Scroll through your lists more

quickly.

2. Press the PTT button or the “Ok”

option key.

Note: To transmit, press the PTT; to listen

only, press “Ok”.

82C89-O_AdvancedFeaturesText Page 9 Friday, January 3, 1997 9:06 AM

USER’S GUIDE

470

AdvancedFeatures

Advanced Features

EMERGENCY GROUP CALL

Placing an Emergency Group Call

An Emergency Group Call allows a user to have priority access to

his talkgroup members and provide them visual and audible indi-

cations of an emergency condition. The Emergency call can be

placed from any mode (private, group, phone).

1. Press and hold the Emergency Button. The mobile will emit

an emergency start tone to indicate that you have successfully

requested an emergency call.

2. Press the PTT to talk. The currently

selected Talkgroup Mode will be selected

unless your organization preprogrammed

an emergency Talkgroup Mode. If this is

the case, the preprogrammed emergency

Talkgroup Mode will ﬂash in the display.

The Talkgroup Mode appears in the sec-

ond line of the display as shown.

3. To end an emergency call, press and hold the Emergency But-

ton for 3 seconds. The mobile will return to the last selected talk-

group. The initiator cannot exit the emergency call without ﬁrst

cancelling the emergency call.

Cancelling an Emergency Group Call

Press the Emergency Button until the unit generates an Emer-

gency Call Cancel tone. This tone indicates the cancellation has

occurred. The display will return to the non-emergency state.

An emergency call will be cancelled if no talkgroup activity

occurs for 30 seconds. The dispatcher, or any other person provi-

sioned to cancel an emergency call, can also cancel the emer-

gency call.

Receiving an Emergency Group Call

When an emergency call is initiated, other members of the talk-

group will be notiﬁed of an emergency condition.

82C89-O_AdvancedFeaturesText Page 10 Friday, January 3, 1997 9:06 AM

Table des matières

Autres manuels Motorola Téléphone portable

Motorola

Motorola MOTORAZR2 V9 Manuel utilisateur

Motorola

Motorola PRO Series Manuel utilisateur

Motorola

Motorola DTR SERIES DTR550 Manuel utilisateur

Motorola

Motorola moto e22 Manuel utilisateur

Motorola

Motorola XT553 Manuel utilisateur

Motorola

Motorola moto g8 POWER LITE Feuille d'instructions

Motorola

Motorola Tarpon V. 120C Manuel utilisateur

Motorola

Motorola V950 Manuel utilisateur

Motorola

Motorola iDEN i305 Manuel utilisateur

Motorola

Motorola ROKR E2 Manuel utilisateur

Motorola

Motorola Moto G Manuel utilisateur

Motorola

Motorola RAZR V3 - RED Manuel utilisateur

Motorola

Motorola 68000202881-B 66 Manuel utilisateur

Motorola

Motorola V540 Manuel utilisateur

Motorola

Motorola DROID RAZR MAXX Manuel utilisateur

Motorola

Motorola MOTORAZR2 V9 Manuel utilisateur

Motorola

Motorola Moto E5 Manuel utilisateur

Motorola

Motorola DROID BIONIC XT875 Manuel utilisateur

Motorola

Motorola moto g71 Manuel utilisateur

Motorola

Motorola BRAVO Manuel utilisateur

Motorola

Motorola i455 Manuel utilisateur

Motorola

Motorola Adventure V750 Manuel utilisateur

Motorola

Motorola DEBUT i856 Manuel utilisateur

Motorola

Motorola MOTO VE465 Manuel utilisateur

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Nokia

Nokia Lumia 620 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LG LM-X420QN Manuel utilisateur

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

LG LM-K420EMW Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur
