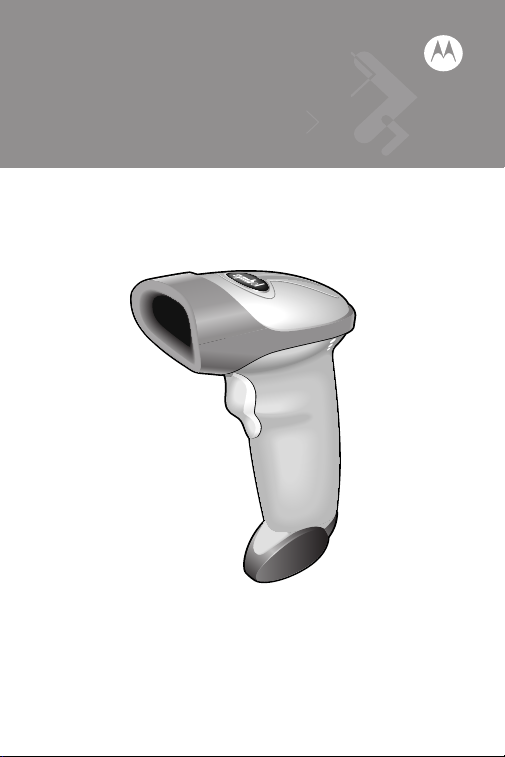

Motorola LS2208AP Manuel utilisateur

LS2208AP

Quick Reference Guide

2 LS2208AP

Motorola reserves the right to make changes to any product

to improve reliability, function, or design.

Motorola does not assume any product liability arising out

of, or in connection with, the application or use of any

product, circuit, or application described herein.

No license is granted, either expressly or by implication,

estoppel, or otherwise under any patent right or patent,

covering or relating to any combination, system, apparatus,

machine, material, method, or process in which Motorola

products might be used. An implied license exists only for

equipment, circuits, and subsystems contained in Motorola

products.

MOTOROLA, the Stylized M Logo and Symbol and the

Symbol logo are registered trademarks of Motorola, Inc.

Other product names mentioned in this manual may be

trademarks or registered trademarks of their respective

companies and are hereby acknowledged.

Motorola, Inc.

One Motorola Plaza

Holtsville, N.Y. 11742-1300

http://www.motorola.com/enterprisemobility

Warranty

For the complete Motorola hardware product warranty

statement, go to:

http://www.motorola.com/enterprisemobility/warranty.

Quick Reference Guide 3

Introduction

The LS2208AP scanner combines excellent scanning

performance and advanced ergonomics to provide the

best value in a lightweight laser scanner. Whether used

as a hand-held scanner or in hands-free mode in a stand,

the LS2208AP scanner ensures comfort and ease of use

for extended periods of time.

4 LS2208AP

Parts of the Scanner

Exit Window

Trigger

Beeper

LED

Quick Reference Guide 5

Installing the Interface Cable

1. Plug the interface cable modular connector into the

cable interface port on the bottom of the scanner’s

handle.

2. Connect the other end of the interface cable to the

host.

3. Connect the power supply to the cable (if necessary).

4. Scan the appropriate bar code(s) beginning on page

29 to communicate with the host.

Removing the Interface Cable

Unplug the installed cable’s modular connector by

depressing the connector clip with the tip of a screwdriver.

Interface cable

modular connector

Cable interface

port

6 LS2208AP

Aiming

Note: The scanner performs best when it is not ex-

actly perpendicular to the bar code.

Scanning In Hand-Held Mode

1. Ensure all connections are secure.

2. Aim the scanner at the bar code.

NOTE Operation of the device without

regulatory approval is illegal.

65 65

Specular

Reflection

± 4°

Bar code

Quick Reference Guide 7

3. Ensure the scan line crosses every bar and space of

the symbol.

4. Upon successful decode, the scanner beeps and the

LED turns green.

Scanning in Hands-Free Mode

In the stand, the scanner is in constant-on mode. When

you remove the scanner from the stand it operates in its

normal hand-held mode.

5. Insert scanner in stand.

6. Present bar code and ensure the scan line crosses

every bar and space of the symbol.

7. Upon successful decode, the scanner beeps and the

LED turns green.

012345 012345

RIGHT WRONG

8 LS2208AP

Troubleshooting

Problem Possible

Cause Possible Solutions

Nothing

happens when

you follow the

operating

instructions.

No power to the

scanner. Check the system power.

Ensure the power supply is

connected if your

configuration requires a

power supply.

Interface/power

cables are

loose.

Check for loose cable

connections.

Laser comes

on, but bar

code does not

decode.

Scanner is not

programmed

for the correct

bar code type.

Ensure the scanner is

programmed to read the

type of bar code you are

scanning.

Bar code

symbol is

unreadable.

Check the symbol to make

sure it is not defaced. Try

scanning test symbols of the

same bar code type.

Distance

between

scanner and

bar code is

incorrect.

Move the scanner closer to

or further from the bar code.

Bar code is

decoded, but

nottransmitted

to the host.

Scanner is not

programmed

for the correct

host type.

Scan the appropriate host

type bar code.

Quick Reference Guide 9

Scanned data

is incorrectly

displayed on

the host.

Scanner is not

programmed to

work with the

host.

Ensure proper host is

selected.

Check the scanner’s host

type parameters or editing

options.

For RS-232, ensure the

scanner’s communication

parameters match the

host’s settings.

For a keyboard wedge

configuration, ensure the

system is programmed for

the correct keyboard type,

and the CAPS LOCK key is

off.

Ensure editing options (e.g.,

UPC-E to UPC-A

Conversion) are properly

programmed.

Problem Possible

Cause Possible Solutions

10 LS2208AP

はじめに

The LS2208AP スキャナは、優れたスキャン性能と先進

の人間工学的設計を兼ね備えた、最高品質の軽量レーザ

スキャナです。LS2208AP スキャナは、ハンドヘルド

モードまたはスタンドを使ってハンズフリーモードで

使用することができ、操作が簡単で使い勝手が良く、末

永くお使いいただけます。
