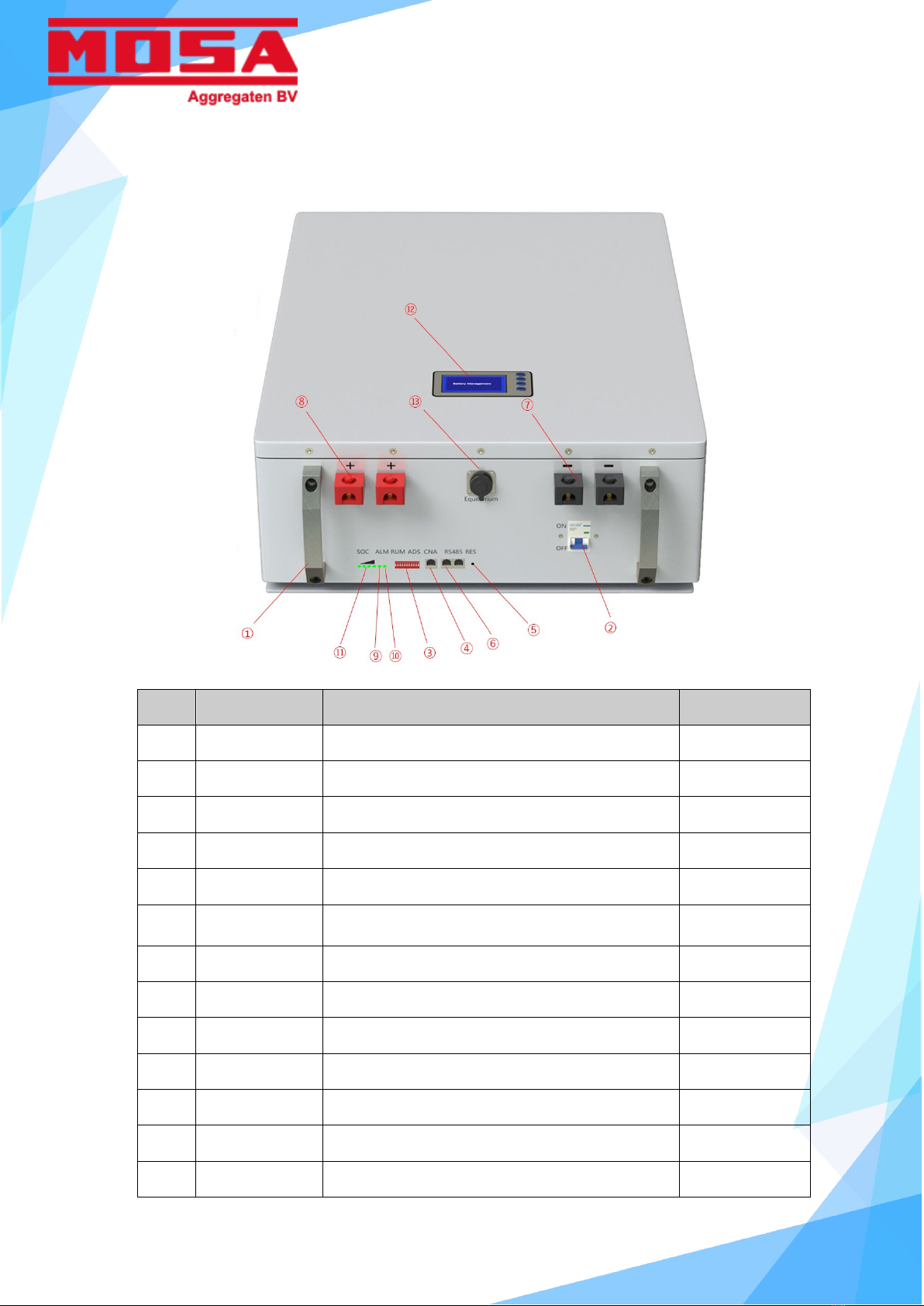

ID Arrangement
ID arrangement should be set when parallel use and steps shows below.

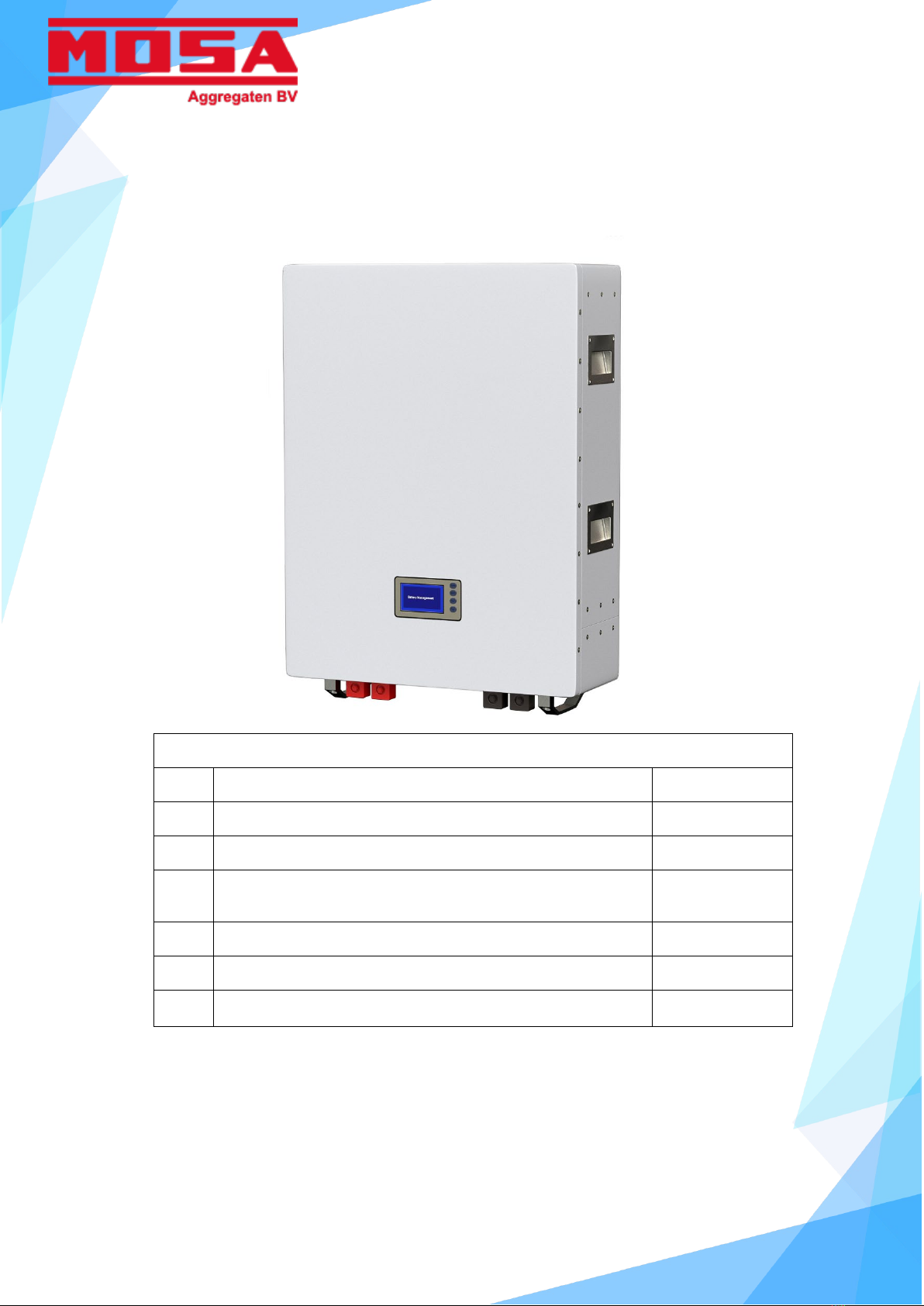

Maximum parallel of DS-48100/48200 is 16.
Code
Address
Assign
Remarks
1
2
3
4
5
6
7
8
OFF OFF OFF OFF ON ON ON ON
1
Model 1
ON OFF OFF OFF OFF OFF OFF OFF
2
Model 2
OFF ON OFF OFF OFF OFF OFF OFF
3
Model 3
ON ON OFF OFF OFF OFF OFF OFF
4
Model 4
OFF OFF ON OFF OFF OFF OFF OFF
5
Model 5
ON OFF ON OFF OFF OFF OFF OFF
6
Model 6
OFF ON ON OFF OFF OFF OFF OFF
7
Model 7
ON ON ON OFF OFF OFF OFF OFF
8
Model 8
OFF OFF OFF ON OFF OFF OFF OFF
9
Model 9
ON OFF OFF ON OFF OFF OFF OFF 10 Model 10
OFF ON OFF ON OFF OFF OFF OFF 11 Model 11
ON ON OFF ON OFF OFF OFF OFF 12 Model 12
OFF OFF ON ON OFF OFF OFF OFF 13 Model 13
ON OFF ON ON OFF OFF OFF OFF 14 Model 14
OFF ON ON ON OFF OFF OFF OFF 15 Model 15
ON ON ON ON OFF OFF OFF OFF 16 Model 16
Assignments of ID address
Note: In the table 1, code bits are in accordance with the control panel ID code corresponding to the
binary digit, dial up stands for "OFF ", dial down stand for " ON ", the left dial is low digit, the
right dial is high digit, encoding in the range of 1~16, which can support up to 16 modules
cascade. All coded according to the table, followed by analogy. If you need more modules in
parallel, please tell us, we will design it to meet your requirement.
BMS ID 01 is the master BMS.
If you use only single battery, please set the ID to be 01.
If you use battery modules in parallel, set one battery module to be 01, and other ID are
different, and make sure each ID is unique in the string.
