The Specialist In Drum Handling Equipment

Kit # 4556M-P

Kit, Bracket Assembly, MORCINCHTM, SR

Operator’s Manual for Morse MORCINCHTM Bracket Assembly Kit with Spark Resistant Parts

Part # 4556M-P

Serial Number 0209 to ____ (MMYY)

ITEM QTY. PART # DESCRIPTION

1 1 1371M-P HOLD DOWN, BRACKET ASM, SR

2 1 1372-P TEE HANDLE, BRACKET ASM, 1-1/2

3 3 1169-P NUT, 3/8-16 REV HEX LOCK

4 3 82-P HHCS, 3/8-16 X 2-1/4 GR2

5 1 5108M-P WELD, BRACKET, 35” SR

6 1 4556M-P KIT, BRACKET ASM, MORCINCH, SR

7 2 1315-P HHCS, 3/8-16 X 2-3/4 GR2

INSTALLATION INSTRUCTIONS

for MORCINCHTM Drum Holder

Bolt bottom bracket (item 5) to drum holder, using 2 bolts1.

(item 4) and 2 nuts (item 3), bolt in place through the 2

lowest holes on bottom bracket.

Slide hold down (item 1) down over top of bottom bracket2.

and tighten in place with tee handle (item 2).

Fasten stop bolt (item 4) and nut (item 3) into top hole of3.

bottom bracket.

INSTALLATION INSTRUCTIONS

for Drum Holder with Socket Tube

Slide bottom bracket (item 5) up through socket tube and,1.

using 2 bolts (item 7) and 2 nuts (item 3), bolt in place

through the 2 lowest holes on bottom bracket.

Slide hold down (item 1) down over top of bottom bracket2.

and tighten in place with tee handle (item 2).

Fasten stop bolt (item 4) and nut (item 3) into top hole of3.

bottom bracket. Use bottom hole for 195 Series starting

with serial number 0207.

[email protected] 103 Kuhn Rd.

Syracuse, NY, 13208 U.S.A.

morsedrum.com (315) 437-8475

The Specialist In Drum Handling Equipment

Kit # 4556M-P

Kit, Bracket Assembly, MORCINCHTM, SR

Operator’s Manual for Morse MORCINCHTM Bracket Assembly Kit with Spark Resistant Parts

Part # 4556M-P

Serial Number 0209 to ____ (MMYY)

morsedrum.com

OPERATING INSTRUCTIONS

TO SECURE DRUM:

Position drum holder assembly so bottom bracket (item 5)1.

rests on oor.

Loosen tee handle (item 2) and slide hold down (item 1) up2.

to highest position. Tighten tee handle.

Load drum onto bottom bracket and into drum holder with a3.

hand truck.

Loosen tee handle and slide hold down to meet top of drum.4.

Tighten tee handle. (see Figure 1)

Secure drum with chain and ratchet mechanism. Drum is5.

now ready to be lifted and tilted.

TO RELEASE DRUM:

Lower drum to oor in upright position.1.

Release chain from ratchet mechanism by applying2.

pressure to ratchet handle in a clockwise direction with one

hand and opening pawl to free ratchet with other hand.

Remove chain link from ratchet.

Loosen tee handle and slide hold down up to highest3.

position. Tighten tee handle.

Remove drum with hand truck.4.

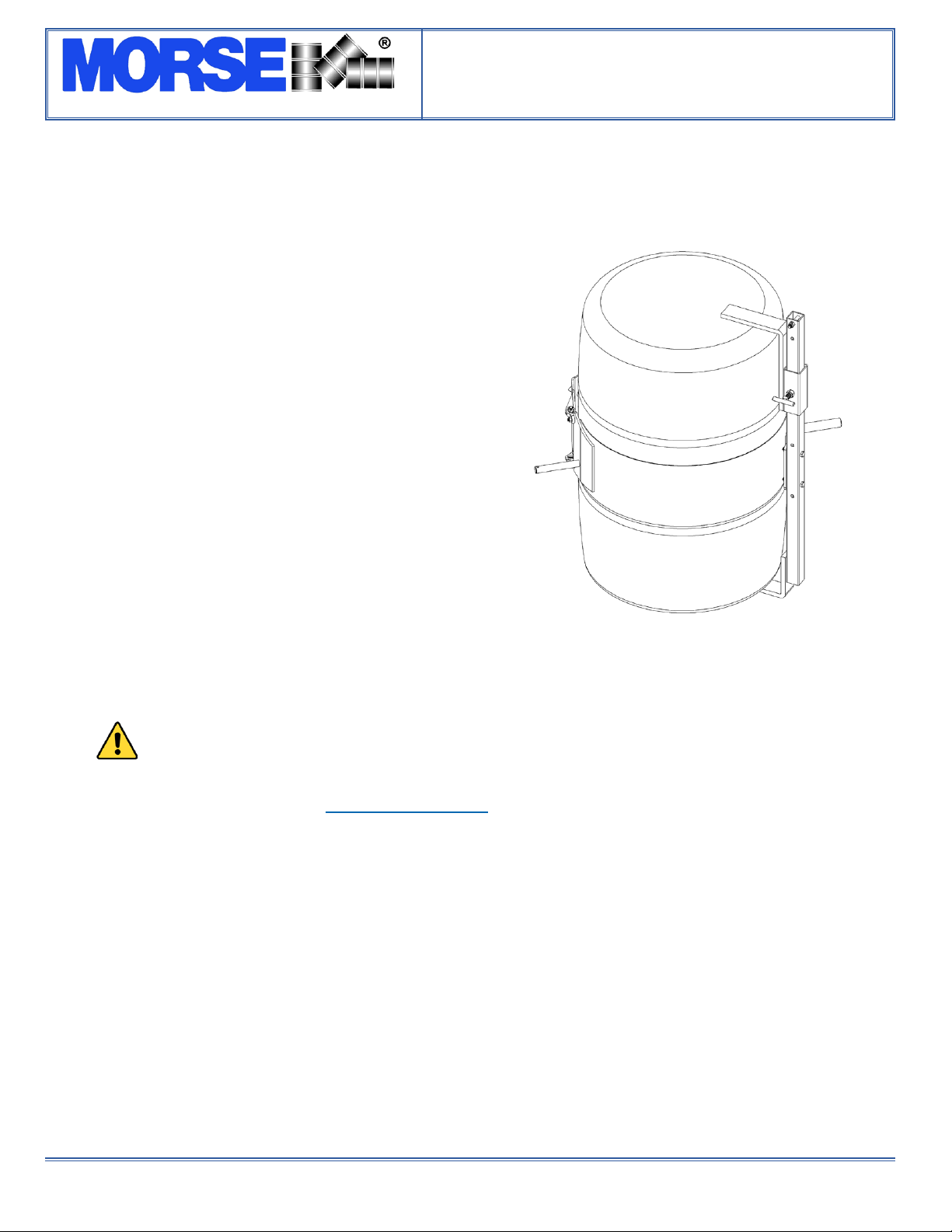

Figure 1

Plastic drum being lifted with

part number 4556M-P Bracket

Assembly Kit installed.

WARNING: This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and

2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to

the State of California to cause birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov
