Model 400AM-60-114

Hydra-Lift, 60”, Air Power Lift & Tilt

with Spark Resistant Parts

www.morsedrum.com

CONTENTS

Page

Receiving Procedures. . . . . . . . . . . . . . . . . 1

Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2

Machine Description. . . . . . . . . . . . . . . . . . . 3 - 4

Operating Instructions. . . . . . . . . . . . . . . . . . . 4 - 5

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 5

Parts Lists and Diagrams. . . . . . . . . . . . . 6 - 9

Safety Information

While Morse Manufacturing Co. drum handling equipment

is engineered for safety and efciency, a high degree of

responsibility must be placed upon the machine operator

to follow safe practices, based primarily on common sense,

upon which true safety depends.

Failure to follow the safety precautions in this manual can

result in personal injury or property damage. Observe

the same precautions as with similar machinery where

carelessness in operating or maintenance is hazardous to

personnel. Carefully read the safety precautions below and

throughout this manual.

Receiving Procedures

Every Morse drum handler is inspected prior to shipping.

However, damage may be incurred during transit.

• Check for visible damage. If you choose to accept

damaged freight, always sign noting the damage on the

BILL OF LADING.

• Document the damage and have the truck driver sign. We

recommend keeping a digital camera at your receiving

dock for this purpose.

• Open packages expeditiously to check the condition of the

goods. There is only a 24 hour window to notify the carrier

of any concealed damage.

• IMMEDIATELY REPORT ALL DAMAGE TO THE

SHIPPING COMPANY! Then you may contact Morse for

assistance with your freight claim.

• Morse Manufacturing will not be held responsible for any

damaged freight that is not signed for as damaged.

Delivery to non-business addresses without a loading dock

result in additional freight charges. Residential delivery

fees, inside delivery fees, re-delivery charges, and lift gate

services will be added by the truck line, and are non-

negotiable.

Limited 2 Year Warranty

Morse drum handling equipment is guaranteed against

defects in workmanship or materials for TWO YEARS when

used properly within its rated capacity. Warranty does not

cover wear from normal use or damage from accident

or abuse. Motors and other purchased parts carry the

warranties of their manufacturers.

For warranty claims, contact your Morse Dealer to obtain a

return authorization number, and for return freight advice.

Return freight must be prepaid.

In all instances, liability is limited to the purchase price paid

or to repairing or replacing the product. Customer assumes

liability for any modications, unauthorized repairs or parts

substitution.

Operator’s Manual

for Morse Hydra-Lift Drum Karrier

with Spark Resistant Parts

Model 400AM-60-114

Serial Number 0409 to 1110 (MMYY)

The Specialist In Drum Handling Equipment

Model 400AM-60-114

Hydra-Lift, 60”, Air Power Lift & Tilt

with Spark Resistant Parts

Operator’s Manual for Morse Hydra-Lift Karrier with Spark Resistant Parts

Model 400AM-60-114, Serial Number 0409 to 1110 (MMYY)

www.morsedrum.com

Safety Information (continued)

DANGER - Indicates a situation which, if not avoided, will result

in serious injury or death. This signal word is limited to the most

extreme situations.

WARNING - Indicates a situation which, if not avoided, could result

in serious injury or death.

CAUTION - Indicates a situation which, if not avoided, can result in

damage to the machine.

CAUTION – Do Not Transport with Drum Raised

ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The

unit can become unstable when transporting with a raised load.

DANGER - Stay Clear of Power Lines

KEEP WELL CLEAR OF POWER LINES. Never approach a power line. Current in a high voltage line

may arc some distance from the wire to the steel framed, grounded machine.

WARNING

The Hydra-Lift Karrier is designed to handle one drum of the types listed at the top of page 3, under 2.

Machine Description. DO NOT attempt to handle any other type of drum or object. DO NOT exceed

the weight capacity of 800 Lb.

WARNING - Level Floors Only

For operation only on clean, level oors of suitable bearing capacity. Do not use on sloped surfaces,

ramps, irregular or debris strewn oors.

WARNING - Do Not Modify the Unit

Under no circumstances should any modications be made to the Morse machinery without factory

authorization. Any modications may void the warranty. This machine was designed to perform a

specic job and alterations may result in injury to operator or machine.

WARNING - No Loose Fitting Clothing

Wear close-tting clothing and safety equipment appropriate to the job. Loose tting clothing may

become caught on the machinery and cause severe personal injury.

WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous

Escaping hydraulic uid under pressure can penetrate the skin, causing serious injury. Avoid the

hazard by relieving pressure before disconnecting hydraulic lines. Keep hands and body away from

pinholes and nozzles, which eject uid under high pressure. Use a piece of cardboard to search for

leaks. If an accident occurs, see a doctor immediately and inform them of the nature of the accident.

CAUTION - Wear Safety Shoes

Wear safety shoes with non-slip soles and hard toe protection.

The Specialist In Drum Handling Equipment

Model 400AM-60-114

Hydra-Lift, 60”, Air Power Lift & Tilt

with Spark Resistant Parts

Operator’s Manual for Morse Hydra-Lift Karrier with Spark Resistant Parts

Model 400AM-60-114, Serial Number 0409 to 1110 (MMYY)

www.morsedrum.com

Machine Description

The Model 400AM-60-114 Hydra-Lift Karrier will pour a drum up to

60” high, measured from the oor to the lowest point of a horizontal

drum. It is designed to lift, transport, and dispense a 55-gallon steel or

ber drum 22” to 23.5” in diameter.

The maximum full-drum capacity is 800 Lb. The capacity is derated

to 500 Lb. for a half-full drum. The half-full rating is based on the tilt

mechanism’s capacity for handling an unbalanced bottom-heavy

drum.

Options

A smaller diameter drum can be handled with the correct size•

55/30M Series Diameter Adaptor installed (see Diameter Adaptor

literature).

The• Bracket Assembly (Part # 4556M-P) is required to handle

a plastic drum without a top rim (see gure 2.1). It is also

recommended to more securely handle a ber drum. You can use

the Bracket Assembly with a 55-gallon plastic, steel or ber drum.

The brace at top and bottom of the drum prevent it from slipping

lengthways through the drum holder. It adjusts for a drum 31” to

39” tall.

The• Top Rim Clamp (Part # 4560M-P) grips the upper rim of

your drum to prevent it from slipping through the drum holder (see

gure 2.2). To handle a 55-gallon plastic drum with top rim, you

must install either the Bracket Assembly or the Top Rim Clamp.

You can use the Top Rim Clamp with a 55-gallon plastic, steel or

ber drum with suitable top rim.

Controls

The Morse Hydra-Lift Karrier is manually propelled and steered.

The hydraulic pump is powered by a vane type air motor. The air motor is

control by a momentary air valve located on the air motor. Attach air supply to

the air valve.

There are two functions for the operator to control (Figure 2.3):

1. LIFT and lower function for vertical positioning of the drum.

To raise the drum, hold the air valve handle in the on position and raise the •

LIFT handle. Release the two valve handles when desired drum height is

reached.

To lower the drum, push in the LOWER handle. Air motor is not needed.•

2. TILT function to control the degree of rotation of the drum.

To tilt the drum forward for pouring, hold the air valve handle in the on •

position and raise the TILT handle. Release the two valve handles when

drum angle is reached.

To return the drum to vertical position, hold the air valve handle in the on •

position and push down on the TILT handle.

Figure 2.3

Figure 2.2

Plastic drum being

lifted with part number

4560M-P Top Rim Clamp

Assembly installed.

Figure 2.1

Plastic drum being lifted

with part number 4556M-P

Bracket Assembly installed.

The Specialist In Drum Handling Equipment

Model 400AM-60-114

Hydra-Lift, 60”, Air Power Lift & Tilt

with Spark Resistant Parts

Operator’s Manual for Morse Hydra-Lift Karrier with Spark Resistant Parts

Model 400AM-60-114, Serial Number 0409 to 1110 (MMYY)

www.morsedrum.com

WARNING - Watch Out for Pinch Points

Stay clear of moving parts. Operator should remain behind the push handle during the lift operation.

Figure 3.2

Floor Lock

The screw-down oor lock is located on the base of the

tower (gure 3.1). Turning the oor lock clockwise until it

locks in the down position activates the oor lock. When

the oor lock is activated it prevents unwanted free wheeling

of the unit. Floor conditions determine the effectiveness of

the oor lock. The operator should verify its holding action

before depending on it to hold.

MORcinch Drum Holder Assembly

The drum holder assembly (or “saddle assembly”) is the

component on the Hydra-Lift Karrier that is intended to

hold the drum. The MORcinch drum holder assembly is

designed to secure a standard ribbed 55-gallon steel drum

around it’s middle using a cinch chain and ratchet tightening

system. The MORcinch drum holder accepts accessories for

handling a plastic drum, a ber drum, or smaller diameter

drums (see Options on pg. 3).

Operating Instructions

1.) Push the Hydra-Lift Karrier to the drum.

2.) Using the “LIFT” control as described in “Machine

Description - Controls” (page 3) , position the drum

holder assembly with the back band at the middle of

the drum. (Figure 3.1). With the ratchet plate swung

open and the cinch chain hanging from the chain hook,

push the unit until the back band rests rmly against the

drum. Some adjustment to the tilt angle of the saddle

may be necessary to ensure band ts ush on the drum.

3.) Attaching the drum:

Drape the chain across the front of the drum and engage

a link into the slot in the ratchet (Figure 3.2). Turn the

ratchet clockwise to tighten chain. If ratchet turns until

the pawl is beyond the last ratchet tooth, turn the ratchet

back and slide the next link into the ratchet slot and try

tightening again. The chain must be held tightly against

the drum with the pawl engaged securely in the ratchet

teeth.

4.) Operate the lift function to lift drum clear of oor. Roll to

dispensing location. NOTE: Do not allow the drum to

impact on oor, pouring station, etc. or a spill or damage

could occur.

Figure 3.1

The Specialist In Drum Handling Equipment

Model 400AM-60-114

Hydra-Lift, 60”, Air Power Lift & Tilt

with Spark Resistant Parts

Operator’s Manual for Morse Hydra-Lift Karrier with Spark Resistant Parts

Model 400AM-60-114, Serial Number 0409 to 1110 (MMYY)

www.morsedrum.com

CAUTION – Do Not Transport with Drum Raised

ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The

unit can become unstable when transporting with a raised load.

5.) Lift drum to desired pouring height. Operate the tilt control as described in “Machine Description - Controls” (page

3) to adjust the drum attitude. This is especially important when lifting an open drum. The oor lock should be engaged

while dispensing / draining.

6.) When dispensing is complete, tilt drum back to upright position. Disengage the oor lock and lower the drum to

transporting height; about 6” off the oor.

WARNING - Stay Clear of Raised Drum

NEVER allow anyone to be below any part of a raised drum handler or drum. Remain behind

the push handle while handling a drum.

WARNING – Do NOT Disengage the Cinch Chain When Drum is off the Ground

When the drum is in the upright position, lower the drum to the oor before releasing the cinch

chain.

7.) Push the unit to the drum storage area and lower to the oor in an upright position. Release the cinch chain from the

ratchet by applying pressure to the ratchet handle in a clockwise direction with one hand and opening the pawl to free

the ratchet with the other hand. Remove the cinch chain link from the ratchet.

Maintenance

Periodic inspection for the general condition of structural and mechanical components is imperative for safe and efcient

operation.

Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust,

or replace parts as necessary to prevent failure and maintain proper function.

Inspect the hydraulic system for oil drips, hose damage, or other signs of wear. Inspect the level and condition of the

hydraulic uid. Replace any parts that show signs of wear.

Grease wheel bearings periodically. Oil or grease all moving parts including: the three clevis pins and the surfaces of the

boom which contact the inside of the mast cap, the hinge pin, the gears and sprockets in the tilt drive, and the ratchet and

pawl.

Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.

Hydraulic pump is shipped lled with Noco Premium plus automatic transmission uid d/m. Material safety data sheet

(msds) is available online. Change oil yearly, sooner depending on dirty conditions or outdoor use. Replace oil with Mobil

dte 24 or equivalent for indoor use (Mobil dte 13 for outdoor use).

The Specialist In Drum Handling Equipment

Model 400AM-60-114

Hydra-Lift, 60”, Air Power Lift & Tilt

with Spark Resistant Parts

Operator’s Manual for Morse Hydra-Lift Karrier with Spark Resistant Parts

Model 400AM-60-114, Serial Number 0409 to 1110 (MMYY)

www.morsedrum.com

ITEM QTY. PART # DESCRIPTION

1 1 4521M-72-P OVERHEAD ASM, MOR, 72” PT, SR

2 4 1521-P HHCS, 3/8-16 X 3 GR5

3 4 1166-P WASHER, 3/8 USS 1” OD

4 2 134-P LEG WELD, 400AM-60, 60

5 2 704-P AXLE, 3/4”, USE WITH PUSH-ON

6 * 2 705-P CAP, HUB, PUSH-ON, 3/4”

7 * 2 87-P WHEEL, MORTUF, 8”, 3/4” BRG

8 3 64-P ROLL PIN, 3/16 X 1-1/4

9 7 17-P WASHER, 5/8 SAE FL 1-5/16 OD

10 * 2 3308-P CASTER, 4” SWIVEL, DBL RACE

11 8 491-P NUT, 5/16-18 REV HEX LOCK

12 3 138-P CLEVIS PIN 5/8 X 3”

13 4 1169-P NUT, 3/8-16 REV HEX LOCK

14 8 215-P HHCS, 5/16-18 X 5/8 GR2

15 2 765-P HYD FIT, MALE ELBOW, FLARE 400

16 1 781-P CYLINDER, 1.5 X 22.625”, SAE

17 2 83-P GRIP, HANDLE, 1-1/4 X 4-1/2

18 1 135-P ASM, TOWER, 400AM-60, 60

19 1 3680-P KIT, PUMP MOUNT PLATE, PL

20 1 155-P HHCS, 3/8-16 X 2-1/2 GR2

21 1 3641-P U-BOLT, 3/8-16, 400 PUMP MOUNT

22 1 3643-P MOUNT PLATE, POWER PUMP

23 7 1474-P WASHER, 3/8 SPLIT LOCK

24 2 149-P NUT, 3/8-16 FIN HEX

25 1 1657-P HHCS, 3/8-16 X 3/4 GR2

26 1 1165-P NUT, 3/8-16 JAM

27 1 3689-P HYD HOSE ASM, 31”

28 1 345-P HYD FIT, MALE FLARE, 456, 82

31 4 1560-P HHCS, 3/8-16 X 1 GR2

32 1 M4507-P HYD POWER PACK, -110, -114

33 1 290-A-2P MOTOR, 2HP, AIR, 56C

34 1 332-P HYD FIT, PIPE NIPPLE 1/2 - 1/4

35 1 3634-P HYD FIT, PIPE PLUG, 1/4” HEX

36 1 3632-P VALVE, AIR MOTOR, 400, 500

37 2 1763-P HYD HOSE ASM, 60 PT, 77”

* Recommended spare parts

The Specialist In Drum Handling Equipment

Model 400AM-60-114

Hydra-Lift, 60”, Air Power Lift & Tilt

with Spark Resistant Parts

Operator’s Manual for Morse Hydra-Lift Karrier with Spark Resistant Parts

Model 400AM-60-114, Serial Number 0409 to 1110 (MMYY)

www.morsedrum.com

The Specialist In Drum Handling Equipment

Model 400AM-60-114

Hydra-Lift, 60”, Air Power Lift & Tilt

with Spark Resistant Parts

Operator’s Manual for Morse Hydra-Lift Karrier with Spark Resistant Parts

Model 400AM-60-114, Serial Number 0409 to 1110 (MMYY)

www.morsedrum.com

Overhead Assembly

(Part Number 4521M-72-P)

ITEM QTY. PART # DESCRIPTION

50 1 5000M-P SADDLE ASM, MORCINCH, MOR, SR

51* 1 64-P ROLL PIN, 3/16 X 1-1/4

52* 1 3849B-P BEARING BLOCK, SLIDING IDLER

53 1 19-P BEARING, 3/4” ID X 2-1/2”

54 2 535-P HHCS, 3/8-16 X 1-1/4 GR5

55 6 1474-P WASHER, 3/8 SPLIT LOCK

56 1 55-P WASHER, 3/4 SAE FL 1-1/2 OD

57* 1 14-P GEAR, PINION, 7 TOOTH

58* 1 13-P SPROCKET #35 36T, 3/4” BORE

59* 1 735-P KEY, WOODRUFF, SIZE 9, ASA606

60 1 795-P LINK, MASTER, #35 CHAIN

61* 1 12-P CHAIN, ROLLER, #35 W/ M LINK

62* 1 27-P SPUR GEAR W/ 1” SHAFT, HD TYPE

63 3 29-P SPACER, SPUR GEAR .15”

64 1 4360-P SPACER, HD DRIVE SHAFT 1.4”

ITEM QTY. PART # DESCRIPTION

65* 1 1116-P SPROCKET #35 17T, 1” BORE

66* 1 2656-P KEY, SQUARE, 1/4 X 1”

67 4 1657-P HHCS, 3/8-16 X 3/4 GR2

68* 10 193-P SCREW, TEK, 12-14 X 3/4” 3 PT

69* 2 18-P BEARING, 1” ID X 2-1/2”

70* 1 7-P BEARING, 3/4” ID X 1-1/2”

71 1 15-P COLLAR, 3/4” ID

60* 2 736-P KEY, WOODRUFF, SIZE 15, ASA808

73 2 2120-P HYD FIT, MALE CONNECTOR, 400

74 1 351-P MOTOR, HYDRAULIC HYD, 400, 456

75* 1 30-P SPROCKET #40D 16T, 1” BORE

76* 1 32-P SPROCKET #40D 32T, 1” BORE

77* 1 31-P CHAIN, ROLLER, #40D W/ M. LINK

78 1 796-P LINK, MASTER, #40D CHAIN

79 1 1049-P KIT, SQ COVER, 400 PT

* Recommended spare parts.

The Specialist In Drum Handling Equipment

Model 400AM-60-114

Hydra-Lift, 60”, Air Power Lift & Tilt

with Spark Resistant Parts

Operator’s Manual for Morse Hydra-Lift Karrier with Spark Resistant Parts

Model 400AM-60-114, Serial Number 0409 to 1110 (MMYY)

www.morsedrum.com

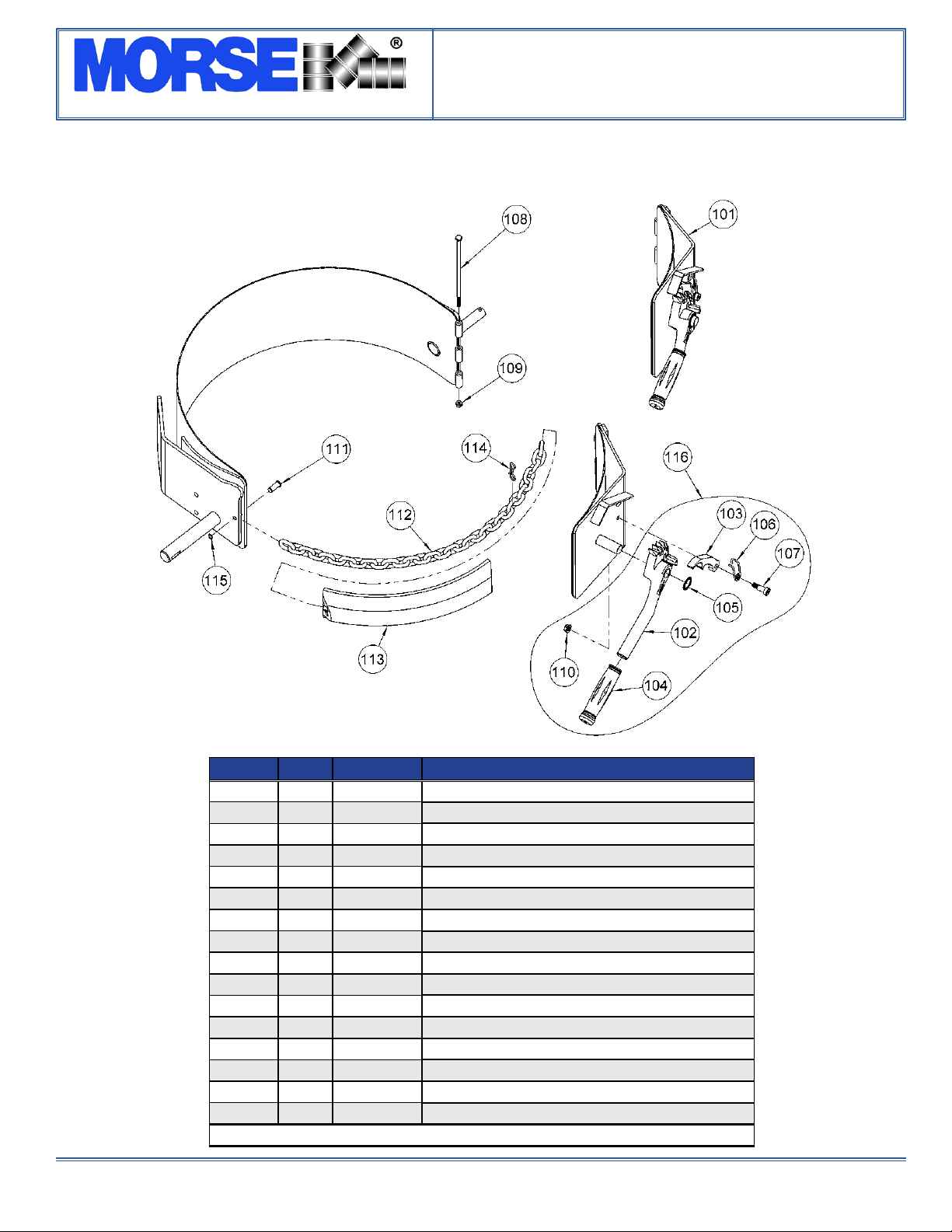

ITEM QTY. PART # DESCRIPTION

101* 1 4214M-P RATCHET HINGE CPT, MOR, SR

102 1 165SS-P RATCHET, STEEL-IT

103 1 168-P PAWL, WITH DRILLED HOLE

104 1 4409-P GRIP, HANDLE 7/8” X 4-3/4” RED

105 1 710-P RETAINER, RATCHET PUSH NUT 3/4

106 1 169-P SPRING, PAWL

107 1 170-P SCREW, 3/8 DIA X 5/8 SHOULDER

108 1 1296-P HHCS, 1/4-20 X 7-1/2 GR5

109 1 1297-P NUT, 1/4-20 REV HEX LOCK

110 1 4178-P NUT, 5/16-18 FLANGE LOCK, MOR

111* 1 4172SS-P PIN, CINCH CHAIN, 5000M-P

112* 1 4408-P CHAIN, CINCH, 9/32 SS, 38 LINK

113* 1 4414-P COVER, CINCH CHAIN, FLEX PVC

114 1 4710-P PIN, BOW TIE COTTER, MOR

115* 1 4744SS-P SNAP RING, EXTERNAL, 3/8” SS

116 1 165KITM-P KIT, RATCHET TIGHTENER, SR

* Recommended spare parts.

The Specialist In Drum Handling Equipment

Model 400AM-60-114

Hydra-Lift, 60”, Air Power Lift & Tilt

with Spark Resistant Parts

Operator’s Manual for Morse Hydra-Lift Karrier with Spark Resistant Parts

Model 400AM-60-114, Serial Number 0409 to 1110 (MMYY)

www.morsedrum.com

Recommended Spare Parts Kit Number: RP400-22.01

Kit Description: KIT, SPARE PARTS, 400AM-60-114

Qty. Part # Description

2 705-P CAP, HUB, PUSH-ON, 3/4”

2 87-P WHEEL, MORTUF, 8”, 3/4” BRG

2 3308-P CASTER, 4” SWIVEL, DBL RACE

1 64-P ROLL PIN, 3/16 X 1-1/4

1 3849B-P BEARING ASM, SLIDING IDLER

1 14-P GEAR, PINION, 7 TOOTH

1 13-P SPROCKET #35 36T, 3/4” BORE

1 735-P KEY, WOODRUFF, SIZE 9, ASA606

1 12-P CHAIN, ROLLER, #35 W/ M LINK

1 27-P SPUR GEAR W/ 1” SHAFT, HD TYPE

1 1116-P SPROCKET #35 17T, 1” BORE

1 2656-P KEY, SQUARE, 1/4 X 1”

10 193-P SCREW, 12-14 X 3/4 3 PT TEK

2 18-P BEARING, 1” ID X 2-1/2”

1 7-P BEARING, 3/4” ID X 1-1/2”

2 736-P KEY, WOODRUFF, SIZE 15, ASA808

1 30-P SPROCKET #40D 16T, 1” BORE

1 32-P SPROCKET #40D 32T, 1” BORE

1 31-P CHAIN, ROLLER, #40D W/ M. LINK

1 4214M-P RATCHET HINGE CPT, MOR, SR

1 4172SS-P PIN, CINCH CHAIN, 5000M-P

1 4408-P CHAIN, CINCH, 9/32 SS, 38 LINK

1 4414-P COVER, CINCH CHAIN, FLEX PVC

1 4744SS-P SNAP RING, EXTERNAL, 3/8” SS

2 M00018-P SPRING, TORSION, MON

2 M01326-P ROD, VALVE HANDLE, MON

2 M01157-P BALL, PLASTIC, HANDLE, MON

1 4195-P KIT, SEAL, 1-1/2 CYL 0504-

1 PS222001-P KIT, SEAL, HYD MOTOR, 351-P

1 K208-P KIT, SERVICE, 290-A-2P

Autres manuels morse Stockage

morse

morse 400A-96SS Manuel utilisateur

morse

morse 410-120 Manuel utilisateur

morse

morse MORSPEED 1000 Manuel utilisateur

morse

morse 185XGR Manuel utilisateur

morse

morse 400A-60-114 Manuel utilisateur

morse

morse 400A-72-124 Manuel utilisateur

morse

morse 185G Manuel utilisateur

morse

morse 310 Series Manuel utilisateur

morse

morse 1110 Manuel utilisateur

morse

morse 185A-HDPS Manuel utilisateur

morse

morse 400A-72SS-124 Manuel utilisateur

morse

morse 400AM-60-124 Manuel utilisateur

morse

morse Omni-Lift Karrier Manuel utilisateur

morse

morse 400AM-72 Manuel utilisateur

morse

morse MORCINCH 4556-P Manuel utilisateur

morse

morse MORCINCH 4556M-P Manuel utilisateur

morse

morse Hydra-Lift 400A-96 Manuel utilisateur

morse

morse 400A-60-124 Manuel utilisateur

morse

morse 285XGR Manuel utilisateur

morse

morse 311 Series Manuel utilisateur

morse

morse 515M-T Manuel utilisateur

morse

morse 82AM-GT Manuel utilisateur

morse

morse KONTROL-KARRIERS 185 Series Manuel utilisateur

morse

morse 310 Series Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur

morse 400AM-60-114 Manuel utilisateur

Manuels Stockage populaires d'autres marques
