Rugged, vandal-resistant cast aluminum top and polycarbonate dome

•

Thermostatically controlled 12VDC or 24VAC heater/blower and

surge protection

•

Comes standard with wall mount; optional pendant mount available

Key Features

RHW75

•

Meets IP66 standards for dust and water penetration

(pendant mount)

•

Indoor & outdoor models; outdoor models include two

heaters/blowers

•

Great for

monitoring applications: parking lots, high crime

areas, schools

Vandal-Resistant Dome

HOUSING

ENCLOSURES_

CERTIFIED

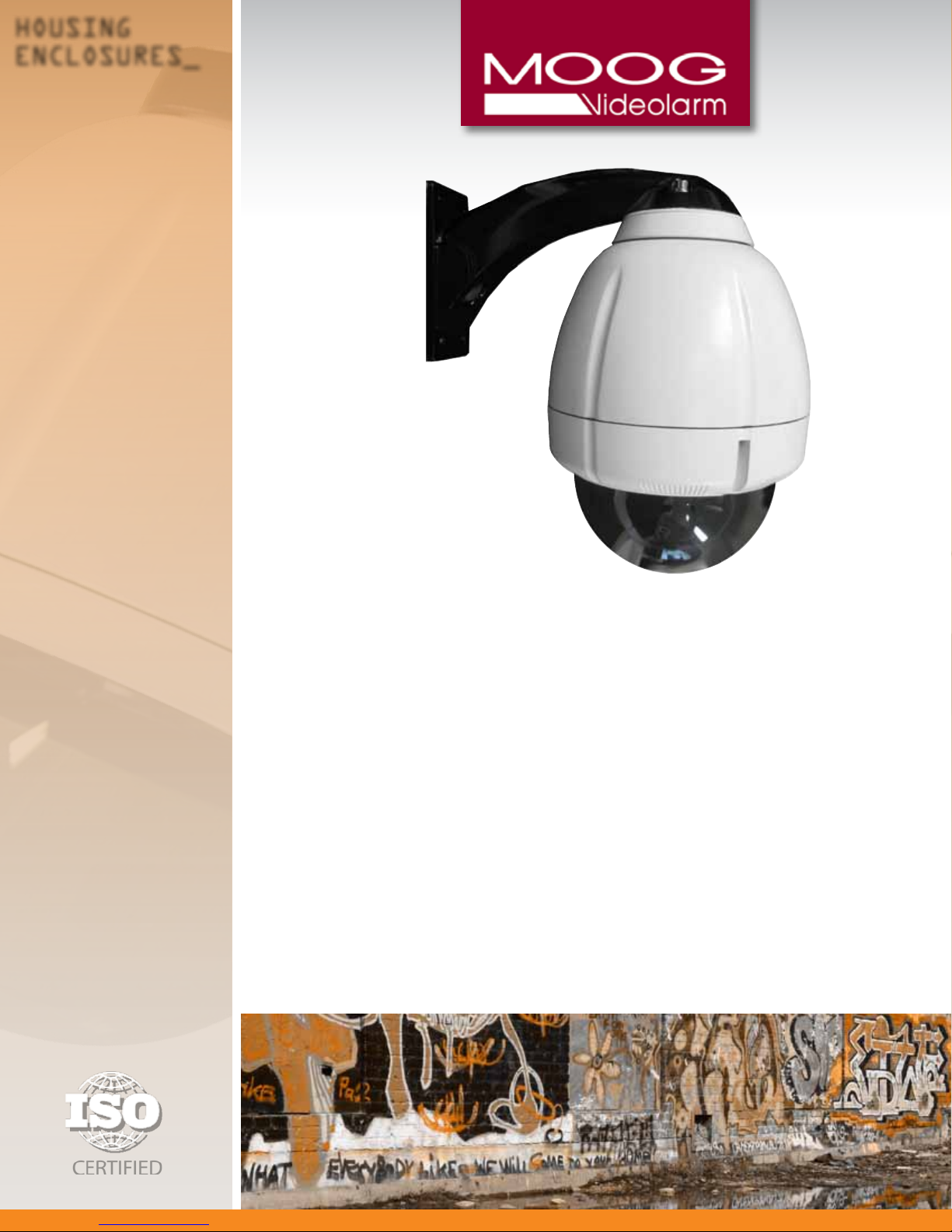

Ideal for applications needing extra protection from vandalistic attacks, Moog Videolarm’s 7” vandal-resistant, rugged housing

(RHW75 Series) offers versatility and adequate camera protection in a compact/attractive design. Constructed of a cast aluminum

top, and polycarbonate dome, the RHW75 Series boasts an IP66 rating. The RHW75 Series is available in a variety of models,

designed to suit your individual needs. Select from one of our outdoor or indoor, wall or pendant mount options. The RHW75 Series

includes Moog Videolarm’s universal camera bracket system which enables you to utilize most of today’s leading IP or analog camera

systems (xed or PTZ). Outdoor models include two heaters and two blowers.

RHW75_

RHW75C2N / IRHP75TN / RHW75C12N

The RHW75C2N is a IP network ready 7” vandal-resistant outdoor dome

housing with wall mount, rugged aluminum top and polycarbonate clear dome,

with 24VAC input, heater/blower, for an IP network PTZ camera, 120 to 24VAC

transformer. The IRHP75TN is the indoor version of the RHW75C2N and has no

electronics. The RHW75C12N is the 12VDC version of the RHW75C2N

Outdoor / Indoor PTZ Camera:

RHW75CF2N

The RHW75CF2N is a IP network ready 7” vandal-resistant outdoor dome

housing with wall mount, rugged cast aluminum top and polycarbonate clear

dome, with 24VAC input, heater/blower, for an IP network xed camera, 120 to

24VAC transformer. The IRHP75TF is the indoor version with no electronics

Outdoor/Indoor Fixed Camera:

SPECIFICATIONS:

Electrical Specications

Power Requirements

Stsandard Outdoor Model:

24VAC 52W

Network Outdoor Model:

24VAC, 80W (includes 20W for heater)

Environmental Specications

Operating Temperature:

-40° F to 120° F (-40° C to + 49° C)

Meets IK10 Specications

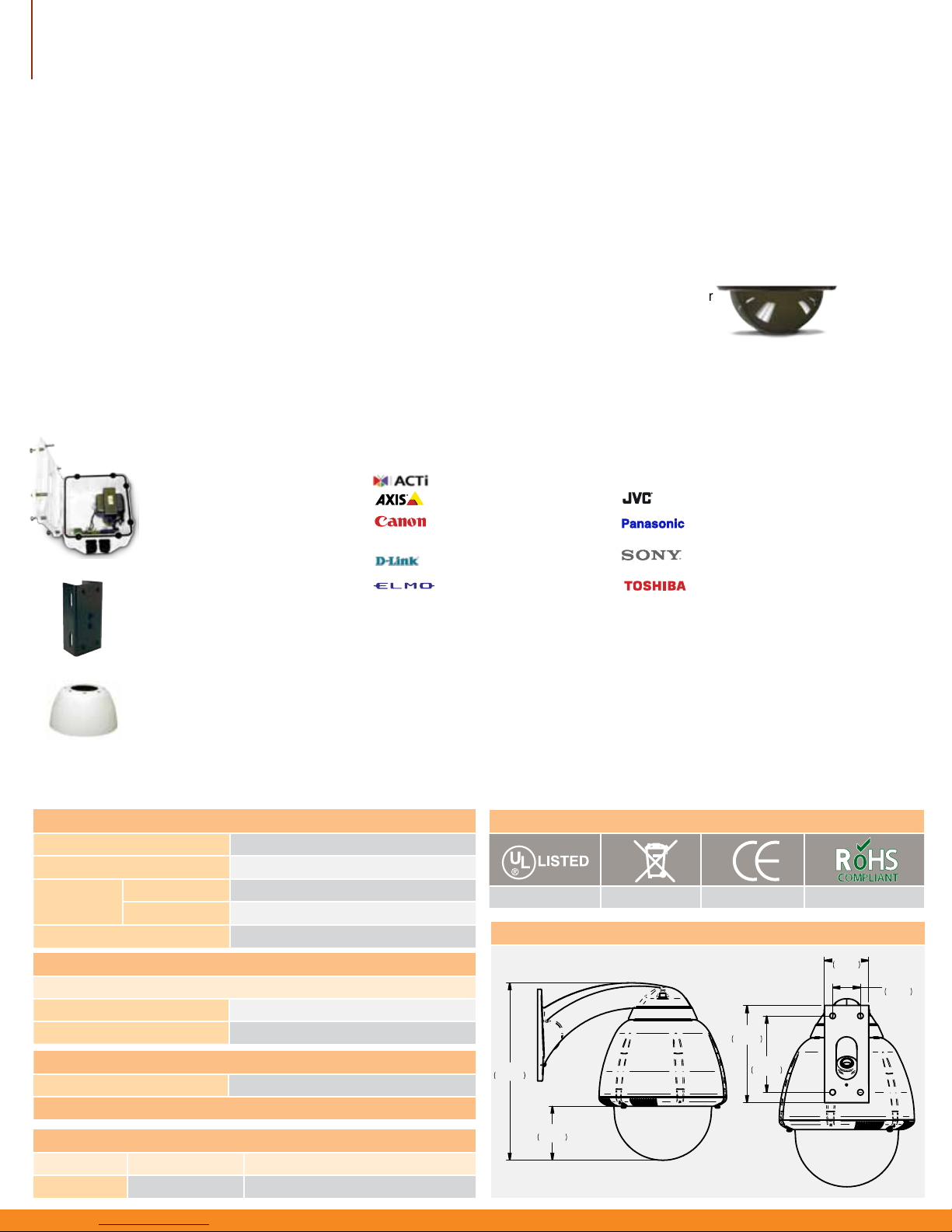

Architectural Drawings

Shipping Specications

MODEL SHIPPING WEIGHT BOX DIMENSIONS

RHW75

14 lbs (6.4 kg) 17’ x 14” x 17” (431.8 x 355.6 x 431.8mm)

Dimensions are in inches

Certications and Ratings

UL Listed WEEE CE RoHS

13.54

343.9

4.12

104.5

2.00

50.8

3.19

80.9

5.50

139.7

7.00

177.8

Product and company names listed are trademarks or trade names of their respective companies.

ACCESSORIES:

SSY7

Sunshield for RH7 or

FusionDome FD7 housing

PB24

Rugged cast aluminum

power box with 84vA

and 24vA power supply

APM3

Aluminum pole mount bracket

with female inserts

COMPATIBLE CAMERAS:

CAN

ACM-8201/8211,ACM-8511, CAM-6510 iCanView 250/252

213, 214, 215, 231D, 232D, 233D VN-C625U, VN-V685U, VN-V686BU, VN-V686U

VB-C300, VB-C50i, VB-C60, VC-C50i BB-HCE381A, BB-HCE481A, BB-HCE580A,

BB-HCE581A, BB-HCE581A-W, WV-NS202A

dcs 5000 Series, dcs 6600 Series SNC-RH124, SNC-RS44/46, SNC-RX530/550/570

SNC-RZ25, SNC-RZ30, SNC-RZ50

PTC-200C, PTC-400C, PTC-401C IP IK-WB21A

To view the latest listing of compatible cameras please visit www.videolarm.com/thirdparty.jsp

PTZ:

FIXED COMPATIBLE CAMERAS ALSO AVAILABLE

For detailed list see web site****

Tinted and Clear domes available specify “C” for Clear or “T” for Tinted. Wall Mounts and Pendant Mounts available specify “W” for

Wall Mount or “P” for Pendant Mount

Moog Videolarm, 2525 Park Central Boulevard, Decatur, GA 30035 USA + 1.800.554.1124 www.videolarm.com

500-675 + 08-05-2010

Mechanical Specications

Size (h*w*d):

14.7” x 8.2” x 14.5” (374 x 208 x 369mm)

Weight:

13 lbs (6kg)

Construction TOP:

3mm engineered plastic

DOME:

Polycarbonate

Mount Bracket:

Machined & cast aluminum
