Montwill M2-14 Manuel utilisateur

User manual M2

Alternating voltage / Alternating current signal rms-value (TRMS)

0-50 VAC, 0-10 VAC, 0-1 AAC, 0-5 AAC

96x48M2_14GB.pdf update: 28.05.2020

Technical features:

• red display of -19999…99999 Digits (optional: green, orange, blue)

• installation depth: 70 mm without plug-in terminal

• min/max-memory

• 30 adjustable supporting points

• display flashing at threshold value exceedance / undercut

• digital input for triggering of Hold, Tara

• permanent min/max value recording

• volume metering (totaliser)

• mathematical functions like reciprocal value, square roots, squaring or rounding

• setpoint generator

• sliding averaging

• brightness control

• programming interlock via access code

• protection class IP65 at the front

• pluggable screw terminal

• optional galvanic insulated digital input or analog output

• optional 2 relay outputs

• accessories: PC-based configuration kit PM-TOOL incl. CD and USB-adapter for devices

without keypad and for a simple adjustment of standard devices

Identification

STANDARD-TYPES ORDER NUMBER

AC current, AC voltage

Housing size: 96x48 mm

M2-1VR5B.0004.570xD

M2-1VR5B.0004.670xD

Please state physical unit by order, e.g. A.

Options – breakdown of order code:

M 2- 1 V R 5 B. 0 0 0 4. 6 7 2 x D

Basic type M2 Dimension

D physical unit

Installation depth

89 mm 2 Version

incl. plug-in terminal x internal version

Housing size Switching points

B96xH48xT70 mm 1 0 no switching point

2 2 relay outputs

Type of display

V, A V Protection class

1 without keypad,

Display colour operation via PM-TOOL

Blue B 7 IP65 / plug-in terminal

Green G

Red R Voltage supply

Yellow Y 4 115 VAC

5 230 VAC

Number of digits 6 10-30 VDC

5-digit 5

Measuring input

Digit height 4 AC current /

14 mm BAC voltage TRMS

Digital input Analog output

without 0 0 without

one I X 0-10 VDC, 0/4-20 mA

Sensor supply

0 without

Contents

1. Brief description 1

2. Assembly 2

3. Electrical connection 3

4. Description of function and operation 4

4.1. Programming software PM-TOOL 5

5. Setting up the device 6

5.1. Switching on 6

5.2. Standard parameterisation (flat operation level) 6

Value assignment for the triggering of the signal input

5.3. Programming interlock 9

Activation/Deactivation of the programming interlock or change into

professional or flat operation level

5.4. Extended parametersation (professional operation level) 10

5.4.1. Signal input parameters 10

Value assignment for the triggering of the signal input incl. linearisation

5.4.2. General device parameters 13

Superior device functions like Hold, Tara, min/max permanent, setpoint value function /

nominal value function, averaging, brightness control, suppression of negative offsets,

as well as the control of the digital input and keyboard layout

5.4.3. Safety parameters 19

Assignment of user and master code to lock or to receive access to defined parameter

such as analog output and alarms, etc.

5.4.4. Analog parameters 20

Analog output functions

5.4.5. Relay functions 22

Parameter for setpoint definition

5.4.6. Alarm parameters 25

Actuator and dependencies of the alarms

5.4.7. Totaliser (Volume metering) 27

Parameter for calculation of the sum function

6. Reset to factory settings 28

Reset parameters onto the delivery state

7. Alarms / Relays 29

Functional principle of the switching outputs

8. Sensor aligment 31

Diagram of functional sequences for sensors with existing adjustable resistor

9. Technical data 32

10. Safety advices 34

11. Error elimination 35

1. Brief description

The panel meter instrument M2-14 is a 5-digit device for AC current / AC voltage signals

(TRMS) and a visual threshold value monitoring via the display. The configuration happens

via four keys at the front or by the optional PC software PM-TOOL. The integrated

programming interlock prevents unrequested changes of parameters and can be unlocked

again with an individual code. Optional the following functions are available: a digital input for

triggering of Hold (Tara), aswell as one analog output for further evaluating in the unit.

With help of the galvanic isolated setpoints (optional), free adjustable limit values can be

controlled and reported to a superior master display.

The electrical connection is done via plug-in terminals on the back side.

Selectable functions like e.g. the recall of the min/max-value, an averaging of the measuring

signals, a nominal presetting or setpoint presetting, a direct threshold value regulation during

operation mode and further measuring setpoints for linearisation, complete the modern

device concept.

2. Assembly

Please read the Safety advices on page 34 before installation and keep this user manual for

future reference.

1. After removing the fixing elements, insert the device.

2. Check the seal to make sure it fits securely.

3. Click the fixing elements back into place and tighten the clamping screws by hand. Then use

a screwdriver to tighten them another half a turn.

CAUTION! The torque should not exceed 0.1 Nm!

The dimension symbols can be exchanged before installation via a channel on the side!

Sealing

48,0

3,0

Gap for physical unit

89,0

3. Electrical connection

Type M2-1VR5B.0004.470xD supply of 115 VAC

Type M2-1VR5B.0004.570xD supply of 230 VAC

Type M2-1VR5B.0004.670xD supply of 10-30 VDC

0-5 AAC

0...1 AAC

1 2 3 10 1194 5 6 7 8

0-10 VDC

Digital

input

(Option)

7 8 9

0/4-20 mA

Analog output

(Option)

21 22 23 24 25 26

S1 S2

Relay option

0...10 VAC

0...50 VAC

10-30 VDC

115 VAC

230 VAC

7 8 9

Digital input

10-30 VDC

M2 with digital input and external

voltage supply source

4. Description of function and operation

Operation

The operation is divided into three different levels.

Menu level (delivery status)

This level is designed for the standard settings of the device. Only menu items which are

sufficent to set the device into operation are displayed. To get into the professional level, run

through the menu level and parameterise under menu item .

Menu group level (complete function volume)

Suited for complex applications as e.g. linkage of alarms, setpoint treatment, totaliser function

etc.. In this level function groups which allow an extended parameterisation of the standard

settings are availabe. To leave the menu group level, run through this level and parameterise

under menu item .

Parameterisation level:

Parameters deposited in the menu item can here be parameterised. Functions that can be

changed or adjusted, are always signalised by a flashing of the display. Settings that are

made in the parameterisation level are confirmed with [P] and thus saved. By pressing the

[O]-key („zero-key“) it leads to a break-off of the value input and to a change into the menu

level. All adjustments are saved automatically by the device and changes into operating

mode, if no further key operation is done within the next 10 seconds.

Level Key Description

Menu level

Change to parameterisation level and deposited values.

Keys for up and down navigation in the menu level.

Change into operation mode.

Parameterisation

level

Confirms the changes made at the parameterisation level.

Adjustment of the value / the setting.

Change into menu level or break-off in value input.

Menu group level

Change to menu level.

Keys for up and down navigation in the menu group level.

Change into operation mode or back into menu level.

4. Description of function and operation

Function chart:

4.1 Parameterisation software PM-TOOL:

Part of the PM-TOOL are the software on CD and an USB-cable with device adapter. The

connection happens via a 4-pole micromatch-plug on the back side of the device, to the

PC-side the connection happens via an USB plug.

System requirements: PC incl. USB interface

Software: Windows XP, Windows VISTA

With this tool the device configuration can be generated, omitted and saved on the PC. The

parameters can be changed via the easy to handle program surface, whereat the operating

mode and the possible selection options can be preset by the program.

5.1. Switching on

Once the installation is complete, start the device by applying the voltage supply. Before,

check once again that all electrical connections are correct.

Starting sequence

For 1 second during the switching-on process, the segment test ( ) is displayed

followed by an indication of the software type and, after that, also for 1 second the software

version. After the starting sequence, the device switches to operation/display mode.

5.2. Standard parameterisation: (Flat operation level)

To parameterise the display, press the [P]-key in operating mode for 1 second. The display

then changes to the menu level with the first menu item .

5. Setting up the device

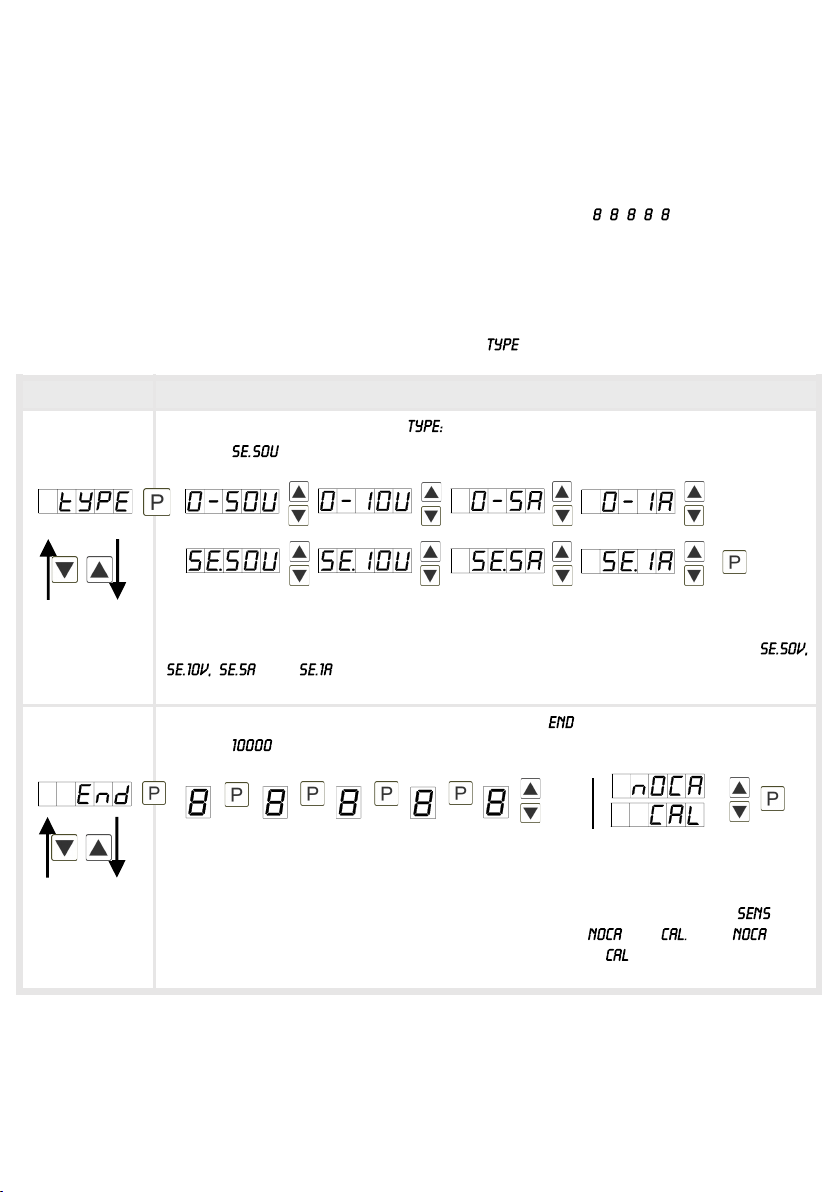

Menu level Parameterisation level

Selection of the input signal,

Default:

Available as measuring input options are 0-50 VAC/0-10 VAC or 0-5 AAC/0-1 AAC

signals as works calibration (without application of the sensor signal) and

and as sensor calibration (with the sensor applied). Select with

[▲] [▼] and confirm the selection with [P].

Setting the end value of the measuring range, :

Default:

Set the end value from the smallest to the highest digit with [▲] [▼] and confirm

each digit with [P]. A minus sign can only be parameterized on the highest value

digit. After the last digit, the display switches back to the menu level. If was

selected as input option, one can only select between and With , only

the previously set display value is taken over, and with , the device takes over

both the display value and the analogue input value.

5. Setting up the device

Menu level Parameterisation level

Setting the start/offset value of the measuring range, :

Default:

Enter the start/offset value from the smallest to the highest digit with [▲] [▼] and

confirm each digit with [P]. After the last digit the display switches back to the

menu level. If was selected as input option, one can only select between

and With , only the previously set display value is taken over, and with ,

the device takes over both the display value and the analogue input value.

Setting the decimal point, :

Default:

The decimal point on the display can be moved with [▲] [▼] and confirmed with

[P]. The display then switches back to the menu level again.

Setting up the display time, :

Default:

The display time is set with [▲] [▼]. The display moves up in increments of 0.1 up

to 1 second and in increments of 1.0 up to 10.0 seconds. Confirm the selection by

pressing the [P] button. The display then switches back to the menu level again.

Selection of analog output,

Default:

Three output signals are available: 0-10 VDC, 0-20 mA and 4-20 mA, with this

function, the demanded signal is selected.

Setting up the final value of the analog output,

Default:

The final value is adjusted from the smallest digit to the highest digit with [▲] [▼]

and digit by digit confirmed with [P]. A minus sign can only be parameterised on

the highest digit. After the last digit, the device changes back into menu level.

then

Table des matières

Autres manuels montwill Instrument de mesure

montwill

montwill M3-34H Manuel utilisateur

montwill

montwill M1 Manuel utilisateur

montwill

montwill M2 Series Manuel utilisateur

montwill

montwill M2-1F Series Manuel utilisateur

montwill

montwill M3 Series Manuel utilisateur

montwill

montwill M1 Manuel utilisateur

montwill

montwill M3 Series Manuel utilisateur

montwill

montwill MB2-2V Manuel utilisateur

montwill

montwill M2 Series Manuel utilisateur

montwill

montwill PVE 4.001.1422B Manuel utilisateur

montwill

montwill M3-F Manuel utilisateur

montwill

montwill M1 Manuel utilisateur

montwill

montwill M3 Series Manuel utilisateur

montwill

montwill M1 Manuel utilisateur

montwill

montwill M1 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur

montwill M2-14 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques
