montpellier MON-TCH160 Manuel utilisateur
1
Installation and Operating Instructions
MON-TCH160 & MON-TCH190
60cm & 90cm Slim Telescopic Cooker Hood
(60cm model shown for indicative purposes only)
Please read these instructions carefully before attempting to install or use this appliance.
It is advisable to keep these instructions in a safe place for future reference.
N.B. Should your appliance require attention, our service agents will not be able to book
a service call without your unique serial number which can be found on the last page of
this manual.
2
Introduction
Thank you for choosing this Montpellier appliance. It has been
designed to give years of trouble-free use provided it is installed and
maintained correctly.
Please read these instructions carefully before installing or using your
appliance. It is advisable to keep your purchase and installation receipts
with these instructions in a safe place for future reference. Included is
some important safety information in addition to guidelines and
recommendations that will enable you to take full advantage of all the
functions available.
This quality appliance has been tested and certified to meet all applicable
UK electrical and safety standards.
This appliance must be installed and connected in accordance with
current regulations by a qualified electrician.
After unpacking the appliance ensure that there is no visible damage. If the
appliance has been damaged during transit, do not use it, contact your
retailer immediately.
3
Your 2 year Manufacturer's guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new Montpellier appliance carries a free guarantee which protects you against the cost of
repairs during the first 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number and proof
of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24
months prior to the date of claim.
What is not covered under the Guarantee:
Any appliance not correctly installed and operated in accordance with the manufacturer's
instructions.
Any appliance that is used for anything other than domestic purposes.
Any defect caused by accident, misuse, unauthorized modification or inexpert repair.
Cost of Call-out where a fault cannot be found with the appliance.
Cost of Call-out for work covering routine maintenance, such as, but not exclusively,
cleaning of filters or defrosting.
Cost of Call-out for work required to correct the alignment of doors following door
reversal procedures carried out by you.
Use of the appliance by anyone other than the Householder.
Use in any commercial environment.
Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable
items which require routine replacement.
Repair costs incurred that have not been authorised by Repairtech and/or carried out by
a non-approved Repairtech engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack and return it with a stamp
affixed or Alternatively you can Register online at www.repairtechuk.com
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the model number, serial number,
date of purchase and your retailer’s details before registering a fault.
Your service call cannot progress without this information.
4

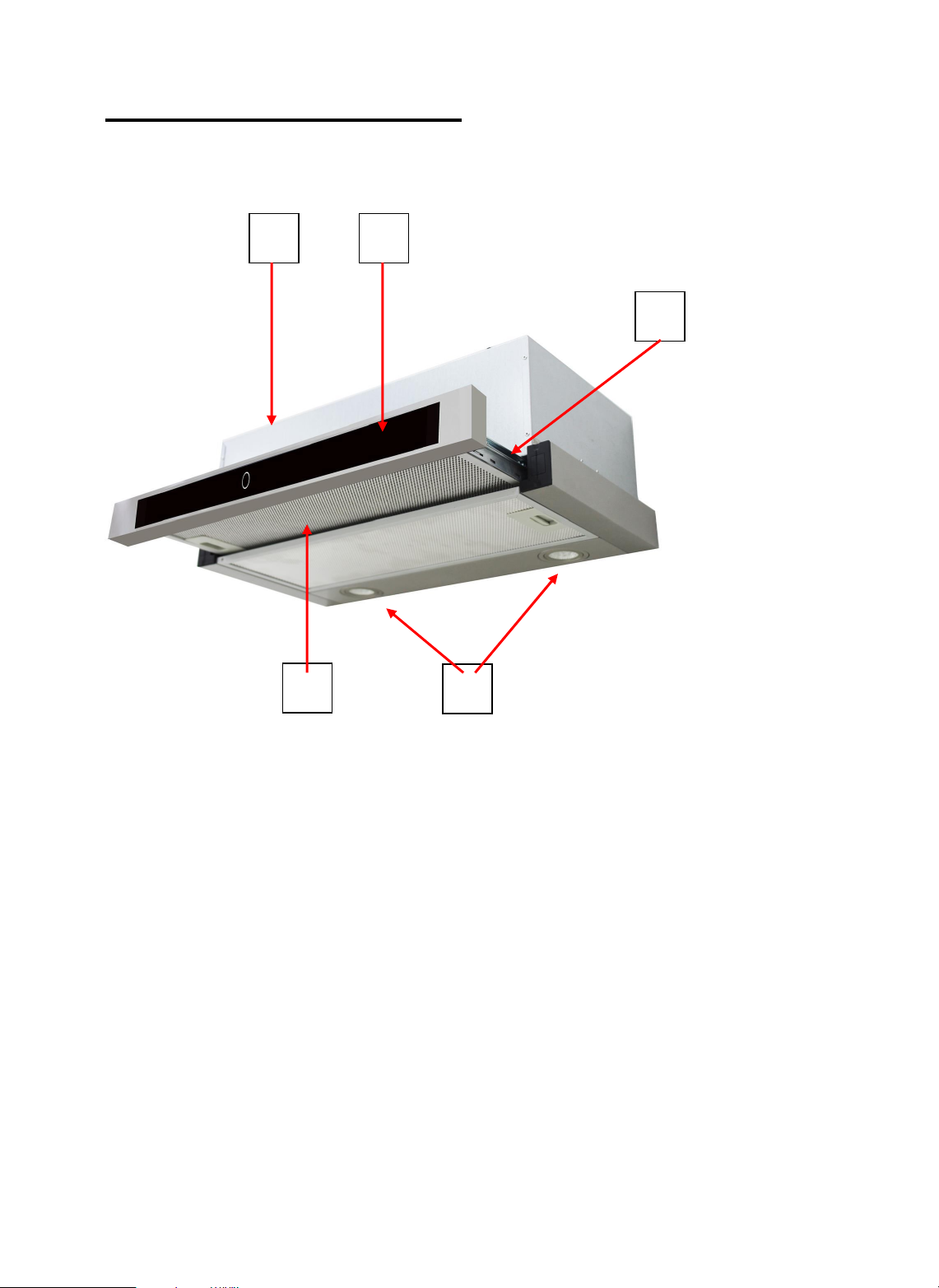

Description of the Appliance
1. Main Body Section
2. Telescopic Section
3. Lights
4. Function Control Panel
5. Aluminium Filter
1.
2.
4.
5. 3.
5
CONTENTS:
Section 1. Installation
Section 2. Safety Advice
Section 3. Operating the Appliance
Section 4. Maintenance
Section 5. Electrical Diagram & Installation Dimensions
6
Section 1. Installation
N.B. Full Dimensions are shown in Section 5. (Page 12)
A qualified installer must carry out the installation.
This appliance can be used fully ‘vented’ via a ducting hose (not supplied)
and external wall vent, or in ‘re-circulation’ mode by using the charcoal filter
provided.
You must use a charcoal filter in re-circulation mode. Do not
fit a charcoal filter when venting to the outside.
Position the hood against the wall where it will be sited and mark out the
position of the two (2) fixing holes.
Drill two (2) 8mm holes and fix the body of the hood to the wall using the
fixings supplied.
Position the one way valve into the cooker hood
Drill four (4) 6mm holes into the base of the overhanging cupboard/panel and
fix the hood to the cupboard/panel.
If externally venting, you will need to cut a hole for the vent hose in the
cupboard/panel.
7
The cooker hood should ideally be installed between 65-75cm above the
work surface/cooker hob. DO NOT INSTALL BELOW 65cm.

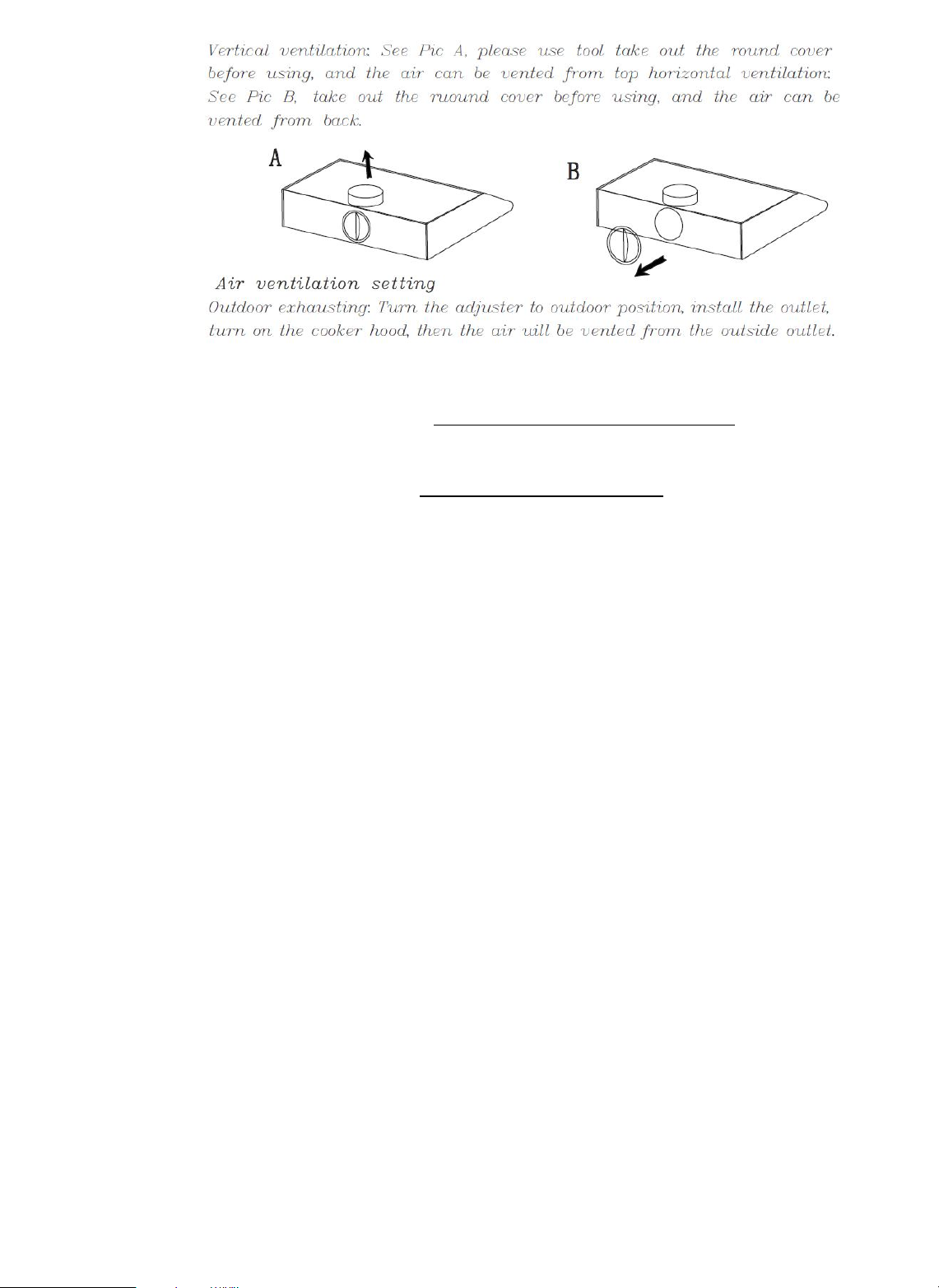

If you want to use this appliance fully ‘vented’, connect a flexible ducting
hose to the one-way valve on the motor and connect the other end to the
wall outlet (not supplied). Do not fit the charcoal filter!
N.B. To ensure that
your cooker hood operates efficiently the hose length must not exceed
2m with a maximum of one bend.
N.B. Your installer will supply a suitable flexible hose and wall outlet.
This appliance must not share the same air outlet as another appliance, i.e.
gas heating outlet.
The mains lead should be connected to a suitably positioned fused electrical
spur, protected by a 13amp fuse.
Ensure that dust and debris is cleaned up from the immediate area of the
appliance prior to it being switched on and tested for the first time.
8
Section 2. Safety Advice
This appliance is manufactured and intended for DOMESTIC use only. Any
guarantee offered with the appliance is not valid for any installation in a
commercial environment.
This appliance incorporates stainless steel. Handle with care as some of the
edges may be sharp.
The main filter must be cleaned on a regular basis in order to help maintain
the appliance in good working order.
Always turn off the electricity supply before cleaning the filter or the appliance
exterior.
When replacing the bulbs or charcoal filter, ensure that you fit a ‘like for like’
replacement.
We recommend that this appliance is installed by a professional installer.
This appliance shall not be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction on how to use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
If the power supply cord is damaged, it must be replaced by the
manufacturer, it’s service agent or similarly qualified persons in order to avoid
a hazard.
9
Section 3. Operating the Appliance
1. Digital On/Off & Display Key
2. Power Down Key
3. Power Up Key
4. Delay Key
5. Lights
For best results, we recommend that the Cooker Hood is switched on at
least 10 minutes prior to cooking and left to run for a period of 10 minutes
after cooking is finished.
To Operate:
Pull/slide the Telescopic unit out towards you.
Press the Digital On/Off & Display key to switch the unit on
Control the fan speed by pressing the Power Up and Power Down
keys
Turn the lights on and off by using the Lights key
Press the Delay key repeatedly to operate the delay function between
1 and 10 minutes. When activated, the display will flash and at the end
of the set time, the unit will switch off automatically.
If you have not used the Delay function, ensure that you turn the unit
(and lights) off and push/slide the telescopic section away after use.
N.B. If you switch the unit on but do not touch any of the other keys
within 2 minutes, the unit will automatically switch itself off.
1.
2.
3.
4.
5.
10
Section 4. Maintenance
4.1. Cleaning the Main Filter
Periodically remove the aluminium filter cover and wash with warm soapy
water. Ensure the filter is dry before re-fitting.
The main body of the cooker hood should be cleaned with warm soapy water –
never use abrasive detergents on either the filter or main body.
4.2. Replacing the LED Bulbs
To replace an LED bulb, isolate the power, remove the light cover(s) and
remove the bulb. Replace it with the same type/wattage (1.5W LED) and
replace the light cover.

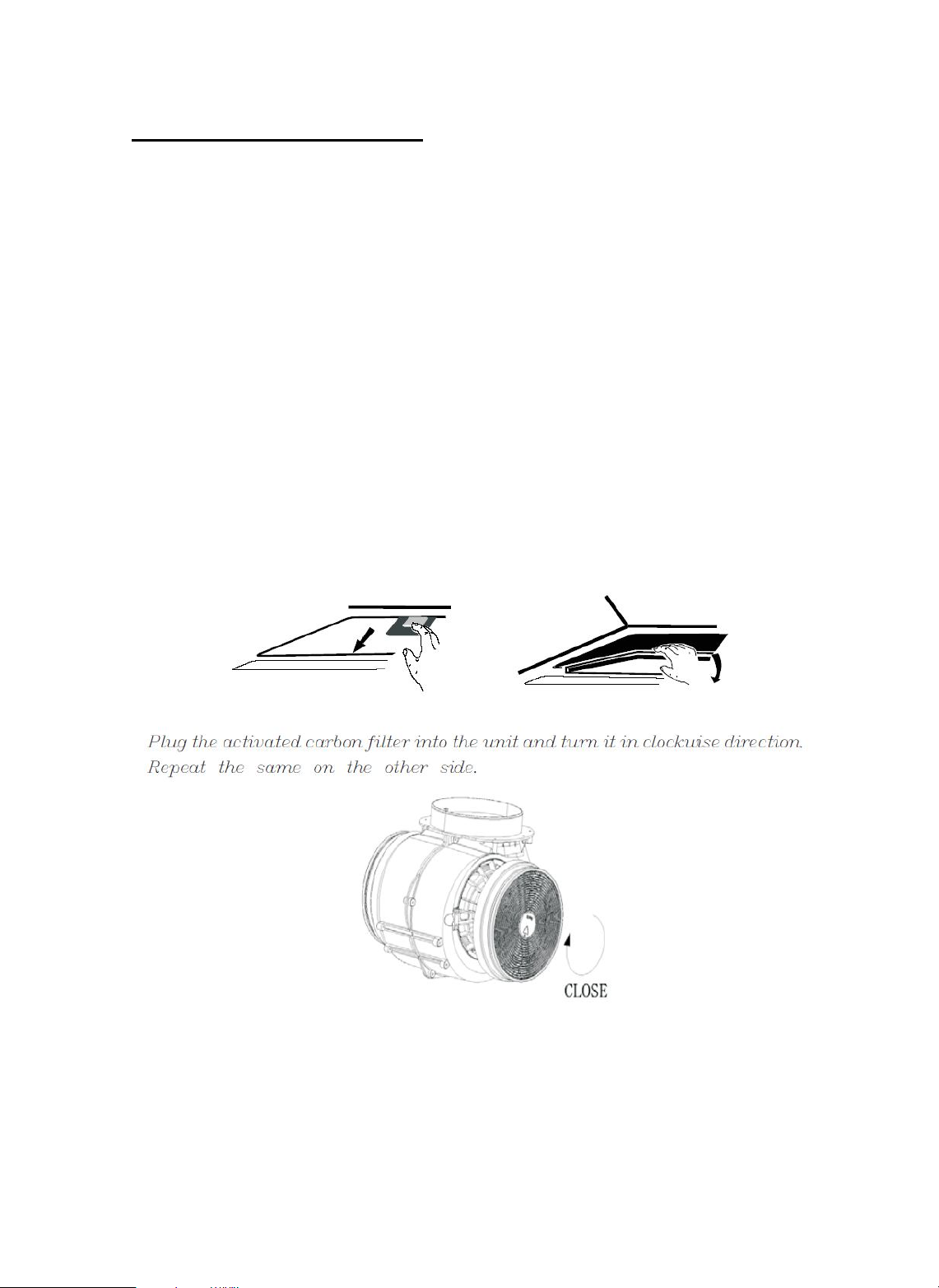

4.3. Replacing the Charcoal Filter
Make sure the filter is ‘locked’ into position and note that suction power is
lowered when using carbon filters.
