Monoprice 10247 Manuel utilisateur

5.8GHz Wireless

Audio/Video Extender

With Built-in Remote Control Extender

PID: 10247

OWNERS MANUAL

TABLE OF CONTENTS

Introduction 1

Features 2

Package Contents 2

SafetyWarnings 3

Connections and Controls 4

Installation 5

Operation 7

Troubleshooting 10

Specifications 11

INTRODUCTION

Thank you for purchasing the Monoprice 10247 Wireless Audio/Video Extender! For best

results please read this manual carefully, paying extra attention to the safety warnings.

Keep this manual in a safe place for future reference.

The Monoprice 10247 Wireless Audio/Video Extender adds wireless flexibility to your home

audio and video system. It can be used to wirelessly extend the signals from a VCR,

satellite receiver, camcorder, and stereo audio components. It operates on the 5.8 GHz

wireless frequency band, which is less crowded and has less interference than the

traditional 2.4 GHz wireless frequency.

This extender has many different applications, including the ability to:

Watch a movie on the TV in your bedroom without moving your DVD player

Listen to music in the backyard on a pair of powered speakers

Watch the game on a portable TV in the garage without running a long cable

Use your camcorder to monitor the baby's nap while working in another room

FEATURES

Avoids the crowded 2.4GHz band by operating at 5.8GHz

Compatible with S-Video and Composite video signals

Supports 2-channel stereo audio signals

Adjustable antenna for improved performance

Can be adjusted to operate on any of four different wireless channels

Includes a built-in IR remote control repeater

Includes AC adapters and AV cables

Compatible with 38KHz and 56KHz IR signals

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service for

a replacement.

1x 5.8 GHz Transmitter unit

1x 5.8 GHz Receiver unit

2x AC power adapter (120 VAC/60Hz, 12 VDC/250mA) with 73" cord

2x 3-conductor RCA 45" Audio/Video cables

1x IR Transmitter bulb with 105" cable

SAFETY WARNINGS

To avoid personal injury or damage to your equipment, please adhere to the following

safety guidelines:

1. Do not expose this device to water or moisture of any kind. Do not place objects filled

with liquids on or near this device.

2. Do not install this device in an enclosed space. Ensure that there is sufficient ventilation

to keep the unit from overheating.

3. Do not place objects on this device or otherwise block the cooling vents.

4. Do not install near any heat sources, such as stoves, radiators, or fireplaces.

5. Do not place naked flames, such as candles, on or near this device.

6. Clean only with a dry cloth. Do not use liquid cleaners or solvents to clean this device.

7. Unplug the unit during lightning storms or when the unit will be unused for a long period

of time.

8. Do not allow the power cords to be walked on, pinched, tripped over, or otherwise

damaged.

CONNECTIONS AND CONTROLS

The following diagrams identify the various connections and controls on the Transmitter

and Receiver units of the Extender:

Transmitter Receiver Transmitter & Receiver (Rear view)

Accessories

Infrared

Extender

Adaptor

Transmitter and Receiver

1. RF Channel Selector

2. 5.8 GHz Antenna

3. ON / OFF Switch

4. Infrared Remote Output Jack

5. IR Frequency Selection

Rear view of Transmitter & Receiver

6. Audio L

7. Audio R

8. Composite Video

9. S-Video

10. DC Power Jack

Accessories

2x AC Adapters (12 VDC, 250mA)

1x IR Transmitter Bulb

2x Audio/Video Cables

INSTALLATION

1. Using one of the included video cables, connect the yellow, red, and white RCA plugs to

the corresponding jacks on your DVD player (or other video source device).

2. Plug the other end of the video cable into the RCA jacks on the back of the Transmitter

unit.

Rear

iew

Satellite

Receiver

Power

Adaptor

ON/OFF

Switch

DVD

S-Video cable

RCA cable

Rear view of

source device

3. (Optional) Plug the IR transmitter bulb into the Remote Out jack on the side of the

Transmitter unit. Position the transmitter bulb so that it can "see" the IR receiver "eye" on

the DVD player.

Side View Cable, Satellite Receiver,

DVD player, VCR, VCD

IR OUT

Front View

ON/OFF

Switch

Power

Adaptor

Position the IR transmitter bulb so that it has a clear line-o

-sight to the IR

receiver "eye" on the DVD player and is no more than about 18" away.

4. Plug the DC connector from one of the AC adapters into the DC 5V input on the back of

the Transmitter unit. Plug the other end into a 100-120 VAC/60Hz power outlet.

5. Using one of the included video cables, connect the yellow, red, and white RCA plugs to

the corresponding jacks on your TV.

7. Plug the other end of the video cable into the RCA jacks on the back of the Receiver

unit.

Rear View

Power

Adaptor

ON/OFF

Switch

Rear

iew

S-Video cable

RCA cable

8. Plug the DC connector from one of the AC adapters into the DC 5V input on the back of

the Transmitter unit. Plug the other end into a 100-120 VAC/60Hz power outlet.

Notes:

1. If both the source device and the television support S-Video you can use that in

place of the Composite (yellow) RCA video connection. S-Video provides better

picture quality so should be used whenever possible.

2. Do not use both a Composite and S-Video connection at the same time.

3. The system's maximum range depends on the presence of obstructions. With

clear line-of-sight it can achieve distances up to 200 feet. Inside a home, the

effective range is reduced to about 75 feet.

4. Do not make any connections to the Receiver or Transmitter while either unit is

powered on.

OPERATION

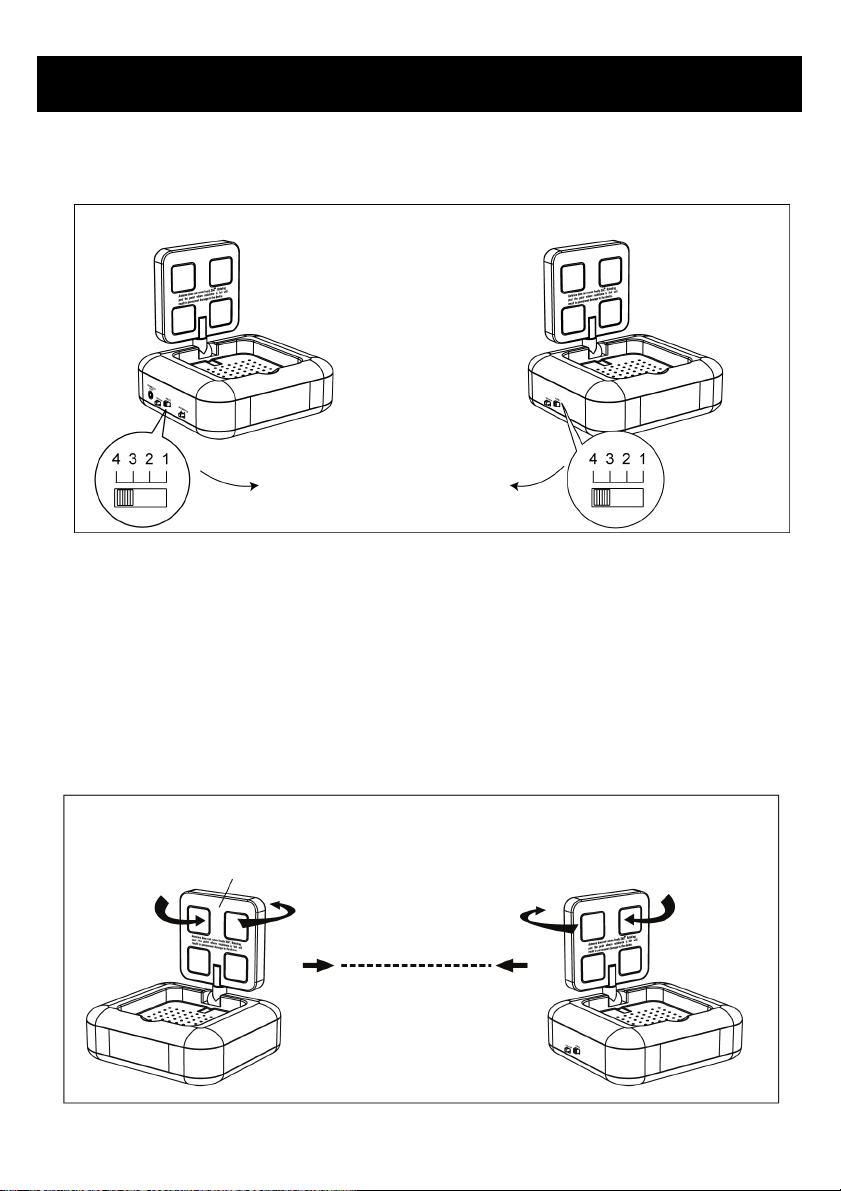

1. Use the Channel Selection switch on the Transmitter to select one of the four wireless

channels. Set the Channel Selection switch on the Receiver to the same channel.

Transmitter Receiver

Channel selection button

must be set to the same channel

on both the transmitter & receiver.

2. Pull the antenna out of the base of the Transmitter until the face is vertical. Rotate the

antenna until the side with the dot (the inside part) is facing the location of the Receiver

unit.

Caution! The antenna does not rotate 360 degrees. Do not force it past any

resistance.

3. Pull the antenna out of the base of the Receiver until the face is vertical. Rotate the

antenna until the side with the dot (the inside part) is facing the location of the Transmitter

unit.

Transmitter Receiver

Side with round dot

urn the side with round dot

face-to-face to obtain the

best performance.

For best performance position the

antennas so that they are

face-to-face (the side with the dot).

Receiver

Transmitter

Receiver

IR Receiver

TV For best IR reception performance the

Receiver unit should be positioned so

that the front is slightly ahead of the

Television screen.

Side View

For best results, the remote control should be positioned within 15 degrees of the IR

sensing window on the Receiver unit. Additionally, it should be no closer than 1 foot and no

further than 15 feet.

IR sensor window

Remote Control

Receiver

Distance not less than 1 foot and no more than 15 feet
