Owners Manual

monitoraudio.co.uk 1

Contents

ENGLISH

Important Safety Instructions 2

Safety Instructions For Fixing Your Vector

Loudspeakers to a Wall 3

Re-cycling 3

RoHS Declaration of Conformity 3

Background 3

Introduction to Vector 4

Optimum Speaker Placement 5

Speciﬁcations 6

Guarantee and Service 6

Claims under this Guarantee 7

Data Protection 7

Owner Information 7

EC Declaration of Conformity 8

2Vector

Important Safety Instructions

Please read these instructions1. .

Please keep these instructions.2.

Heed all warnings.3.

Follow all instructions.4.

Do not use this apparatus with water.5.

Clean only with a dry cloth.6. Great care and attention has gone into the materials chosen

to produce the Vector Series. A gentle wipe with a dry, clean cloth is all that is required to

remove any dust. Treat them as you would a ﬁne piece of furniture because that is how

they have been designed.

Do not install near any heat source7. , such as radiators, heat registers, stoves, or other

apparatus (including ampliﬁers) that produce heat.

Only use attachments/ accessories speciﬁed by Monitor Audio.8.

Use only with the cart9. , stand, tripod, bracket, or table speciﬁed by Monitor Audio or sold

with the apparatus. When a cart is used, use caution when moving the cart/ apparatus

combination to avoid injury from tip-over.

Refer all servicing to qualiﬁed service personnel.10. Servicing is required when the

apparatus has been damaged in any way, such as power supply cord or plug is damaged,

liquid has been spilled or objects have fallen onto the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally or has been dropped.

This apparatus shall not be exposed to dripping or splashing water11. and that no

object ﬁlled with liquids such as vases shall be placed on the apparatus.

This exclamation point within an equilateral triangle12. is intended to alert the user to the

presence of important maintenance (servicing) instructions in the literature accompanying

the appliance.

Safety Instructions For Fixing Your Vector Loudspeakers to a Wall

WARNING: For safety reasons do not attempt to ﬁx these speakers to your wall if you

are unsure of your ability to provide a secure and safe ﬁxing. You will need to determine

where to ﬁt the bracket and the structure of the wall. If unsure, please obtain the

services of a competent qualiﬁed trades-person.

WARNING: Ensure that there are no water pipes, or electricity cables running behind

where the wall bracket is going to be secured. Work from secure steps and avoid

trailing wires.

Monitor Audio do not supply bespoke brackets or ﬁxings for the Vector Series.

However, we can supply brackets that are sold separately. The threaded

insert on the back of the V10 and V20 is a 1/4” UNC thread. The screws must

not exceed 18mm (3/4”).

Re-cycling

Correct Disposal of Waste Electrical and Electronic Equipment (WEEE) by User in Private

Households in the EU.

This symbol on the product or accessories indicates that they must not be

disposed of with your household wastes throughout the EU. To prevent

possible harm to the environment or human health from uncontrolled waste

disposal, recycle it responsibly to promote the sustainable reuse of material

resources. Instead it is your responsibility to dispose of your waste equipment

by handing it over to a designated WEEE collection point for recycling. The

separate collection and recycling of your waste equipment will help conserve

natural resources and ensure that it is recycled in a manner that protects

human health and the environment.

For more speciﬁc information about where you can take your equipment for recycling please

contact your local city/council ofﬁce, your local waste disposal service or the outlet where you

purchased your Vector product.

RoHS Declaration of Conformity

Directive 2002/95/EC of the European Parliament and of the Council on

the reduction of the use of certain hazardous substances in electrical and

electronic equipment, January2003.

Background

The RoHS directive restricts the use of Lead (Pb), Cadmium (Cd), Mercury (Hg), hexavalent

Chromium (CrVI), polybrominated biphenyl (PBB) compounds, and polybrominated diphenyl

ether (PBDE) compounds in electrical and electronic equipment sold in the European Union.

monitoraudio.co.uk

ENGLISH

Introduction to Vector

Vector is an exceptional range of compact lifestyle speakers inspired by a thirty year heritage of

technical expertise. Occupying the step below our celebrated RadiusHD series in the Monitor

Audio range, the three-model Vector line-up is destined to raise levels of sophistication and

performance at the affordable end of the home speaker market. It comprises a wall-mounting

compact satellite, the V10; a matching centre-channel satellite, the V20, and a compact 100W

active subwoofer, the VW-8.

The V10 and V20 cabinets are of high density moulded polymer with a ‘soft touch’ rubberised

black skin, which lends a wonderfully novel and tactile quality to the product. The front bafﬂes

are of MDF, which is coated in a high-gloss black lacquer to match the look of ﬂat TVs, or is

ﬁnished in an attractive natural wood grain.

Vector’s shielded, Gold C-CAM®tweeters represent the latest reﬁnement of Monitor Audio’s

advanced Ceramic-Coated Aluminium/Magnesium driver design, which has been employed

successfully by generations of award-winning Monitor Audio speakers. The shielded MMP®

II (Metal Matrix Polymer) bass-mid drivers use a high-pressure injection moulding process to

achieve different thickness at critical points in the cone geometry. For further details on C-CAM

and MMP®II, please go to our website.

Vector V10

Although the Vector V10 is designed primarily for use with the V20 and VW-8 in an ultra-

compact multi-channel home cinema package, its unusually deep bass makes it ideal for stereo

sound around the home. It delivers clear highs and punchy bass lines wherever it’s installed. A

woven wire mesh grille protects the drivers and provides a stylish contrast to smooth proﬁle of

its cabinet. A single point ﬁxing is provided for bracket ﬁxing and wall mount.

Vector V20

The compact V20 is a versatile speaker that can be used either horizontally for centre-channel

home cinema duties or vertically as a left/right satellite in multi-channel or stereo applications

around the home. The V20 shares the tonal characteristics of the V10, but has the extended

bass response necessary for the accurate reproduction of movie dialogue. Front porting,

recessed terminal panel allow for easy wall installation.

Vector VW-8

The new VW-8 is an ultra-compact but awesomely powerful subwoofer equipped with a potent

integral 100 Watt class A-B ampliﬁer. The VW-8’s rigid cubed MDF cabinet houses a long throw,

forward-ﬁring 8” driver. Although designed to partner the Vector Series satellites, the VW-8

will integrate beautifully and easily with any compact, high performance home theatre system

through variable volume and crossover controls and a phase switch. For extra convenience,

the VW-8 is automatically turned on and off by the auto signal sensing feature. Stereo line and

LFE inputs are provided.

4Vector

monitoraudio.co.uk

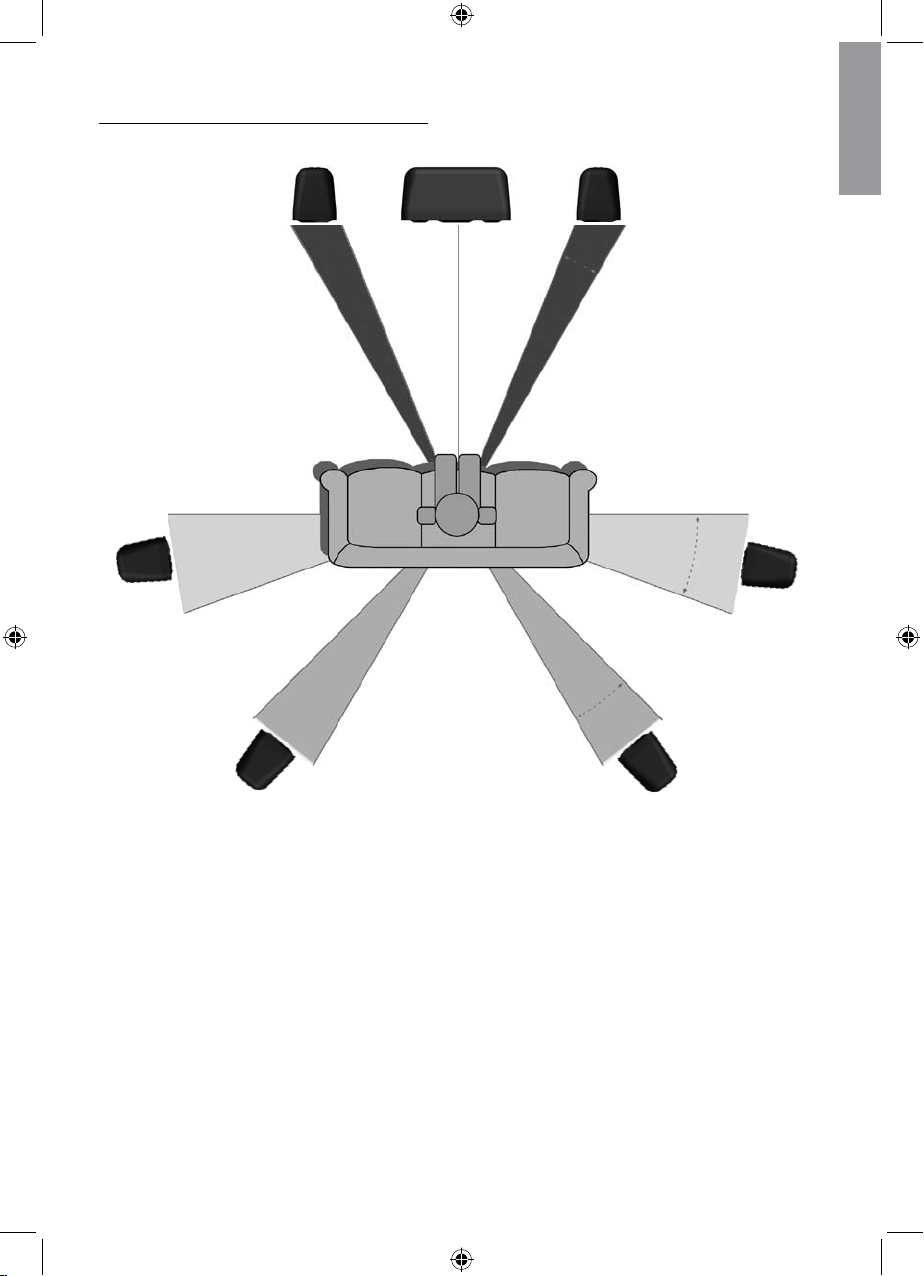

Optimum Speaker Placement

22°

0°

30°

90°

110°

135°

150°

Centre

Left Right

Surround

Left

Rear

Surround

Left

Rear

Surround

Right

Surround

Right

ENGLISH

6Vector

Model Vector V10 Vector V20

Frequency Response 65Hz - 30KHz 60Hz - 30KHz

Sensitivity (1W @ 1m) 85dB 85dB

Nominal Impedance 8 Ohms 8 Ohms

Power Handling, Single

(RMS) 50W 50W

Power Handling, System

(RMS) 80W 80W

Recommended Amp

Requirements 10 - 80W 10 - 80W

Maximum SPL 103 dBA 103dBA

Bass Alignment Bass Reﬂex - Rear Ported Bass Reﬂex - Front Ported

Drive Unit Complement

1 x 4” MMP II Cone,

Mid - Bass Driver.

1 x 25mm C-CAM Gold

Dome Tweeter

1 x 4” MMP II Cone,

Mid - Bass Driver.

1 x 25mm C-CAM Gold

Dome Tweeter

External Dimensions.

mm (H x W x D) 235 x 145 x 170 145 x 355 x 170

External Dimensions.

inches (H x W x D) 9 1/4 x 5 11/16 x 6 11/16 5 11/16 x 14 x 6 11/16

Weight (each)

Kg (lb) 2.17 (4.77) 2.66 (5.85)

Speciﬁcations

Guarantee and Service

To validate your warranty please visit www.monitoraudio.co.uk within 30 days of purchase.

When you register here you’ll gain free entry to our monthly prize draw! What’s more you’ll be

the ﬁrst to hear about the great things happening at Monitor Audio, including new products

and events!

This equipment has been fully tested prior to dispatch from the factory. Both the craftsmanship

and the performance of this product is guaranteed against manufacturing defects for the period

of three years from the date of purchase (see conditions below), provided that the product

was supplied by an authorised Monitor Audio retailer under the consumer sale agreement. (The

words ‘consumer sale’ shall be construed in accordance with section 15 of the supply of goods

act 1973). Monitor Audio accepts no responsibility for defects arising from accident, misuse,

abuse, wear and tear, modiﬁcation or operation outside of that speciﬁed within this instruction

manual. Neither will responsibility be accepted for damage or loss occurring during transit to or

from the parties claiming under this guarantee.

This guarantee covers both labour and parts. The liability of Monitor Audio is limited to the cost

of repair or replacement of the defective parts (at the discretion of Monitor Audio) and under no

circumstances extends to consequential losses or damage.

Claims under this Guarantee

The equipment should be returned in its original packaging to the original supplier where

possible, or to any other authorised Monitor Audio dealer. If it is not possible to return the

equipment by hand, then it should be sent carriage prepaid via a reputable carrier. If the original

packing is not available replacement packaging can be purchased from Monitor Audio.

If you have any difﬁculties complying with these requirements please contact us at the following

address:

Customer Service Tel: +44 (0) 1268 740580

Monitor Audio Ltd. Fax: +44 (0) 1268 740589

Unit 2, 24 Brook Road Internet: www.monitoraudio.co.uk

Rayleigh Email: [email protected]

Essex

SS6 7XJ

England

This guarantee does not affect the statutory rights of the consumer under UK law.

Data Protection

We at Monitor Audio are committed to respecting the wishes and privacy of our customers. Any

information you provide will be held in the strictest conﬁdence and only used within the Monitor

Audio organisation for the provision of services such as warranty claims or spare parts.

We may wish to contact you in the future to ensure you are happy with the products and

standards of service we provide and to keep you up-to-date with the latest products and

promotions we have to offer.

Should you wish not to be contacted by us either by post, e-mail or phone, please tick the box

on the warranty form on the web site. Alternatively you can request not to be contacted in future

by writing to Customer Service, at the address above.

Owner Information

Product Details

Model .................................................................

Product Serial No ................................................

Date of Purchase ................................................

Dealer Details

Dealer Name & Location ..........................................................................................................

E-Mail Address/ Telephone Number .........................................................................................

Monitor Audio reserves the right to alter speciﬁcations without notice.

monitoraudio.co.uk

ENGLISH

EC Declaration of Conformity

We, Monitor Audio Ltd.

24 Brook Road

Rayleigh

Essex

SS6 7XJ

England

Declare in own responsibility, that the Vector products described in this manual is

in compliance with Technical Standards/Council Directives:

(LVD) 2006/95/EC Low Voltage Directive

EN60065: 2002+A1: 2006 Safety requirements for mains operated electronic and

related apparatus for household and similar use.

(EMC) 89/336/EEC Electro Magnetic Compatibility

EN55013: 08.90+A12:08.94+A13:12.96 Limits and methods of measurement

of radio disturbance characteristics of broadcast receivers and associated

equipment.

EN55020: 12.94+A11:12.96 Electro magnetic immunity of broadcast receivers

and associated equipment.

EN61000-3-2: 04.95+A1:1998+A2:1998 Electro magnetic compatibility (EMC) –

Part 3: Limits – Section 2: Limits for harmonic current emissions (equipment input

current up to and including 16 Ampere per phase).

EN6100-3-3: 01.95 Electro magnetic compatibility (EMC) – Part 3: Limits – Section

3: Limits of voltage ﬂuctuations and ﬂicker in low-voltage supply systems for

equipment with rated current up and including

16 Ampere per phase.

Signed by:

Name: D.S. Hartley

Position: Technical Director

Company: Monitor Audio Ltd

8Vector

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Monitor Audio Intervenants

Monitor Audio

Monitor Audio RADIUS 45HD Manuel utilisateur

Monitor Audio

Monitor Audio Radius HD Manuel utilisateur

Monitor Audio

Monitor Audio Silver 50 Manuel utilisateur

Monitor Audio

Monitor Audio PL Manuel utilisateur

Monitor Audio

Monitor Audio CS180 Manuel utilisateur

Monitor Audio

Monitor Audio Radius 45 Manuel utilisateur

Monitor Audio

Monitor Audio airstream WS100 Manuel utilisateur

Monitor Audio

Monitor Audio Airstream S200 Manuel utilisateur

Monitor Audio

Monitor Audio soundframe 1 i-w Manuel de service

Monitor Audio

Monitor Audio CT380-IDC Manuel utilisateur

Monitor Audio

Monitor Audio WT280 Manuel utilisateur

Monitor Audio

Monitor Audio air stream WS100 Manuel utilisateur

Monitor Audio

Monitor Audio apex 10 Manuel utilisateur

Monitor Audio

Monitor Audio CLIMATE GARDEN Series Manuel utilisateur

Monitor Audio

Monitor Audio GOLD GX series Manuel utilisateur

Monitor Audio

Monitor Audio Monitor Reference Series Manuel utilisateur

Monitor Audio

Monitor Audio Pro-80 Manuel utilisateur

Monitor Audio

Monitor Audio GOLD SERIES Manuel utilisateur

Monitor Audio

Monitor Audio Controlled Performance series Manuel utilisateur

Monitor Audio

Monitor Audio Apex AXSTW Manuel utilisateur

Monitor Audio

Monitor Audio Silver series Manuel utilisateur

Monitor Audio

Monitor Audio AWC265-T2 Manuel utilisateur

Monitor Audio

Monitor Audio Creator Series Manuel utilisateur

Monitor Audio

Monitor Audio Loudspeaker Radius Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
