IMPORTANT INFORMATION

The CP Series In-Ceiling and In-Wall

loudspeakers will provide long term satisfaction in terms of

sound quality and reliability provided they are installed correctly, according to the instructio

ns and

conditions contained in this manual. Please read this installation guide carefully before proceeding. We

assume the installer is trained and skilled in the correct and safe use of hand and power tools and has a

working knowledge of local building an

d fire regulations/codes as well as experience of the

conditions/services behind walls and ceilings into which these speakers will be installed.

IF IN DOUBT

ABOUT YOUR ABILITY TO INSTALL THESE PRODUCTS SAFELY AND CORRECTLY PLEASE CONTACT YOUR

LOCAL AUTHORISED MONITOR AUDIO DEALER OR CUSTOM INSTALLER.

WARNINGS:

•A minimum depth of 190mm (7½ Inches) is required for the In-Ceiling

back box to fit into recess. The

In-Wall requires 98mm (4 Inches)

•The fixing clamps require a minimum of 25mm (1 Inch) of surface area around the cut-

out hole to ensure

a secure fixing!

•

The fixing clamps will operate on ceilings or walls with a minimum thickness of 9mm (3/8 Inches) to a

maximum depth of 32mm (1¼Inches)

•Do not attempt to fix these

speakers to your ceiling or wall if you are unsure of your ability to provide a

secure and safe fixing.

IF IN DOUBT CONTACT YOUR LOCAL AUTHORISED MONITOR AUDIO

DEALER OR CUSTOM INSTALLER.

•Ensure that there are no water pipes, air ducts or electricity cabl

es running immediately behind the cut

out area!

•Please work from secure steps or scaffold and avoid trailing wires for your safety and those around you.

•Always turn off the amplifier or other devices in the system when connecting these speakers

www.monitoraudio.co.uk

Introduction

Congratulations and thank you for purchasing this high performance Monitor Audio CP Series loudspeaker.

This is no ordinary architectural speaker. Monitor Audio has taken great care to apply its award-winning

loudspeaker technologies to create a hi-fidelity design, which promises exceptional sound quality and reliability.

CP stands for ‘Controlled Performance’. Each CP In-Ceiling or In-Wall product is fitted with its own rigid

enclosure to make sure the sound is always the same, wherever it is fitted.

For all In-Ceiling and In-Wall applications, you can rely on the elevated standards of build quality and

performance that have earned Monitor Audio’s Bronze, Silver and Gold loudspeaker ranges acclaim from

professionals around the world.

In designing the Bronze, Silver and Gold CP In-Ceiling and In-Wall speakers, Monitor Audio offers three levels of

performance for a wide range of applications and budgets, but promises market-leading reliability and value in

each case.

Speaker Location

We strongly recommend that these speakers be installed professionally so that positioning and fine-tuning can be

successfully undertaken using sound measuring equipment, coupled with room layout experience and technical

knowledge.

Your CP series In-Ceiling and In-Wall loudspeakers installed in your home theatre can be used as surround

speakers in conjunction with freestanding speakers. If you are unsure about where to locate your surround

speakers for optimum performance, please contact your Monitor Audio Dealer for advice.

When mounting your speakers in the ceiling, locate the speakers 0.6-2m (2 to 6 feet) behind your listening

position. The speakers should be installed 2 to 3m (6 to 10 feet) apart centre to centre.

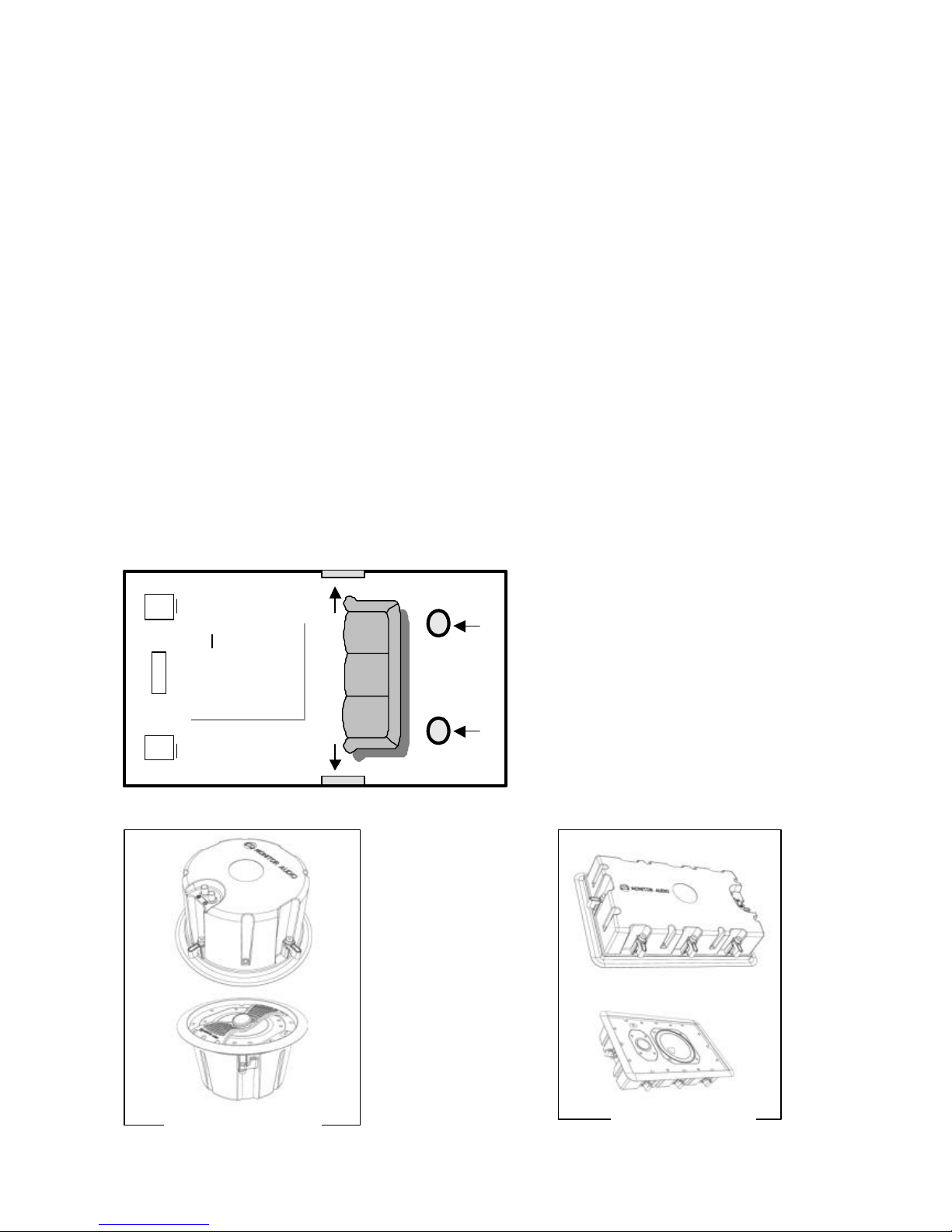

A Typical example is Shown below.

Surround

Sound

RoomPlan

View

Fine tuning & Calibration

Your amplifier or A/V receiver

manual will contain information

and detailed instruction on fine

tuning/calibrating your

system

so that the correct balance is

achieved between the various

speakers. It may be necessary

to adjust the CP speakers as

described in pages 4 and 6

Typical In-Ceiling

Typical In-Wall

Gold CP Features

Gold CP In-Ceiling speakers utilise our C-CAM®(Ceramic Coated Aluminium Magnesium alloy) cone, featuring

Rigid Surface Technology (RST®). Impressions on the cone’s surface are designed to eliminate bending,

increase stiffness and lower mass when compared with conventional cone driver designs. The result is a much

faster response, offering music reproduction that is closer to the original performance. A rigid die-cast metal

chassis design features a vented rear section and provides extremely low distortion with typically higher output

levels.

Additional high frequency and mid-range frequency controls allow the user to set-up the system precisely to

obtain optimum performance within the listening environment. This inherent flexibility makes the Gold CP In-

Ceiling speaker suitable for a wider range of demanding applications than that offered by its competitors. It

promises a truly ‘high-end’ performance from a custom fit, discreetly installed speaker system.

Silver CP Features

Our C-CAM®(Ceramic Coated Aluminium Magnesium alloy) cone profiles and rubber surrounds maximise the

potential of the driver mechanism. The new surrounds allow greater cone excursions with lower distortion and

improved frequency response linearity. The flush cone edge provides a very smooth response and a natural,

accurate sound. The Silver CP pivoting (In-Ceiling only) tweeter is based on Monitor Audio’s famous 25mm gold

C-CAM®dome. Improvements to the surround and motor system have extended the frequency response to

30kHz, so that it is ready to exploit new wide bandwidth digital audio formats such as SACD and DVD-A.

An additional high frequency control offers a fine-tuning option to allow the user to set-up the system precisely

and obtain optimum performance within the listening environment. This additional flexibility makes the Silver CP

In-Ceiling and In-Wall speakers suitable for a wider range of demanding residential and commercial applications.

Bronze CP Features

The Bronze drive unit, (MMP®Mk2) offers an advanced driver technology developed from Monitor Audio’s

original Metal Matrix Polymer cone material and uses a high-pressure injection moulding process to achieve

different thickness at critical points in the cone geometry. MMP®Mk2 provides better stiffness and consistency

and tighter production tolerances resulting in superior sonic performance. The new bass-mid chassis design has

a vented rear section that reduces thermal power compression to deliver increased dynamic range and higher

sound pressure levels. This venting also lowers distortion by balancing the pressure within the voice-coil motor

system. It means clean, crisp bass and an even clearer mid-range performance.

High frequency performance has been improved by the evolution of the C-CAM®tweeter. The new tweeter

utilises a pivoting action (In-Ceiling only) to provide optimum imaging and flexible set-up options. The bespoke

crossover uses high-grade polypropylene film capacitors, and low distortion inductors

Declaration of Conformity

We, Monitor Audio Ltd.

24 Brook Road

Rayleigh

Essex

SS6 7XL

England

Declare in own responsibility, that the products described in

this manual are in

compliance with technical standards:

EN 50082-1 : 1998

EN 55013 : 2001

EN 50020 : 2002 Dean Hartley (Technical Director)

Monitor Audio Ltd

England

Installation –In-Ceiling Units

The CP Series In-Ceiling loudspeakers will provide long term satisfaction in terms of sound quality and reliability

provided they are installed correctly, according to the instructions and conditions contained in this manual.

Please read this installation guide carefully before proceeding. We assume the installer is trained and skilled in

the correct and safe use of hand and power tools, and has a working knowledge of local building and fire

regulations/codes as well as experience of the conditions/services behind walls and ceilings into which these

speakers will be installed. IF IN DOUBT ABOUT YOUR ABILITY TO INSTALL THESE PRODUCTS SAFELY AND

CORRECTLY PLEASE CONTACT YOUR LOCAL AUTHORISED MONITOR AUDIO DEALER OR CUSTOM INSTALLER.

Parts List

PLEASE CHECK YOU HAVE THE FOLLOWING ITEMS IN THIS KIT BEFORE PROCEEDING:

•1 x Complete speaker & tweeter assembly fitted to back box.

•1 x Grille (which can be painted).

•1 x Mounting cut out template (in packaging).

•2 x Grille membrane (one for use during painting and the other as a clean replacement).

•2 x Spare baffle fixing screws plus guarantee card in this manual.

WARNINGS:

•A minimum depth of 190mm (7½ Inches) is required for the back box to fit into recess.

•The fixing clamps require a minimum of 25mm (1 Inch) of surface area around the cutout hole to ensure

a secure fixing!

•The fixing clamps will operate on ceilings with a minimum thickness of 9mm (3/8 Inches) to a maximum

depth of 32mm (1¼ Inches).

•Do not attempt to fix these speakers to your ceiling if you are unsure of your ability to provide a secure

and safe fixing. IF IN DOUBT CONTACT YOUR LOCAL AUTHORISED MONITOR AUDIO DEALER.

•Ensure that there are no water pipes, air ducts or electricity cables running immediately behind the cut

out area!

•Please work from secure steps or scaffold and avoid trailing wires for your safety and those around you.

•Always turn off the amplifier or other devices in the system when connecting these speakers.

Procedure

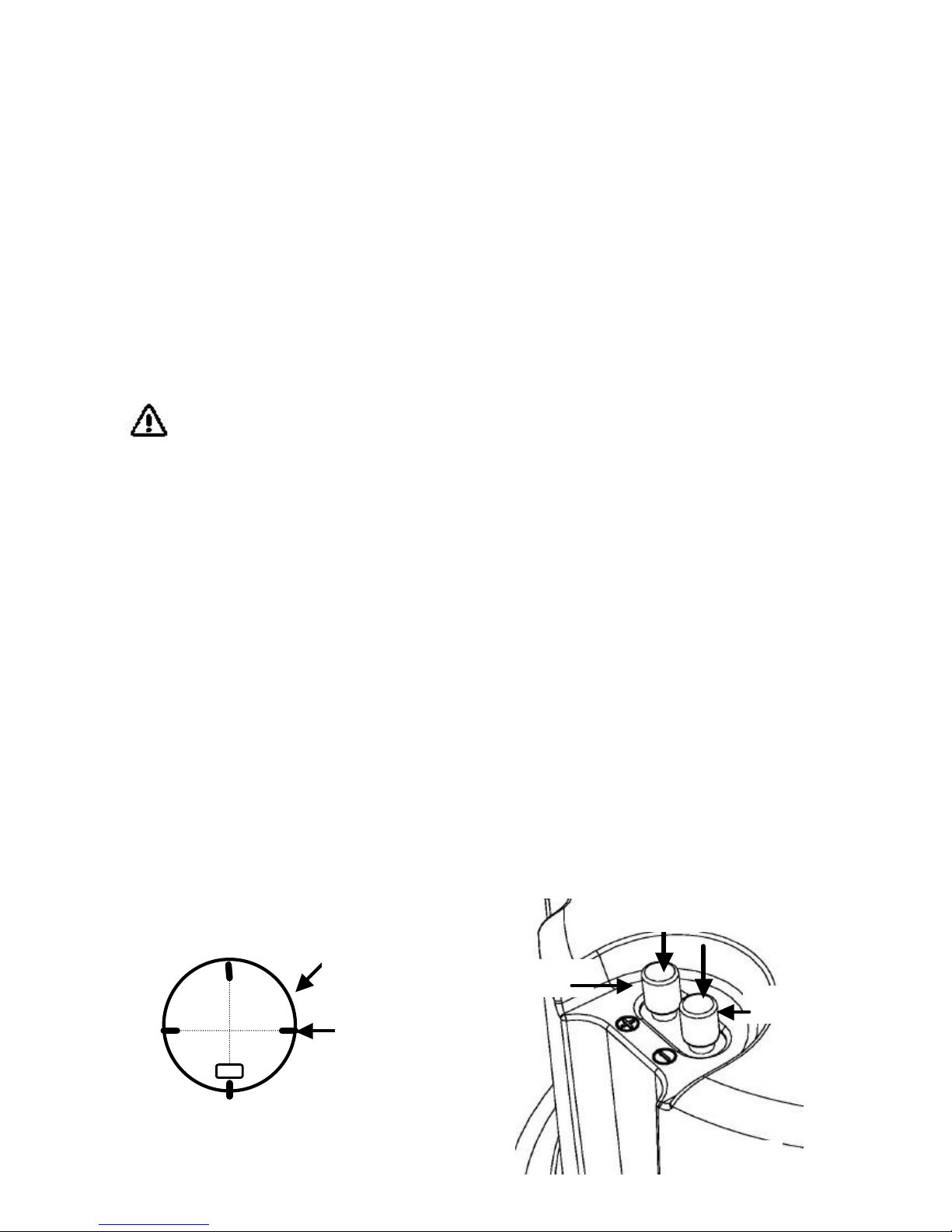

1. Use template to locate position of cut out. Fig 1. The adhesive backing allows for repositioning a number

of times.

2. Draw round diameter to define the perimeter of the cut out -250mm ( 9 7/8 inches )

3. Remove template and cut hole.

4. Locate speaker cable and connect by pushing the terminals in and releasing to clamp the cables as

shown below Fig 2.

5. Fit back box into prepared hole and tighten fixing clamps. These will move outwards on tightening! DO

NOT OVERTIGHTEN! Once contact is made 2-3 turns are all that is required.

6. Fit front Baffle if previously removed and check for sound quality before fitting the grille.

7. Paint at a time to suit. Use paint masks (membrane) supplied and replace with new item supplied.

8TO FINE-TUNE THE SPEAKERS PLEASE REFER TO PAGE 4 AND 6.

Push down to fit cable

Red (Positive)

Black (Negative)

Fig 1 Fig 2

In-Ceiling Template Not to scale

Hole to be cut

250mm ( 9 7/8”)

Position of 4

fixing clamps

Fine-tuning the loudspeakers

The following adjustments can be made to your CP in-ceiling loudspeakers as follows:

1. Pivoting tweeters (all CP In-Ceiling models) can be tilted up to 18 degrees in all directions to provide

optimum coverage if the following applies:

2. If the speakers are widely separated such that the music fails to blend into a central image when

operated in stereo mode then tilt the tweeter towards the listening area.

3. If the Soundstage seems too confined tilt the tweeter away from the listening area.

4. For further fine-tuning options of your CP In-Ceiling speakers please go to page 6.

Specifications -In-Ceiling

Model Gold CP

In-Ceiling Silver CP

In-Ceiling Bronze CP

In-Ceiling

Frequency

response 55Hz –30KHz 60Hz –30KHz 62Hz –22 KHz

Impedance

(nominal)

8 Ohms 8 Ohms 8 Ohms

Sensitivity (1W@1M) 89dB 89dB 88dB

Maximum SPL 106.5 dBA 105.8 dBA 105 dBA

Power handling 120W 100W 80W

Recommended

Amp

requirements 30-120W 30-100W 20-80W

Bass alignment Sealed enclosure Sealed enclosure Sealed enclosure

Drive unit

complementbass 1x 6.5” C-CAM bass driver

featuring RST technology 1x 6” C-CAM bass driver 1x 6.5” MMP2 second

generation Metal Matrix

Polymer

Drive unit

complement

tweeter

Pivoting 25mm C-CAM gold

alloy dome with

high power ceramic

magnet system

Pivoting 25mm C-CAM gold

alloy dome with

rare earth magnet

Pivoting 25mm C-CAM gold

alloy dome with rare earth

magnet

Overall diameter 281mm (11 1/16 inch) 281mm (11 1/16 inch) 281mm (11 1/16 inch)

Overall depth 181mm (7 1/8 inch) 181mm (7 1/8 inch) 181mm (7 1/8 inch)

Cut-out hole

diameter 250mm (9 7/8 inch) 250mm (9 7/8 inch) 250mm (9 7/8 inch)

Mounting depth

mm(inch) 175mm (6 7/8 inch) 175mm (6 7/8 inch) 175mm (6 7/8 inch)

Controls

+3db / 0dB /

3dB

High frequency

attenuation switch.

+3db / 0dB / -3dB

Mid-range frequency

attenuation switch.

+3db / 0dB / -3dB

High frequency

attenuation switch N/A

Fixing type 4 position ‘dog’ type fixings 4 position ‘dog’ type fixings 4 position ‘dog’ type fixings

Connection Gold plated ‘push’ type

terminals Gold plated ‘push’ type

terminals

Bafflematerial MDF MDF MDF

Back box/

mounting flange

material

Mineral filled ABS plastic (UL

V1firerated) Mineral filled ABS plastic (UL

V1firerated)

Unit weight Kg

(lb)

3.0Kg (6.6Ib) 2.5Kg (5.5Ib) 2.4Kg (5.3lb)

Installation -In-Wall Units

The CP Series In-Wall loudspeakers will provide long term satisfaction in terms of sound quality and reliability

provided they are installed correctly, according to the instructions and conditions contained in this manual.

Please read this installation guide carefully before proceeding. We assume the installer is trained and skilled in

the correct and safe use of hand and power tools, and has a working knowledge of local building and fire

regulations/codes as well as experience of the conditions/services behind walls and ceilings into which these

speakers will be installed. IF IN DOUBT ABOUT YOUR ABILITY TO INSTALL THESE PRODUCTS SAFELY AND

CORRECTLY PLEASE CONTACT YOUR LOCAL AUTHORISED MONITOR AUDIO DEALER OR CUSTOM INSTALLER.

Parts List

PLEASE CHECK YOU HAVE THE FOLLOWING ITEMS IN THIS KIT BEFORE PROCEEDING:

•1 x Complete speaker & tweeter assembly fitted to back box.

•1 x Grille (which can be painted).

•1 x Mounting cut out template (in packaging).

•2 x Grille membrane (one for use during painting and the other as a clean replacement).

•2 x Spare baffle mounting screws plus guarantee card in this manual.

WARNINGS:

•A minimum depth of 98mm (4 Inches) is required for the back box to fit into wall/ceiling recess.

•The fixing clamps require a minimum of 25mm (1 Inch) of surface area around the cut-out hole to ensure

a secure fixing!

•The fixing clamps will operate on walls with a minimum thickness of 9mm (3/8 Inches) to a maximum

depth of 32mm (1¼ Inches).

•Do not attempt to fix these speakers to your wall if you are unsure of your ability to provide a secure and

safe fixing. IF IN DOUBT CONTACT YOUR LOCAL AUTHORISED MONITOR AUDIO DEALER.

•Ensure that there are no water pipes, air ducts or electricity cables running immediately behind the cut

out area!

•Please work from secure steps or scaffold and avoid trailing wires for your safety and those around you.

•Always turn off the amplifier or other devices in the system when connecting these speakers.

Procedure

1. Secure template in position. Please note that the outer profile indicates size of cut-out. Fig 3. The

adhesive backing allows for repositioning a number of times.

2. Cut hole and Locate speaker cable and connect as shown below Fig 4.

3. Fit back box into prepared hole and tighten fixing clamps. These will move outwards on tightening! DO

NOT OVERTIGHTEN! Once contact is made 2-3 turns are all that is required.

4. Paint at a time to suit. Use paint masks (membrane) supplied and replace with new item supplied.

5. TO FINE-TUNE THE SPEAKERS PLEASE REFER TO PAGE 6.

Hole size to be cut

387 x 234mm

(15 1/4” x 9 3/16” )

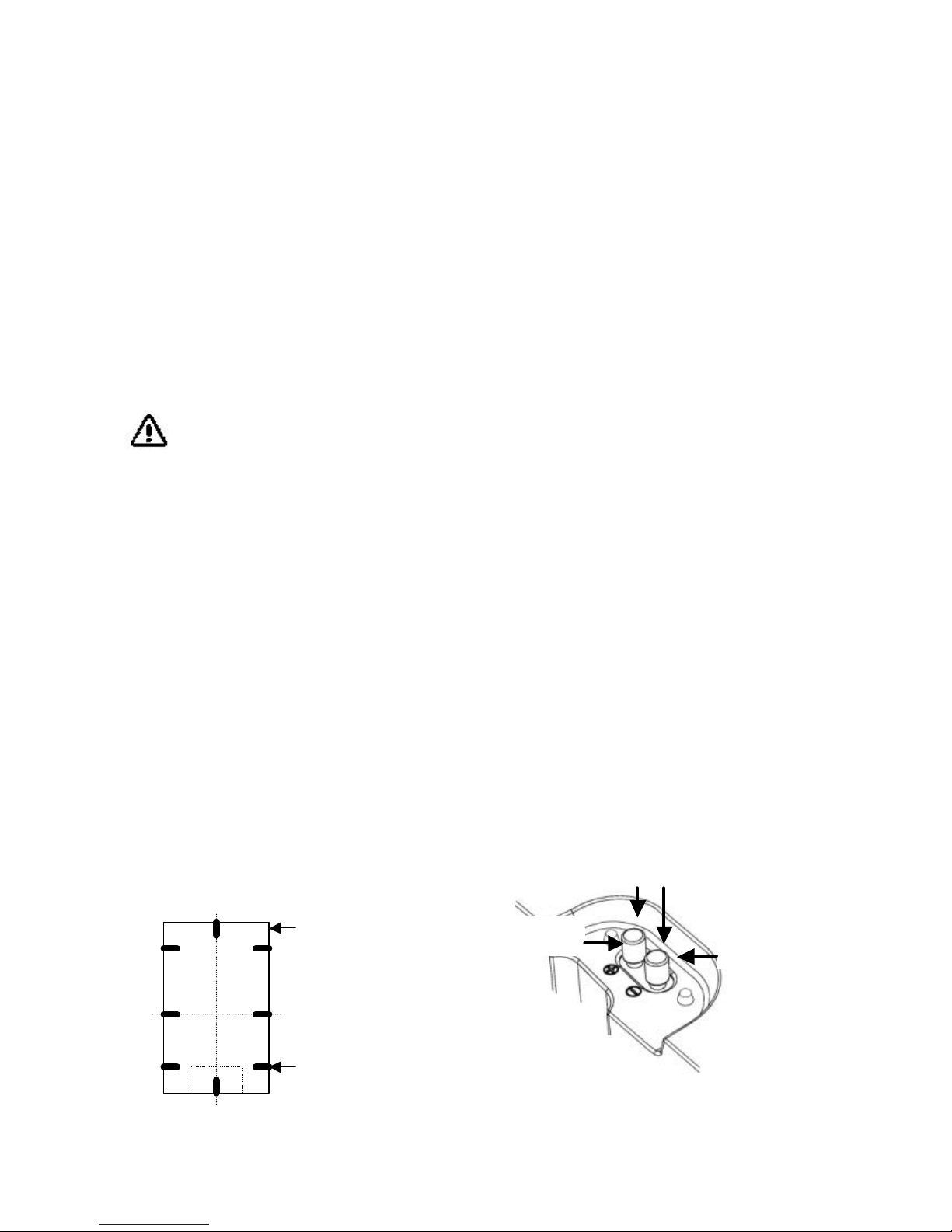

Fig 3

In-wall template

Fig 4

Push down to fit cable

Black (Negative)

Red (Positive)

Position of 8

fixing clamps Not to scale

Fine-tuning -In-Ceiling and In-wall speakers

The following adjustments can be made to your CP In-Ceilingand In-Wall loudspeakers as follows:

Adjusting H.F (High Frequency) control

(Silver CP and Gold CP models only)

The factory H.F setting provides a flat or 0dB level, which will suit the majority of typical installations.

However, it is possible to fine-tune the sound from the CP speakers to suit a room’s characteristics or

preferred listening tastes by using the following as a guide: -

a. Setting the switch in the +3dB position will add brightness and additional clarity to the system. This may

be effective in a room with a large amount of soft furnishings.

b. Setting the switch in the -3dB position will reduce the brightness on the system and provide a duller

sound. This may be effective in a room with a lack of soft furnishings, or in an installation with a wooden

floor.

Adjusting M.F (Mid-range Frequency) control

(Gold CP models only)

The factory M.F setting provides a flat or 0dB level, which will suit the majority of typical installations.

However, it is possible to fine-tune the sound from the Gold CP In-Ceiling and In-Wall speakers to suit a

room’s characteristics or preferred listening tastes by using the following as a guide: -

a. Setting the switch in the +3dB position will add presence and additional clarity to the system, particularly

in the vocal region. This may be effective for better resolution of dialogue and speech, or in an installation

where the listening position is a large distance from the speaker.

b. Setting the switch in the -3dB position will reduce the presence and the system will sound more ‘laid

back’. This may be effective where the speaker will be played for background music, or where the

listening position is situated close to the speaker.

Technical Specifications CP In-Wall

Model Gold CP

In-Wall Silver CP

In-Wall Bronze CP

In-Wall

Frequency

response 55Hz –30KHz 60Hz –30KHz 62Hz –22 KHz

Impedance

(nominal) 8 Ohms 8 Ohms 8 Ohms

Sensitivity

(1W@1M) 89dB 89dB 88dB

Maximum SPL 106.5 dBA 105.8 dBA 105 dBA

Power handling 120W 100W 80W

Recommended

Amp

requirements 30-120W 30-100W 20-80W

Bass alignment Sealed enclosure Sealed enclosure Sealed enclosure

Drive unit

complementbass 1x 6.5” C-CAM bass driver

featuring RST technology 1x 6” C-CAM bass driver 1x 6.5” MMP2 second

generation Metal Matrix

Polymer

Drive unit

complement

tweeter

25mm C-CAM gold alloy

dome with high power

ceramic magnet system and

rear low resonance chamber

25mm C-CAM gold alloy

dome with rare earth magnet

25mm C-CAM gold alloy

dome with rare earth

magnet

Overallsize 423mm high x 270 wide

(16 11/16 inches x 10 11/16

inches)

423mm high x 270 wide

(16 11/16 inches x 10 11/16

inches)

423mm high x 270 wide

(16 11/16 inches x 10 11/16

inches)

Overall depth 100mm (3 15/16 inches) 100mm (3 15/16 inches) 100mm (3 15/16 inches)

Cut-outhole size 387mm high x 234mm wide

(15 1/4 inches x 9 1/4

inches)

387mm high x 234mm wide

(15 1/4 inches x 9 1/4

inches)

387mm high x 234mm wide

(15 1/4 inches x 9 1/4

inches)

Mountingdepth 95mm (3 3/4 inches) 95mm (3 3/4 inches) 95mm (3 3/4 inches)

Controls

+3db / 0dB / -3dB

High frequency attenuation

switch.

+3db / 0dB / -3dB

Mid-range frequency

attenuation switch.

+3db / 0dB / -3dB

High frequency attenuation

switch Not Applicable

Fixing type 8 position ‘dog’ type fixings 8 position ‘dog’ type fixings 8 position ‘dog’ type fixings

Connection Gold plated ‘push’ type

terminals Gold plated ‘push’ type

terminals

Bafflematerial MDF MDF MDF

Back box/

mounting flange

material

Mineral filled ABS plastic (UL

V1firerated) Mineral filled ABS plastic (UL

V1firerated)

Unit weight Kg

(lb) 4.3Kg (9.5Ib) 3.0Kg (6.6Ib) 3.0Kg (6.6lb)

Guarantee and Service

The guarantee becomes valid upon completion of the attached guarantee card and its return within 30 days of

purchase.

This guarantee is void if the serial number has been removed or defaced.

This equipment has been fully tested prior to dispatch from the factory. Both the craftsmanship and the

performance of this product is guaranteed against manufacturing defects for the period of three years from the

date of purchase (see conditions below), provided that the product was supplied by an authorised Monitor Audio

retailer under the consumer sale agreement. (The words ‘consumer sale’ shall be construed in accordance with

section 15 of the supply of goods act 1973). Monitor Audio accepts no responsibility for defects arising from

accident, misuse, abuse, wear and tear, modification or operation outside of that specified within this instruction

manual. Neither will responsibility be accepted for damage or loss occurring during transit to or from the parties

claiming under this guarantee.

This guarantee covers both labour and parts. The liability of Monitor Audio is limited to the cost of repair or

replacement of the defective parts (at the discretion of Monitor Audio) and under no circumstances extends to

consequential losses or damage.

Claims under this Guarantee

The equipment should be returned in its packaging to the original supplier where possible, or to any other

authorised Monitor Audio dealer. If it is not possible to return the equipment by hand, then it should be sent

carriage prepaid via a reputable carrier. If the original packing is not available replacement packaging can be

purchased from Monitor Audio. If you have any difficulties complying with these requirements please contact us

at the following address:

Monitor Audio Ltd. Tel: 44 (0) 1268 740580

Unit 2, 24 Brook Road Fax: 44 (0) 1268 740589

Rayleigh Internet: www.monitoraudio.co.uk

Essex Email: [email protected]

SS6 7XL

England

This guarantee does not affect the statutory rights of the consumer under UK law and or relevant consumer laws

in other countries or states.

Monitor Audio reserve the right to alter specifications at any time without notice if it is considered that an

improvement can be made to the product.

Warnungshinweis

Die zum Wand/Decken-Einbau vorgesehenen Lautsprecher der CP Serie werden Ihnen auf lange Zeit mit ihrer vorzüglichen Tonqu

alität und

Zuverlässigkeit viel Freude bereiten, vorausgesetzt, dass sie vorschriftsmäßig nach den in diesem Handbuch angegebenen Anleitungen und

Bedingungen eingebaut werden. Lesen Sie bitte vor Beginn der Arbeiten diese Installationsanleitungen sorgfält

ig, da wir voraussetzen, dass der

Installateur im vorschriftsmäßigen und sicheren Gebrauch von Elektrowerkzeugen unterwiesen und erfahren ist. Es wird ebenso vorausgesetzt, dass er

ausreichende Kenntnisse der örtlichen Bau und Brandschutzbestimmungen besi

tzt, sowie entsprechende Erfahrung des Unterputzzustandes und der

eventuell vorhandenen Leitungen in Wänden und Zimmerdecken besitzt, in welche diese Lautsprecher eingebaut werden sollen.

SOLLTEN SIE

DARAN ZWEIFELN; DIESE ARBEITEN MIT SICHERHEIT-UND ORDN

UNGSGEMÄSS AUSFÜHREN ZU KÖNNEN, WENDEN SIE

SICH BITTE AN IHREN AUDIO-VERTRAGSHÄNDLER.

WARNUNGSHINWEIS:

•Es wird eine Mindesteinbautiefe von 190 mm (7.5 Zoll ) für den Deckeneinbau der Backbox benötigt. Für den Wandeinbau

sind

98 mm (4 Zoll) vorzusehen.

•

Die Befestigungsklemmen benötigen eine Oberfläche von 25 mm (1 Zoll) um das ausgeschnittene Loch herum, um eine sichere

Befestigung zu gewähren!

•Die Befestigungsklemmen können bei Decken oder Wänden mit einer Mindestdicke v

on 9 mm (0,35 I) bis zu einer Mindesttiefe

von 32 mm (1,25 Zoll) angewendet werden

•

Versuchen Sie nicht, diese Lautsprecher an Ihrer Wand oder Decke anzubringen, wenn Sie nicht voll überzeugt sind, dass Sie

imstande sind, diese vorschriftsmäßig und sicher zu montieren.

IM ZWEIFELSFALLE WENDEN SIE SICH BITTE AN IHREN

ZUGELASSENEN ÖRTLICHEN AUDIOHÄNDLER.

•Vergewissern Sie sich, dass sich keine Wasser-Luft-oder Elektroleitungen hinter dem Ausschnitt befinden!

•Benutzen Sie bitte immer nur sichere Tritte oder L

eitergerüste und vermeiden Sie im Interesse Ihrer Sicherheit sowie der aller

anwesenden Personen herabhängende und auf dem Boden schleifende Kabel und Leitungen.

•Bei Anschluss dieser Lautsprecher müssen die Verstärker sowie alle weiteren Geräte im System ausgeschaltet sein.

Avvertimenti

La Serie C

P di altoparlanti incassati nel soffitto e nelle pareti offrirà un ottimo funzionamento in termini di qualità Sonora ed affidabilità, purché gli

altoparlanti siano installati correttamente, seguendo le istruzioni e le condizioni contenute in questo manuale

. Si prega di leggere attentamente questa

guida all’installazione prima di procedere, poiché presumiamo che l’installatore sia addestrato e sia in grado di utilizzare gli attrezzi manuali ed elettrici.

Ed abbia inoltre una conoscenza operativa dell’edifici

o locale e delle norme/codici antincendio e conosca le condizioni/i servizi dietro pareti e soffitti

nei quali saranno installati questi altoparlanti.

IN CASO DI DUBBI SULLA PROPRIA ABILITÀ AD EFFETTUARE QUESTA

INSTALLAZIONE IN MODO CORRETTO E SICURO, SI P

REGA DI CONTATTARE IL PROPRIO CONCESSIONARIO LOCALE

AUTORIZZATO ALLA VENDITA DI APPARECCHI AUDIO.

ATTENZIONE:

•E’ necessaria una profondità minima di 190 mm perché la cassa posteriore possa essere installata nel vanodelsoffitto

. Quella

da incassare nella parete necessita di uno spazio di 98 mm.

•

I dispositivi di fissaggio necessitano di una superficie minima di 25 mm intorno al foro intagliato per assicurare un fissaggio

sicuro!

•I dispositivi di fissaggio saranno fun

zionali in soffitti e pareti che abbiano uno spessore di almeno 9 mm fino ad uno spessore

massimo di 32 mm.

•

Non si deve tentare di fissare questi altoparlanti in un soffitto o una parete se non si è certi della propria abilità di effettuare

un’installazione appropriata e sicura.

IN CASO DI DUBBI CONTATTARE IL PROPRIO CONCESSIONARIO LOCALE

AUTORIZZATO ALLA VENDITA DI APPARECCHI AUDIO.

•Accertarsi che non vi siano di tubi dell’acqua, condotti d’aria o cavi elettrici installati appena dietro l’area intagliata!

•Lavorare su scale o impalcature sicure ed evitare di tirare dei fili per la propria sicurezza e quella di altre persone.

•Spegnere sempre l’amplificatore o altri dispositivi dell’impianto quando si collegano questi altoparlanti.

Ce manuel convient aux modèles suivants

Autres manuels Monitor Audio Intervenants

Monitor Audio

Monitor Audio GSW12 Manuel utilisateur

Monitor Audio

Monitor Audio PLW-15 Manuel utilisateur

Monitor Audio

Monitor Audio M1 Manuel utilisateur

Monitor Audio

Monitor Audio Climate Series Manuel de service

Monitor Audio

Monitor Audio Controlled Performance series Manuel utilisateur

Monitor Audio

Monitor Audio Radius R225 Manuel utilisateur

Monitor Audio

Monitor Audio Platinum In-Wall 3G Manuel utilisateur

Monitor Audio

Monitor Audio ASB-2 Manuel utilisateur

Monitor Audio

Monitor Audio ASB-2 Manuel utilisateur

Monitor Audio

Monitor Audio PL IW Manuel utilisateur

Monitor Audio

Monitor Audio soundframe 1 i-w Manuel de service

Monitor Audio

Monitor Audio Airstream S200 Manuel utilisateur

Monitor Audio

Monitor Audio AWC265 Manuel utilisateur

Monitor Audio

Monitor Audio CLIMATE GARDEN Series Manuel utilisateur

Monitor Audio

Monitor Audio STUDIO Manuel utilisateur

Monitor Audio

Monitor Audio Vector V10 Manuel utilisateur

Monitor Audio

Monitor Audio Platinum 500 II Manuel

Monitor Audio

Monitor Audio Airstream s300 Manuel utilisateur

Monitor Audio

Monitor Audio Loudspeaker Radius Manuel utilisateur

Monitor Audio

Monitor Audio GOLD SERIES Manuel utilisateur

Monitor Audio

Monitor Audio Platinum In-Wall II Manuel utilisateur

Monitor Audio

Monitor Audio 100 series Manuel utilisateur

Monitor Audio

Monitor Audio GS10 Manuel utilisateur

Monitor Audio

Monitor Audio GOLD GX series Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
