Modway MOD-6282 Manuel utilisateur

Thank you for purchasing the MODWAY BED!

Before you start, here are some helpful advice:

1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.

2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or

padded area, in the room that it is intended for. Approximate assembly time: 35 minutes.

3. Please do not use any tools other than those provided or recommended in these instructions.

4. Please do not throw away any of the packaging or the instruction until you have checked all the components and

hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe

environmentally friendly way.

5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the

components from time to time, so please save tools that have been provided.

6. Please keep all fitting out of reach of children.

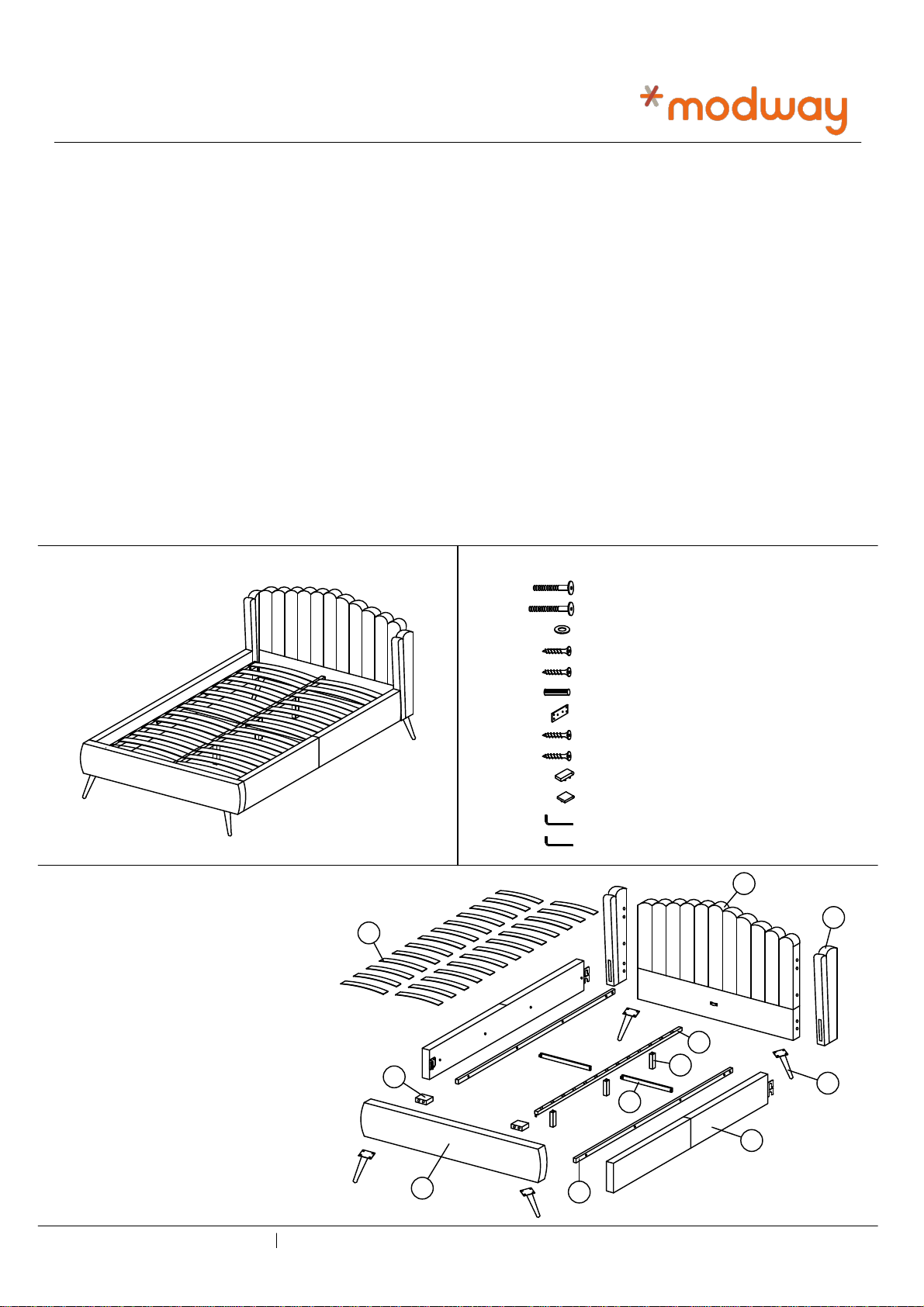

Hardware:

Component:

MOD - 6282

01 of 07

A. HEADBOARD x 1

B. x 1

x 2

x 1

FOOTBOARD

x 3

G. SIDE RAIL SUPPORT WOOD

x 2

CENTER RAIL

x 26

CENTER SUPPORT LEG

CENTER SUPPORT

BED SLAT

WOOD SCREW M3.5 x 16mm

16 PCS

8 PCS

WOOD SCREW M4 x 20mm 2 PCS

26 PCS

BED SLAT SIDE FITTER

BED SLAT CENTER FITTER

WOOD DOWEL M8 x 30mm

JCBC BOLT M6 x 40mm

13 PCS

4 PCS

BED LEG x 4

x 2SIDE RAIL

6 HOLE METAL BRACKET 2 PCS

WOOD SCREW M4 x 32mm 16 PCS

M5 ALLEN KEY (BALL SHAPE) 1 PC13

M4 ALLEN KEY (BALL SHAPE) 1 PC

8WOOD SCREW M4 x 25mm 12 PCS

M6 FLAT WASHER 6 PCS

JCBC BOLT M6 x 60mm 4 PCS

HEADBOARD WING x 2

x 2FOOTBOARD LEG SUPPORT WOOD

K. K

Customer Service 609-256-9000 www.modway.com

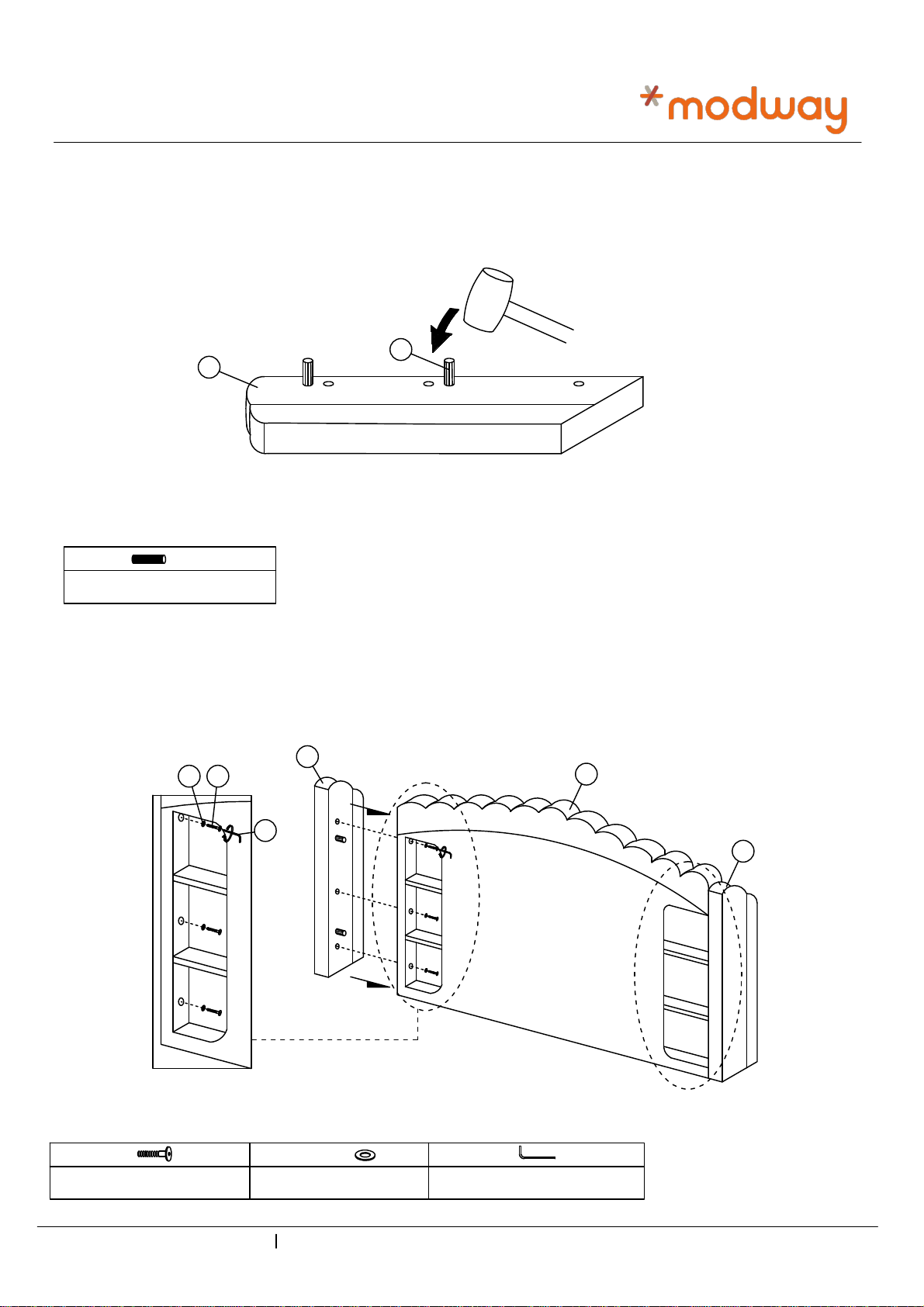

STEP 1

02 of 07

STEP 2

2.1 Attach the Headboard Wing (B) to the Headboard (A) using hardware parts

BOLT (1) , FLAT WASHER (3) & ALLEN KEY (12).

6. WOOD DOWEL M8 x 30mm x 4pcs Rubber Mallet

1. JCBC BOLT M6 x 40mm x 6pcs

x 2

12. ALLEN KEY (BALL SHAPE) M4

3. M6 FLAT WASHER x 6pcs

3 1

1.1 Attach the hardware parts WOOD DOWEL (6) to the Headboard Wing (B).

Customer Service 609-256-9000 www.modway.com

MOD - 6282

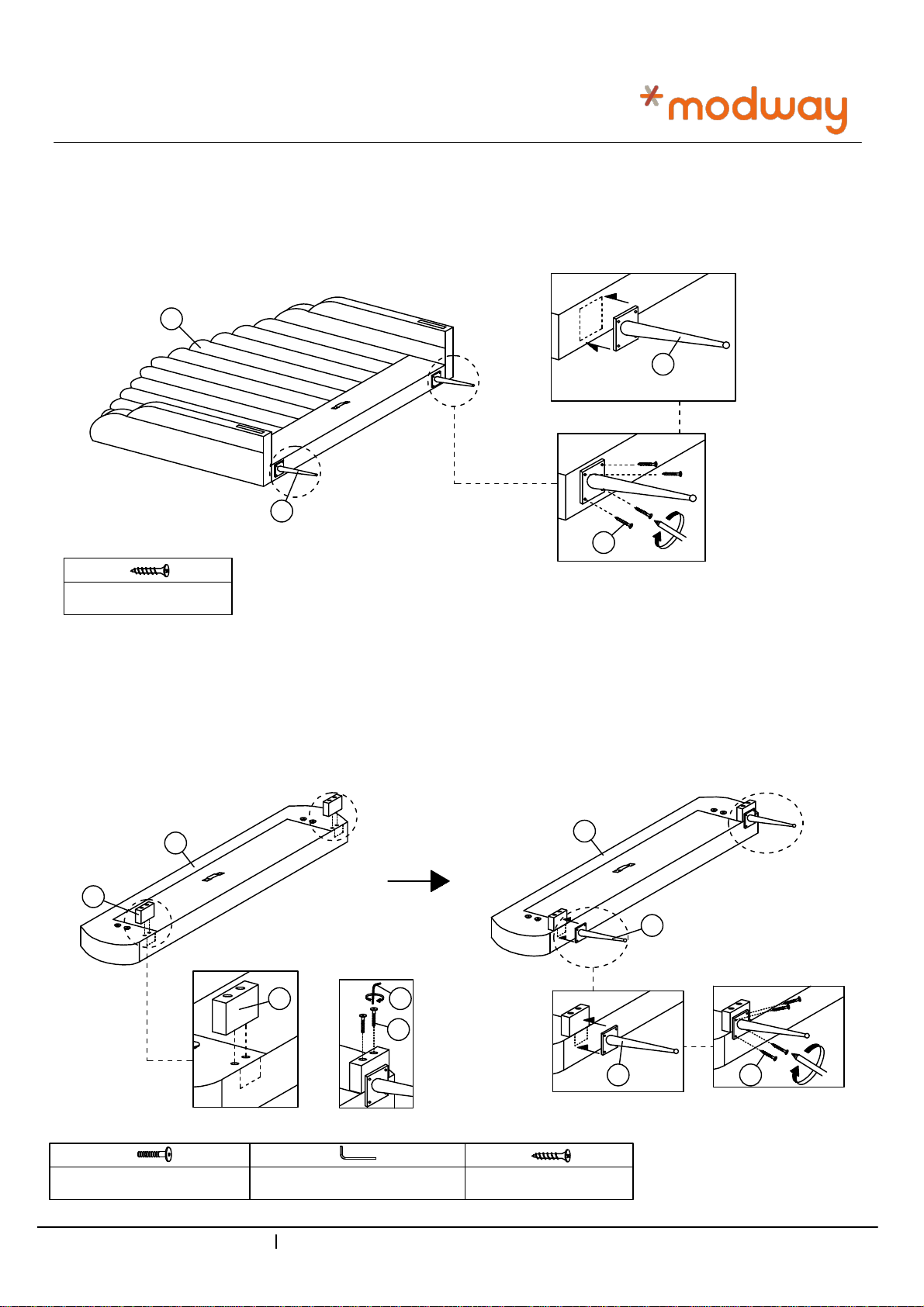

STEP 3

03 of 07

STEP 4

4.1 Attach the Leg Support Wood (K) to the Footboard (C) using hardware parts

BOLT (2) &ALLEN KEY (12).

3.1 Follow marking line assemble leg.

STEP 3.1

STEP 3.2

3.2 Secure the Bed Leg (D) to the Headboard (A) using hardware parts WOOD SCREW (9).

9. SCREW M4 x 32mm x 8pcs Screw Driver

4.2 Follow marking line assemble leg.

4.3 Secure the Bed Leg (D) to the Footboard (C) using hardware parts WOOD SCREW (9).

D 9

2. JCBC BOLT M6 x 60mm x 4pcs 12. ALLEN KEY (BALL SHAPE) M4 9. SCREW M4 x 32mm x 8pcs Screw Driver

STEP 4.1 STEP 4.2 STEP 4.3

Customer Service 609-256-9000 www.modway.com

MOD - 6282

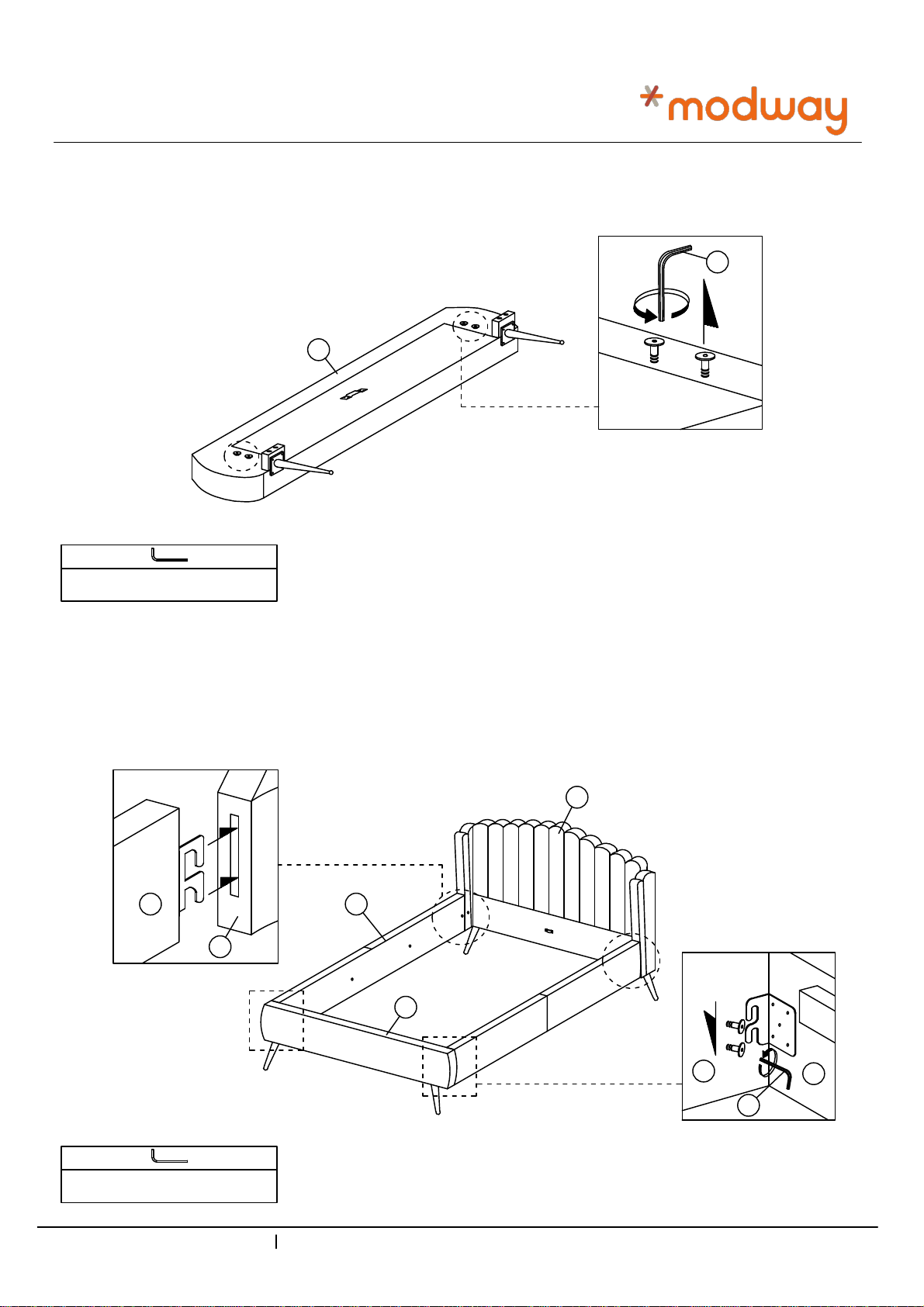

STEP 5

04 of 07

STEP 6

13. ALLEN KEY (BALL SHAPE) M5

5.1 Loosen the pre-inserted bolt on the Footboard (C) using hardware part ALLEN KEY (13).

6.1 Attach the Side Rails (E) to the Headboard (A).

6.2 Attach the Side Rails (E) to the Footboard (C) using hardware part ALLEN KEY (13).

STEP 6.1

STEP 6.2

13. ALLEN KEY (BALL SHAPE) M5

Customer Service 609-256-9000 www.modway.com

MOD - 6282

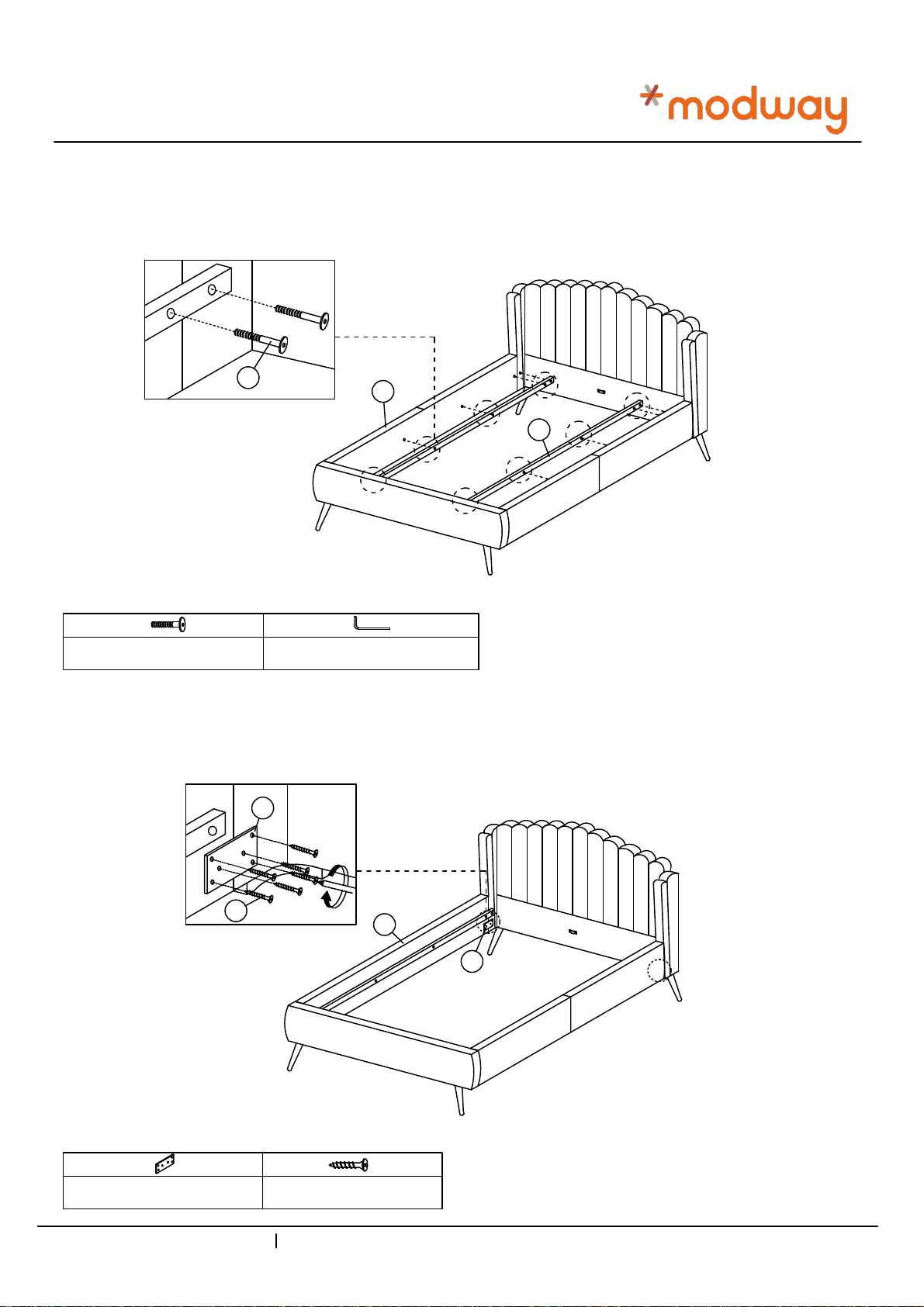

STEP 7

STEP 8

05 of 07

7.1 Attach the Side Rails Support Wood (F) to the Side Rail (E) using hardware parts

BOLT (1) &ALLEN KEY (12).

1. JCBC BOLT M6 x 40mm x 10pcs 12. ALLEN KEY (BALL SHAPE) M4

7. 6 HOLE METAL BRACKET x 2pcs 8. SCREW M4 x 25mm x 12pcs Screw Driver

Customer Service 609-256-9000 www.modway.com

MOD - 6282

8.1 Attach the 6 HOLE METAL BRACKET (7) to the Side Rail (E) using hardware parts

WOOD SCREW (8).

STEP 9

06 of 07

STEP 10

9.1 Fasten Center Support Leg (H) to Center Rail (G) attach by screwing the protruding nut

into the corresponding holes.

10.2 Insert and secure the Center Support (I) to the Center Rail (G) & Side Rail (E)

using hardware parts WOOD SCREW (4).

10.1 Locate Center Rail (G) into the corresponding brackets inside of Headboard (A)

and Footboard (C) using hardware parts WOOD SCREW (5) .

4. SCREW M3.5 x 16mm x 8pcs 5. SCREW M4 x 20mm x 2pcs Screw Driver

STEP 10.1

STEP 10.2

Customer Service 609-256-9000 www.modway.com

MOD - 6282

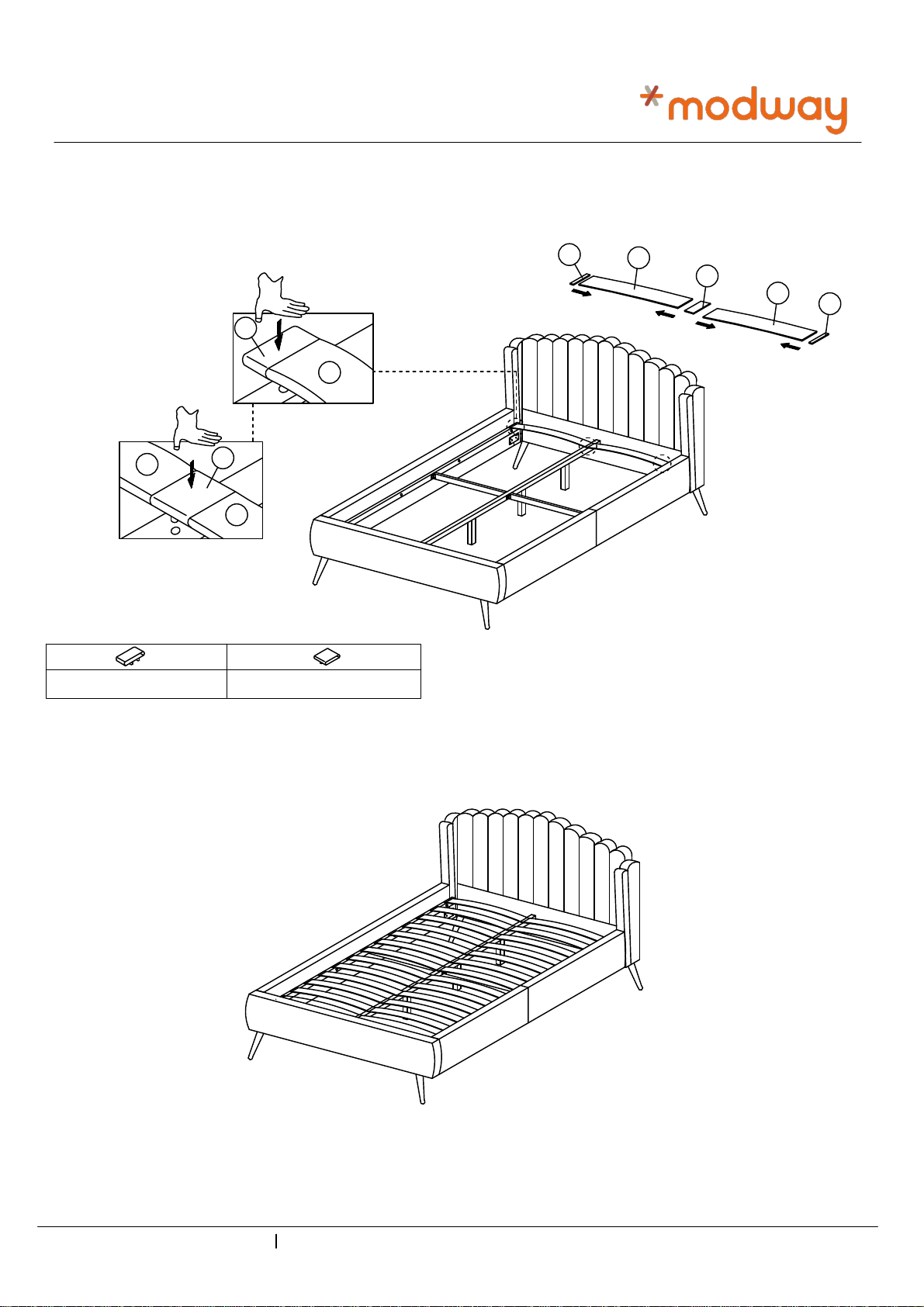

STEP 11

07 of 07

11.1 Insert the Slat (J) into the end SLAT CAP (10) & (11) and fix it to the corresponding holes

on the Side Rail (E) .

1O. BED SLAT SIDE FITTER x 26pcs 11. BED SLAT CENTER FITTER x 13pcs

Palm

STEP 11.2

STEP 11.1

10 11

Assembly is complete. The bed is ready to use now!

NOTE: Hardware may loosen over time. Periodically check that all connections are tight.

STEP 12

12.1 Carefully position the assembled bed to the desired location by four adults.

Customer Service 609-256-9000 www.modway.com

MOD - 6282
