Modway MOD-6210 Manuel utilisateur

Thank you for purchasing the MODWAY BED!

Before you start, here are some helpful advice:

1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.

2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or

padded area, in the room that it is intended for. Approx assembly time: 20 minutes.

3. Please do not use any tools other than those provided or recommended in these instructions.

4. Please do not throw away any of the packaging or the instruction until you have checked all the components and

hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe

environmentally friendly way.

5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the

components from time to time, so please save tools that have been provided.

6. Please keep all fitting out of reach of children.

Component:

MOD-6210

01 of 03

Customer Service 609-256-9000 www.modway.com

HEADBOARD

SUPPORT WOOD

BED FRAME

(DOES NOT INCLUDE

WITH THE PURCHASE)

1 PC

2 PCS

C-

02 of 03

Customer Service 609-256-9000 www.modway.com

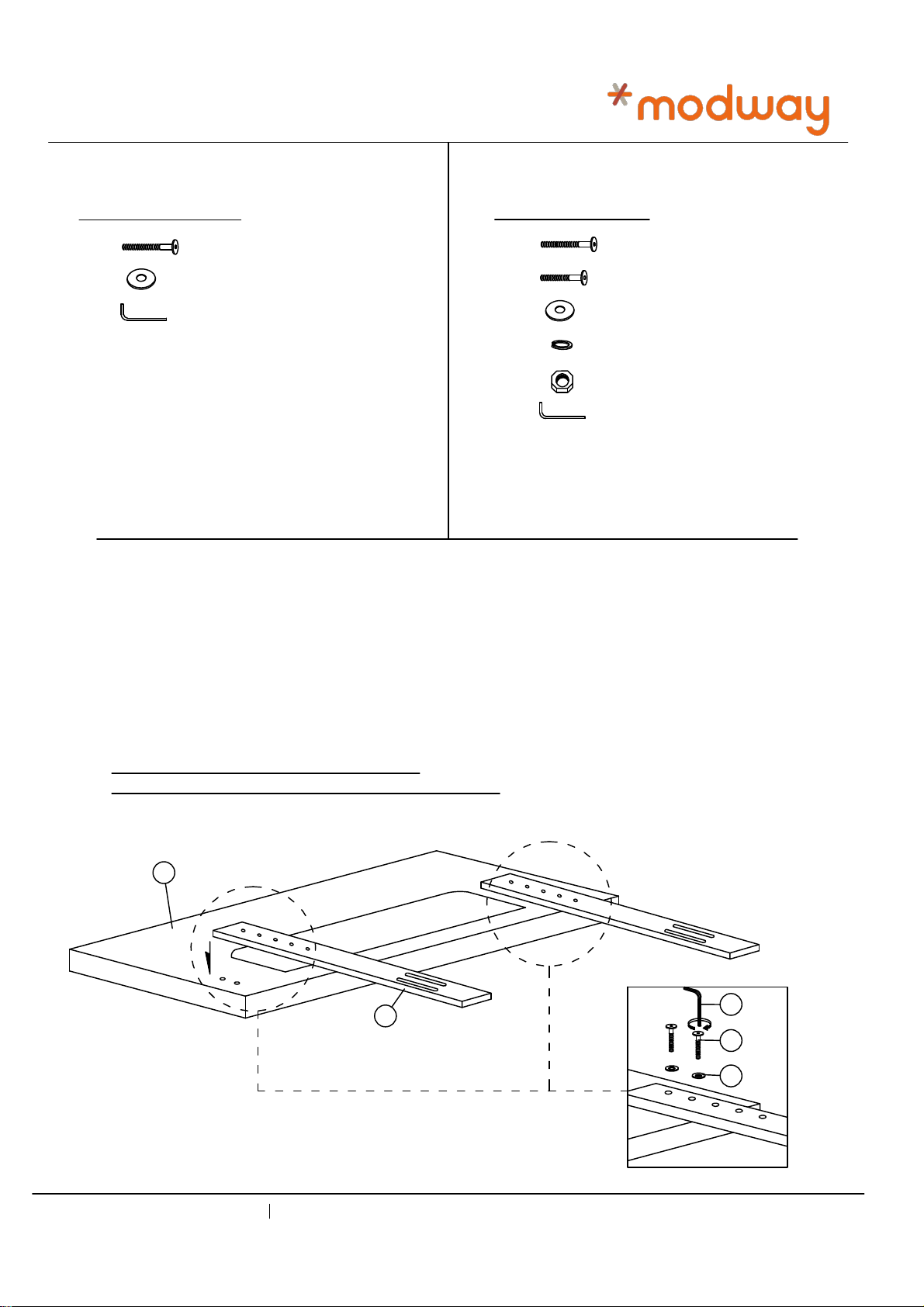

STEP 1

1.1 Open the zip at the headboard backing and take out all the parts.

1.2 Align pre-drilled support stand holes over the pre-drilled headboard holes according to your

desired headboard height

1.3 Secure each support stand by using 2x JCBB Bolt [1] and 2x M8 Flat Washer [2].

Tighten with supplied Allen Key [3].

Repeat the same procedure to secure the other side.

JCBB BOLT M8 x 60mm

M8 FLAT WASHER

M5 ALLEN KEY

JCBB BOLT M6 x 60mm

4 PCS

1 PC

JCBB BOLT M6 x 35mm

M6 FLAT WASHER

M6 SPRING WASHER

M6 HEX NUT

M4 ALLEN KEY

4 PCS

8 PCS

4 PCS

1 PC

HARDWARE BED FRAMEHARDWARE HEADBOARD

Note: Hardware may loosen over time.

Periodically check that all connections are tight.

MOD-6210

03 of 03

Customer Service 609-256-9000 www.modway.com

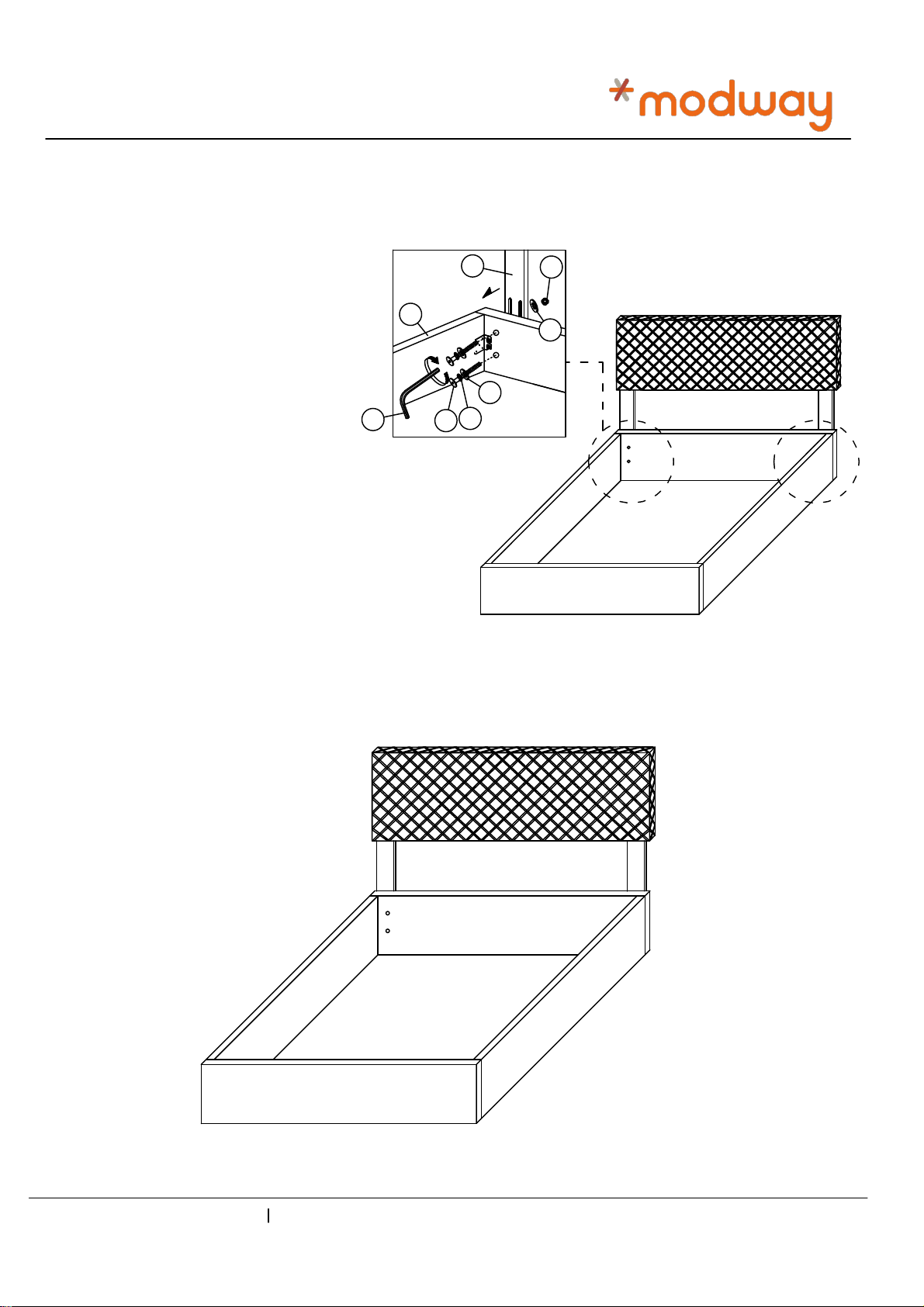

STEP 2

2.1 Line up the bed frame board's

pre-drilled holes to match those of

the headboard.

2.2 Secure the headboard to the

bed frame by using 2x bolt (4) for

the thicker bed frame, and 2x bolt

(5) for the thinner bed frame. Before

inserting each bolt, place a spring

washer (7) and flat washer (6) on

each bolt. Then fit a flat washer (6)

on the screw as it protrudes through

the other side of the bed frame.

2.3 Place a Hex Nut (8) after the flat

washer (6) at the end of each screw.

Then tighten by using the Allen key

(9).

2.4 Repeat the same procedure for

each screw and each side of the

bed frame.

STEP 3

MOD-6210
