MOD-6255

Thank you for purchasing the MODWAY BED!

Before you start, here are some helpful advice:

1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.

Customer Service 609-256-9000 | www.modway.com 01 of 05

2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or

padded area, in the room that it is intended for. Approx assembly time: 40 minutes.

3. Please do not use any tools other than those provided or recommended in these instructions.

4. Please do not throw away any of the packaging or the instruction until you have checked all the components and

hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe

environmentally friendly way.

5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the

components from time to time, so please save tools that have been provided.

6. Please keep all fitting out of reach of children.

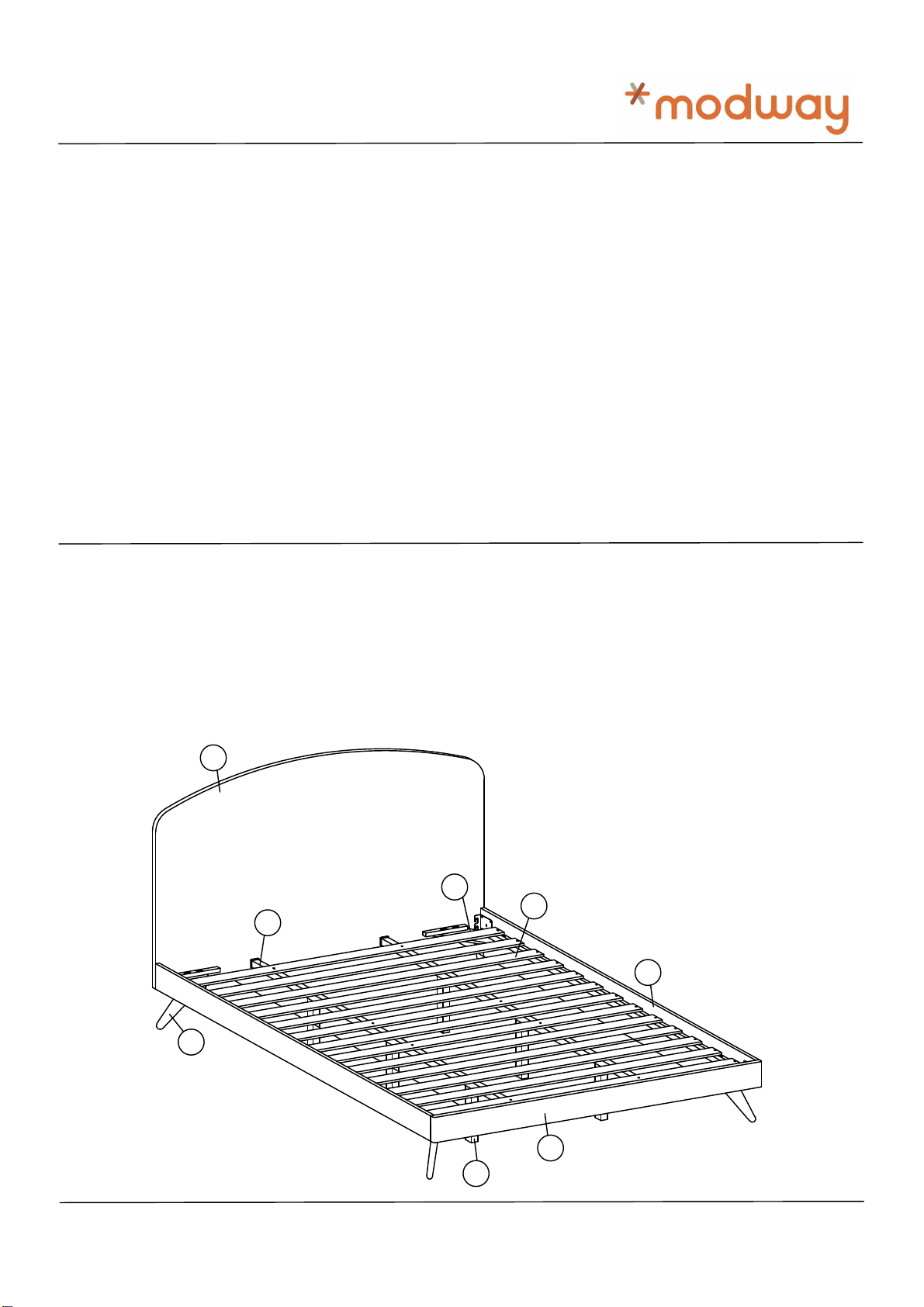

Components:

AHEADBOARD PANEL 1 PC

B FOOTBOARD PANEL 1 PC

C SIDE RAIL 2 PCS

D CENTER RAIL 2 PCS

ECENTER RAIL LEG 6 PCS

F BED LEG 4 PCS

GLEG MOUNTING PLATE 4 PCS

H BED SLATS 1 SET

6G

F

Short Tab of

L Bracket (13)

5

13

B

MOD-6255

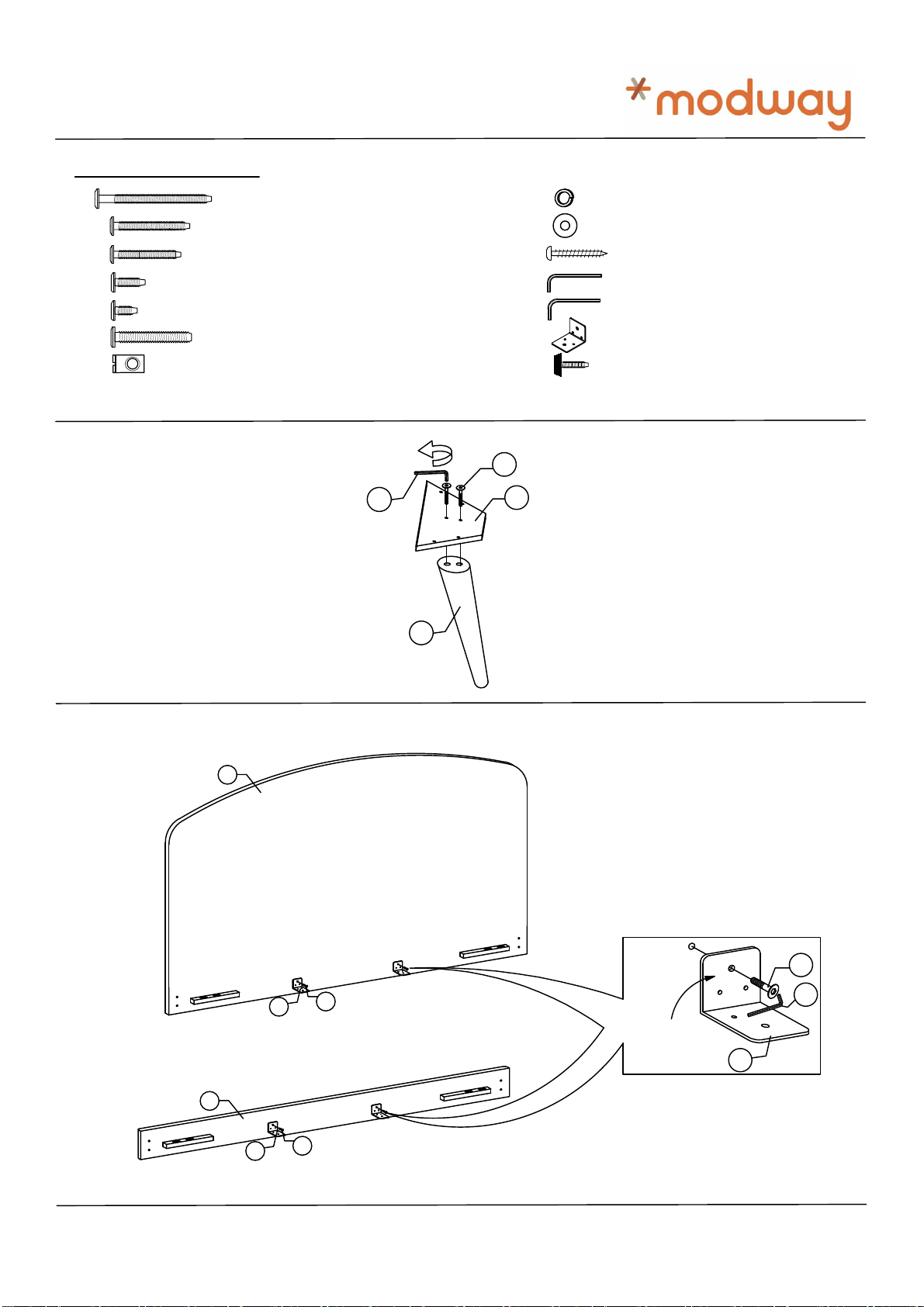

HARDWARE BED FRAME

Customer Service 609-256-9000 | www.modway.com 02 of 05

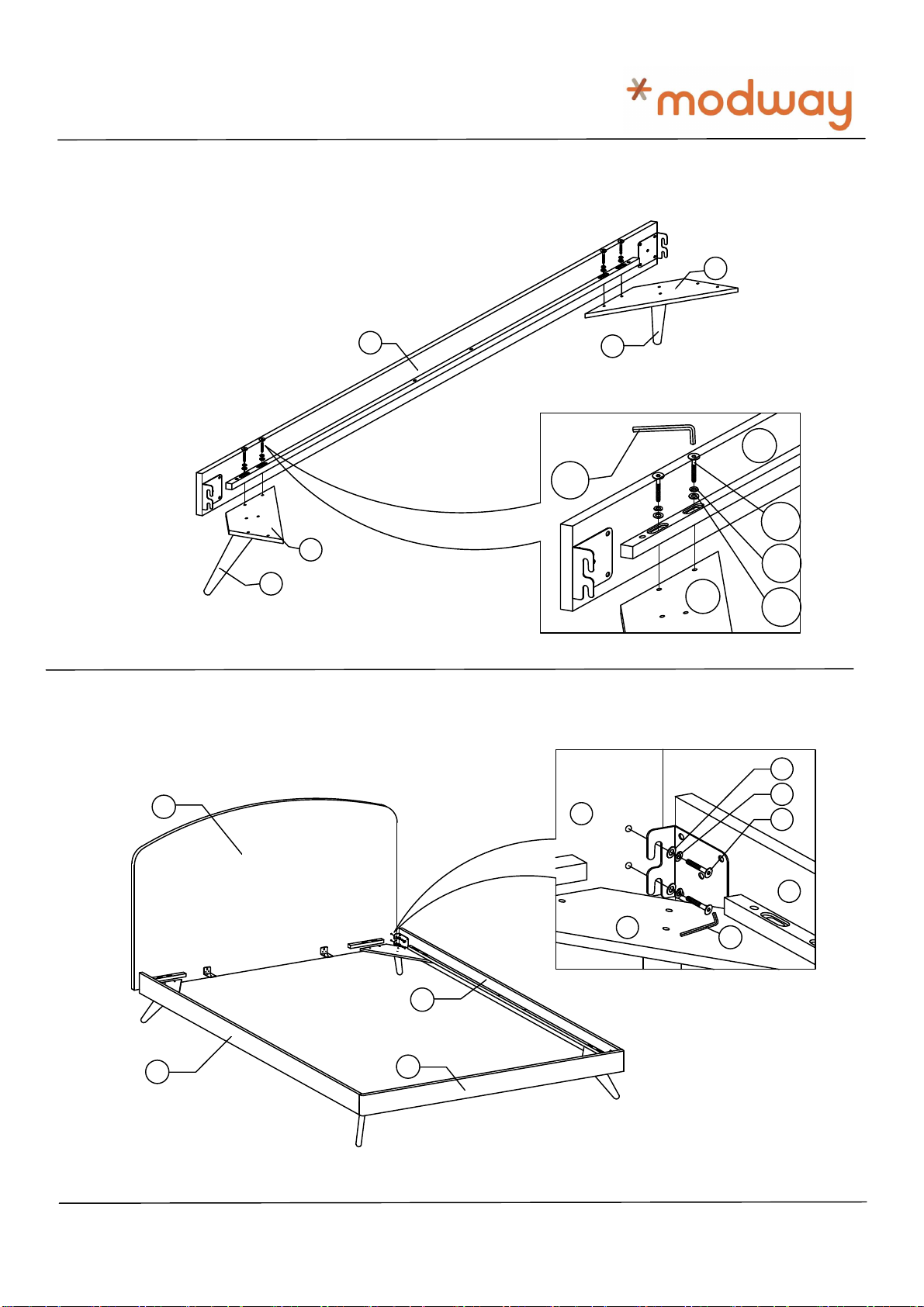

STEP 1

STEP 2

12

11

13 5

A

1JCBC BOLT M6 x 90mm 6 PCS

2JCBC BOLT M6 x 50mm 16 PCS

3JCBC BOLT M6 x 40mm 16 PCS

4JCBC BOLT M6 x 20mm 8 PCS

8M6 SPRING WASHER 24 PCS

9M6 FLAT WASHER 24 PCS

10 PH SCREW M4 x 32mm 18 PCS

11 M4 ALLEN KEY 1 PC

5JCBC BOLT M6 x 15mm 8 PCS

6JCBB BOLT M8 x 50mm 8 PCS

7BARREL NUT 6 PCS

12 M5 ALLEN KEY 1 PC

13 L BRACKET 4 PCS

14 ADJUSTABLE FOOT 6 PCS

13 5

9

8

4

C

A

G

MOD-6255

Customer Service 609-256-9000 | www.modway.com 03 of 05

STEP 3

STEP 4

F

G

G

F

C

11

2

8

9

11 C

G

A

C

C

B

A2

8

9

G

AC

MOD-6255

Customer Service 609-256-9000 | www.modway.com 04 of 05

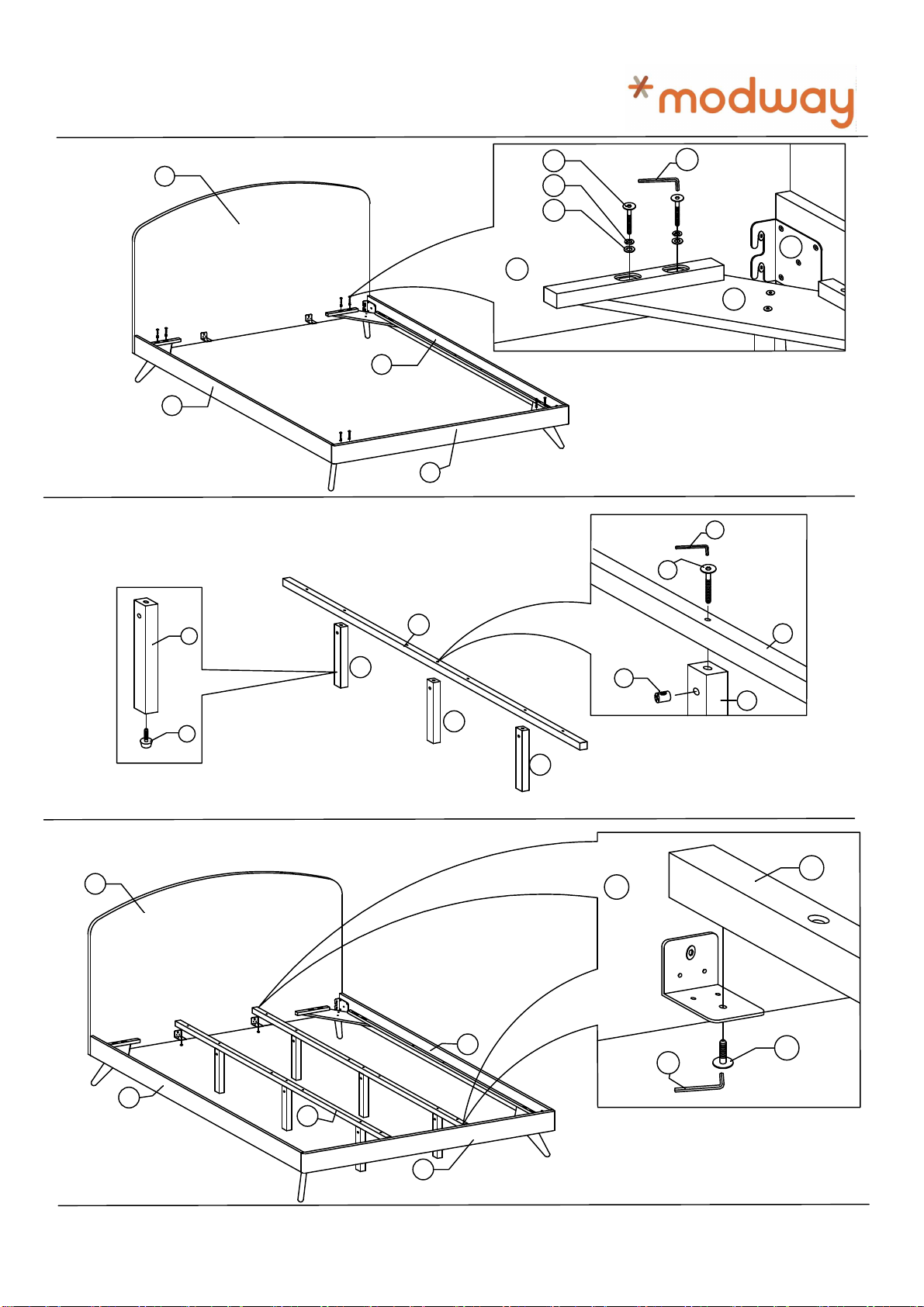

STEP 5

STEP 6

5

D

A

11

11

C

C

B

D

E

E

D

7

1

11

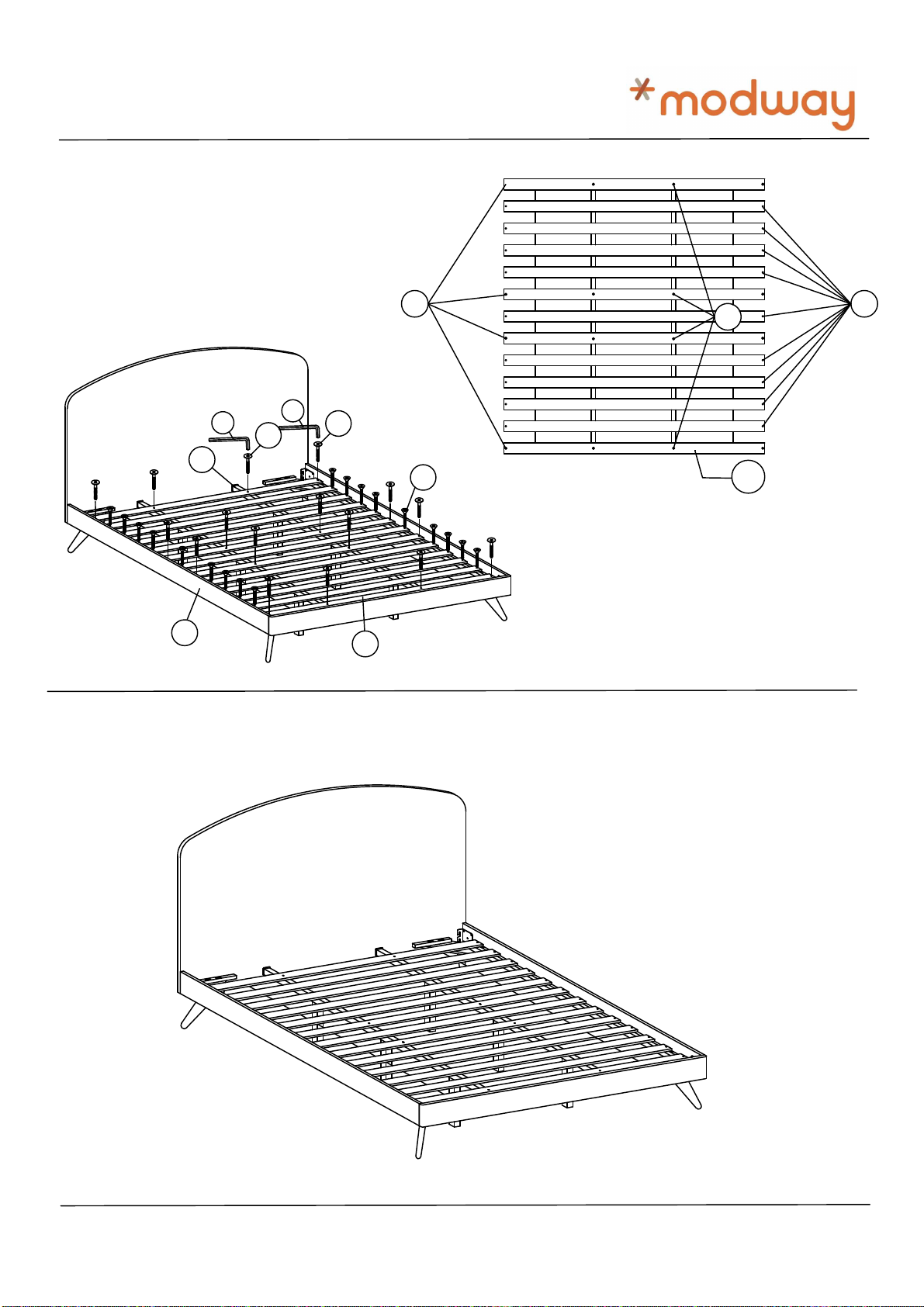

STEP 7

A

C

B

CD

E

E

E

14

MOD-6255

Customer Service 609-256-9000 | www.modway.com 05 of 05

STEP 8

STEP 9

9.1 Assembly completed.

10

D

H

C

3

11 3

11

10

33

H
