modway MOD-5538 Manuel utilisateur
Customer Service 908-368-1025︱www.modwayfurniture.com Page 1 of 6

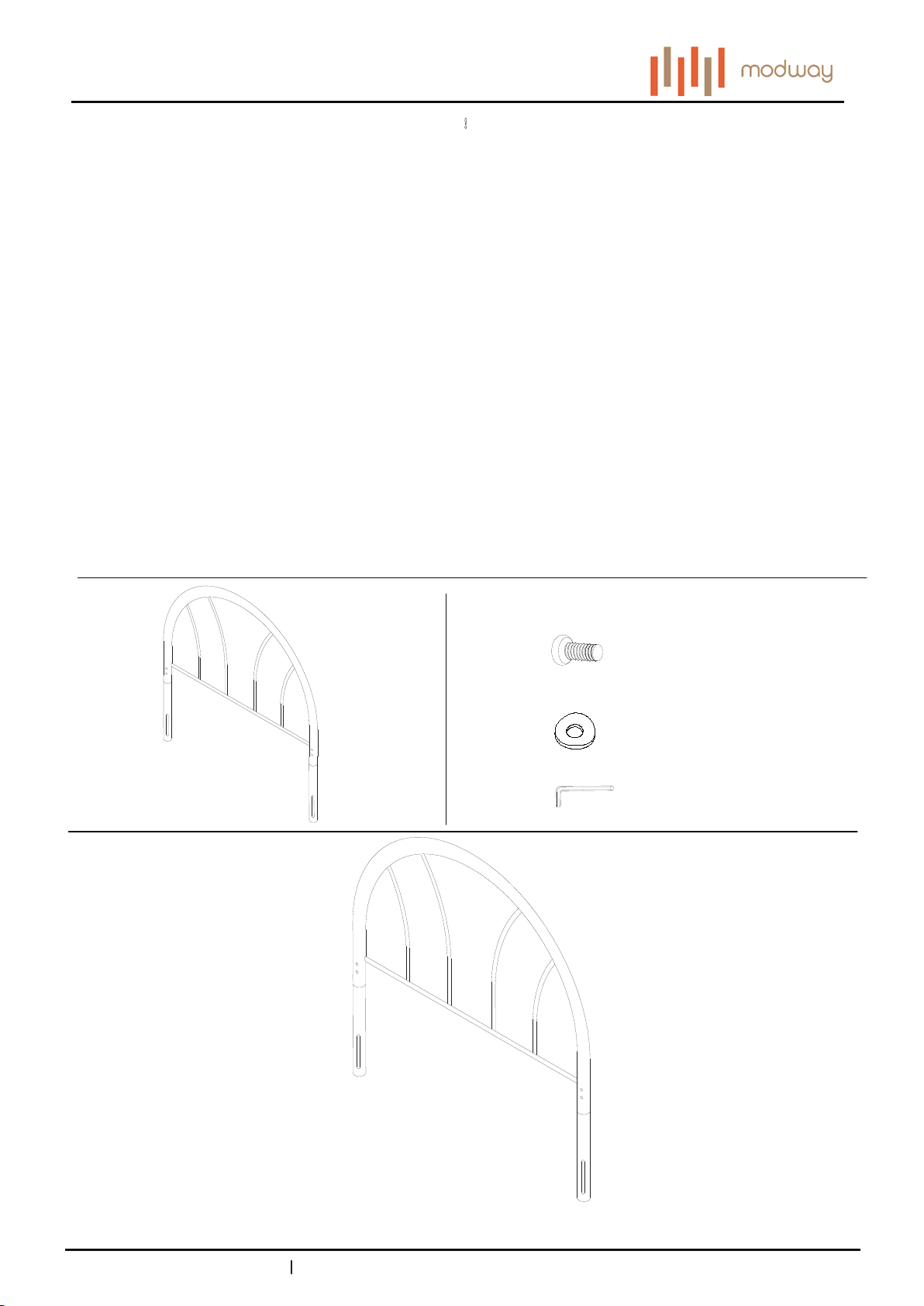

MOD-5538 TIWN HEADBOARD
Hardware:
Component:
ABolt M6x20mm x4
BArc Washer M6 x4
CAllen Wrench M5 x1
1Headboard x1 2Low Post x2
Thank you for purchasing the MODWAY HEADBOARD！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step -by -step
instructions.
2.Owing to the size and weight of the headboard, we recommend that it is assembled by two adults, on a carpeted
or padded area, in the room that it is intended for. Appro ximately assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe and
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all fitting out of reach of children.
1
2
2
Customer Service 908-368-1025︱www.modwayfurniture.com Page 2 of 6
Ax4 Bx4 Cx1

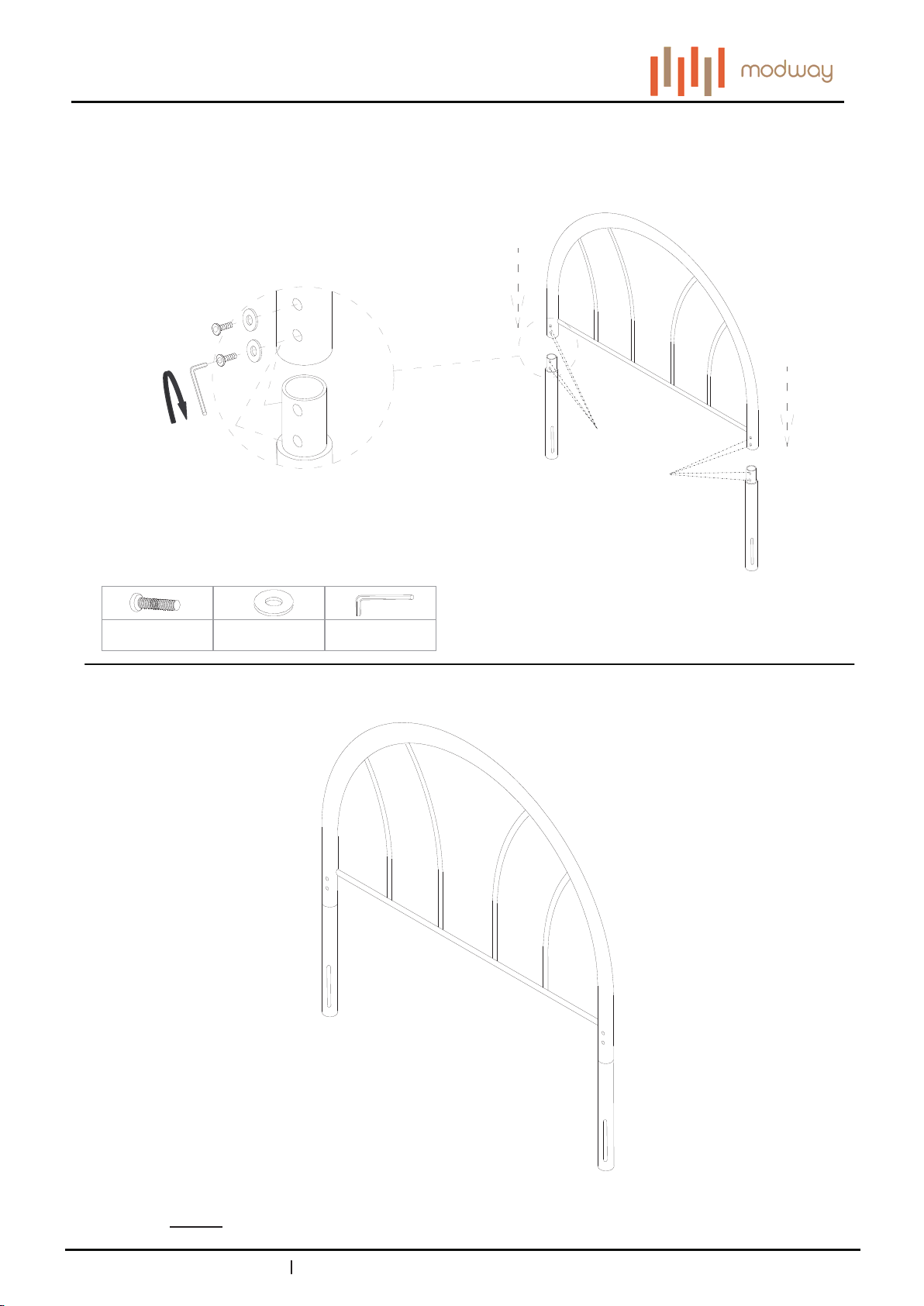

STEP 1:
Insert Low Post (2) into Headboard (1) as shown.
Attach by using Arc Washer (B)and Bolt (A) from the holes on the back of Low Post (2) and Headboard (1).
Use Allen Wrench (C) to tighten Bolts (A) clockwise until secure at this step.
Hardware & Tool required
STEP 2:
Assembly is completed. The headboard is ready to use now!
NOTE: Hardware may loosen over time. Periodically check that all connections are tight.
Carefully turn up the assembled Headboard (1) by two adults.
Back with holes
Back
1
2
A
1
B
AB
C
2
2
MOD-5538 TIWN HEADBOARD
Customer Service 908-368-1025︱www.modwayfurniture.com Page 3 of 6

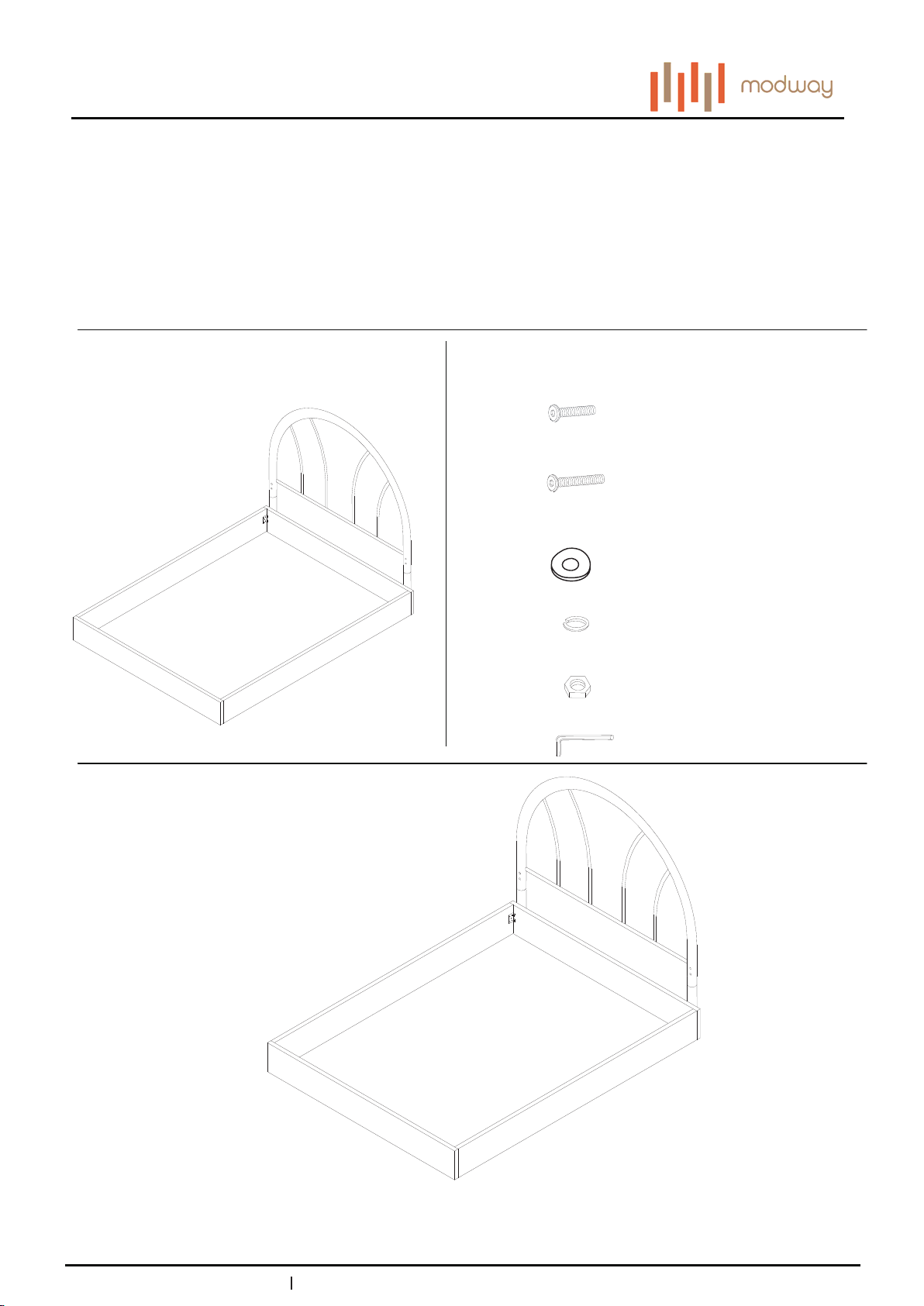

MODWAY CONNECTING HEADBOARD TO BED FRAME
ABolt M6x45mm x4
C
FAllen Wrench M4 x1
BBolt M6x65mm x4
DSpring Washer M6 x4
EHex Nut M6 x4
OPTION 1
Hardware:
12Bed Frame x1
Headboard x1
OPTION 1
1
2
Component:
ASSEMBLY INSTRUCTIONS
OPTION 1
x8
Arc Washer M6

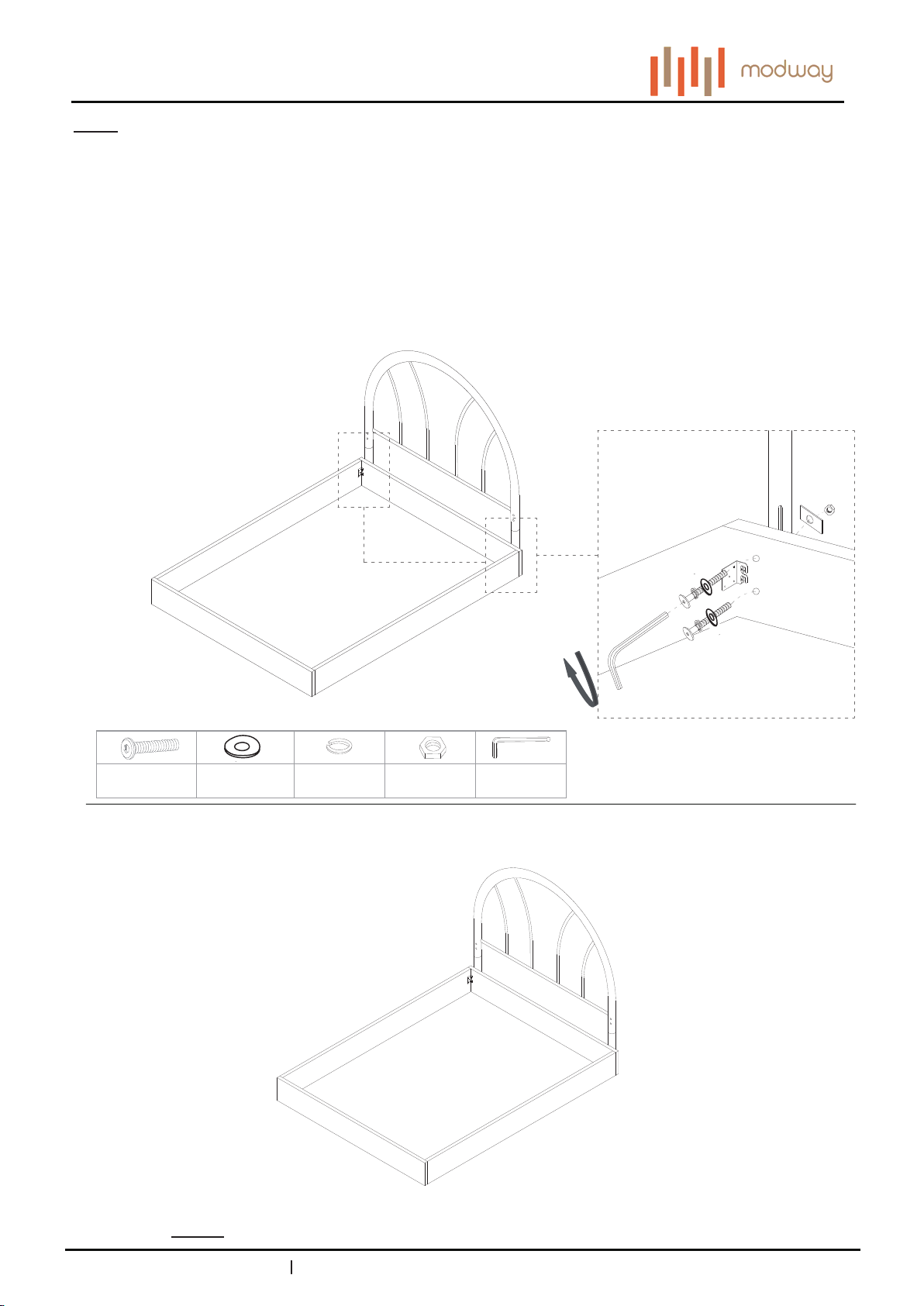

Customer Service 908-368-1025︱www.modwayfurniture.com Page 4 of 6
A or Bx4 Cx8 Fx1
Ex4
Dx4
STEP 1:
Line up the Bed Frame (2) board’s pre-drilled holes to mat ch those of the Headboard (1) .
Secure the Headboard (1) to the Bed Frame (2) by using 2 pieces of Bolt (B) for the thicker Bed Frame (2), and 2 pieces
of Bolt (A) for the thinner Bed Frame (2).
Before inserting each bolt, place 1 piece of Spring Washer (D) and Flat Washer (C) on each bolt. Then fit 1 piece of Flat
Washer (C) on the bolt as it protrudes through the other side of the Bed Frame (2).
Place 1 piece of Hex Nut (E) after the Flat Washer (C) at the end of each bolt. Then tighten the Bolts (A or B) by
using the Allen Wrench (F).
Repeat the same procedure for each bolt and each side of the Bed Frame (2).
Hardware & Tool required
STEP 2:
2
Assembly is completed. The bed is ready to use now!
NOTE: Hardware may loosen over time. Periodically check that all connections are tight.
Carefully position the assembled bed to the desired location by four adults.
1
Note: Extra hardware were provided for attaching the headboard to your Bed Frame (use is optional).
1
2
F
E
C
AorB
C
D
MODWAY CONNECTING HEADBOARD TO BED FRAME
D
C
AorB
1.
2.
Customer Service 908-368-1025︱www.modwayfurniture.com Page 5 of 6
ABolt M6x45mm x4
FAllen Wrench M4 x1
DSpring Washer M6 x4
OPTION 2
Hardware:
12Bed Frame x1
Headboard x1
OPTION 2
1
2
Component:
Note: This is assembly instruction for Headboard connect to MODWAY Bed Frame MOD-5347/5348/5349/
5350/5351/5352/5353/5354/5357/5358/5359/5360/5361/5362/5363/5364.
ASSEMBLY INSTRUCTIONS
OPTION 2
MODWAY CONNECTING HEADBOARD TO BED FRAME
BBolt M6x65mm x4
C x4
Arc Washer M6
Customer Service 908-368-1025︱www.modwayfurniture.com Page 6 of 6
A or Bx4Cx4 Dx4 Fx1 Hardware & Tool required
STEP 2:
2
Assembly is completed. The bed is ready to use now!
NOTE: Hardware may loosen over time. Periodically check that all connections are tight.
1
1
2
AorB
D
C
F
Line up the Bed Fame (2) board’s pre-drilled holes to match those of the Headboard (1).
Secure the Headboard (1) to the Bed Frame (2) by using 2 pieces of Bolt (B) with 2 pieces of Spring Washer (D), 2 pieces
of Washer (C) for the thicker Bed Frame (2), and 2 pieces of Bolt (A) with 2 pieces of Spring Washer (D), 2 pieces of
Washer (C) for the thinner
Bed Frame (2).
Then tighten the Bolts (A or B) by using the Allen Wrench (F).
Repeat the same procedure for each bolt and each side of the Bed Frame (2).
STEP 1:
MODWAY CONNECTING HEADBOARD TO BED FRAME
Carefully position the assembled bed to the desired location by four adults.
