modway MOD-5475 Manuel utilisateur
Customer Service 908-368-1025︱www.modwayfurniture.com Page 1 of 3

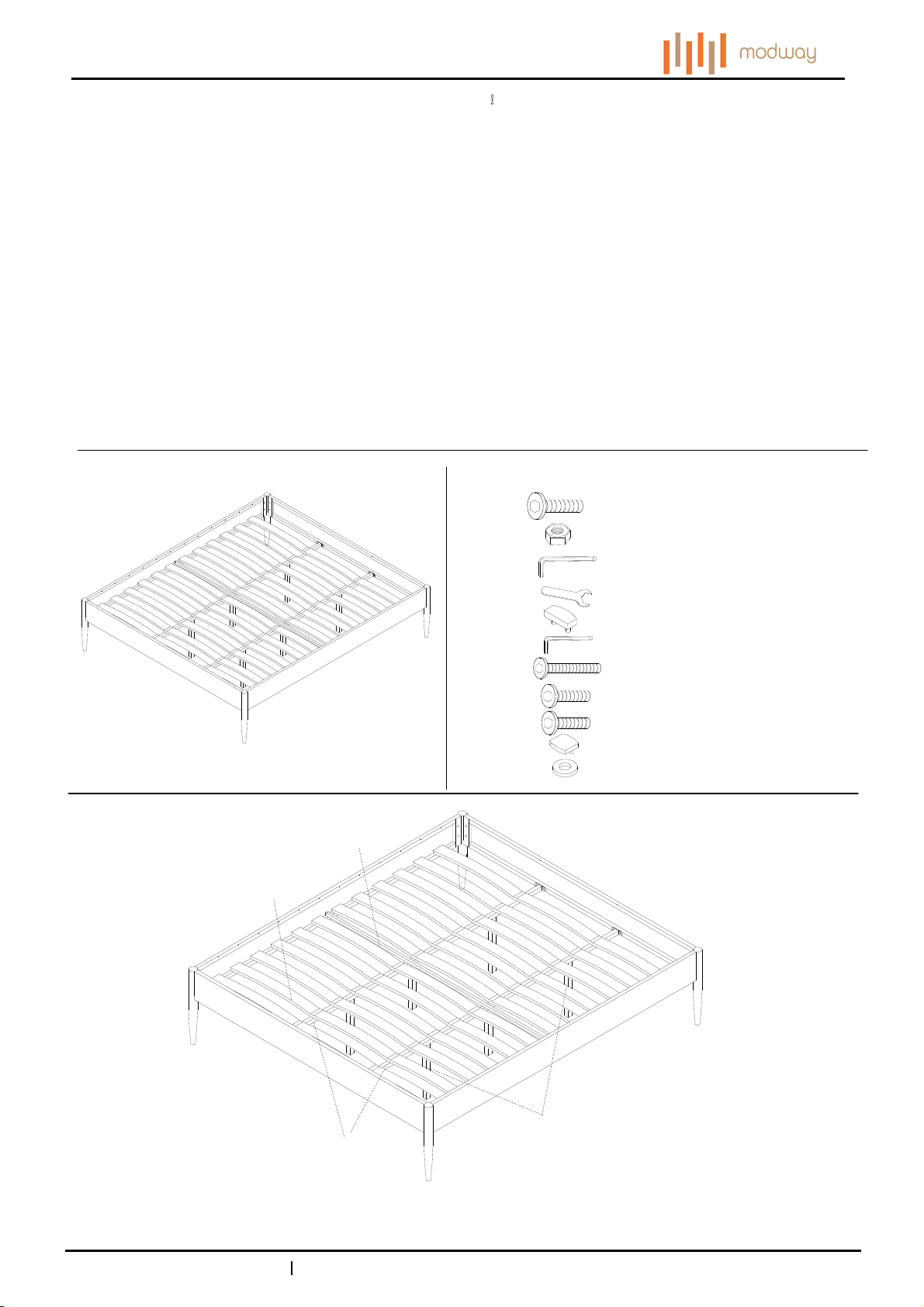

MOD-5475 KING BED FRAME
Hardware:
Component:
Thank you for purchasing the MODWAY KING BED FRAME！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the bed frame, we recommend that it is assembled by two adults, on a carpeted
or padded area, in the room that it is intended for. Approx assembly time: 45 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that has been provided.
6.Please keep all fitting out of reach of children.
1Short Board x2
1
1
2
2
3
3
3
3
4
5
2Long Board x2 3Leg x4
5Center Rail x2 6Support Leg x6
6
7
4Stretcher x1
7Slat x36
Allen Wrench M6 x1
ABolt M8x20mm x16
BNut M6 x12
CAllen Wrench M8 x1
DOpen Wrench x1
ESide Plastic Cover x24
GBolt M6x55mm x2
HBolt M6x35mm x12
JCenter Plastic Cover x24
F
KFlat Washer x20
IBolt M6x20mm x8
Customer Service 908-368-1025︱www.modwayfurniture.com Page 2 of 3
MOD-5475 KING BED FRAME

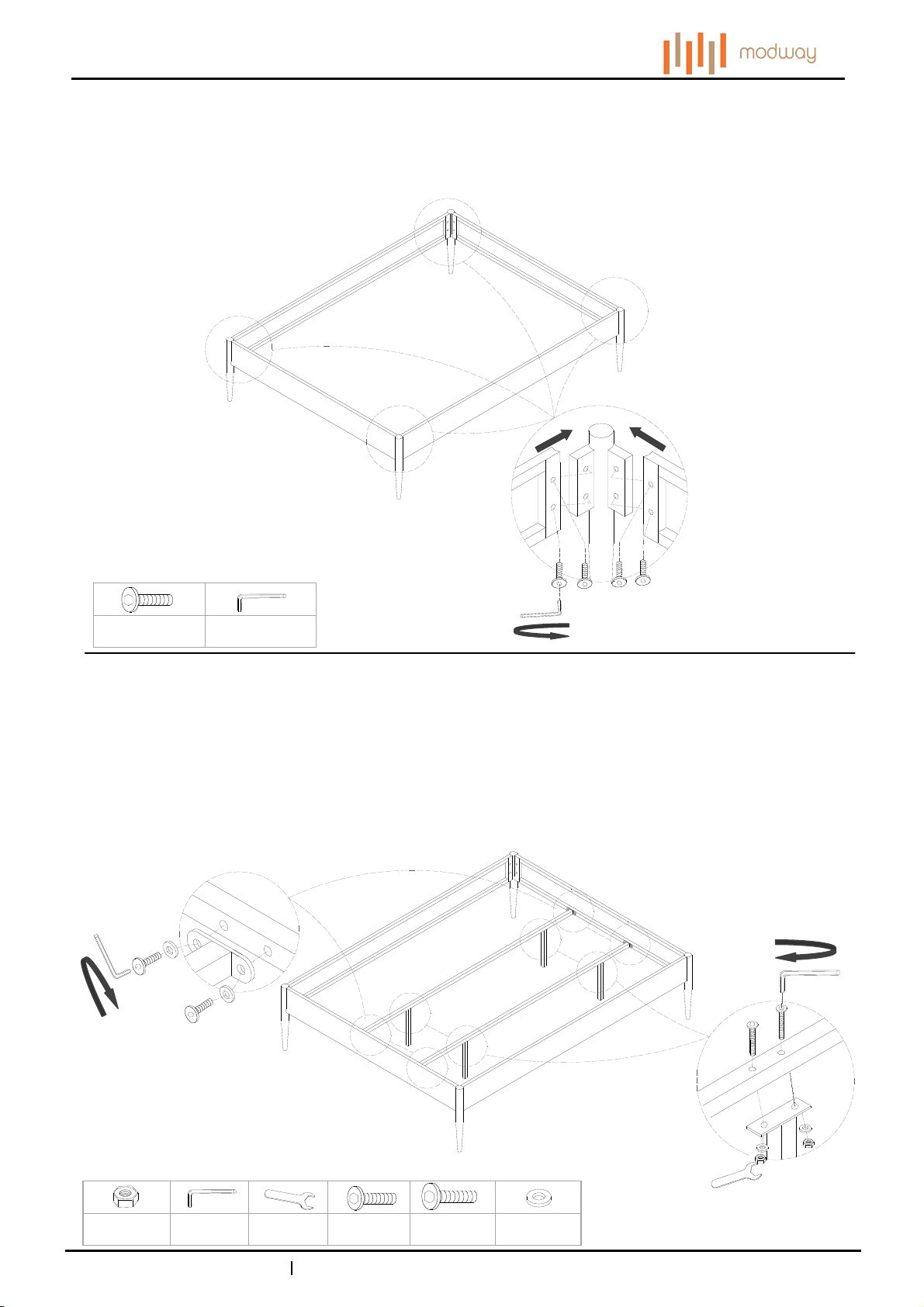

STEP 1:
Inert the end of Leg (3) into Short Board (1) and Long Board (2) as shown.
Secure by using 4 pieces of Short Bolt (A),do not fully tighten Short Bolts (A) by using Allen Wrench (C) at this step.
Repeat the same steps for the remaining 3 pieces of Leg (3).
Tighten all Short Bolts (A) by using Allen Wrench (C) clockwise until secure.
Ax16
Cx1 Hardware & Tool required
1
1
2
2
3
3
3
3
3
21
AAAA
C
Bx8
Fx1
Hx8
Ix8
Dx1
Kx16 Hardware & Tool required
STEP 2:
Place 2 piece of Support Leg (6) under Center Rail (5) as shown.
Insert 4 pieces of Bolt (H)through the holes on Center Rail (5) into the holes on Support Leg (6) as shown.
Tighten Bolts (H) with 4 piece of Nut (B)/Flat Washer (K) by using Allen Wrench (F) and Open Wrench (D) until Secure.
Repeat the same steps for the remaining Center Rail (5) and Support Legs (6).
Secure the end of Center Rail (5) by using 4 pieces of Bolt (I) with 4 pieces of Flat Washer (K) as shown.
Tighten Bolts (H) by using Allen Wrench (F) clockwise until Secure.
Repeat the same steps for remaining assembled Center Rail (5).
1
1
2
2
5
6
6
5
6
1
5
I
K
I
F
H
H
D
BB
F
K
K
K
5
Customer Service 908-368-1025︱www.modwayfurniture.com Page 3 of 3
MOD-5475 KING BED FRAME
STEP 4:
Ex24
Hardware & Tool required
1
7
4
E
E
21
2
Hx4 Bx4
Fx1
Gx2
Dx1
STEP 3:
Place Stretcher (4) to the assembled Long Board (2) and the assembled Center Rail (5)as shown.
Secure the end of Stretcher (4) by using 2 pieces of Bolt (H) as shown.
Tighten Bolts (H) by using Allen Wrench (F ) clockwise until secure.
Hardware & Tool required
2
2
2
1
4
1
5
6
6
1
4
H
F
7
5
J
56
Insert 2 piece of Center Plastic Cover (J) into the end of 1 piece of Slat (7) as shown.
Insert one end of 2 pieces of Slats (7) into the 2 pieces of Center Plastic Cover (J) as shown.
Insert 2 pieces of Side Plastic Cover (E) into the reaming end of 2 pieces of Slat (7) as shown.
Insert the assembled Side Plastic Covers (E) into the corresponding holes on Long Board (2),and the assembled Center
Plastic Covers (J) into the corresponding holes on Center Rail (5)as shown.
Repeat the same steps for the remaining 33 pieces Slat (7).
J7
Assembly is complete. Your bed frame is ready to be enjoyed now!
Jx24
Secure the middle of Stretcher (4) and 2 pieces of Suppor leg（6）by using 2 pieces of Bolt (G)/2 pieces of Bolt(H)/4 pieces of
Flat Washer(K) and 4 pieces of Nut (B) as shown.
4
G
F
5
6
D
BB
K
K
H
Kx4
