Modway MOD-6307 Manuel utilisateur

Thank you for purchasing the MODWAY BED!

Before you start, here are some helpful advice:

1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.

3. Please do not use any tools other than those provided or recommended in these instructions.

4. Please do not throw away any of the packaging or the instruction until you have checked all the components and

hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe

environmentally friendly way.

5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the

components from time to time, so please save tools that have been provided.

6. Please keep all fitting out of reach of children.

Hardware:

Component:

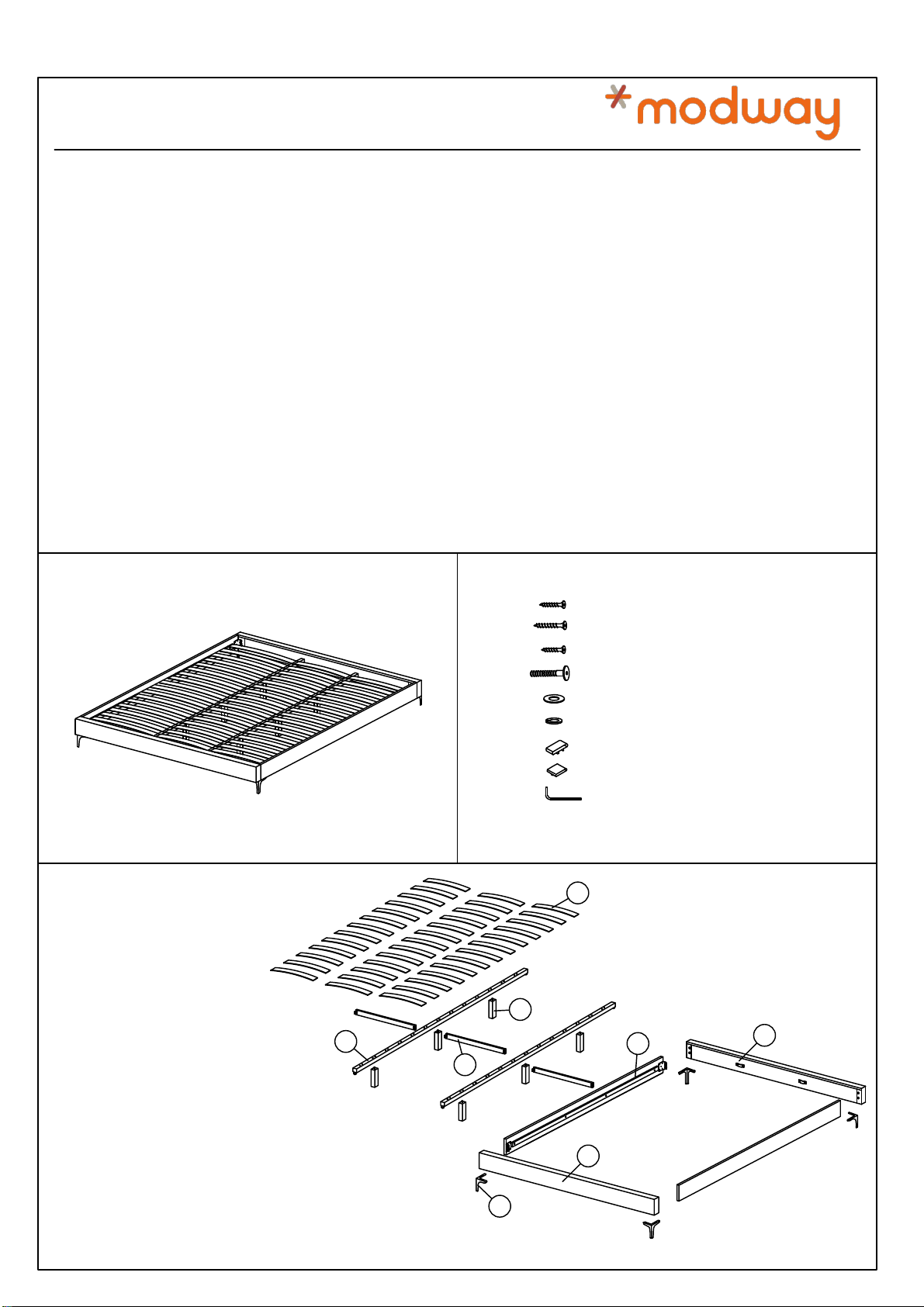

A. HEADBOARD

C. SIDE RAIL (L/R)

D. CENTER RAIL

E. CENTER RAIL LEG

F. CENTER RAIL SUPPORT

G. BED SLAT

H. BED LEG

01 of 05

MOD - 6307

x 1

x 2

x 6

x 3

x 39

x 4

B. FOOTBOARD x 1

1WOOD SCREW M4 x 20mm 4 PCS

2WOOD SCREW M4 x 25mm 12 PCS

4JCBB BOLT M8 x 30mm 4 PCS

M8 SPRING WASHER

4 PCS

M8 FLAT WASHER

4 PCS

BED SLAT CENTER FITTER

726 PCS

WOOD SCREW M3.5 x 16mm 12 PCS

BED SLAT CENTER FITTER

826 PCS

M5 ALLEN KEY (BALL SHAPE)

9 1 PC

2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or

padded area, in the room that it is intended for. Approximate assembly time: 35 minutes.

STEP 1

02 of 05

MOD - 6307

STEP 2

2. WOOD SCREW M4 x 25mm x 12pcs

5649

STEP 1.1

STEP 1.2

4. JCBB BOLT M8 x 30mm x 4pcs 5. M8 FLAT WASHER x 4pcs

6. M8 SPRING WASHER x 4pcs 9. M5 ALLEN KEY (BALL SHAPE) x 1pcs

Screw Driver

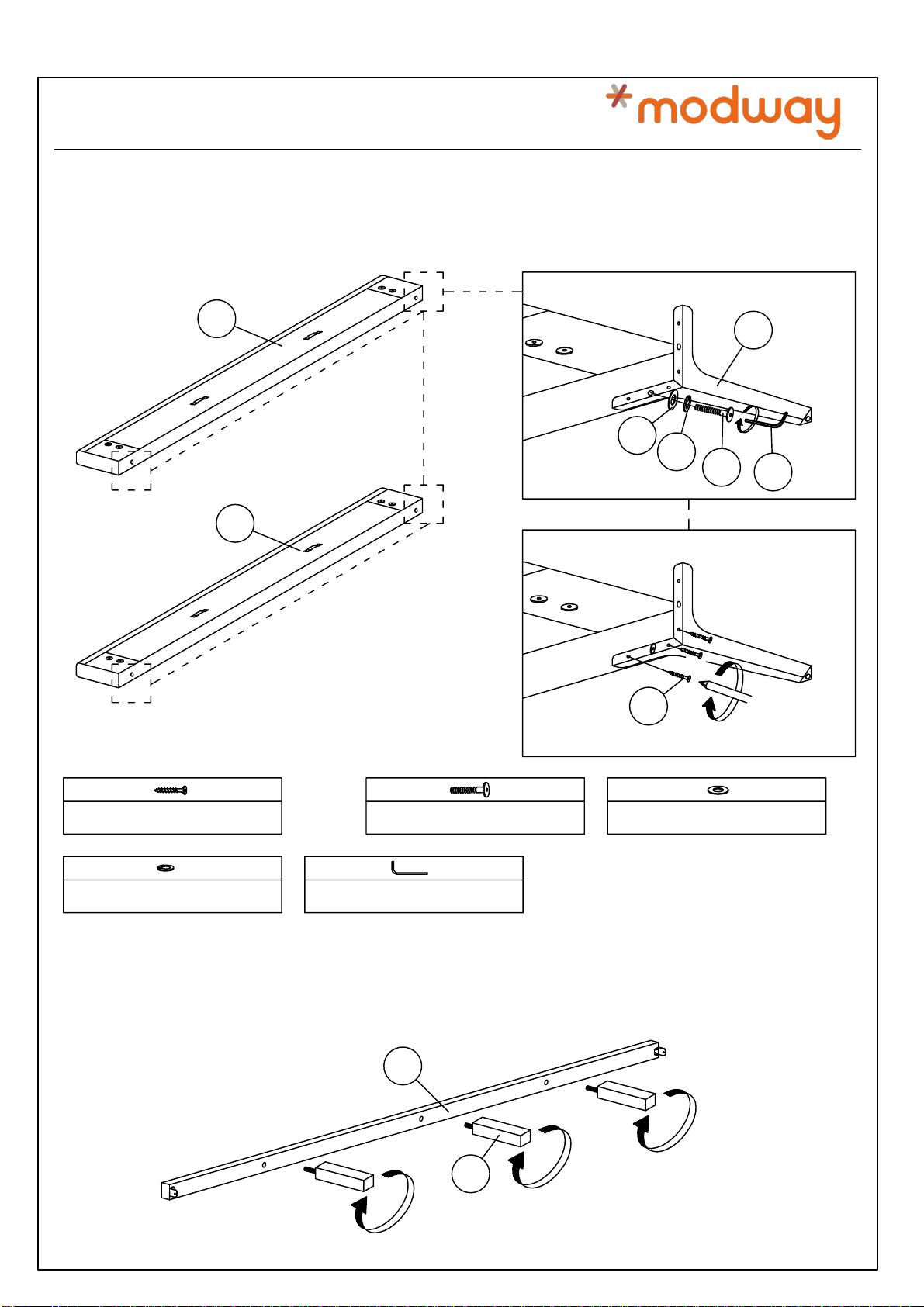

2.1 Fasten Center Rail Leg (E) to Center Rail (D) attach by screwing the protruding nut

into the corresponding holes.

1.1 Insert and secure the Bed Leg (H) to the Headboard (A) and Footboard (B) using hardware

parts Wood Screw (2), Bolt (4), Flat Washer (5), Spring Washer (6) and Allen Key (9).

STEP 3

03 of 05

STEP 4

MOD - 6307

9. M5 ALLEN KEY (BALL SHAPE) x 1pcs

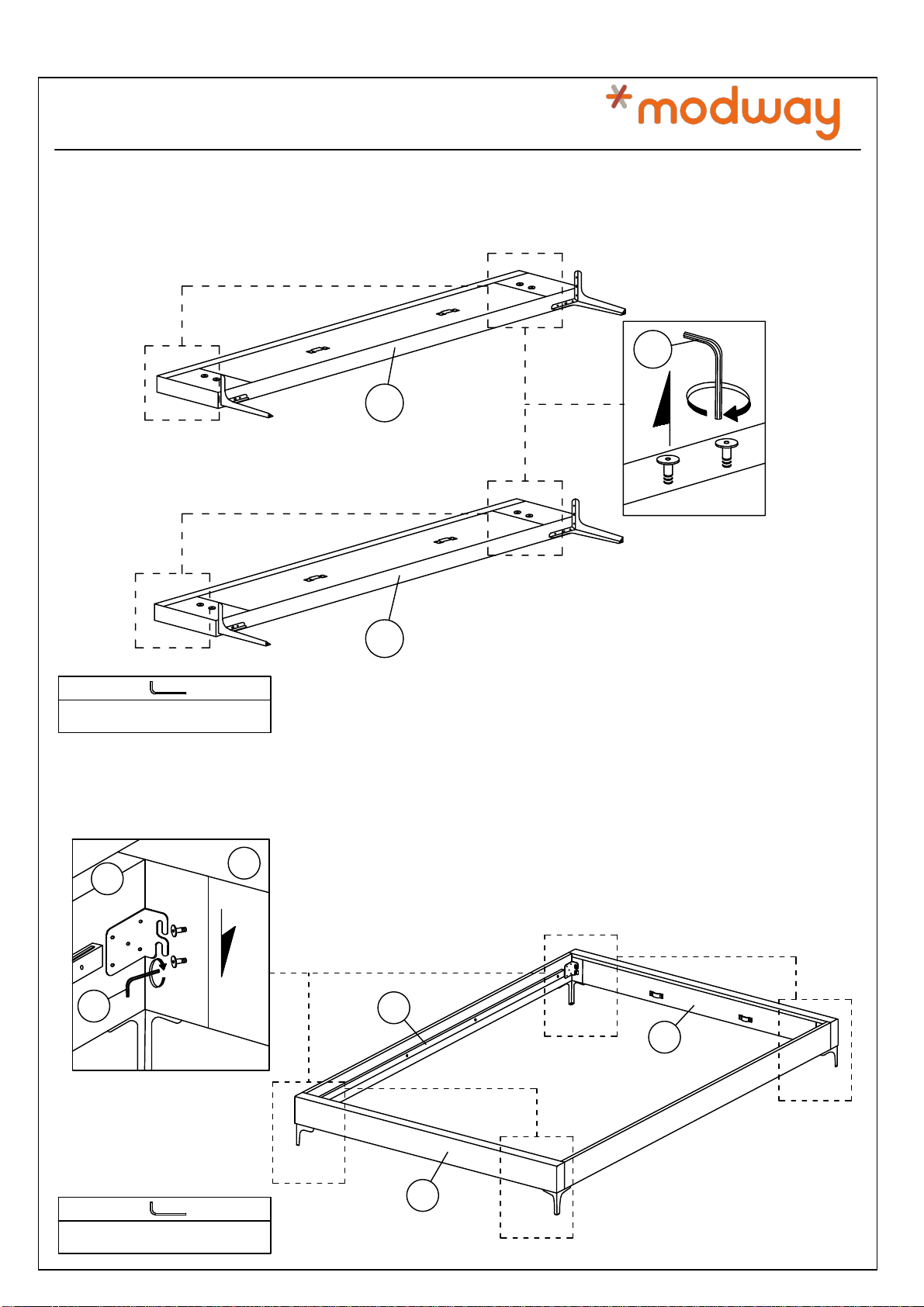

4.1 Attach the Side Rails (C) to the Headboard (A) & Footboard (B) using hardware part

Allen Key (9).

3.1 Loosen the pre-inserted bolt on the Headboard (A) & Footboard (B) using hardware part

Allen Key (9).

STEP 5

STEP 6

04 of 05

3. WOOD SCREW M3.5 x 16mm x 12pcs

1. WOOD SCREW M4 x 20mm x 4pcs

x 4

x 2

Screw Driver

MOD - 6307

6.1 Locate Center Rail (D) into the corresponding brackets inside of Headboard (A) and

footboard (B) using hardware parts Wood Screw (1) .

5.1 Locate Center Rail (D) into the corresponding brackets inside of Headboard (A) and

Footboard (B).

5.2 Insert and secure the Center Rail Support (F) to the Center Rail (D) & Side Rail (C) using

hardware parts Wood Screw (3).

05 of 05

STEP 7

Assembly is complete. The bed is ready to use now!

NOTE: Hardware may loosen over time. Periodically check that all connections are tight.

STEP 8

8.1 Carefully position the assembled bed to the desired location by four adults.

4. BED SLAT SIDE FITTER x 26pcs 5. BED SLAT CENTER FITTER x 26pcs

Palm

STEP 7.2

STEP7.1

MOD - 6307

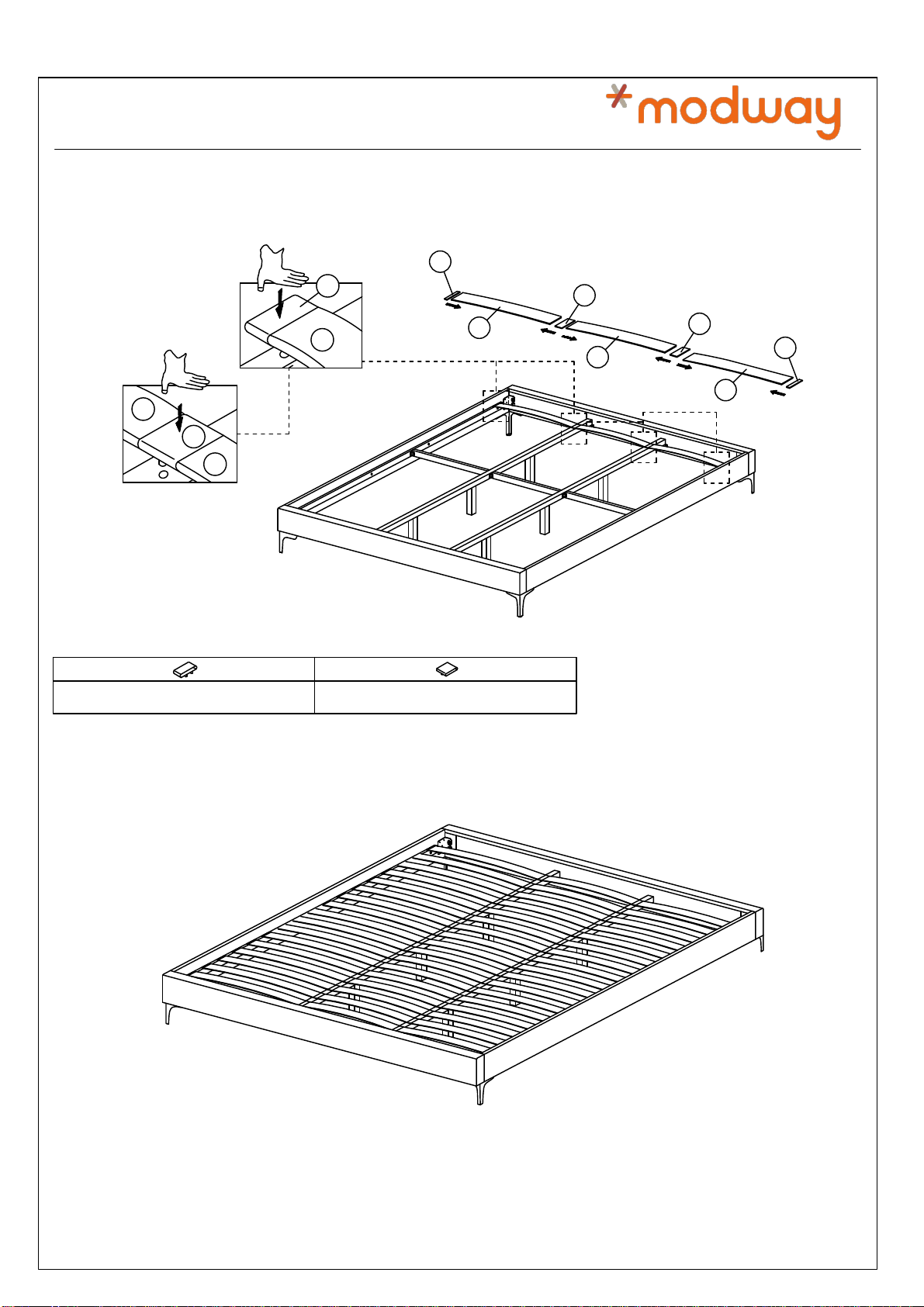

7.1 Insert the Slats (G) into the end slat cap (7) & (8) and fix it to the corresponding holes

on the Side Rail (C) .
