Modern Forms Slim Manuel utilisateur
Slim
Installation Instructions
works with the
Google Assistant
Compatible with
Please read and review instructions
before installation
For all questions about your ceiling fan please read
all included instructions, installation procedures,
troubleshooting guidelines and warranty information
before starting installation
For fast service have the following information below
when you call:
For missing parts or general inquiries
call our trained technical sta at:
• Model Name and Number
• Part Number and Part Description
• Date Of Purchase and Purchase Location
Email: [email protected]
Or live chat at modernforms.com
Email: [email protected]
1-866-810-6615 option 01-866-810-6615 option 1
MON-FRI 8AM-8PM EST MON-FRI 8AM-8PM EST
02 General Inquiries 02 Fan Support
DO NOT RETURN TO STORE
To reduce the risk of electric shock, ensure electricity has been
turned o at the circuit breaker before beginning.
All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70” and local electrical codes. Electrical installation
should be performed by a licensed electrician.
To reduce the risk of re, electric shock, personal injury or damage to
the fan or other items, the outlet box and support structure must be
securely mounted and capable of reliably supporting a minimum of
35 Ibs (15.9 kg). Use only UL/cUL
listed outlet boxes marked “FOR FAN SUPPORT.” Use only
the screws and washers provided with the outlet box.
The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the fan blades to the oor
and a minimum of 1.5 ft (0.5m) from the edge of the fan blades to
the surrounding walls.
Never place objects in the path of the fan blades.
To avoid personal injury or damage to the fan and
other items, please be cautious when working around
or cleaning the fan.
To avoid electrical shock or damage to the motor or nish, do not
use water or chemicals when cleaning the fan or fan blades. A dry
cloth or lightly dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box, and
the
ungrounded conductor on the other side of the outlet box.
All set screws must be checked and re-tightened where necessary
before installation.
02 Safety Rules
For operation, maintenance, and troubleshooting information, visit http://modernforms.com/fan-support/
WARNING: Do not install or use your fan if any part(s) is/are
damaged or missing. This product is designed for use only with
the supplied parts and/or accessories designated for use with this
product by Modern Forms. Substitution of parts or accessories not
designated for use with this product by Modern Forms could result
in personal injury or property damage and will void the warranty.
Contact an authorized dealer or the manufacturer if any parts are
damaged or missing.
WARNING: To reduce the risk of electric shock, this fan must
be installed and operated with the supplied wall control, or
controlled from the Modern Forms app or Wi-Fi Touch Panel
Wall Control (not included).
WARNING: Do not use power tools to assemble or install your fan.
Using power tools can result in improper assembly which can lead to
noise or fan damage,personal injury or property damage.
WARNING: To reduce the risk of personal injury, do not bend the
blade arms when installing the brackets, balancing the blades or
cleaning the fan.
WARNING: Do not insert foreign objects between rotating fan blades.
WARNING: Do not operate fan unless fan blades are in place.
Noise and fan damage can occur
WARNING: This appliance is not intended for use by young
children without supervision.
CAUTION: Before assembling your fan, refer to the “Making
the Electrical Connections“ section. If you feel you do not have
enough wiring knowledge or experience, have your fan installed
by a licensed electrican.
NOTE: Before servicing or cleaning the fan, switch power o at
the circuit breaker.
02 Safety Rules
All Modern Forms Smart Fans are:
DC
MOTOR
WET
02 Get Smart
works with the
Google Assistant
WALL CONTROL
F-WCBT-WT
Included with
each fan
6 fan speeds
Dims light to 1%
ON/OFF
FREE APP DOWNLOAD
Sync with our exclusive
Modern Forms app to
control fan speed, use
smart features like
Adaptive Learning,
create groups and
reduce energy costs
Quiet, reliable, and up to 70%
more ecient than AC fans
Durably nished and rated
for interior and exterior use
Wi-Fi and Bluetooth enabled
for exible control
Wet location-listed to the strictest
UL/cUL safety regulations
Coordinate with smart devices
for voice-activated control
WI-FI TOUCH PANEL
WALL CONTROL
F-TS-BK Black
F-TS-WT White
Sold separately
Full app control
REMOTE CONTROL
F-RCBT-WT White
Included with
each fan
6 fan speeds
Dims light to 1%
ON/OFF
Compatible with our free
Modern Forms app
The Modern Forms app integrates seamlessly with smart home devices you already own.
Package Contents
Mounting Options
Installing the Mounting Bracket
Attaching the Fan Blades
Hanging the Fan
Making the Electrical Connections
Installing the Wall Control
Finishing the Installation
Installing the Luminaire Module
Controlling the Fan
Factory Reset
App Instructions
Accessories
9.
10.
10.
11.
12.
13.
14.
16.
17.
20.
21.
22.
24.
4
7
8
9
9
10
11
12
13
14
5
5
6
Table of Contents
FR-W20038
Electrical tape
Phillips screwdriver Step ladder Wire cutters
NOTE: Before discarding packaging materials, be certain all parts have been removed.
NOTE: Place the parts from the hardware bag into a small container to keep them from being lost.
IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place.
MAC ID
03 Tools & Materials Required
9FR-W2003
NOTE: ** denotes nish code of fan
*** denotes blade sweep of fan
1
9
6
3
8
14
5
4
13
2
7
10 12
11 Remote
Control
F-RCBT-WT
Canopy Ring
Adapter Plate
Coupling
Cover
Safety Cable
6.5” x 19 x 2mm
Flat washer
(1pcs)
Safety Cable
#10 x 76mm
Pan head
Philips wood screw
(1pc)
Safety Cable
3/16” (5.2 x 8.4
x1mm)
Spring washer (1pc)
Hardware Bag
RPL-FR2003-PARTS
Blade Screws
3/16*12 mm
Philip washer head
screws (10pcs)
Flywheel Screws
1/4” x 11mm
Phillips/Slotted pan
head screws (6pcs)
Canopy
Motor Housing
Fan Blade
RPL-F2003-***-BD-**

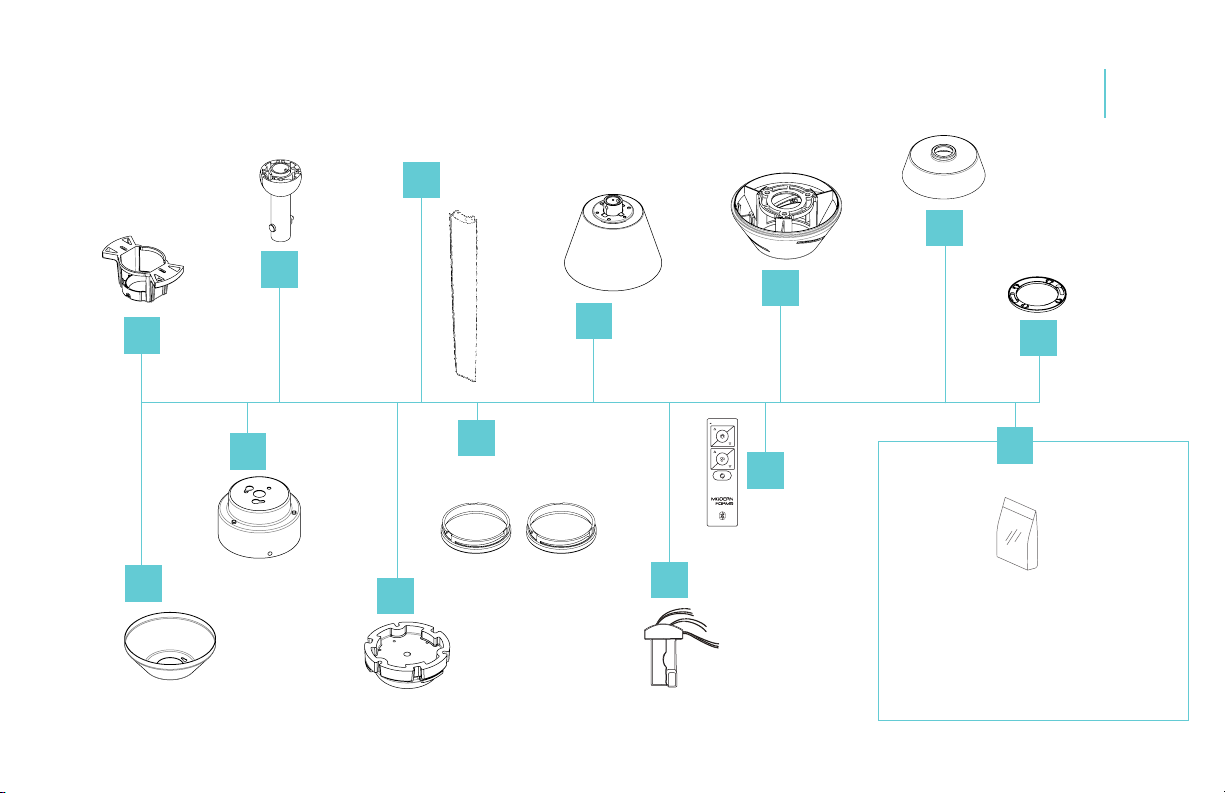

Package Contents 04
Downrod
Assembly
RPL-F2003-HGR-**
Mounting
Bracket
RPL-F2003-HGR-**
PC Shade
RPL-F2003-GLA
Luminaire Cover
RPL-F2003-COVER-**
Luminaire Module
F3IN-120V-R1-30
Receiver
F-R3-2003-052
Motor Assembly
RPL-F2003-HGR-**
FR-W200310
1 2
05 Mounting Options Installing the Mounting Bracket
1. Remove 1 set screw from mounting bracket and set aside for use
in Finishing the Installation.
2. Pass supply wires through mounting bracket and secure to outlet
box.
Standard Ceiling Slope Ceiling Caution: Remember to disconnect
the power at the circuit breaker.
CAUTION: To prevent electrical shock, ensure electricity has been
turned o at the circuit breaker before beginning.
Figures 1 and 2 are examples of dierent ways to mount the
outlet box.
