Modern Forms Torque Manuel utilisateur

Installation Instructions

Torque

works with the

Google Assistant

FR-W2204-58Torque Instructions2

Please read and

save these instructions

before installation

DO NOT RETURN TO STORE

FR-W2204-58 Torque Instructions 3

For all questions about your ceiling fan please read all included

instructions, installation procedures, troubleshooting guidelines

and warranty information before starting installation.

For missing parts or general inquiries call our trained technical staﬀ at:

1-866-810-6615 option 0

MON-FRI 8AM-8PM EST

Email: customerservice@modernforms.com

Or live chat at modernforms.com

For fast service have the following information below when you call:

1. Model Name and Number

2. Part Number and Part Description

3. Date Of Purchase and Purchase Location

1-866-810-6615 option 1

MON-FRI 8AM-8PM EST

Email: fansupport@modernforms.com

General Inquiries

Fan Support

FR-W2204-58Torque Instructions4

For operation, maintenance, and troubleshooting information,

visit http://modernforms.com/fan-support/

To reduce the risk of electric shock, ensure electricity has been turned oﬀ at the circuit breaker before

beginning. All wiring must be in accordance with the National Electrical Code“ANSI/NFPA 70” and

local electrical codes. Electrical installation should be performed by a licensed electrician.

The fan must be mounted with a minimum of 7 ft. (2.1m) clearance from the trailing edge of

the fan blades to the floor and a minimum of 1.5 ft (0.5m) from the edge of the fan blades to the

surrounding walls. Never place objects in the path of the fan blades. To avoid personal injury or

damage to the fan and other items, please be cautious when working around or cleaning the fan.

To avoid electrical shock or damage to the motor or ﬁnish, do not use water or chemicals

when cleaning the fan or fan blades. A dry cloth or lightly dampened cloth will be suitable

for most cleaning.

After making electrical connections, spliced conductors should be turned upward and pushed

carefully up into the outlet box. The wires should be spread apart with the grounded conductor and

the equipment-grounding conductor on one side of the outlet box, and the ungrounded conductor on

the other side of the outlet box.

All set screws must be checked and re-tightened

where necessary before installation.

Safety Rules

FR-W2204-58 Torque Instructions 5

WARNING:Do not install or use your fan if any part(s) is/are damaged or missing. This product is

designed for use only with the supplied parts and/or accessories designated for use with this product

by Modern Forms. Substitution of parts or accessories not designated for use with this product by

Modern Forms could result in personal injury or property damage and will void the warranty. Contact

an authorized dealer or the manufacturer if any parts are damaged or missing.

WARNING:To reduce the risk of electric shock, this fan must

be installed and operated with the supplied wall control, or controlled from the Modern Forms app.

WARNING:Do not use power tools to assemble or install your fan. Using power tools can result in

improper assembly which can lead to noise or fan damage,personal injury or property damage.

WARNING:To reduce the risk of personal injury, do not bend the blade arms when installing the

brackets, balancing the blades or cleaning the fan.

WARNING: Do not insert foreign objects between rotating fan blades.

WARNING:Do not operate fan unless fan blades are in place. Noise and fan damage can occur

WARNING:This appliance is not intended for use by young children without supervision.

WARNING: To reduce the risk of ﬁre, electric shock, personal injury or damage to the fan or other

items, the outlet box and support structure must be securely mounted and capable of reliably

supporting a minimum of 35 Ibs (15.9 kg). Use only UL/cUL listed outlet boxes marked “FOR FAN

SUPPORT.” Use only the screws and washers provided with the outlet box.

CAUTION:Before assembling your fan, refer to the “Making the Electrical Connections“ section.

If you feel you do not have enough wiring knowledge or experience, have your fan

installed by a licensed electrician.

NOTE:Before servicing or cleaning the fan, switch power oﬀ at the circuit breaker.

FR-W2204-58Torque Instructions6

Integrates

seamlessly with:

devices you already own

works with the

Google Assistant

Get Smart...

Premium smart

features:

Accessories:

MOTOR

complement high quality materials

personalize your experience

Quiet, reliable, and up to 70%

Wi-Fi and Bluetooth enabled

Bluetooth Wall Control

6 fan speeds | Sold separately

F-WCBT-WT White

Bluetooth Remote Control

6 fan speeds

F-RCBT-WT White

Wet Location-listed to the strictest

UL/cUL safety regulations. Finished

and rated for interior and exterior use

FR-W2204-58 Torque Instructions 7

1. Mounting Options 10

2. Installing the Mounting Bracket 12

3. Attaching the Fan Blades/Decorative Bottom Assembly/ 12

4. Hanging the Fan 14

5. Making the Electrical Connections 16

6. Installing the Optional Wall Control 18

7. Finishing the Installation 20

8. Controlling the Fan 22

9. Reset 24

10. Breeze Mode 24

11 . Application 24

12. Accessories 26

13. Troubleshooting 28-31

Contents

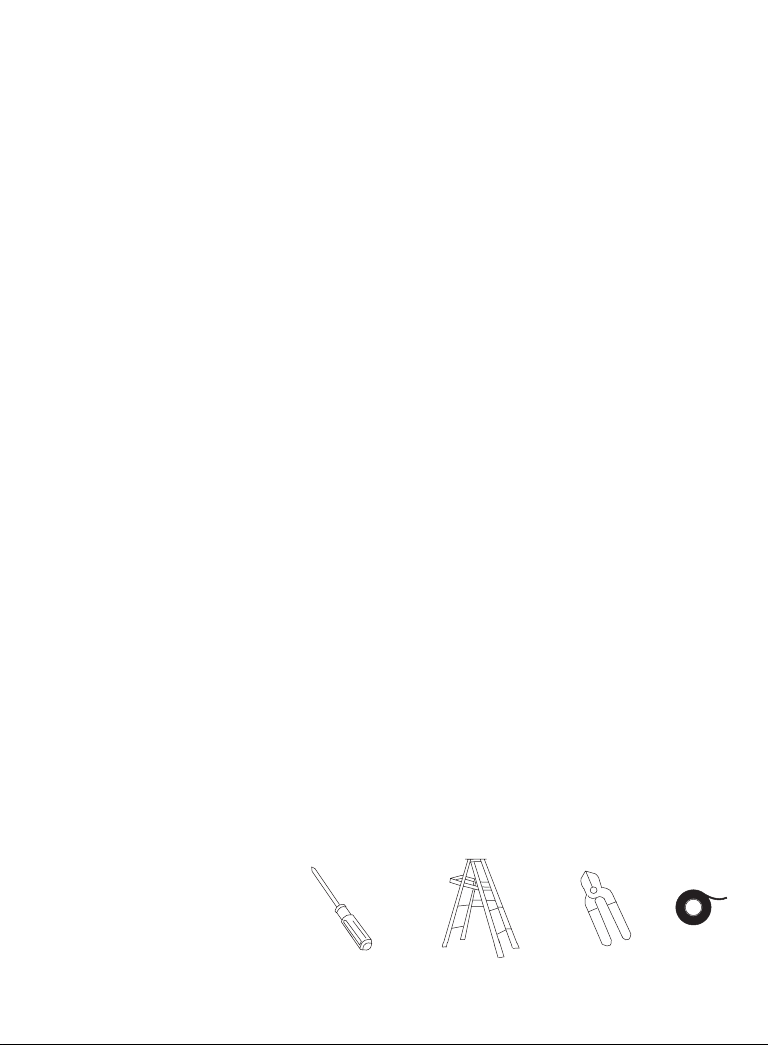

Tools Required

FR-W2204-58LTorque Instructions8

C: De

RPL-F2204-HEX-**

corative Bottom Assembly Screws*

M3 L-Shaped Hex Wrench (1)

M5 Hex Screws (7)

D: Safety Cable

E: Wire Nuts/Ties

Φ6.5x19x2mm Flat Washer (1)

3/16"(Φ5.2x8.4x1.0mm) Spring Washer (1)

#10x76mm Pan Head Phillip Wood Screws (1)

A: Junction Box

#10 x 38mm Pan Head Phillip Screws (2)

Ø5 x 14 x 1mm Flat Washer (2)

3/16" Star Washer (2)

B: Blade Screws/Washers

1/4" x 19" Pan Head Phillip Screws (7)

1/4 (6x13x1mm) Flat Washers (7)

Φ6x14x1mm Rubber Washers (7)

6. Decorative Bottom Assembly

7. Decorative Bottom Cap

8. Control Receiver

w/Hardware

F-R3N-2204-058

RPL-F2204CAPASM-**

RPL-F2204DECASM-**

9. Remote Control

F-RCBT-WT

• Part A

• Part B

• Part C

• Part D

• Part E

1. Blade Set of 3

RPL-F2204-58-BD-**

2. Hanger Assembly

Mounting Bracket

Downrod Assembly

RPL-HGR-ASM-**

3. Canopy w/Canopy Ring

RPL-F2204COUCVR-**

L-CAN-OCT-**

4. Coupling Cover

5. Motor Assembly

Package Contents

The standard hardware bag does not come

included with hex screws/wrench. To order

replacement hex screws/wrench - order part

no. RPL-F2204-HEX-**

efore discarding packaging materials be certain all parts have been removed.

Place the parts from the hardware bag into a small container to keep them from being lost.

Hardware Bag

RPL-F2204-PARTS

** denotes ﬁnish code of fan

Hardware Bag

Found with the receiver

FR-W2204-58 Torque Instructions 9

Hanging Weight: 19 lbs

IMPORTANT: Please make note of

the MAC ID on the receiver and

keep it in a safe place.

MACID

FR-W2204-58LTorque Instructions10

1. Mounting Options

CAUTION:To prevent electrical shock, ensure electricity has been

turned oﬀ at the circuit breaker before beginning.

If there isn’t an existing UL/cUL listed outlet box, please refer to the

following instructions. Secure the outlet box directly to the building

structure. Use appropriate fasteners and building materials. The outlet

box and support structure must be able to fully support the moving

weight of the fan (at least 35 lbs/15.9 kg). Do not use plastic outlet boxes.

Use only UL/cUL listed outlet boxes marked “FOR FAN SUPPORT.”

Refer to Part A

Secure the outlet box directly to the building structure.

Figures 1-1C are examples of diﬀerent ways to mount the

outlet box.

NOTE: To hang your fan where there is an existing ﬁxture but no ceiling

joist, you may need an installation hanger bar.

NOTE: Downrod fans can be suspended up to a maximum recommended

length of 72” using additional downrods

(sold separately) and the included 80” lead wire.

NOTE: The sloped ceiling kit (sold separately) is required for sloped

ceiling applications, and will accommodate slopes up to 45° (Fig. 1B).

NOTE: You may need a longer downrod to maintain proper blade

clearance when installing on a steep, sloped ceiling (Fig. 1B).
